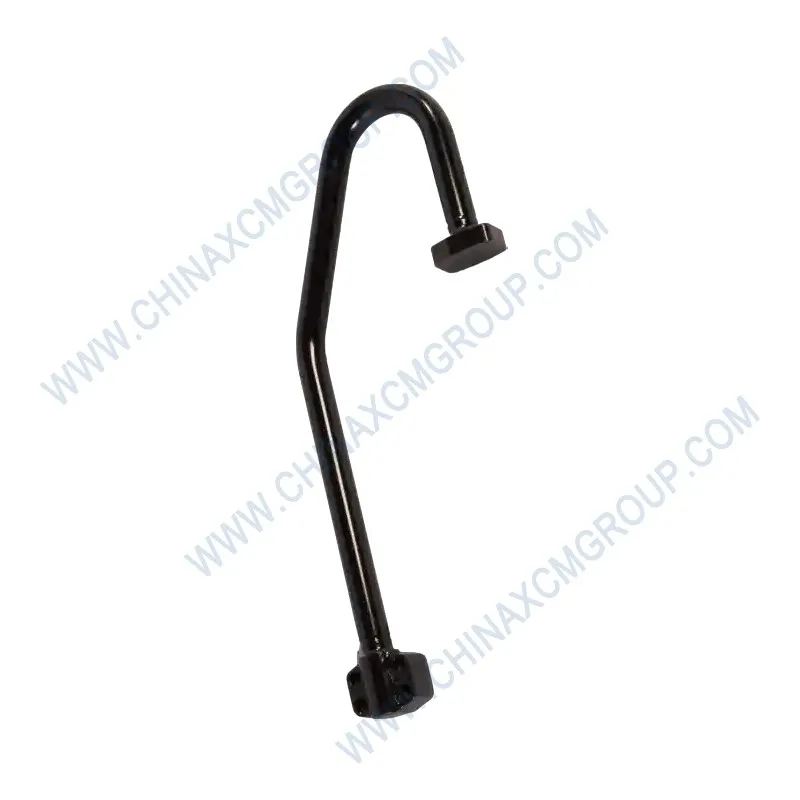

The 332107043 Steel Pipe Assembly is a precision‑manufactured hydraulic conduit designed to deliver reliable, leak‑free fluid transfer between critical hydraulic components on XCMG articulated dump trucks. This complete pipe assembly combines high‑strength seamless steel tubing with precision‑formed end connections, offering exceptional pressure‑handling capability, vibration resistance, and long‑term durability in the most demanding mining, quarrying, and heavy construction applications. Manufactured from premium seamless steel with a fully corrosion‑resistant zinc‑nickel plating and a durable black powder‑coat finish, the 332107043 steel pipe assembly ensures optimal hydraulic system performance, reduced maintenance costs, and extended component service life, making it an indispensable part of the vehicle’s hydraulic infrastructure.
The 332107043 Steel Pipe Assembly is a precision‑manufactured hydraulic conduit designed to deliver reliable, leak‑free fluid transfer between critical hydraulic components on XCMG articulated dump trucks.
This complete pipe assembly combines high‑strength seamless steel tubing with precision‑formed end connections, offering exceptional pressure‑handling capability, vibration resistance, and long‑term durability in the most demanding mining, quarrying, and heavy construction applications.
In the harsh operating conditions typical of heavy industry, hydraulic systems are subjected to extreme pressures, constant vibration, and exposure to abrasive dust and corrosive elements.
The 332107043 steel pipe assembly is engineered to withstand these demanding conditions, providing a robust, leak‑free conduit that maintains hydraulic system integrity and ensures reliable machine operation.
Manufactured from premium seamless steel tubing with a fully corrosion‑resistant zinc‑nickel plating and a durable black powder‑coat finish, this pipe assembly delivers exceptional pressure‑handling capability, wear resistance, and long‑term durability.
This component is a direct OEM replacement, restoring the original hydraulic circuit configuration and ensuring that all interconnected systems function as intended throughout the vehicle’s operating life.
The 332107043 Steel Pipe Assembly is a fundamental element in maintaining the hydraulic system integrity and operational reliability of XCMG articulated dump trucks.
Properly installed and maintained steel pipe assemblies ensure that hydraulic fluid is delivered at the correct pressure and flow rate to actuators, motors, and valves, enabling precise machine control.
A failed or leaking pipe assembly can lead to pressure loss, reduced system efficiency, and contamination of the hydraulic fluid, causing accelerated wear of pumps, valves, and actuators.
By ensuring that the 332107043 steel pipe assembly is in optimal condition, operators can prevent costly hydraulic system failures, reduce unplanned downtime, and maintain the dump truck’s productivity and safety.
The 332107043 Steel Pipe Assembly features a carefully engineered design that combines high pressure capacity, precise fitment, and ease of installation.
The pipe is precision‑drawn from seamless carbon steel, ensuring consistent wall thickness and a smooth internal bore that minimizes flow resistance and turbulence.
A nominal outer diameter of 28 mm and a wall thickness of 3.0 mm provide the strength required to withstand operating pressures up to 380 bar with a generous safety margin.
The end fittings are precision‑machined from high‑strength steel and welded or brazed to the pipe ends, creating a permanent, leak‑free joint that withstands severe vibration and thermal cycling.
The 24° cone fitting design (DIN 2353 / ISO 8434-1) ensures a reliable metal‑to‑metal seal that is resistant to loosening under vibration and provides excellent sealing performance at high pressures.
The assembly is designed with a specific bend geometry that matches the vehicle’s hydraulic routing, ensuring a perfect fit without the need for field modification.
The 332107043 Steel Pipe Assembly is produced using advanced tube‑bending, welding, and machining processes, ensuring consistent dimensional accuracy and performance characteristics.
The seamless steel tubing is sourced from approved mills and undergoes rigorous inspection for chemical composition, mechanical properties, and dimensional accuracy.
CNC tube‑bending operations are performed on high‑precision machines, with regular tooling checks and in‑process measurements to maintain tight tolerances on bend radius, angles, and pipe length.
Each assembly is 100% inspected for dimensional accuracy, fitting orientation, and surface finish. A sample from each production batch is subjected to pressure testing and leak testing.
The 332107043 Steel Pipe Assembly is protected by a dual‑layer coating system that ensures exceptional corrosion resistance and a professional appearance.
The base layer is a zinc‑nickel electroplating that provides sacrificial cathodic protection and offers over 500 hours of salt spray resistance (ASTM B117), significantly outperforming standard zinc plating.
The top coat is a black powder coating that is baked on to form a tough, abrasion‑resistant finish. This coating provides excellent resistance to stone chipping, UV degradation, and chemical exposure.
The combination of these coatings ensures that the pipe assembly retains its protective properties and appearance even after years of service in aggressive mining and construction environments.
The corrosion‑resistant finish also prevents the formation of rust that could contaminate the hydraulic fluid and damage sensitive system components.
The 332107043 Steel Pipe Assembly is manufactured from premium ST37.4 / E355 seamless carbon steel tubing, a material renowned for its excellent strength, weldability, and toughness.
ST37.4 offers a minimum tensile strength of 370 MPa and excellent ductility, providing the structural integrity required to withstand the extreme pressures and vibration loads encountered during vehicle operation.
The tubing’s low carbon equivalent ensures good formability and weldability, making it suitable for the precision bending and end‑fitting attachment processes used in the assembly’s manufacture.
Each assembly is produced in ISO 9001 and ISO 14001 certified facilities, with strict process controls at every stage – from raw material verification to final inspection and testing.
The chemical composition is verified using spectrometer analysis, ensuring it meets the specified requirements for carbon, manganese, and other alloying elements.
Dimensional accuracy is verified using precision measurement tools, with critical pipe diameter, wall thickness, length, and bend geometry checked against the engineering drawings to ensure a perfect fit.
The result is a steel pipe assembly that delivers consistent, reliable performance, with a service life that matches or exceeds that of the original equipment.
The 332107043 Steel Pipe Assembly plays a vital role in preventing hydraulic system failures and ensuring the operational safety of XCMG articulated dump trucks.
A leaking or burst pipe assembly can cause sudden loss of hydraulic pressure, leading to loss of steering, braking, or dumping functions – a serious safety hazard for operators and bystanders.
Hydraulic fluid leaks can also pose environmental risks and increase operating costs due to the expense of fluid replacement and cleanup.
The 332107043 steel pipe assembly prevents these issues by providing a robust, leak‑free conduit that maintains system pressure and prevents contamination ingress.
Regular inspection of pipe assemblies is essential to identify early signs of wear, corrosion, or damage. Any damaged assemblies should be replaced immediately.
Using a genuine XCMG 332107043 steel pipe assembly ensures that the component meets the original design specifications, providing the intended level of strength and sealing performance.
The 332107043 Steel Pipe Assembly is specifically designed for use in XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series models.
These vehicles are deployed in a wide range of demanding applications, including open‑pit mining, quarrying, heavy construction, water conservancy, harbour operations, and large‑scale earthmoving projects.
The pipe assembly is used in various hydraulic circuits, including steering systems, braking systems, suspension systems, and dump body hoist circuits.
Beyond articulated dump trucks, this assembly can also be used in other XCMG equipment that employs similar hydraulic system configurations, such as wheel loaders, crawler dozers, and motor graders.
The assembly’s standard dimensions and fitting type make it a versatile replacement part for a wide range of heavy machinery, providing flexibility for maintenance and repair operations.
When replacing a worn or damaged steel pipe assembly, using the genuine 332107043 part ensures correct fitment, material strength, and sealing performance, safeguarding the hydraulic system it serves.
It is always recommended to replace O‑rings and sealing washers when installing a new pipe assembly to ensure a leak‑free connection.
Installing the 332107043 Steel Pipe Assembly is a process that requires careful attention to alignment, torque specifications, and cleanliness to ensure optimal sealing performance and longevity.
Before installation, depressurize the hydraulic system and clean the pipe assembly and the mating ports to remove any dirt, debris, or old sealant that could affect the seal.
Inspect the pipe assembly for any signs of damage, such as dents, scratches, or cracks. If any damage is found, replace the assembly before proceeding.
Position the pipe assembly in the vehicle, aligning the end fittings with the corresponding ports. Ensure that the pipe is not twisted or strained, as this can lead to premature failure.
Thread the fittings into the ports by hand until they are snug, then use a wrench to tighten them to the recommended torque of 40–45 N·m. Do not over‑tighten, as this may damage the threads or distort the sealing surfaces.
After installation, pressurize the hydraulic system and check for any signs of leakage around the fittings. If leakage is detected, re‑tighten the fittings to the specified torque.
During routine maintenance, inspect the pipe assembly for signs of wear, corrosion, or damage. Check the torque of the fittings and re‑tighten if necessary.
If any damage or significant wear is detected, replace the assembly immediately. Keeping a spare 332107043 steel pipe assembly on hand can help minimize downtime during unexpected repairs.
The 332107043 Steel Pipe Assembly is manufactured in ISO 9001 and ISO 14001 certified facilities, adhering to the highest quality and environmental management standards.
The raw material, ST37.4 seamless steel tubing, is sourced from approved mills and undergoes rigorous incoming inspection, including chemical analysis, tensile testing, and hardness testing.
The tube‑bending, welding, and machining processes are precisely controlled, with regular tooling maintenance and dimensional checks to ensure consistent part geometry and quality.
The zinc‑nickel plating and powder coating processes are carefully monitored, with coating thickness and adhesion verified using non‑destructive testing methods.
Each pipe assembly is 100% inspected for visual defects, dimensional accuracy, and surface finish. A sample from each production batch is subjected to pressure testing, leak testing, and salt spray testing.
These rigorous quality assurance measures guarantee that every 332107043 steel pipe assembly delivers the reliability, pressure‑handling performance, and durability expected from a genuine XCMG component.
Using genuine XCMG 332107043 steel pipe assemblies guarantees proper fit, optimal fluid transfer, and compatibility with the vehicle’s hydraulic system.
The 332107043 Steel Pipe Assembly is an essential component for ensuring the hydraulic system integrity and operational reliability of XCMG articulated dump trucks.
As a critical hydraulic conduit, this assembly provides robust, leak‑free fluid transfer that maintains system pressure, protects components from contamination, and ensures precise machine control.
Its high‑strength steel construction, advanced corrosion‑resistant coating, and precision‑formed fittings ensure exceptional durability and long‑term performance in the most demanding mining, quarrying, and construction environments.
With its precise OEM fitment and uncompromising quality, this steel pipe assembly offers outstanding value and peace of mind for fleet operators, maintenance professionals, and equipment owners alike.
Choosing the genuine XCMG 332107043 steel pipe assembly protects your hydraulic system from damage, reduces maintenance costs, and ensures that your articulated dump truck remains productive, reliable, and safe.
Always source genuine XCMG parts from authorised distributors to guarantee authenticity, compliance with OEM specifications, and long‑term performance.
Whether for planned maintenance or emergency repairs, the 332107043 steel pipe assembly is the trusted choice of professionals who demand the highest standards of quality and reliability in their heavy equipment.
