Air Reservoir
Воздушный ресивер
Depósito de aire

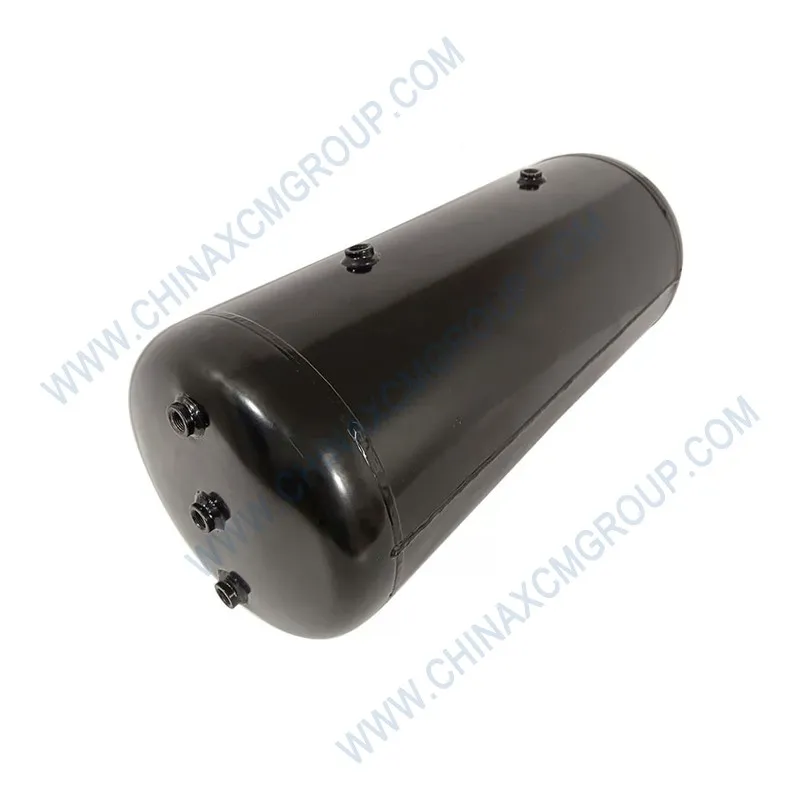

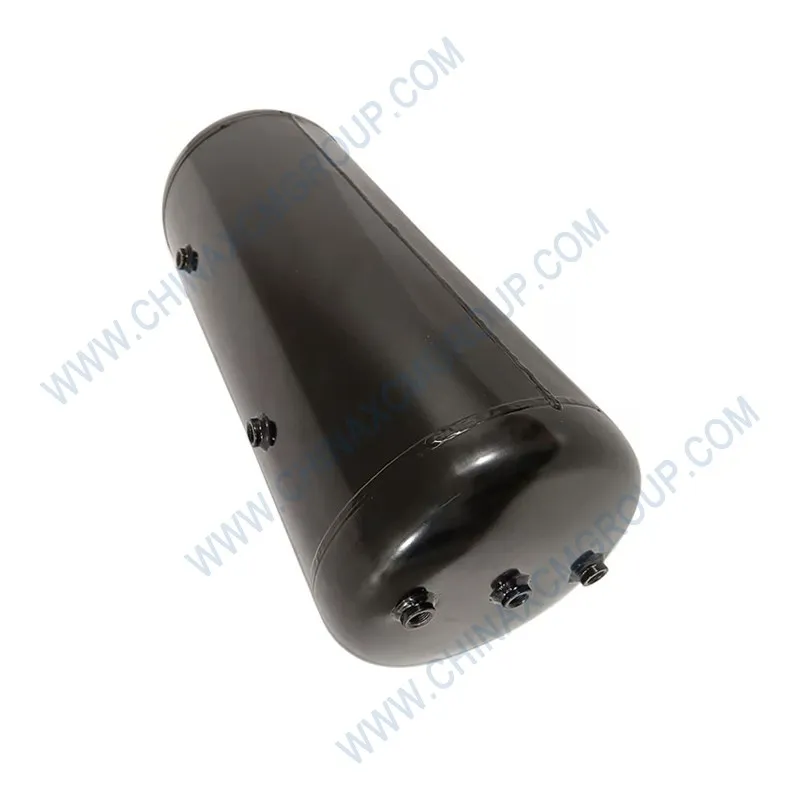

The 800989330 Air Reservoir is a high-capacity compressed air storage tank engineered to provide reliable, pressurized air supply for the braking, suspension, and auxiliary pneumatic systems on XCMG articulated dump trucks. This heavy-duty reservoir stores compressed air generated by the vehicle’s air compressor, ensuring immediate availability of pressurized air for critical safety and control functions, even during periods of peak demand or momentary compressor lag. Manufactured from high-strength steel with a fully corrosion-resistant zinc-nickel plating and a durable black powder-coat finish, the 800989330 air reservoir delivers exceptional pressure retention, structural integrity, and long-term durability, making it an indispensable component for maintaining braking performance, ride comfort, and overall machine reliability in the most demanding mining, quarrying, and heavy construction environments.
The 800989330 Air Reservoir is a high-capacity compressed air storage tank engineered to provide reliable, pressurized air supply for the braking, suspension, and auxiliary pneumatic systems on XCMG articulated dump trucks.
This heavy-duty reservoir stores compressed air generated by the vehicle’s air compressor, ensuring immediate availability of pressurized air for critical safety and control functions, even during periods of peak demand or momentary compressor lag.
In the harsh operating conditions typical of mining, quarrying, and heavy construction, the pneumatic system must respond instantly to brake applications, suspension adjustments, and control commands.
The 800989330 air reservoir is engineered to maintain stable system pressure, prevent pressure drops during simultaneous pneumatic operations, and provide a reserve air supply for emergency braking situations.
Manufactured from high-strength steel with a fully corrosion-resistant zinc-nickel plating and a durable black powder-coat finish, this reservoir delivers exceptional pressure retention, structural integrity, and long-term durability.
This component is a direct OEM replacement, restoring the original air storage capacity and ensuring that all pneumatic systems function as intended throughout the vehicle’s operating life.
The 800989330 Air Reservoir is a fundamental element in maintaining the braking performance and operational safety of XCMG articulated dump trucks.
Heavy-duty vehicles rely on compressed air to actuate foundation brakes, spring-applied parking brakes, and retarder systems. The air reservoir ensures that sufficient pressurized air is available for multiple brake applications without waiting for the compressor to recharge.
A properly sized and maintained air reservoir is essential for meeting regulatory brake performance requirements and ensuring the vehicle can stop safely under all load and grade conditions.
By ensuring that the 800989330 air reservoir is in optimal condition, operators can maintain maximum braking effectiveness, reduce stopping distances, and enhance overall safety in demanding mining and construction environments.
The 800989330 Air Reservoir features a carefully engineered design that combines high storage capacity, pressure integrity, and ease of installation.
The reservoir is manufactured from high-strength steel using precision welding and forming techniques, ensuring a seamless, leak-free construction that withstands repeated pressure cycles.
A nominal capacity of 40 liters provides ample air storage for the braking and suspension demands of heavy articulated dump trucks operating in severe conditions.
The reservoir features four M22 x 1.5 threaded ports, allowing for flexible connection to the air compressor, brake valves, suspension components, and auxiliary pneumatic devices.
Integrated mounting feet or brackets are welded to the reservoir body, providing secure attachment points that resist vibration and prevent movement during vehicle operation.
A drain valve port is incorporated at the lowest point of the reservoir, allowing for easy removal of condensation and contaminants that accumulate during normal operation.
The 800989330 Air Reservoir is produced using advanced welding, forming, and testing processes, ensuring consistent quality and pressure integrity.
The steel sheets are sourced from approved mills and undergo rigorous inspection for chemical composition, mechanical properties, and surface quality.
Welding operations are performed by certified welders using automated processes, with regular non-destructive testing (NDT) to verify weld integrity and freedom from defects.
Each reservoir is hydrostatically tested to 1.5 times the maximum working pressure to verify structural integrity and leak-free performance before leaving the factory.
The 800989330 Air Reservoir is protected by a dual-layer coating system that ensures exceptional corrosion resistance and a professional appearance.
The base layer is a zinc-nickel electroplating that provides sacrificial cathodic protection and offers over 500 hours of salt spray resistance (ASTM B117), significantly outperforming standard zinc plating.
The top coat is a black powder coating that is baked on to form a tough, abrasion-resistant finish. This coating provides excellent resistance to stone chipping, UV degradation, and chemical exposure.
The combination of these coatings ensures that the reservoir retains its protective properties and appearance even after years of service in aggressive mining and construction environments.
The corrosion-resistant finish also prevents internal rust formation that could contaminate the air system and damage sensitive pneumatic valves and actuators.
The 800989330 Air Reservoir is manufactured from premium ST37-2 (equivalent to S235JR) carbon steel, a material renowned for its excellent strength, weldability, and toughness.
ST37-2 offers a minimum yield strength of 235 MPa and excellent ductility, providing the structural integrity required to withstand the repeated pressure cycling and vibration loads encountered during vehicle operation.
The steel’s low carbon equivalent ensures good formability and weldability, making it suitable for the deep-drawing and welding processes used in the reservoir’s manufacture.
Each reservoir is produced in ISO 9001 and ISO 14001 certified facilities, with strict process controls at every stage – from raw material verification to final inspection and pressure testing.
The chemical composition is verified using spectrometer analysis, ensuring it meets the specified requirements for carbon, manganese, and other alloying elements.
Dimensional accuracy is verified using precision measurement tools, with critical diameter, length, port positions, and mounting bracket alignment checked against the engineering drawings to ensure a perfect fit.
The result is an air reservoir that delivers consistent, reliable performance, with a service life that matches or exceeds that of the original equipment.
The 800989330 Air Reservoir plays a vital role in preventing pneumatic system failures and ensuring the operational safety of XCMG articulated dump trucks.
Moisture and contaminants naturally accumulate in air reservoirs over time due to condensation from compressed air. If not drained regularly, this moisture can cause internal corrosion and contaminate downstream pneumatic components.
A rusted or leaking reservoir can lead to loss of air pressure, reduced braking effectiveness, and potential failure of the spring-applied parking brake – a serious safety hazard.
Regular inspection of the air reservoir is essential to identify early signs of corrosion, pitting, or damage. Any compromised reservoirs should be replaced immediately.
Using a genuine XCMG 800989330 air reservoir ensures that the component meets the original design specifications, providing the intended level of strength and pressure retention.
It is recommended to drain the air reservoir daily or at the end of each shift to remove accumulated moisture and extend the life of the pneumatic system.
The 800989330 Air Reservoir is specifically designed for use in XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series models.
These vehicles are deployed in a wide range of demanding applications, including open-pit mining, quarrying, heavy construction, water conservancy, harbour operations, and large-scale earthmoving projects.
The air reservoir is a critical component of the vehicle’s compressed air system, serving the service brakes, parking brakes, suspension air springs, and various pneumatic control circuits.
Beyond articulated dump trucks, this reservoir can also be used in other XCMG equipment that employs similar pneumatic system configurations, such as wheel loaders, crawler dozers, and motor graders.
The reservoir’s standard port configuration and mounting dimensions make it a versatile replacement part for a wide range of heavy machinery, providing flexibility for maintenance and repair operations.
When replacing a worn or damaged air reservoir, using the genuine 800989330 part ensures correct fitment, material strength, and pressure rating, safeguarding the pneumatic system it serves.
It is always recommended to replace the drain valve and check the condition of all associated air lines and fittings when installing a new reservoir.
Installing the 800989330 Air Reservoir is a process that requires attention to safety, proper mounting, and leak-free connections.
Before installation, depressurize the air system and drain any residual pressure from the existing reservoir. Ensure the vehicle is safely supported and the work area is clean and well-ventilated.
Inspect the new reservoir for any signs of damage, such as dents, scratches, or weld defects. If any damage is found, do not install the reservoir and contact your supplier.
Position the reservoir in the vehicle, aligning the mounting brackets with the corresponding mounting points on the chassis. Secure the reservoir using the specified bolts and torque them to the manufacturer’s recommended specification.
Connect the air lines to the appropriate ports, ensuring that the connections are tight and free from leaks. Use thread sealant or Teflon tape on the pipe threads to prevent air leakage.
After installation, pressurize the air system and check for any signs of leakage around the fittings and welds. Use a soapy water solution to detect even the smallest leaks.
During routine maintenance, inspect the air reservoir for signs of corrosion, pitting, or damage. Check the drain valve to ensure it is functioning correctly and drain any accumulated moisture.
If any damage or significant corrosion is detected, replace the reservoir immediately. Keeping a spare 800989330 air reservoir on hand can help minimize downtime during unexpected repairs.
The 800989330 Air Reservoir is manufactured in ISO 9001 and ISO 14001 certified facilities, adhering to the highest quality and environmental management standards.
The raw material, ST37-2 steel sheet, is sourced from approved mills and undergoes rigorous incoming inspection, including chemical analysis, tensile testing, and hardness testing.
The forming, welding, and machining processes are precisely controlled, with regular tooling maintenance and quality checks to ensure consistent part geometry and weld integrity.
The zinc-nickel plating and powder coating processes are carefully monitored, with coating thickness and adhesion verified using non-destructive testing methods.
Each air reservoir is 100% hydrostatically tested to 1.5 times the maximum working pressure to verify structural integrity and leak-free performance. A sample from each production batch is subjected to salt spray testing and cycle testing.
These rigorous quality assurance measures guarantee that every 800989330 air reservoir delivers the reliability, pressure retention, and durability expected from a genuine XCMG component.
Using genuine XCMG 800989330 air reservoirs guarantees proper fit, optimal air storage capacity, and compatibility with the vehicle’s pneumatic system.
The 800989330 Air Reservoir is an essential component for ensuring the pneumatic system integrity and operational safety of XCMG articulated dump trucks.
As a critical air storage component, this reservoir provides reliable, pressurized air supply for braking, suspension, and control systems, ensuring immediate response and consistent performance under the most demanding conditions.
Its high-strength steel construction, advanced corrosion-resistant coating, and precision-engineered design ensure exceptional durability and long-term performance in the most demanding mining, quarrying, and construction environments.
With its precise OEM fitment and uncompromising quality, this air reservoir offers outstanding value and peace of mind for fleet operators, maintenance professionals, and equipment owners alike.
Choosing the genuine XCMG 800989330 air reservoir protects your pneumatic system from failure, reduces maintenance costs, and ensures that your articulated dump truck remains productive, reliable, and safe.
Always source genuine XCMG parts from authorised distributors to guarantee authenticity, compliance with OEM specifications, and long-term performance.
Whether for planned maintenance or emergency repairs, the 800989330 air reservoir is the trusted choice of professionals who demand the highest standards of quality and reliability in their heavy equipment.
