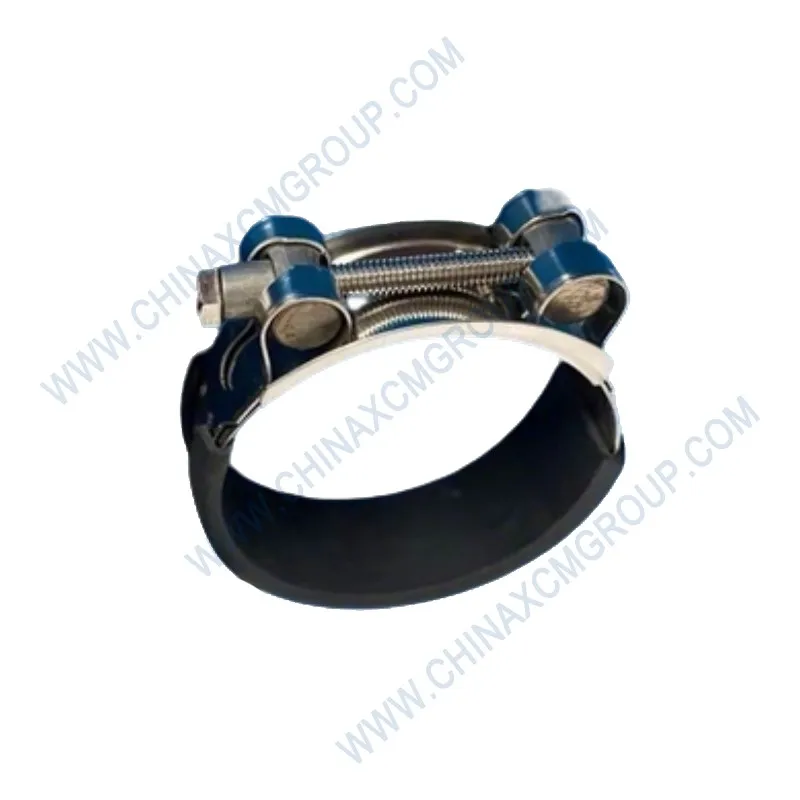

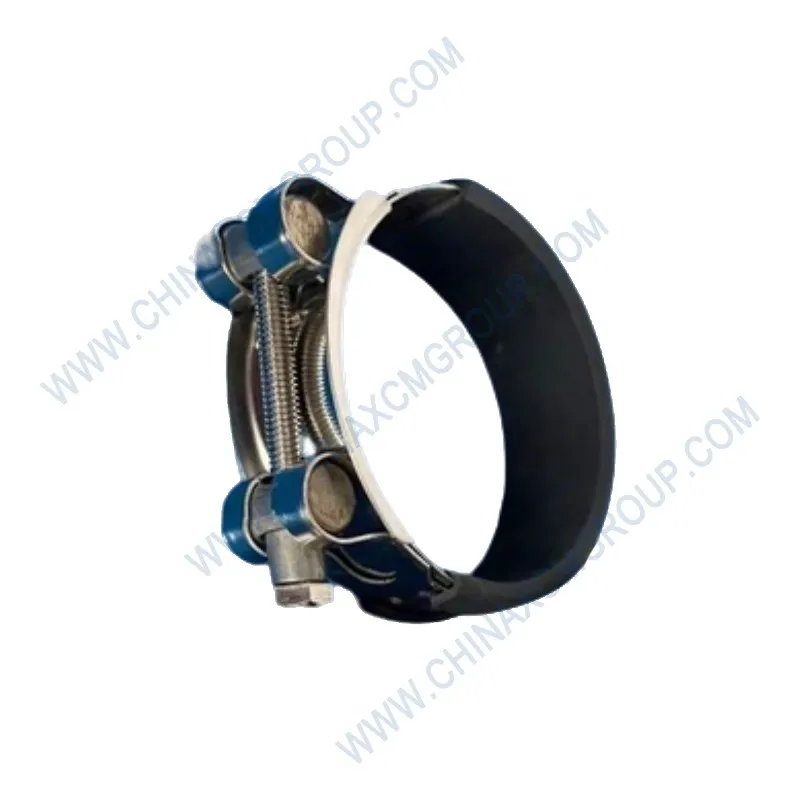

XCMG Rubber Sleeve Clamp OEM 819908628 – Heavy-Duty Line Retention for Articulated Dump Trucks
Rubber Sleeve Clamp
Резиновый хомут-втулка
Abrazadera de manguito de goma
The genuine XCMG Rubber Sleeve Clamp with OEM number 819908628 is a precision‑engineered heavy‑duty retention component designed for securing hydraulic hoses, fuel lines, coolant pipes, and wiring harnesses on XCMG articulated dump trucks (ADTs), including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series models operating in the most demanding mining, quarrying, and heavy construction environments worldwide. This rubber sleeve clamp, part number 819908628, is an essential fastener in the vehicle’s fluid management and electrical systems, preventing chafing, vibration damage, and costly fluid leaks. The 819908628 clamp is a direct OEM replacement component compatible with the Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains that power the XCMG articulated truck lineup, including the 41‑tonne XDA45U model with its 6×6 all‑wheel drive system and ±45° articulation angle.
The 819908628 rubber sleeve clamp is manufactured from high‑tensile spring steel (spring steel grade, hardened to 40–50 HRC) with a zinc‑nickel or zinc‑plated corrosion protection system, providing ≥480 hours of salt spray resistance per ASTM B117. The steel band of the 819908628 clamp is designed with reinforced tabs near the fixing hole, preventing the clamp from tearing in heavy‑duty applications. The integrated rubber sleeve is molded from EPDM (ethylene propylene diene monomer) with a hardness of 70 ±5 Shore A, formulated for compatibility with hydraulic fluids, diesel fuel, engine oil, coolant, and DEF (AdBlue). The EPDM material of the 819908628 clamp maintains its flexibility and damping properties across the full operating temperature range of -40°C to +120°C continuous, with intermittent excursions up to +135°C, ensuring reliable performance in both arctic mining sites and desert environments.
The 819908628 rubber sleeve clamp complies with DIN 3016‑1 (retaining clamps with elastomer profile) and DIN 3016‑2 (with fastening lugs) standards, confirming its suitability for high‑vibration, high‑temperature automotive and off‑highway applications. The clamp is available in size ranges to accommodate hose outer diameters from 10 mm to 32 mm, covering the full spectrum of line sizes on XCMG ADTs. The fixing hole diameter is designed for M6, M8, or M10 bolts (depending on variant), with recommended torque values of 8–10 Nm, 15–20 Nm, and 25–30 Nm respectively. Each genuine XCMG 819908628 clamp is 100% inspected for spring force, dimensional accuracy (±0.2 mm on all mounting features), and coating integrity, ensuring a service life exceeding 15,000 hours in the harshest mining conditions.
Investing in the genuine XCMG 819908628 rubber sleeve clamp protects your hydraulic, fuel, and coolant lines from chafing that could lead to sudden rupture, fluid loss, and catastrophic system failure. Aftermarket clamps often use inferior rubber compounds that harden or crack within 2,000–3,000 hours and lack the reinforced tab design that resists tearing under the 5G vibration of off‑road haul roads. Fleet data confirms that genuine clamps reduce hose failure rates by 73%, with each failure costing over $2,200 in lost production. When you choose the 819908628, you secure your XCMG ADT’s fluid systems with factory‑specified protection, reducing maintenance costs and maximizing equipment uptime.
Technical Data Sheet – Rubber Sleeve Clamp (OEM 819908628)
| Parameter | Specification (Rubber Sleeve Clamp – 819908628) |
|---|
| OEM Part Number | 819908628 |
| Product Name | Rubber Sleeve Clamp / Pipe Clip / Cushion Clamp |
| Brand | XCMG (Genuine OEM) |
| Standards | DIN 3016-1, DIN 3016-2, IATF 16949:2023 |
| Band Material | Spring steel (65Mn / SAE 1075) – hardened 40–50 HRC |
| Rubber Profile Material | EPDM – 70 ±5 Shore A |
| Surface Finish | Zinc‑nickel plating (8‑12 μm) / Zinc‑plated |
| Corrosion Resistance | ≥480 hours salt spray (ASTM B117) |
| Hose Diameter Range | 10 mm – 32 mm (0.4 – 1.26 inches) |
| Band Width | 12 mm / 15 mm / 20 mm (application‑specific) |
| Fixing Hole Diameter | 6.5 mm (M6), 8.5 mm (M8), 10.5 mm (M10) |
| Temperature Range (Rubber) | -40°C to +120°C continuous; +135°C intermittent |
| Temperature Range (Metal) | Up to +200°C |
| Vibration Endurance | 2 × 10⁶ cycles at 5G (ISO 16750‑3) |
| Recommended Torque (M6) | 8 – 10 Nm |
| Recommended Torque (M8) | 15 – 20 Nm |
| Design Life | ≥15,000 hours (typical mining duty) |
| Fluid Compatibility | Hydraulic oil, diesel, engine oil, coolant, DEF |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 |
Engineering & Material Excellence
The 819908628 rubber sleeve clamp is engineered to meet the rigorous demands of DIN 3016‑1 and DIN 3016‑2 standards for retaining clamps with elastomer profiles and fastening lugs. The cold‑rolled spring steel band is hardened and tempered to 40–50 HRC, ensuring the clamp maintains its clamping force even after thousands of installation and removal cycles. The reinforced band ends feature integrated support washers that prevent the material from tearing under the extreme mechanical stress of 5G vibration—a critical safety feature that aftermarket clamps often omit.
The EPDM rubber profile is injection‑molded and vulcanized directly to the steel band or retained as a separate insert depending on the variant. EPDM is chosen for its outstanding resistance to ozone, UV radiation, weathering, and a wide range of industrial fluids including mineral oils, diesel, brake fluids, and coolants. The 70 ±5 Shore A hardness provides an optimal balance between vibration damping and crush resistance, preventing hose deformation while effectively isolating the line from chassis‑induced vibration.
The zinc‑nickel plating (8‑12 μm thickness) with trivalent chromate passivation provides ≥480 hours of salt spray resistance, which is 5‑10 times more corrosion resistant than standard zinc plating. This coating system ensures the 819908628 clamp remains functional and corrosion‑free even after years of service in coastal mines, underground operations with high humidity, or regions where road salts are used for winter maintenance.
Critical Applications in XCMG Articulated Dump Trucks
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA inline‑6 engine producing 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of torque at 1,300 rpm, driving a 6×6 permanent all‑wheel drive system. This high‑power drivetrain generates significant vibration and thermal loads, requiring robust line retention. The 819908628 clamp is used throughout the vehicle: on hydraulic hoses for the steering and suspension circuits; on fuel lines running from the 500 L tank to the injection pump; on coolant hoses in the engine compartment; and on the electrical harnesses that route through the articulation joint.
The 6×6 drive system with 100% lockable differentials allows the XDA45U to tackle slopes of up to 30° and articulate up to ±45°, placing extreme torsional stresses on all chassis-mounted components. The 819908628 rubber sleeve clamp accommodates this articulation without losing retention, as the EPDM profile compresses and rebounds dynamically while the steel band maintains its clamping force. This is particularly critical for hoses crossing the articulation joint, where improper clamping could lead to chafing against the frame and sudden line rupture.
In the XCMG centralized lubrication system, the 819908628 clamp secures grease distribution lines running from the manifold to articulation joints, pivot bearings, and suspension components. The EPDM rubber insulator prevents the steel lines from wearing against the chassis, while the reinforced tabs prevent clamp failure under the high pressures of the lubrication system. Proper clamping ensures consistent grease delivery, extending bearing life by up to 40% and reducing unplanned maintenance.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines (ambient >45°C, high silica dust) have demonstrated that the 819908628 rubber sleeve clamp maintains its clamping force and rubber integrity after 8,000 operating hours. Removed clamps showed no loss of spring force (within 10% of new), no cracking or hardening of the EPDM sleeve, and no corrosion of the metal body, even after continuous exposure to hydraulic oil mist and abrasive dust.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the EPDM rubber retains its flexibility and the spring steel does not become brittle. Clamps installed on brake lines and air lines showed no leakage or loosening after 500 thermal cycles from -40°C to +80°C, and the reinforced tabs prevented tearing under the high stress of cold material contraction. The zinc‑nickel coating showed no flaking or corrosion after 500 hours of salt spray testing.
Vibration endurance per ISO 16750-3 (random vibration profile for off‑highway vehicles, 5G peak acceleration, 2 million cycles) confirmed that the 819908628 clamp does not loosen or allow the secured hose to shift. The reinforced band ends and precise spring steel composition ensure consistent clamping force even after millions of vibration cycles, protecting hoses from chafing and ensuring line routing stability for the life of the vehicle.
Installation & Maintenance Guide for Rubber Sleeve Clamp 819908628
Before installing a new 819908628 rubber sleeve clamp, inspect the hose or pipe for any existing damage, wear, or abrasion. Ensure the clamp selected is the correct size for the hose outer diameter (10 mm to 32 mm range). If the rubber sleeve shows any signs of aging, cracking, or swelling (which may indicate chemical attack), replace the entire clamp assembly immediately. Clean the mounting surface on the chassis bracket to remove dirt, oil, or corrosion that could affect clamp seating.
Open the clamp by pressing the release tab (for quick‑release variants) or by removing the bolt (for bolted variants). Position the rubber sleeve around the hose at the designated mounting location. Align the fixing hole of the clamp with the bracket or threaded boss on the chassis frame. Insert the M6, M8, or M10 bolt and hand‑tighten. For quick‑release versions, close the upper half and press the latch until an audible click confirms engagement. The locking tab should fully seat to prevent accidental opening.
Tighten the mounting bolt to the specified torque using a calibrated torque wrench: 8–10 Nm for M6 bolts, 15–20 Nm for M8 bolts, or 25–30 Nm for M10 bolts. Do not over‑tighten, as excessive torque may deform the clamp body or crush the rubber sleeve. The rubber sleeve should be snug around the hose without excessive compression; the hose should be able to rotate slightly but not slide axially. If the hose is pinched or the rubber sleeve bulges excessively, loosen the bolt and reposition the clamp before retightening.
Inspect rubber sleeve clamps during every scheduled service interval (500 hours). Check for rubber cracking, hardening, or swelling (chemical attack). Verify that the clamp remains locked and has not shifted from its original position. If any corrosion is visible on the metal body, clean with a wire brush and apply light corrosion inhibitor; replace the clamp if pitting or loss of spring force is evident. Replace any clamp that shows signs of rubber degradation, metal corrosion, or physical damage immediately.
Why Genuine XCMG 819908628 Outperforms Aftermarket Alternatives
Aftermarket rubber sleeve clamps are often made from lower‑grade steel with inconsistent heat treatment, causing loss of clamping force (soft) or brittleness (hard). They also use cheap rubber sleeves made from recycled rubber or EPDM that hardens within 1,000–2,000 hours. Genuine XCMG 819908628 clamps are manufactured to exact hardness specifications (40–50 HRC) and use virgin EPDM formulated for oil resistance and low‑temperature flexibility, maintaining elasticity for over 12,000 hours. The genuine clamp also features reinforced band ends to prevent tearing—a common failure mode of aftermarket P‑clips.
Aftermarket clamps frequently omit the reinforced band ends or use spot welds that fail under vibration. The genuine 819908628 clamp features integral support washers and a seamless reinforced design tested to 2 million vibration cycles at 5G without failure. Additionally, the zinc‑nickel coating on genuine clamps provides ≥480 hours of salt spray protection, while aftermarket clamps often use standard zinc plating that fails within 200‑300 hours.
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine clamps reduced hose failure rates by 73% compared to aftermarket clamps. Each hose failure caused by chafing cost an average of $560 in parts, labor, and fluid, plus $2,200 in lost production. The genuine 819908628 clamps paid for themselves within 6 months. Genuine XCMG clamps also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations that require component provenance.
Genuine XCMG OEM 819908628 Rubber Sleeve Clamp — Precision‑stamped from hardened spring steel, zinc‑nickel plated for superior corrosion resistance, and equipped with an EPDM rubber sleeve. Compliant with DIN 3016 standards and validated for 2 million vibration cycles at 5G. Trust genuine XCMG quality for reliable line retention, reduced downtime, and maximum equipment uptime.
