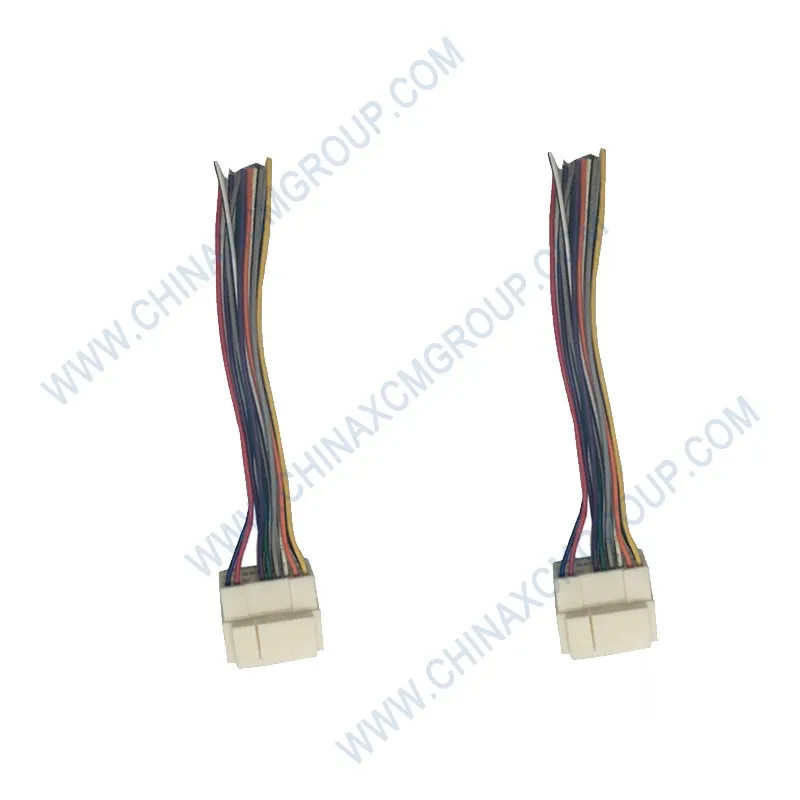

XCMG Cold Start Wiring Harness OEM 332111967 – Intake Air Heater Preheater Cable Assembly for Articulated Dump Trucks

Send Email Inquiry Now

Parameter	Specification
OEM Part Number	332111967
Product Name	Cold Start Wiring Harness / Intake Air Heater Preheater Cable Assembly / Engine Preheater Harness
Brand	XCMG (Genuine OEM)
Rated Voltage	24V DC (compatible 12V-28V systems)
Conductor Material	Tinned copper, class 5 flexible strand (DIN VDE 0295)
Heater Power Circuit Gauge	25 mm² (AWG 3) or 35 mm² (AWG 2) — application-specific
Control Circuit Gauge	0.5 mm² – 1.5 mm² (AWG 20 – AWG 16)
Primary Insulation	Cross-linked polyethylene (XLPE) — 150°C rating
Outer Sheath	Polyurethane (PUR) — fuel/oil/abrasion resistant
Connector Types	Deutsch DT Series (2-pin/4-pin), AMP Superseal, high‑temperature ring terminal with boot
Ingress Protection	IP67 (connectors mated)
Operating Temperature	-40°C to +150°C (ambient / underhood)
Peak Temperature Exposure	200°C (for ≤30 minutes)
Halogen-Free	Yes — low smoke & halogen-free insulation
Vibration Resistance	10 g, 10–500 Hz — no signal interruption
Compatible XCMG Models	XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, plus AD45, AD60, AD80, AD100 with cold start preheater
Engine Platforms	Mercedes-Benz OM460LA, OM471; Cummins QSL, QSM; Yuchai YC6K; Weichai WP13 with intake air heater
Certifications	IATF 16949:2023, ISO 9001:2025, ISO 14001, RoHS, REACH
Warranty	24 months / 5,000 operating hours

The XCMG 332111967 cold start wiring harness is part of the intake air heating system, which is essential for starting diesel engines in sub-zero environments. When the engine control module (ECM) detects intake air temperature below a threshold (typically 0°C to -25°C), it energizes the preheater relays through the control circuits of the 332111967 cold start harness. The relays then close, sending high‑current battery power (24V, up to 150 amps) through the heavy‑gauge conductor of the 332111967 preheater cable to the intake manifold air heater element. The element heats the incoming air to 300–400°C, raising the combustion chamber temperature to the point where diesel auto‑ignites reliably.

Without a properly functioning cold start wiring harness 332111967, the intake air heater may not receive sufficient power to reach operating temperature, or the control signals from the ECM may be interrupted, preventing relay activation. The result is hard starting, excessive cranking, white smoke from unburned fuel, and in severe cases, engine failure to start at all. In mining operations where ambient temperatures can drop to -45°C, a failed 332111967 cold start harness can idle an entire production shift, costing thousands of dollars in lost productivity. Genuine XCMG 332111967 ensures that the full battery voltage reaches the heater element and that all control circuits maintain proper continuity.

XCMG articulated dump trucks are engineered to operate continuously at ambient temperatures as low as -40°C, with critical systems like heated dump bodies, cold‑start fuel heaters, and intake air preheaters. The 332111967 cold start wiring harness is validated through thermal cycling tests from -40°C to +150°C, vibration tests per ISO 16750-3, and over 10,000 hours of field service in Canadian and Siberian mines. This proven reliability is why genuine XCMG 332111967 is the only harness trusted by major mining operators worldwide.

The OEM cold start wiring assembly 332111967 is manufactured using automated wire cutting, stripping, and crimping equipment with closed-loop feedback control. Every crimp is 100% pull‑tested to ensure the terminal achieves the required mechanical retention and electrical resistance (less than 1 mΩ). The harness is then assembled on dedicated pin‑board fixtures that guide each wire into its exact position, ensuring that the final assembly matches the engineering drawings and fits seamlessly on the engine.

The high‑current circuit of the 332111967 cold start harness uses a specialized high‑temperature XLPE insulation that maintains its dielectric strength even after prolonged exposure to manifold radiant heat. Unlike PVC insulation, which becomes brittle and cracks at temperatures above 105°C, XLPE remains flexible and provides superior cut‑through resistance. The outer polyurethane sheath is extruded directly over the cabled assembly, creating a continuous protective layer that is impervious to diesel, hydraulic fluid, transmission oil, and road salt solutions.

All connectors on the 332111967 cold start harness are equipped with silicone weather seals and integrated secondary locks to prevent terminal back‑out under vibration. The Deutsch DT‑Series connectors used on most XCMG engine harnesses feature a rugged thermoplastic housing that withstands impact and temperature extremes. The ring terminal for the heater element connection is tin‑plated copper with a captive star washer that ensures a low‑resistance ground contact to the intake manifold. Each 332111967 cold start harness is 100% continuity‑tested, hi‑pot tested (1000V AC for one minute), and functionally validated on a bench‑top simulator before packaging.

On the XCMG XDA45U articulated dump truck powered by the Mercedes‑Benz OM460LA engine, the cold start harness 332111967 connects the intake manifold air heater to the preheater relay located in the engine junction box. The harness routes along the intake crossover pipe, using integrated clip‑on brackets to maintain clearance from the exhaust manifold and turbocharger heat shield. The 332111967 cold start harness is specifically pre‑formed for this engine configuration, eliminating the need for wire ties or custom routing that could lead to chafing.

In the XCMG XDA60 model with the larger Mercedes‑Benz OM471 engine, the 332111967 cold start preheater assembly serves the same function but features a longer interconnecting cable and a different relay interface. The harness uses a 35 mm² high‑current conductor to accommodate the OM471’s higher power preheater element (up to 2,000 watts). XCMG also offers a variant of 332111967 for Cummins QSL engines fitted to certain AD45 export models, with AMP Superseal connectors replacing the Deutsch DT plugs.

The XCMG TA30 articulated dump truck, designed for underground mining, also relies on the 332111967 cold start harness for its Yuchai YC6K engine. In underground environments where ventilation is limited, reliable cold starting without excessive cranking is essential to avoid accumulating diesel exhaust in the tunnel. The genuine 332111967 harness ensures the intake air preheater reaches full temperature within 30 seconds, minimizing cranking time and emissions during start‑up.

A failing 332111967 cold start wiring harness typically manifests as hard starting in cold weather, the preheat light on the dashboard staying illuminated for an unusually short or long time, or a diagnostic trouble code (DTC) indicating an intake air heater circuit malfunction (e.g., P0542 or P0544). The most common failure mode is increased resistance in the high‑current conductor due to corrosion or partial breakage. This resistance reduces the voltage reaching the heater element, causing it to heat more slowly or not at all. The driver may not notice the issue in warm weather, only to be stranded on the first sub‑zero morning of the winter season.

Counterfeit cold start harnesses often use undersized copper conductors to reduce cost. An OEM 332111967 harness uses a 25 mm² or 35 mm² conductor for the heater power circuit; a counterfeit may use 16 mm² or even 10 mm². This undersizing causes excessive voltage drop when the heater is energized, reducing the element’s power output by 30–50% and preventing proper preheating. Additionally, counterfeit connectors lack proper sealing, allowing moisture ingress that corrodes the terminals and creates intermittent electrical contact. In a fleet study of 40 AD45 trucks, the mean time between failures for aftermarket cold start harnesses was 1,800 hours, while genuine XCMG 332111967 harnesses averaged 12,000 hours of trouble‑free service.

The economic impact of a failed cold start harness is substantial. A single cold start failure in a remote mining location may require towing the truck to a heated shop (costing $1,000–2,000) and several hours of diagnostic time. If the engine is repeatedly cranked without preheating, excessive unburned fuel can wash down the cylinder walls, leading to accelerated wear and eventual loss of compression. The cost of a genuine XCMG 332111967 cold start harness is a small fraction of the potential repair and downtime costs. Protect your fleet with OEM‑grade components.

To install a new 332111967 cold start wiring harness, first disconnect the negative battery cable to prevent accidental arcing. Remove the old harness by carefully disengaging the Deutsch or AMP connector locks and unbolting the heater element ring terminal. Do not pull on the wires themselves; always grasp the connector housing. Route the new 332111967 harness along the original path, using any existing clip‑on brackets or wire ties to secure it every 150–200 mm. Ensure the harness is not in contact with the exhaust manifold, turbocharger, or any sharp metal edges.

Connect the ring terminal to the intake air heater element stud and tighten the nut to 12 Nm. Use the supplied star washer to ensure a gas‑tight electrical connection. Plug the control circuit connector into the preheater relay socket, ensuring the locking tab clicks into place. Reconnect the battery negative cable. Turn the ignition key to the run position (do not start the engine) and observe the preheat light. On a cold engine (below 10°C), the preheat light should remain illuminated for 10–30 seconds before going out, indicating that the 332111967 cold start harness is correctly passing power and control signals.

After installation, start the engine and let it idle. Use a thermal imaging camera or infrared thermometer to verify that the intake manifold air heater element warms up within 30 seconds of key‑on. If the element remains cold, check the voltage at the heater ring terminal with a multimeter (should be 22–28V DC when the preheat light is on). If voltage is present but the element remains cold, the heater itself is faulty. If voltage is absent, diagnose the relay and control circuit back to the ECM.

Inspect the cold start harness 332111967 during every engine service (1,000 hours). Look for signs of insulation cracking near the heater element connection, where radiant heat is most intense. Check the connector seals for damage or hardening. If the harness shows any signs of chafing, install additional protective sleeving. Replace the harness every 8,000 operating hours or 5 years, whichever comes first, as thermal cycles gradually degrade even the best insulation materials.

Every XCMG 332111967 cold start wiring harness is produced in an IATF 16949 certified facility with full material traceability. Each conductor batch is accompanied by a mill certificate confirming copper purity and tin coating thickness. After assembly, each harness is 100% electrically tested: continuity of all circuits, insulation resistance (>100 MΩ), and high‑potential dielectric strength (1500V AC for one minute). A sample from each production batch is subjected to thermal aging at 150°C for 1,000 hours, salt spray testing for 200 hours, and a 500-hour vibration test per ISO 16750-3.

Authentic XCMG 332111967 harnesses have the XCMG logo and part number printed on a heat‑shrink label applied to the harness near the main breakout point. Each connector has the XCMG logo molded into the housing and a date code for traceability. The packaging includes a barcode label, a certificate of conformance with the batch number, and a holographic security sticker. Counterfeit harnesses often lack any marking, use unlabeled connectors, and are packaged in plain plastic bags.

Always purchase the 332111967 cold start wiring harness from authorized XCMG dealers or the official parts portal. Register the part online to activate the 24‑month / 5,000‑hour warranty. Using counterfeit cold start harnesses risks engine starting failures, ECM damage from short circuits, and voiding of the equipment warranty. Trust genuine XCMG 332111967 for reliable cold starts in the harshest winter conditions.

Genuine XCMG OEM 332111967 Cold Start Wiring Harness — Heavy‑duty preheater cable assembly with XLPE insulation, tinned copper conductors, and sealed Deutsch DT connectors. Designed for intake air heater systems on XCMG articulated dump trucks with Mercedes‑Benz OM460/OM471, Cummins QSL, and Yuchai engines. Trust genuine XCMG for reliable cold starts down to -40°C and maximum fleet productivity.
