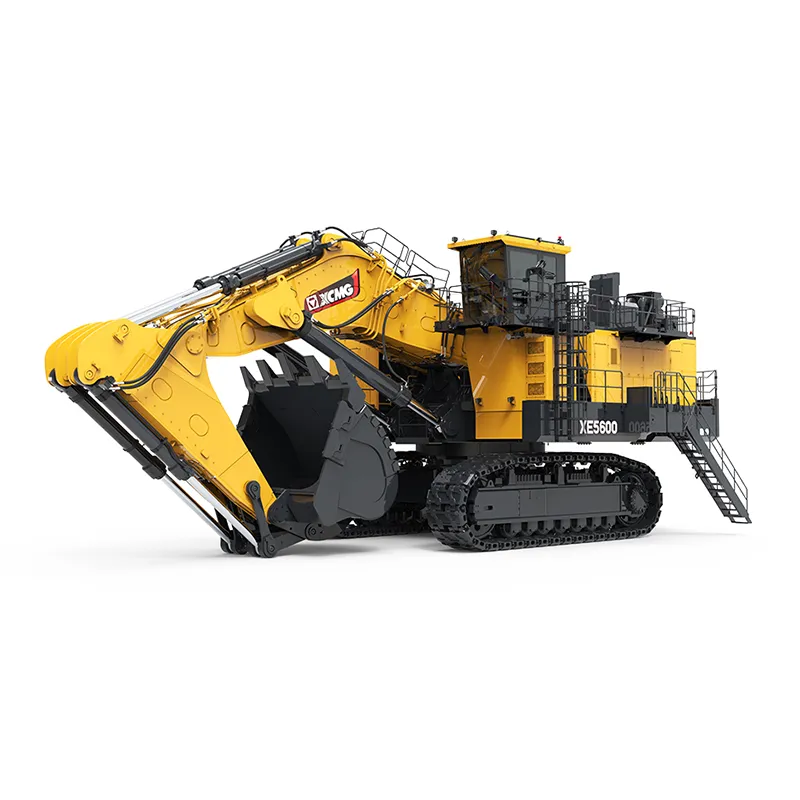

XCMG XE5600 Mining Excavator: Power, Efficiency, and Cutting-Edge Technology

Technical Specifications – XE5600

Parameter	Value / Specification
Model	XCMG XE5600 (Hydraulic Mining Excavator)
Operating Weight	560,000 kg (approximate, depending on configuration)
Engine Power	2,500 kW (3,352 HP) @ 1800 rpm – High-efficiency diesel engine
Bucket Capacity (standard)	32 – 36 m³ (material density 1.8 t/m³)
Bucket Digging Force	1,850 kN
Arm Crowd Force	1,620 kN
Hydraulic System Pressure	35 MPa (main circuit)
Swing Speed	4.2 rpm
Shoe Width	1,200 mm (heavy-duty track)
Fuel Tank Capacity	8,900 L
Control System	XCMG X-Gate telematics + intelligent power control

Product Features Of XCMG XE5600 Mining Excavator

• The backhoe comes standard with a 35 m³ rock bucket, with key components welded from high-strength steel plates, ensuring high strength and excellent wear resistance.
• Equipped with an original imported engine that delivers ample power and high fuel efficiency, featuring a three-stage air filter to meet the demands of high-efficiency operation under all working conditions; optional special configurations such as cold start capability are available.
• Equipped with a new-generation high-efficiency hydraulic system and an intelligent control system, it achieves an efficiency of 1,100–1,300 m³/h under light-load conditions and 800–1,000 m³/h under heavy-load conditions.
• An independent intelligent temperature-sensing control system automatically detects oil temperature and adjusts fan speed accordingly, resulting in lower overall noise levels, higher efficiency, and greater energy savings.
• The boom and dipper arm feature a large-section, lightweight, torsion-resistant box-type structural design, ensuring a longer service life and adaptability to various harsh operating conditions.
• Equipped with an extra-large, all-around-view, dual-seat cab that is safe and reliable with FOPS functionality; improved sealing by 70% effectively prevents dust ingress.
• A centralized filling system is adopted for hydraulic oil, gear oil, and grease; combined with a large-capacity oil pan and high-quality filters, the maintenance interval can be extended to 500 hours.

Product Highlights Of XCMG XE5600 Mining Excavator

• Key components feature high-end, premium-grade parts.
• The intelligent control system delivers a flow rate of 800–1,000 m³/h under heavy-duty conditions.
• Equipped with a three-stage air filter to ensure high-efficiency operation across all working conditions.
• The backhoe comes standard with a 35 m³ rock bucket, featuring high strength and excellent wear resistance.
• The boom, stick, and upper structure feature reinforced designs.

Innovation and Technology of the XE5600

The XE5600 features an Intelligent Power Management System (IPMS) that automatically adjusts power output based on the workload. This not only reduces fuel consumption by up to 12% compared to previous models, but also extends the service life of key components. The closed-center hydraulic system, equipped with pressure sensors on each cylinder, ensures smooth and precise movements.

Durability and Simplified Maintenance

The XE5600’s main frame is constructed of high-strength steel and features robotic welds that ensure a long service life even under highly abrasive conditions. Lubrication points are centralized, and hydraulic oil change intervals are extended to 4,000 hours thanks to the high-efficiency filtration system.

• Reinforced track system: Sealed and permanently lubricated links and rollers.
• Long-reach boom and boom: Designed using finite element analysis to withstand extreme loads.
• Multi-disc parking brakes: in an oil bath, offering maximum reliability.
• Independent cooling system: modular radiators that make cleaning easier.

Efficiency in Mining Applications

The XE5600 has been tested in copper mines in Chile, coal mines in Australia, and iron ore projects in Brazil, consistently demonstrating an uptime rate of over 92%. Its compatibility with haul trucks ranging from 240 to 360 tons makes it the ideal partner for high-volume loading operations. The boom design allows for a loading height of over 12 meters.

XCMG’s Global Presence and Support

XCMG offers a service network in more than 180 countries, with access to genuine spare parts and specialized technicians. The XE5600 comes with a 10-year or 30,000-hour structural warranty (whichever comes first) and predictive maintenance packages. This excavator represents the pinnacle of Chinese engineering for the global mining industry.

Investing in an XE5600 results in lower costs per ton moved. Its state-of-the-art electronic systems allow for seamless integration with mixed fleets and dispatch systems. In addition, XCMG has developed an electric variant (currently in the prototype phase) based on the same platform, demonstrating its commitment to sustainable mining.

Environmental Commitment

The XE5600 meets EPA Tier 4 Final / EU Stage V emissions standards through an SCR aftertreatment system and a particulate filter. The engine has been calibrated to run on low-sulfur diesel and is compatible with biodiesel blends. The hood design reduces dust dispersion in the engine compartment, contributing to a cleaner work environment.

Noise reduction technology

The sound pressure level inside the cab is less than 72 dB(A), well below the required limits. Soundproofing panels and a high-capacity muffler minimize noise pollution in the surrounding area.
