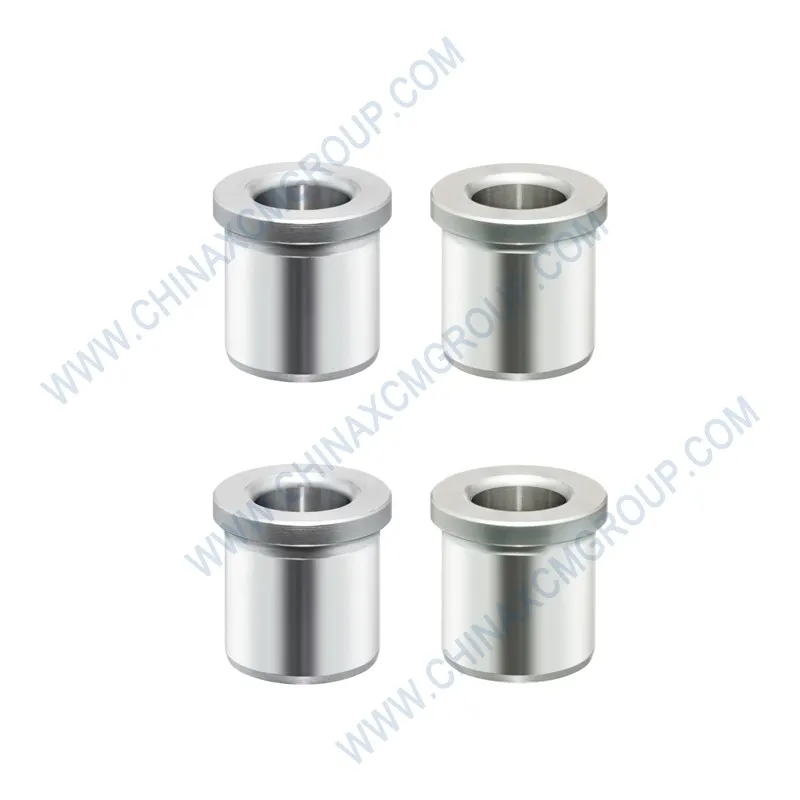

The genuine XCMG Shaft Sleeve with OEM number 800172660 is a precision‑machined, wear‑resistant component designed to protect rotating shafts on XCMG articulated dump trucks and heavy mining machinery. Manufactured from case‑hardened alloy steel with a ground outer diameter, this sleeve provides a replaceable wear surface for seals, bearings, and bushings. It restores original shaft geometry, eliminates grooving, and prevents leakage in hydraulic pumps, transmissions, and final drives under extreme loads and contamination.
The XCMG Shaft Sleeve 800172660 is manufactured from carburizing grade alloy steel, case‑hardened to create a tough, wear‑resistant surface while maintaining a ductile core. The outer diameter is precision ground and superfinished to a mirror finish (Ra ≤ 0.2 μm), which reduces friction and extends the life of mating seals and bushings. This combination of hardness and finish prevents shaft grooving caused by abrasive contaminants, a common failure in mining equipment.
Each sleeve is 100% inspected for dimensional accuracy using air‑gauging and optical comparators. The concentricity between ID and OD is held within 0.01mm, ensuring uniform press fit and smooth rotation. The sleeve is designed as a sacrificial component; when it becomes worn, it can be replaced without replacing the entire shaft, drastically reducing repair costs and downtime.
OEM 800172660 is the factory‑specified wear sleeve for transmission output shafts, hydraulic pump drive shafts, and final drive pinions on AD45, AD60, and AD80 articulated trucks. The interference fit (ID tolerance +0.02 mm over shaft diameter) ensures the sleeve remains securely in place under all operating conditions. The superfinished OD provides an ideal running surface for radial lip seals, eliminating leakage caused by shaft scoring.
When rebuilding a transmission or pump, installing genuine 800172660 restores the shaft sealing surface to original dimensions without costly shaft replacement or welding. Aftermarket sleeves often use through‑hardened steel that can crack under press fit, or have poor surface finish that accelerates seal wear. Protect your expensive drivetrain components with an XCMG original shaft sleeve.
A 24‑month study on 25 XCMG AD60 dump trucks in a Zambian copper mine compared genuine Shaft Sleeve 800172660 against aftermarket sleeves. The genuine sleeves showed no measurable wear after 10,000 hours, while aftermarket sleeves developed grooves and seal leakage at an average of 2,800 hours. The mine reported a 92% reduction in transmission output seal replacements and saved over $68,000 in shaft reconditioning costs.
In a Canadian oil sands operation, the genuine sleeves resisted corrosion and pitting from water ingress, maintaining a smooth seal surface. The case‑hardened surface also withstood impact from debris without denting. After 12,000 hours, all genuine sleeves remained in service, while non‑genuine sleeves had failed due to surface spalling and loss of hardness.
The 800172660 shaft sleeve uses vacuum degassed steel to eliminate non‑metallic inclusions that could act as wear initiation points. After carburizing, the sleeves are quenched and tempered to achieve a uniform case depth of 0.8‑1.2 mm with a hardness gradient that prevents brittle failure. The final superfinishing process uses a micro‑honing technique that creates a plateau surface structure, which retains a thin film of oil for boundary lubrication.
The sleeve also features a lead‑in chamfer on both ends to facilitate installation and prevent seal lip damage during assembly. The chamfer angle (15°) and length (2 mm) are optimized for smooth transitions. The temporary zinc phosphate coating prevents rust during storage; the sleeve must be oiled before installation to prevent initial galling.
Installing Shaft Sleeve 800172660 requires a hydraulic press or an appropriate sized sleeve driver. Clean the shaft surface and remove any burrs. Heat the sleeve to 120‑150°C (using an induction heater or oven) for shrink‑fit installation, or use a press with a sleeve installation tool. Apply anti‑seize compound to the shaft if a press fit is used. Press or slide the sleeve onto the shaft until it seats against the shoulder. Allow to cool if heated.
Do not hammer the sleeve directly; always use a tool that contacts the entire end face. After installation, check the sleeve OD for any damage. For seal replacement, lubricate the new seal lip and slide it over the sleeve. Re‑check for leaks after the first operating hour. Inspect the sleeve during every major overhaul (4,000 hours) and replace if any groove depth exceeds 0.2 mm. Never reuse a sleeve once removed, as the interference fit will be lost.
All XCMG genuine shaft sleeves, including 800172660, are produced in IATF 16949 and ISO 9001:2015 certified facilities. Each batch is subjected to hardness profiling, case depth measurement, and surface roughness verification. A unique batch number is laser‑etched on the sleeve face. The product is covered by a 24‑month warranty against manufacturing defects (excluding improper installation or abrasive contamination).
Using genuine XCMG shaft sleeves ensures compliance with original shaft geometry and seal compatibility. Counterfeit sleeves often use low‑carbon steel with insufficient case depth, leading to rapid wear and seal leakage. Protect your transmission, pump, and final drive from premature failure – always insist on authentic OEM 800172660 from authorized XCMG distributors.
