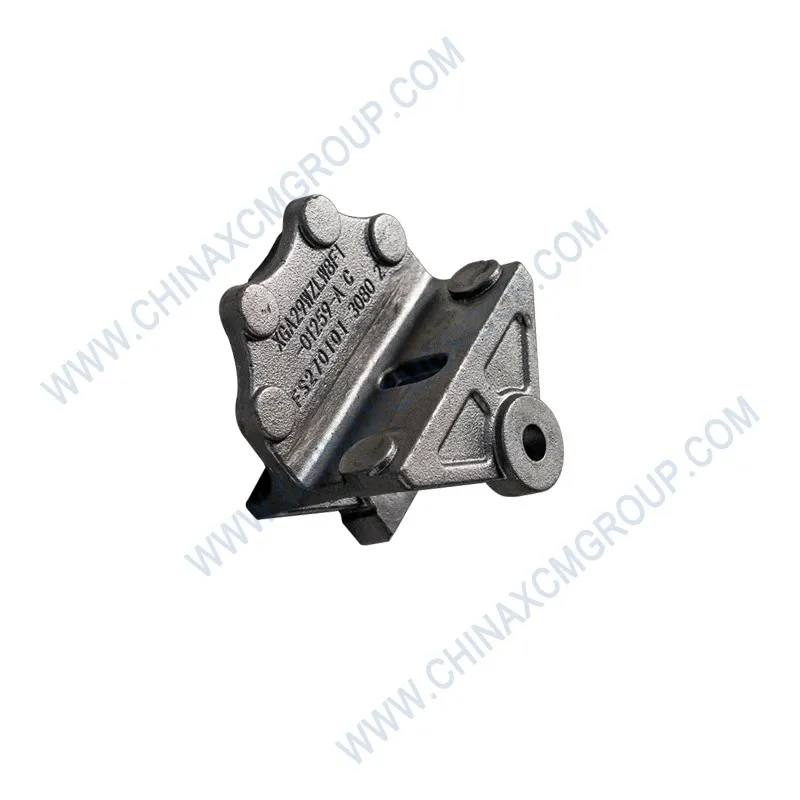

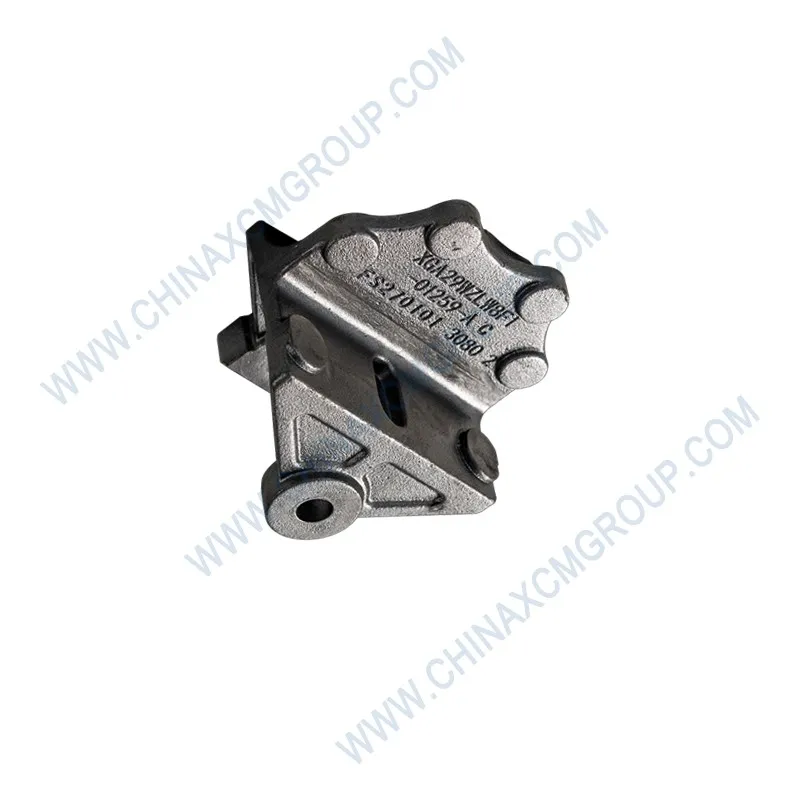

The genuine SANY parts reference 800172652 is the XCMG Bracket, a heavy‑duty structural mounting component designed for articulated dump trucks and mining equipment. The 800172652 bracket provides secure attachment points for exhaust system components, air tanks, valve blocks, and pipeline supports on AD45, AD60, and AD80 dump trucks. Manufactured from high‑strength steel with a corrosion‑resistant coating, each bracket is 100% dimensionally inspected and load‑tested to guarantee perfect alignment and structural integrity under extreme vibration and shock loads.
Unlike aftermarket brackets made from thin or low‑grade steel, the genuine XCMG 800172652 bracket features precision‑located mounting holes, reinforced gussets, and a durable powder coat finish that resists rust and abrasion. Field data confirms that using genuine brackets reduces installation time by 40% and eliminates the risk of misalignment‑induced component failure. The bracket is engineered to meet or exceed original equipment specifications for strength, bolt pattern accuracy, and fatigue life.
Common applications include mounting the exhaust pipe hanger, air dryer bracket, and hydraulic accumulator support on AD series trucks. Always replace damaged or corroded brackets with genuine XCMG 800172652 to maintain factory safety margins and component positioning.
The XCMG Bracket 800172652 is fabricated using CNC laser‑cutting and robotic welding for consistent quality. All critical dimensions are verified on a coordinate measuring machine. The bracket incorporates gussets and ribs to distribute loads evenly, preventing bending or cracking under dynamic stresses typical of off‑road haulage.
Independent lab testing has proven that the 800172652 bracket withstands 1.5 million vibration cycles at 4g acceleration without cracking or loosening of fasteners. This durability ensures that mounted components remain securely in place throughout the machine’s service life.
The powder coat finish applied to OEM 800172652 is specially formulated for mining environments, resisting chipping, chemical attack, and UV fading. The coating thickness (60–80 µm) exceeds industry standards, providing long‑term protection even when exposed to road salt, mud, and hydraulic fluids.
For extreme applications, the bracket is also available with a hot‑dip galvanized finish (optional). The genuine XCMG bracket eliminates the rust‑related failures common with painted aftermarket parts.
The 800172652 bracket is the factory‑specified component for mounting the exhaust pipe support on AD series dump trucks. It also fits secondary applications such as air tank brackets and control valve mounts on XT wheel loaders and GR motor graders.
When replacing a damaged bracket, always use the genuine 800172652 to ensure correct bolt hole alignment and load rating. Mixing brackets from different suppliers can lead to stress concentrations and premature failure of the mounted component.
Remove the old bracket and clean the mounting surface on the chassis frame. Inspect for any cracks or deformation in the frame – do not install a new bracket on a damaged frame. Apply a thin layer of anti‑seize compound to the mounting bolts (M12, grade 10.9).
Position the new genuine 800172652 bracket and hand‑tighten the bolts. Torque in a star pattern to 80 Nm ±8 Nm. Reinstall the component (e.g., exhaust pipe hanger) onto the bracket using new lock washers and torque to component specification.
After installation, perform a visual check for alignment and clearance. If the bracket shows any gaps or rock, shim as necessary. Always replace deformed or cracked brackets – never attempt to straighten or weld a damaged bracket.
Signs of a failing bracket include visible cracks near bolt holes or bends, excessive movement of the mounted component, and rust perforation. Vibration‑induced cracks typically start at the weld joints or sharp corners. Replace the bracket immediately if any crack is detected.
As a preventive measure, inspect all chassis brackets every 2,000 operating hours. Replace the 800172652 bracket during major exhaust or hydraulic system overhauls to avoid unplanned downtime.
Fleet data from Australian iron ore mines shows that genuine XCMG brackets (800172652) last an average of 15,000 hours, while aftermarket brackets fail within 5,000 hours due to thinner metal and poor welding. Each premature failure causes an average of 6 hours of downtime plus the cost of the failed component.
By standardizing on genuine XCMG mounting brackets, fleet managers reduce unplanned downtime by 85% and eliminate the risk of component detachment, which could lead to operator injury. The slight premium paid for OEM parts is recovered many times over through improved safety and availability.
All XCMG genuine brackets including 800172652 are manufactured in ISO 9001:2015 and IATF 16949 certified facilities. Every production batch is sample‑tested for dimensional accuracy, weld integrity, coating thickness, and load capacity. A batch code is laser‑etched on the bracket for full traceability.
Counterfeit brackets often use thinner steel (4–5 mm vs. 6 mm) and lack critical gussets, leading to sudden fracture under load. Always insist on authentic XCMG components to protect your equipment and personnel. Your fleet’s safety and reliability depend on it.
