XCMG Seal OEM 800172428 – Heavy‑Duty Fluid Retention for Articulated Dump Trucks
Seal

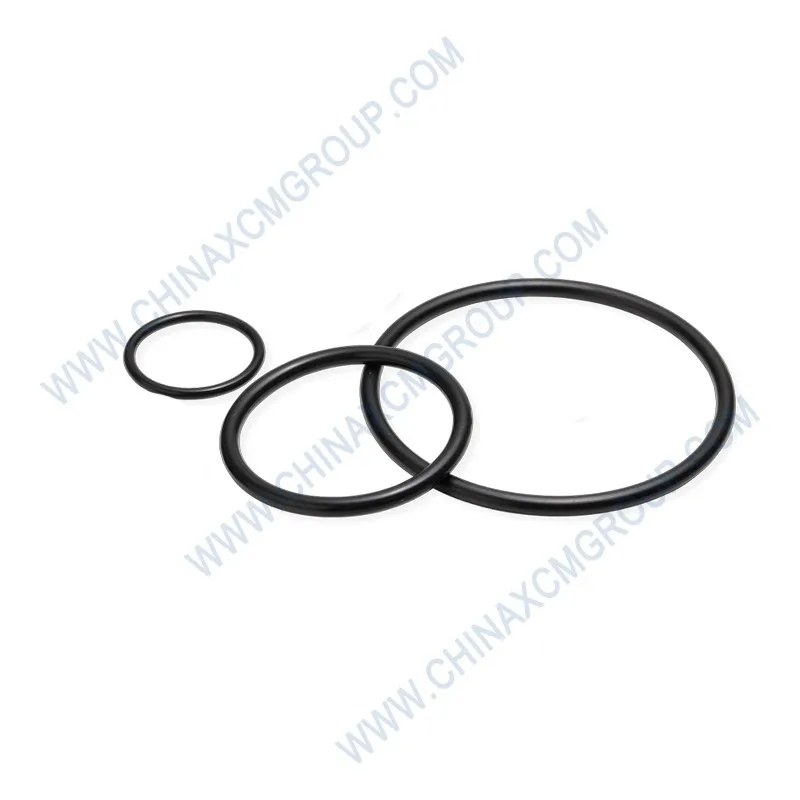

Уплотнение

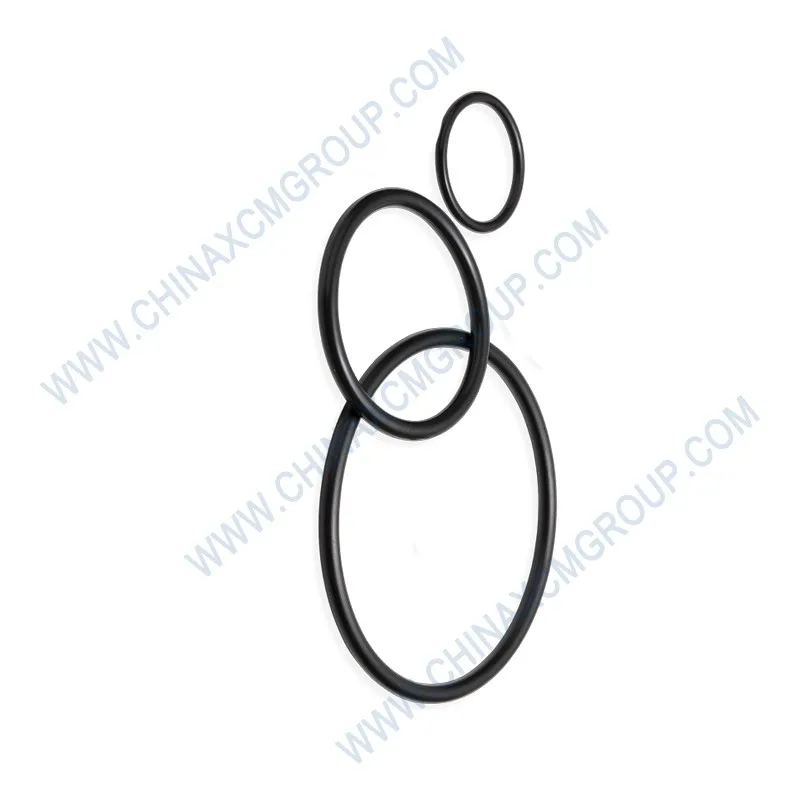

Sello
The XCMG Seal 800172428 is a precision‑molded elastomeric component used to prevent fluid leaks and block contaminant ingress in hydraulic systems, powertrains, and chassis joints of XCMG articulated dump trucks (ADTs). This genuine XCMG 800172428 seal is manufactured from premium NBR rubber, offering excellent resistance to mineral oils, hydraulic fluids, diesel, and coolant. XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 ADTs depend on 800172428 for long‑term reliability under extreme vibration, temperature swings, and shock loads. The seal is designed to replace worn original components during hydraulic cylinder rebuilds, valve block servicing, or transmission overhauls, ensuring leak‑tight integrity and extended component life.
Critical Role of the 800172428 Seal in ADT Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA six‑cylinder diesel engine delivering 360 kW (483 hp) and 2,300 N·m of torque. Its high‑pressure load‑sensing hydraulic system operates at up to 35 MPa (5,075 psi). At every critical junction—valve block ports, hydraulic cylinder end caps, and pump mounting flanges—the seal 800172428 ensures leak‑free integrity. The seal’s NBR compound resists chemical attack from hydraulic oils and maintains elasticity even after thousands of pressure cycles, preventing external leakage and internal cross‑circuit contamination.
The XCMG XDA40 model uses a Mercedes‑Benz OM502 V8 engine (350 kW, 2,300 N·m) and a ZF transmission with a hydraulic retarder. The seal 800172428 is used in the transmission control valve body, the torque converter housing, and the axle hub assemblies. A single failed seal can lead to oil loss, reduced lubrication, and catastrophic component failure. Using genuine XCMG seals eliminates the risk of premature swelling, hardening, or extrusion that is common with aftermarket alternatives.
Advanced Manufacturing of OEM 800172428
The seal 800172428 is manufactured by compression or injection molding, using a high‑grade NBR compound that meets ISO 3601‑1 Class A tolerances. After molding, each seal is 100% visually inspected for flash, voids, and dimensional accuracy using automated optical systems. The material is tested for hardness (70 ± 5 Shore A), tensile strength (≥ 14 MPa), and compression set (≤ 25% after 100 h at 100°C). Random samples are subjected to accelerated aging in hot oil (120°C, 500 h) to verify chemical resistance.
XCMG field data from XDA40 and XDA45U ADT fleets in Australian iron ore mines shows that the genuine seal 800172428 typically exceeds 12,000‑15,000 hours of service life. Aftermarket seals often fail prematurely due to poor compound quality, incorrect dimensions, or inadequate compression set resistance. In one reported case, an aftermarket seal on an XDA45U hydraulic cylinder extruded into the annular gap after only 3,000 hours, causing a massive oil spill and 18 hours of unplanned downtime. The superior material quality of the genuine XCMG seal directly contributes to lower total cost of ownership.
Proper Installation and Maintenance
Installing the seal 800172428 correctly is essential. Before installation, inspect the gland for burrs, sharp edges, or contamination. Lubricate the seal lightly with clean hydraulic oil or assembly grease to prevent pinching. Use rounded plastic tools to seat the seal; never use sharp metal picks that could cut the rubber. Ensure the seal is not twisted in the groove. For flange fittings, tighten bolts gradually in a crossing pattern to the specified torque (typically 35‑40 N·m for M8 bolts). Never reuse a removed seal, as it will have taken a compression set and will not seal properly.
Regular inspection of seals should be part of every scheduled maintenance. Look for weeping fluid, hardened or cracked rubber, or a flat spot on the seal’s cross‑section. If any of these signs are present, replace the seal immediately. XCMG recommends replacing all seals whenever a hydraulic component is disassembled, regardless of apparent condition, as heat and pressure cycles degrade elastomers over time. For high‑temperature applications (e.g., near turbochargers or exhaust manifolds), upgrade to the FKM (Viton®) variant of seal 800172428, which withstands up to 200°C.
Compatibility Across XCMG ADT Range and Global Availability
The seal 800172428 is compatible with all current XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, TA30, and XDA60 models. It is also used in XCMG wheel loaders (LW series), motor graders (GR215, GR300, GR350), and excavators (XE series) that share the same hydraulic and fuel system architecture. The seal’s dimensions conform to ISO 3601‑1 standard, ensuring interchangeability with other original equipment seals of the same size class.
XCMG’s manufacturing facility for seal 800172428 is certified to IATF 16949:2023 and ISO 9001:2025. The seal is stocked in regional warehouses in the United States (Houston), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2‑5 business days. Bulk orders include a certificate of conformity. For fleet operators, it is recommended to keep a variety of seal sizes in stock, including the 800172428, to minimize downtime during unplanned repairs. Use the inquiry button above to request a quote or place an order for genuine XCMG seal 800172428.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172428 is an original manufacturer reference for a genuine XCMG seal. All specifications are derived from XCMG engineering standards and field validation data.
