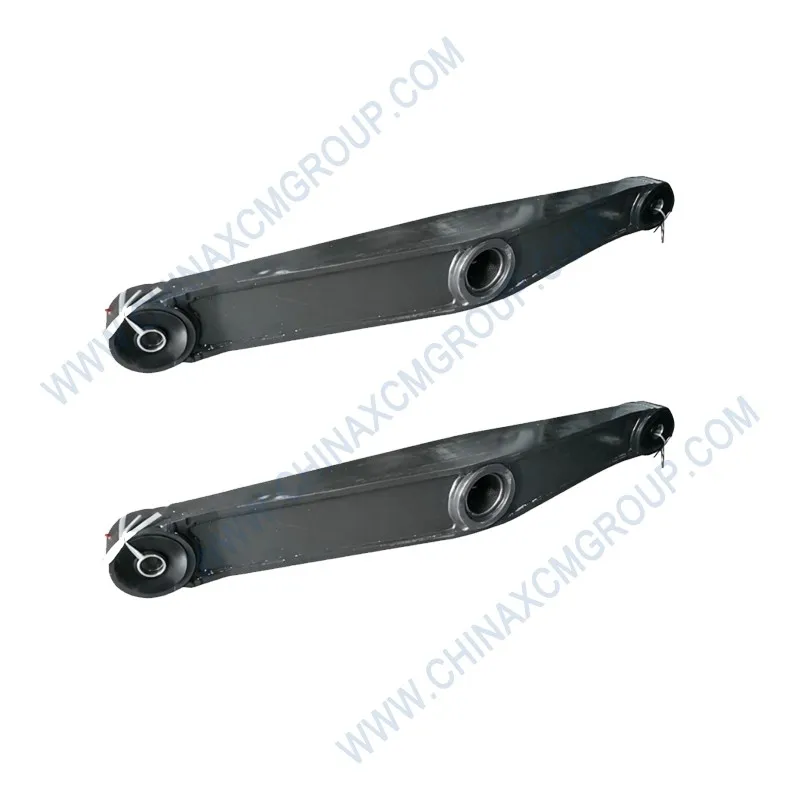

Balance Beam

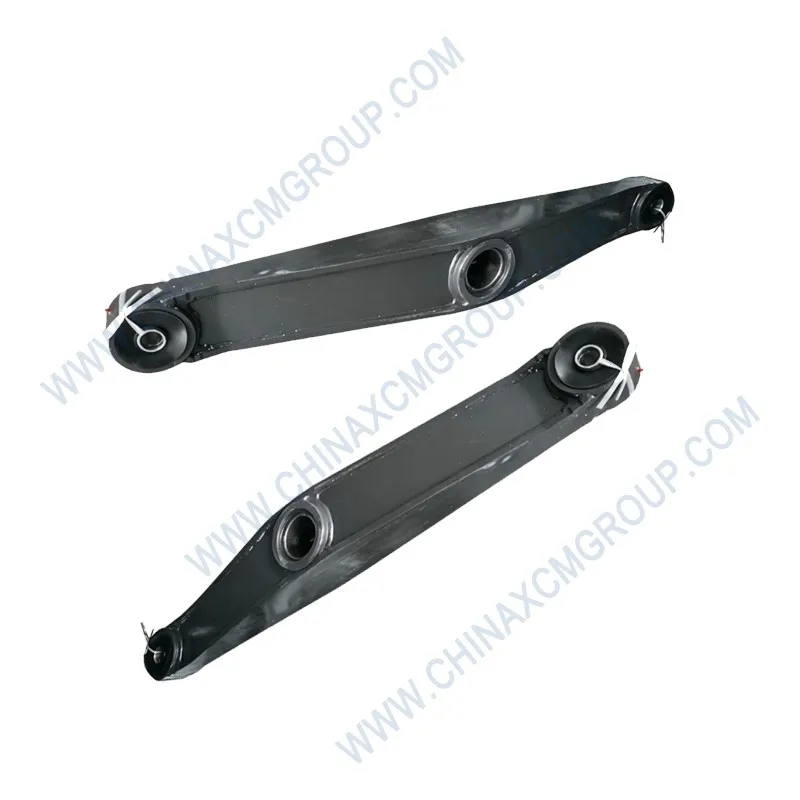

Балансирная балка
Viga de equilibrio
The 332101386 Balance Beam is a precision‑forged structural component engineered for the heavy‑duty suspension systems of XCMG articulated dump trucks. As a non‑engine auxiliary part, this balance beam transmits vertical loads between the front and rear axles, ensuring optimal weight distribution, improved traction, and superior ride stability across uneven terrain. Manufactured from high‑strength alloy steel with a robust anti‑corrosion coating, the 332101386 balance beam guarantees exceptional durability, fatigue resistance, and long service life in the most demanding haulage, construction, and mining applications.
The 332101386 balance beam is a critical component that maintains the alignment of the suspension system, reducing stress on other chassis parts and enhancing overall machine safety and productivity.
The 332101386 Balance Beam is a fundamental structural element in the suspension system of XCMG articulated dump trucks. As a non‑engine auxiliary component, it connects the front and rear axles, allowing them to oscillate relative to each other while maintaining a balanced load distribution. This articulation capability is essential for keeping all wheels in contact with uneven ground, providing superior traction and stability on rough haul roads, stockpiles, and construction sites.
Manufactured from high‑grade alloy steel (34CrNiMo6) and subjected to a rigorous quenching and tempering process, the 332101386 balance beam delivers exceptional strength, toughness, and resistance to fatigue. Its precision‑forged and machined bearing journals ensure accurate alignment with the suspension bushings, reducing wear and extending the service life of the entire suspension system.
The 332101386 Balance Beam is engineered to withstand the extreme loads and dynamic forces encountered in off‑highway haulage. Its static load capacity exceeds 800 kN, making it suitable for the heaviest payloads and the most severe operating conditions. The alloy steel composition, combined with the heat treatment, provides excellent resistance to plastic deformation and crack propagation, ensuring the beam maintains its structural integrity over thousands of operating hours.
The 332101386 Balance Beam offers a range of features that enhance the performance and reliability of XCMG articulated dump trucks. Its robust forged construction provides superior strength‑to‑weight ratio, optimising the vehicle’s payload capacity while maintaining structural integrity. The precision‑machined bearing surfaces reduce friction and wear on the suspension bushes, extending their service life and reducing maintenance frequency.
The beam’s corrosion‑resistant zinc‑nickel plating and powder coating protect against rust, abrasion, and chemical attack, ensuring long‑term durability even in harsh environments. Its balanced design improves vehicle stability, reducing the risk of rollover and enhancing operator safety. By using the genuine 332101386 balance beam, operators can restore original suspension performance and extend the service life of the entire driveline.
Furthermore, the beam’s compatibility with standard XCMG suspension components simplifies replacement and reduces downtime during maintenance. Its proven reliability in the most demanding haulage applications makes it the preferred choice for fleet operators and maintenance professionals.
The 332101386 Balance Beam is protected by a dual‑layer coating system that effectively resists rust and chemical attack. The zinc‑nickel base layer provides cathodic protection, while the powder coating offers a tough, abrasion‑resistant barrier. This combination ensures that the beam remains free from corrosion even when exposed to moisture, salt, and hydraulic fluid, reducing the need for frequent replacements and lowering total cost of ownership.
The 332101386 Balance Beam is specifically designed for use in XCMG articulated dump trucks, including the XDA series and other articulated haulers. It is a critical component of the rear suspension system, connecting the rear axle to the chassis and allowing for articulation. Its robust construction makes it suitable for heavy‑duty applications in mining, quarrying, construction, and material handling.
Beyond articulated dump trucks, this balance beam can also be used in other XCMG equipment that utilises similar suspension configurations, such as wheel loaders and crawler cranes. Its standard dimensions and high‑strength material make it a versatile replacement part for a variety of heavy machinery, providing flexibility for maintenance and repair operations.
When replacing a worn or damaged balance beam, using the genuine 332101386 part ensures correct dimensions, material strength, and hole alignment. Aftermarket beams may not meet the same quality standards, potentially leading to misalignment, accelerated wear, or catastrophic failure. Trust only genuine XCMG components to maintain the safety and performance of your equipment.
Installing the 332101386 Balance Beam requires mechanical expertise and proper lifting equipment. Before installation, ensure that the vehicle is safely supported and that the suspension is relieved of load. Thoroughly clean the mounting surfaces and inspect the bushings and bearings for wear. Position the beam between the chassis mounts and the axle, aligning the bearing journals with the bushings.
Secure the beam using the appropriate fasteners and torque them to the manufacturer’s specified values (typically 350–400 N·m for the main pivot bolts). After installation, check for correct articulation and that there is no binding. Regular inspection of the balance beam is recommended as part of routine maintenance. Look for signs of cracking, corrosion, or excessive wear on the bearing surfaces. Replace the beam immediately if any damage is detected to maintain the integrity of the suspension system.
Keeping a spare 332101386 balance beam on hand can minimise downtime during unexpected repairs. Always use genuine XCMG parts to ensure correct fit and performance.
The 332101386 Balance Beam is manufactured in ISO 9001 certified facilities under strict quality control. The alloy steel is sourced from approved suppliers and undergoes chemical and mechanical testing to verify its properties. The forging process is carefully controlled to ensure uniform grain flow and optimal mechanical characteristics. After forging, the beam is heat‑treated and machined to precise tolerances.
Each beam is 100% inspected for dimensional accuracy, surface finish, and hardness. Non‑destructive testing (magnetic particle inspection) is performed to detect any surface or sub‑surface defects. The zinc‑nickel plating and powder coating are applied in controlled environments and tested for thickness, adhesion, and corrosion resistance. These quality measures ensure that every balance beam delivers the performance and reliability expected from a genuine XCMG component.
Using genuine XCMG 332101386 Balance Beams guarantees proper fit, load‑bearing capacity, and corrosion protection. Counterfeit beams may have inferior materials or poor machining, leading to misalignment, loosening, and potential component failure. Always source genuine parts from authorized XCMG distributors.
The 332101386 Balance Beam is an essential component for ensuring the structural integrity and suspension performance of XCMG articulated dump trucks. As a non‑engine auxiliary part, it provides the critical articulation and load distribution required for safe and efficient off‑highway haulage. Its robust alloy steel construction, precision machining, and corrosion‑resistant finish make it an indispensable part of any suspension maintenance program.
With its high load capacity, excellent fatigue resistance, and exact OEM fitment, this balance beam offers exceptional durability and value. Choosing the genuine 332101386 beam safeguards your equipment from suspension‑related failures and reduces maintenance costs. Always source genuine XCMG parts from authorized distributors to guarantee authenticity and compliance with OEM specifications.
Whether for planned maintenance or emergency repairs, the 332101386 balance beam is the trusted choice of professionals who value quality, reliability, and long‑term performance in their heavy equipment.
