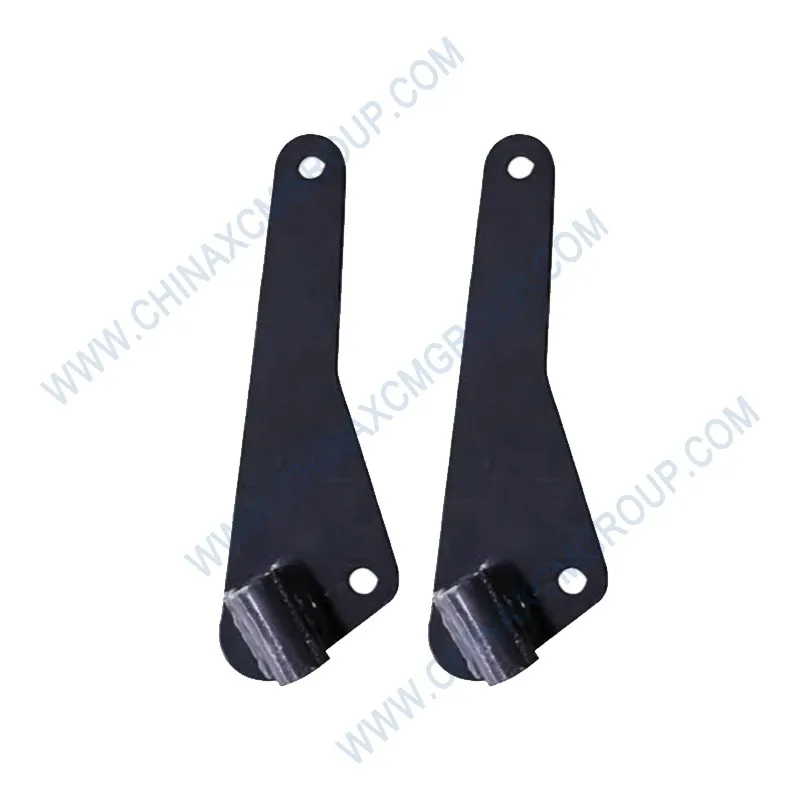

XCMG 332105917 Bracket – Genuine OEM Mounting Support for Articulated Dump Trucks

Product Features & Engineering Excellence

The XCMG 332105917 Bracket is forged from high-strength, low-alloy steel with a minimum yield strength of 450 MPa, offering exceptional resistance to bending and fatigue. Its precision-formed geometry ensures a perfect fit with existing mounting points, eliminating the need for modification.

Every bracket undergoes rigorous dimensional inspection, weld integrity testing, and surface finish analysis to guarantee compliance with XCMG’s strict quality standards. A specialized E-coat corrosion protection system delivers over 500 hours of salt spray resistance, shielding against moisture, chemicals, and abrasive debris.

Advanced robotic welding provides consistent penetration and minimal spatter, while stress-relief heat treatment eliminates residual welding stress that could lead to crack initiation over time. The result is a component that maintains structural integrity through millions of vibration cycles.

Designed with integrated gussets and ribbed reinforcements at high-stress zones, the 332105917 bracket achieves a safety factor of 4.5 against static loads. This attention to engineering detail translates to reduced downtime and lower total cost of ownership for fleet operators.

Material Composition & Manufacturing Process

The 332105917 Bracket is produced from vacuum-degassed, fine-grain HSLA steel that provides superior hardenability and impact resistance. The alloy composition is carefully controlled to meet international standards for heavy-duty off-highway machinery.

Manufacturing begins with precision laser cutting, followed by CNC forming in precision dies that achieve tolerances within ±0.2 mm on all critical dimensions. Each bracket then undergoes robotic MIG welding under controlled parameters, ensuring consistent penetration and minimal spatter.

Final operations include stress-relief heat treatment, shot blasting for surface preparation, and a multi-stage E-coat electrophoretic coating that provides exceptional chip resistance and corrosion protection. This multi-layer protection system ensures excellent adhesion and long-term durability.

Every production batch is accompanied by a material test certificate and dimensional inspection report, providing full traceability and quality assurance for fleet managers and maintenance professionals.

Technical Specifications & Dimensional Data

The 332105917 bracket is engineered to exacting dimensions that mirror the original XCMG blueprint. Its geometric precision ensures seamless integration with the chassis and auxiliary components, eliminating the need for reaming or shimming during installation.

Key parameters include the overall length, width, mounting hole pattern, and material thickness, all verified with laser-based measuring systems. The bracket’s weight and stiffness are optimized to provide maximum support while minimizing inertial forces.

Thermal expansion characteristics are carefully matched to the mating castings and frame, preventing distortion or loosening during temperature fluctuations common in Arctic or desert operations. This thermal compatibility is critical for maintaining consistent alignment of attached systems.

All mounting surfaces are precision-machined to a smooth finish that ensures even load distribution and prevents fretting corrosion. The bracket’s design incorporates alignment dowels and captive nuts to simplify installation and guarantee proper positioning.

Compatibility & Application Range

The XCMG 332105917 Bracket is specifically designed for use with XCMG articulated dump trucks, including popular models such as the XDA40, XDA45, XDA45U, XDA50, and XDA60 series. It serves as a direct replacement for the original factory bracket, guaranteeing a perfect fit and function.

This bracket is compatible with various engine configurations, including Mercedes-Benz OM460LA and OM502, Yuchai YC6K, Weichai WP13, and Cummins QSL powerplants. Its versatile mounting pattern accommodates different accessory layouts while maintaining precise alignment.

Common applications include mounting alternators, tensioners, fuel filters, hydraulic accumulators, air compressors, and power steering pumps. The bracket’s optimized geometry ensures proper belt alignment and reduces the risk of fastener loosening under extreme shock loads.

Fleet managers can confidently stock the 332105917 as a common maintenance item, reducing lead times and simplifying inventory management. Its interchangeability with original equipment eliminates the uncertainty often associated with generic aftermarket alternatives.

Installation & Maintenance Best Practices

Proper installation of the 332105917 Bracket is essential to achieve optimal performance and service life. Before fitting, thoroughly clean all mounting surfaces on the chassis and auxiliary component, removing any debris, rust, or old gasket material.

Support the auxiliary component with a hydraulic jack or lifting strap to relieve weight during installation. Position the new bracket against the chassis, ensuring that alignment dowels engage correctly and bolt holes align within 0.2 mm.

Install new M16 grade 10.9 bolts with anti-seize compound, tightening in a cross-pattern sequence to the torque values specified in the XCMG service manual. Verify that all attached components maintain proper alignment and that no hoses or wiring are chafing against the bracket.

Regular inspection intervals should include checking the bracket for signs of cracking, corrosion, or loosening. Any visible deformation or loss of alignment warrants immediate replacement to prevent progressive damage to connected systems and potential catastrophic failure.

Quality Assurance & Certification

Every XCMG 332105917 Bracket is produced under strict quality management systems that comply with ISO 9001:2015 and IATF 16949:2023 standards. The manufacturing facility utilizes advanced inspection equipment, including coordinate measuring machines and universal testing machines, to validate each bracket’s compliance with design specifications.

Certificates of conformance accompany each shipment, providing traceability to the specific production batch and material heat number. This documentation ensures that customers receive components that meet or exceed the original equipment’s quality benchmarks.

The bracket undergoes 100% non-destructive testing, including magnetic particle inspection of all critical weld seams, to detect any subsurface flaws. This exhaustive testing regimen guarantees that only the highest-quality brackets reach the market.

XCMG’s commitment to quality extends beyond manufacturing, with continuous improvement initiatives that incorporate feedback from field performance data. The 332105917 bracket represents the culmination of decades of engineering refinement and real-world validation.

Performance Benefits & Operational Advantages

Choosing the genuine XCMG 332105917 Bracket delivers tangible benefits to your operations. Its superior stiffness and precise alignment ensure that mounted accessories remain securely positioned, reducing wear on drive belts, pulleys, and bearings.

The bracket’s robust construction ensures consistent performance even under shock loading and high-frequency vibration, common in off-road haulage applications. Operators report improved accessory reliability and reduced downtime when using genuine XCMG brackets.

By maintaining proper alignment of critical systems, the bracket contributes to overall equipment reliability, preventing costly failures that can lead to unplanned downtime. This proactive approach to maintenance preserves the value of your capital equipment.

Fleet operators who standardize on genuine XCMG parts like the 332105917 benefit from simplified supply chains, predictable maintenance intervals, and the peace of mind that comes with using components engineered for their specific machines.

Why Choose Genuine XCMG Replacement Parts

The 332105917 Bracket is more than just a replacement component—it is an investment in the long-term health and productivity of your articulated dump truck fleet. Genuine XCMG parts are engineered to the same exacting standards as the original equipment, ensuring seamless integration and optimal performance.

Unlike generic aftermarket alternatives, genuine parts undergo exhaustive testing to verify their durability, fit, and material properties. This rigorous validation process eliminates the risks associated with substandard components, such as premature failure, improper fit, and reduced equipment efficiency.

When you choose the XCMG 332105917 bracket, you are selecting a part that has been proven in the field under the most demanding operating conditions. It is the same high-quality component that XCMG uses in its own factory assembly lines.

Furthermore, genuine XCMG parts are backed by the manufacturer’s comprehensive warranty and technical support network, providing an additional layer of assurance for your maintenance operations. This support ensures that any issues are promptly addressed.

Environmental Responsibility & Sustainability

XCMG is committed to sustainable manufacturing practices, and the 332105917 Bracket is produced with environmental stewardship in mind. The production process incorporates energy-efficient technologies, waste reduction initiatives, and the use of recyclable materials wherever possible.

The E-coat corrosion protection system is formulated with low-VOC chemistry, reducing environmental impact during both application and service life. Additionally, the bracket’s extended durability means fewer replacements over the equipment’s lifespan, reducing material consumption.

By choosing genuine XCMG parts, operators contribute to a circular economy model where components are designed for longevity, repairability, and eventual recycling. This approach aligns with global sustainability goals and demonstrates a commitment to responsible resource management.

The XCMG 332105917 bracket exemplifies the company’s dedication to delivering high-performance solutions that also respect the environment, making it a responsible choice for forward-thinking organizations.

Global Availability & Efficient Logistics

The XCMG 332105917 Bracket is available through an extensive global distribution network, ensuring that operators in every region have prompt access to genuine replacement parts. Strategic warehousing locations in key markets enable rapid order fulfillment and reduced lead times.

Whether you are operating in North America, Europe, Africa, Asia, or Australia, you can rely on XCMG’s logistics infrastructure to deliver the parts you need, when you need them. This global reach minimizes equipment downtime and supports uninterrupted production schedules.

Inventory management is simplified through XCMG’s digital parts catalog, which provides real-time availability and ordering capabilities. Fleet managers can plan maintenance activities with confidence, knowing that the 332105917 bracket is readily available.

XCMG’s commitment to customer support extends to after-sales service, with technical experts available to assist with installation, troubleshooting, and maintenance advice. This comprehensive support ecosystem ensures that your equipment remains productive and reliable.
