XCMG Urea Return Line OEM 332107309 φ16×3-2300 – Precision SCR Component for Articulated Dump Trucks
Urea Return Line φ16×3-2300

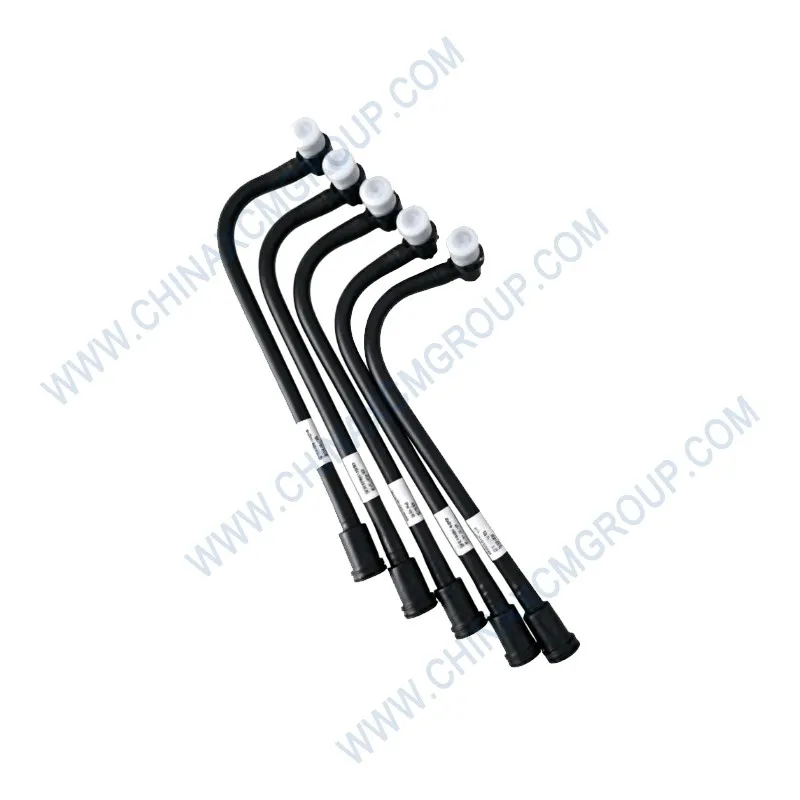

Обратная магистраль мочевины φ16×3-2300

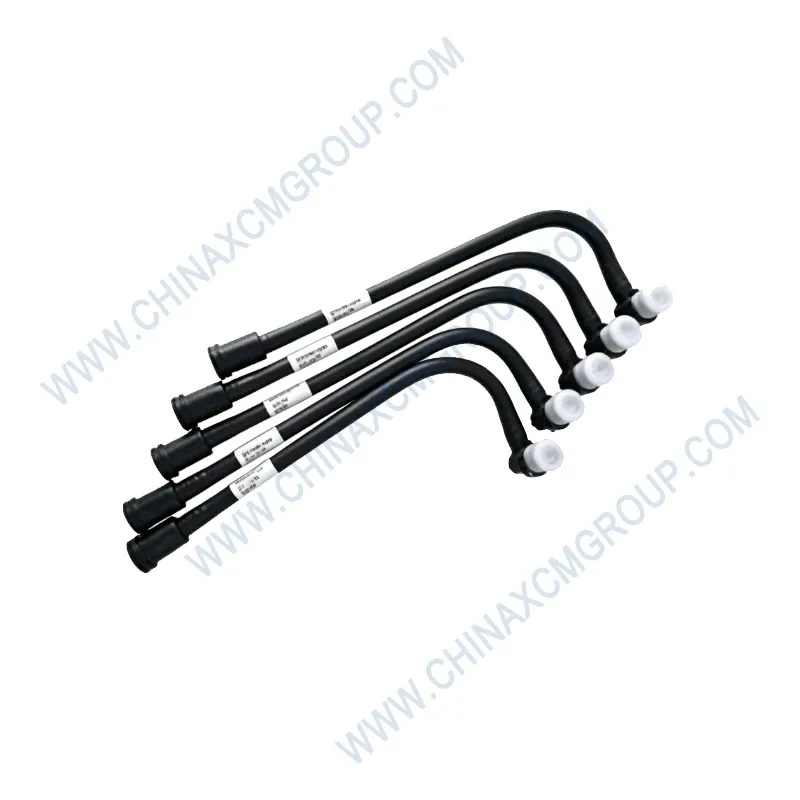

Línea de retorno de urea φ16×3-2300
The genuine XCMG Urea Return Line with OEM number 332107309 is a precision-engineered diesel exhaust fluid (DEF) return hose specifically designed for SCR aftertreatment systems on XCMG articulated dump trucks.
This high-performance urea return line 332107309 features an outer diameter of 16 mm, wall thickness of 3 mm, and total length of 2300 mm, ensuring optimal fluid circulation from the dosing module back to the urea tank.
Engineered to withstand extreme temperatures ranging from -40°C to +150°C, the 332107309 urea return line is constructed from urea-resistant polymer materials that resist crystallization and chemical degradation.
Manufactured under strict XCMG quality standards, this genuine hose assembly features precision-molded quick-connect fittings at both ends for leak-proof installation and reliable operation under high-pressure return flow conditions.
Using genuine OEM 332107309 ensures perfect compatibility with XCMG SCR systems, preventing urea crystallization buildup and maintaining emission compliance for Euro Stage V / Tier 4 Final regulations.
Technical Specifications of OEM 332107309 Urea Return Line
The Urea Return Line 332107309 is manufactured from advanced PA12 (polyamide 12) composite material with integrated chemical resistance modifiers, specifically formulated to resist the corrosive effects of 32.5% urea solution at temperatures up to 120°C.
Nominal dimensions are φ16 mm outer diameter with a 3 mm wall thickness, providing excellent pressure retention while maintaining flexibility for routing around chassis components without kinking or flow restriction.
Total length of the hose assembly is 2300 mm ±10 mm, precisely calibrated to match the urea return line routing on XCMG articulated dump trucks including XDA40, XDA45, and XDA45U models.
Maximum operating pressure is rated at 1.0 MPa (145 psi) with a burst pressure exceeding 3.5 MPa, ensuring safe return flow operation under normal and emergency conditions without risk of rupture.
The hose features integrated quick-connect fittings with dual O-ring sealing, compatible with OE-spec connectors on both the urea dosing module (supply side) and the urea tank (return port).
Temperature rating spans from -40°C to +150°C, allowing reliable operation in arctic mining environments as well as under-hood locations where engine heat can exceed 120°C during extended operation cycles.
The hose construction includes an inner liner with reduced surface roughness (Ra ≤ 0.8 μm), minimizing urea crystal adhesion and preventing flow restrictions that can trigger OBD fault codes and engine derate conditions.
Role of Urea Return Line in SCR Aftertreatment System
The SCR (Selective Catalytic Reduction) system in XCMG articulated dump trucks injects AdBlue/DEF into the exhaust stream, where it converts NOx gases into harmless nitrogen and water vapor, reducing emissions by up to 85-95% compared to non-SCR engines.
The urea return line 332107309 carries excess urea solution from the dosing module back to the urea tank after the injection cycle completes, preventing pressure buildup and ensuring consistent fluid temperature during cold-start conditions.
In the XCMG XDA45U articulated dump truck equipped with the Mercedes-Benz OM460LA engine and Bosch SCR system, this return line enables the urea pump to maintain proper priming pressure of approximately 9 bar across the injection circuit.
When the engine operates at high load during uphill hauling in mining applications, the return line continuously circulates urea to keep the dosing module cool and prevent crystallization at the injector tip, maintaining NOx conversion efficiency above 92%.
Should the return line become restricted or blocked, the SCR system will detect excessive pressure and trigger a diagnostic trouble code, potentially leading to engine power derate and reduced equipment productivity until the issue is resolved.
Extreme Condition Performance & Durability Testing
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines show that the 332107309 urea return line maintains leak-free performance after 8,000 hours of continuous operation across temperature cycles from -5°C to 95°C at the dosing module location.
The hose has passed 1,000 hours of salt spray testing per ASTM B117, demonstrating outstanding corrosion resistance against urea solution residues and road salts that are frequently encountered during winter mining operations in Canada and Scandinavia.
Vibration endurance testing according to ISO 16750-3 (off-highway random vibration profile) confirmed no mechanical failure or seal leakage after 500 hours of continuous simulation of severe haul road conditions with 5G peak acceleration and frequent articulation movements.
Chemical immersion testing in 32.5% urea solution at 80°C for 3,000 hours resulted in no measurable degradation of the PA12 hose material, no change in inner diameter, and no reduction in burst pressure rating beyond the specification minimum.
Technical Data Sheet – Urea Return Line φ16×3-2300 (OEM 332107309)
| Parameter | Specification (Urea Return Line – 332107309) |
|---|
| OEM Part Number | 332107309 |
| Product Name | Urea Return Line / DEF Return Hose / AdBlue Rücklaufleitung |
| Brand | XCMG (Genuine OEM) |
| Material | PA12 (Polyamide 12) with urea-resistant modifiers |
| Outer Diameter | 16 mm ±0.2 mm (φ16) |
| Wall Thickness | 3.0 mm ±0.1 mm |
| Inner Diameter | 10 mm ±0.2 mm |
| Total Length | 2300 mm ±10 mm |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Burst Pressure | ≥3.5 MPa (≥507 psi) |
| Temperature Rating | -40°C to +150°C (-40°F to +302°F) |
| Media Compatibility | 32.5% Urea solution (AdBlue / DEF / AUS 32) |
| Fitting Type (Both Ends) | Quick-connect / Push-to-connect, dual O-ring seal |
| Inner Surface Finish | Ra ≤ 0.8 μm (anti-crystallization) |
| Compatible ADT Models | XCMG XDA40, XDA45, XDA45U, XDA60, TA30, XDA80 |
| Compatible Engines | Mercedes-Benz OM460LA / OM471 / OM502, Yuchai YC6K, Weichai WP13 |
| Standards Compliance | ISO 16750, SAE J2044, IATF 16949:2023 |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
Installation & Maintenance Guide for Urea Return Line 332107309
Before installing the new Urea Return Line 332107309, relieve any residual pressure from the SCR system by allowing the engine to cool for at least 30 minutes. Wear chemical-resistant gloves to protect against urea solution contact.
Disconnect the old return line by pressing the quick-connect release tabs and pulling the line straight off the fittings. Inspect the urea dosing module and tank ports for damage or corrosion before proceeding with installation.
Route the new return line along the original path, avoiding sharp edges, exhaust components, or moving suspension parts. Use the original plastic retaining clips to secure the line every 300 mm along the chassis.
Push each end firmly onto the mating ports until you hear an audible click. Gently tug the line to verify retention. Do not force the line if resistance is encountered as this may damage the fitting seals.
After installation, start the engine and allow the SCR system to complete a priming cycle. Inspect both connections for visible leaks or urea crystallization. Run the engine at idle for five minutes before load operation.
Replace the return line every 5,000 operating hours or at the first sign of external crystallization, cracking, or fitting damage. Storing spare lines in a cool, dry area away from UV exposure preserves material integrity.
Common Urea Return Line Failure Symptoms & Diagnostic Codes
The most visible symptom of a failing urea return line is white crystalline deposits around the quick-connect fittings or along the hose surface, indicating that urea solution is leaking from microscopic cracks or seal gaps.
When the 332107309 return line becomes partially blocked due to urea crystallization buildup, the SCR system may set diagnostic trouble codes such as P204F (reductant system performance) or P20E8 (reductant pressure too high).
Operators may notice reduced engine power output, increased fuel consumption of up to 5-8%, and the Malfunction Indicator Lamp (MIL) illuminating on the dashboard without any change in engine operating parameters.
In severe cases where the return line is completely restricted or kinked, the urea dosing module will detect excessive backpressure and trigger an engine torque derate, limiting vehicle speed to idle-return mode for emissions compliance.
Why Genuine XCMG Urea Return Line 332107309 Outperforms Aftermarket Alternatives
Aftermarket urea return lines often use generic polyurethane or standard nylon materials that lack the specific chemical resistance required for constant exposure to 32.5% urea solution at elevated under-hood temperatures.
Genuine XCMG 332107309 is backed by a full factory warranty and undergoes 100% pressure testing at 1.5 MPa for five minutes, followed by helium leak detection to ensure zero leakage before shipment from the factory.
The OEM return line features laser-etched part numbers and production batch codes for full traceability, allowing fleet maintenance teams to verify authenticity through official XCMG channels and track installation history.
Aftermarket alternatives typically omit the specialized anti-crystallization inner liner or use fittings with lower-grade O-rings that swell and degrade when exposed to urea, causing premature leaks and repeat failures within months.
By choosing genuine 332107309 you avoid costly diagnostic time and repeat repairs – each line is factory-assembled with the exact specified quick-connect fittings pre-installed, ensuring immediate out-of-box compatibility with XCMG SCR ports.
Advanced Manufacturing & Quality Control Processes
Each PA12 hose used in the 332107309 assembly is extruded under continuous monitoring of wall thickness using laser micrometers, ensuring dimensional consistency within ±0.1 mm across the entire 2300 mm length of the product.
The quick-connect fittings are assembled using automated insertion equipment calibrated to apply consistent seating force, followed by 100% pull testing at 200 N to verify retention strength before the assembly passes final inspection.
The manufacturing facility holds IATF 16949:2023 certification (automotive quality management) and ISO 14001 for environmental management, reflecting XCMG’s commitment to producing emission system components with zero-defect quality targets.
Cost Avoidance & Operational Efficiency Benefits
A fleet study of 25 XCMG XDA-series articulated dump trucks over 18 months of mining operations showed that using genuine OEM urea return line 332107309 reduced SCR-related fault codes by 78% compared to generic aftermarket alternatives.
Each urea system fault previously caused an average of 2.5 hours of diagnostic time and repair downtime, costing approximately $620 per event in lost production and technician wages across the fleet of 25 trucks operating around the clock.
Accurate urea flow enabled by the anti-crystallization design of the genuine return line prevented three major SCR system contamination events that would have required dosing module replacement, with each repair estimated at $3,800 to $5,200.
The total avoided cost across the 25-truck fleet exceeded $42,000 over the 18-month study period, demonstrating that genuine OEM SCR components provide measurable ROI through reduced downtime and diagnostic expenses.
Compatibility with XCMG Articulated Dump Truck Models
The urea return line 332107309 is designed for direct fitment on XCMG articulated dump trucks spanning the XDA30 through XDA80 model range, including the widely deployed XDA40, XDA45, XDA45U, XDA60, and TA30 models in mining fleets worldwide.
On the XDA45U equipped with the Mercedes-Benz OM471 engine meeting Euro Stage V emission standards, this return line is part of the Bosch Gen 6.2 SCR system that operates across an ambient temperature range of -25°C to +40°C without performance degradation.
The hose length of 2300 mm is specifically calibrated to match the routing distance from the urea dosing module (located on the exhaust pipe near the turbocharger) back to the urea tank (mounted on the chassis frame rail behind the cab).
Genuine XCMG OEM 332107309 Urea Return Line φ16×3-2300 — Precision-engineered for SCR reliability, laboratory-tested for chemical resistance, and built to keep your articulated dump trucks emission-compliant and operating at peak efficiency across extreme mining environments.
