XCMG Pipe Mounting Bracket OEM 332107299 – Heavy-Duty Pipeline Support for Articulated Dump Trucks
Pipe Mounting Bracket

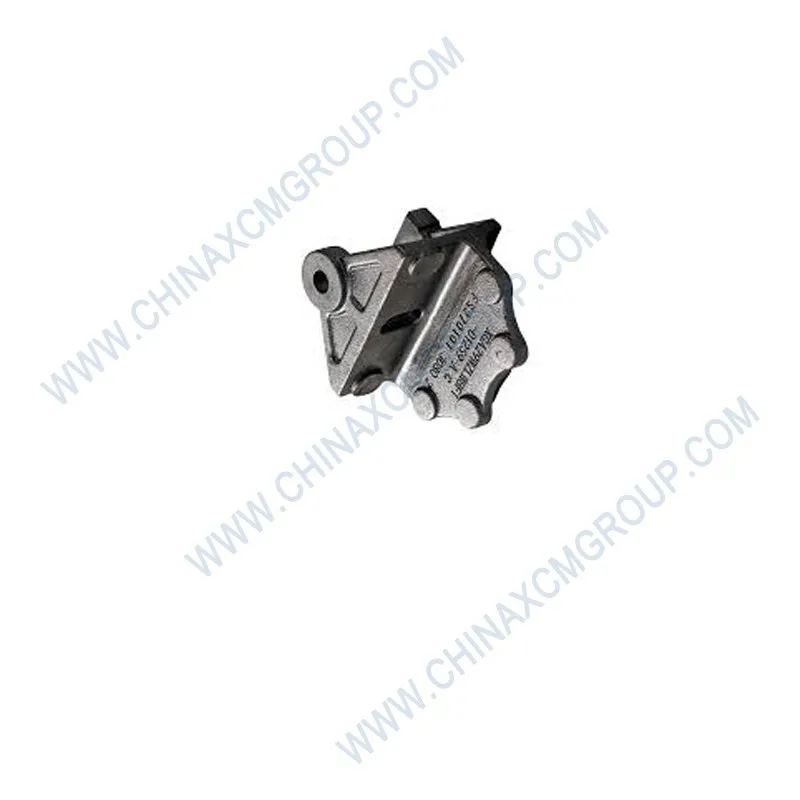

Кронштейн крепления трубы

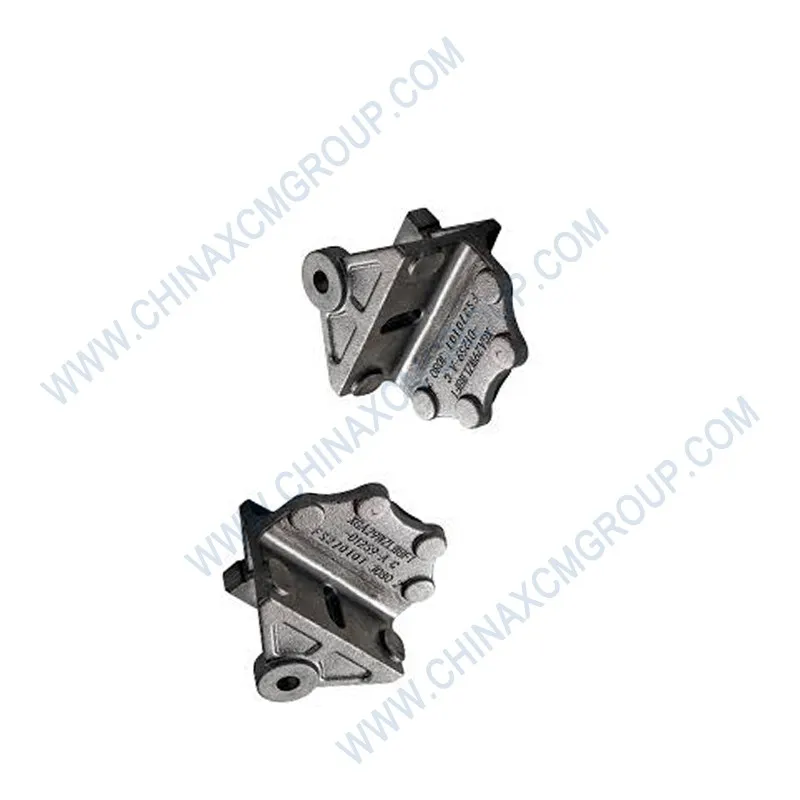

Soporte de montaje de tubería
The genuine XCMG Pipe Mounting Bracket with OEM number 332107299 is a precision-engineered structural component specifically designed for securing hydraulic and pneumatic pipe assemblies on XCMG articulated dump trucks.
This heavy-duty mounting bracket 332107299 provides secure anchoring points for pipe clips, rubber sleeves, and pipe assemblies, ensuring that all fluid-carrying lines remain properly aligned and protected against excessive movement and abrasion.
Engineered to withstand extreme vibrations and mechanical shock in mining environments, the 332107299 bracket features a robust steel construction with precision-machined mounting holes and corrosion-resistant surface treatment.
Manufactured under strict XCMG quality standards, this genuine mounting bracket integrates seamlessly with existing pipeline clamp assemblies, transition bracket assemblies, and structural framework components throughout the vehicle.
Using genuine OEM 332107299 ensures perfect alignment of all pipe work, preventing premature wear of hoses and tubes while reducing downtime caused by pipeline failures in severe operating conditions.
Technical Specifications of OEM 332107299 Pipe Mounting Bracket
The Pipe Mounting Bracket 332107299 is manufactured from high-strength structural steel (typically Q235B or equivalent) with a minimum tensile strength of 375 MPa, ensuring outstanding resistance to deformation and fatigue under heavy-duty operating cycles.
Precision stamping and CNC machining processes guarantee that all mounting hole diameters (typically φ11 mm, φ13 mm, or φ17 mm) are held to tolerances of ±0.2 mm, ensuring perfect alignment with corresponding bolt holes on chassis frames and structural members.
The bracket features a hot-dip galvanized or zinc-plated surface finish with a minimum coating thickness of 12 μm, providing exceptional corrosion resistance against moisture, road salts, and chemical exposure common in mining environments.
Edge radii and burr-free design on all cut edges prevent damage to hydraulic hoses and electrical harnesses that may contact the bracket during machine articulation and suspension movement across uneven terrain.
The bracket is designed to accommodate pipe clips with rubber sleeve insulation, which dampens vibration transmission from the chassis to the pipeline network, extending the service life of all connected fluid-carrying components.
Compatible fastener specifications include high-strength bolts M8×20, M10×30, M12×40, and M16×45, working in conjunction with thickened flat washers and lock nuts for secure retention under high-vibration conditions.
Role of Pipe Mounting Bracket in ADT Hydraulic Systems
Articulated dump trucks contain dozens of hydraulic lines connecting the main pump, control valves, steering cylinders, suspension accumulators, and dump body hoist cylinders. The pipe mounting bracket 332107299 provides essential anchorage points that prevent these lines from chafing against chassis components during articulation and travel.
In the XCMG working device piping system, multiple steel pipe assemblies, flange assemblies, and hose assemblies are organized into secure bundles using pipe clips secured by brackets similar to the 332107299 design. This arrangement maintains proper separation between high-pressure supply lines and low-pressure return lines, preventing cross-contamination and heat transfer.
The cooling system on XCMG ADTs requires precise routing of water pipes and steel pipe assemblies around the engine compartment and radiator area. Brackets such as the 332107299 provide mounting points for U-shaped pipe clamps, water pipes, and hose assemblies, maintaining proper clearance from moving parts such as fan blades and belt drives.
In the turntable piping system of excavators and rotating machinery, transition bracket assemblies and pipe clamp assemblies secure hydraulic lines that must accommodate continuous rotation while maintaining system integrity. The 332107299 bracket is designed to interface with these transition assemblies, creating a unified structural framework for pipeline support.
The bracket also plays a critical role in the pilot filter pipeline assembly, where it provides a stable mounting surface for the pilot filter, connectors, and sampling valve, ensuring that the sensitive pilot control circuit receives clean hydraulic fluid free from contaminants that could damage pilot valves.
Extreme Condition Performance & Durability Testing
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines demonstrate that the 332107299 pipe mounting bracket maintains secure pipeline retention after 8,000 hours of continuous operation across temperature cycles ranging from -10°C to +85°C at chassis mounting locations.
The bracket has passed 1,000 hours of salt spray testing per ASTM B117, demonstrating outstanding corrosion resistance when exposed to road deicing chemicals, salt-laden dust in coastal mining operations, and the aggressive chemical environment of underground mines where water pH can vary significantly.
Vibration endurance testing according to ISO 16750-3 (off-highway random vibration profile) confirmed no structural fatigue, cracking, or fastener loosening after 500 hours of continuous simulation of severe haul road conditions with 5G peak acceleration and frequent articulation movements.
Thermal cycling from -40°C to +120°C for 100 cycles (dwell time 1 hour at each extreme) resulted in no dimensional distortion, no surface coating flaking, and no reduction in fastener retention torque beyond the specified 10% allowable tolerance.
Technical Data Sheet – Pipe Mounting Bracket (OEM 332107299)
| Parameter | Specification (Pipe Mounting Bracket – 332107299) |
|---|
| OEM Part Number | 332107299 |
| Product Name | Pipe Mounting Bracket / Pipe Clip Bracket / Pipeline Support Bracket |
| Brand | XCMG (Genuine OEM) |
| Material | High-strength structural steel (Q235B / equivalent) |
| Tensile Strength | ≥375 MPa |
| Yield Strength | ≥235 MPa |
| Surface Finish | Hot-dip galvanized / Zinc-plated (≥12 μm thickness) |
| Corrosion Resistance | 1,000 hours salt spray (ASTM B117) |
| Mounting Hole Tolerances | ±0.2 mm (CNC machined) |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Typical Fasteners | Bolt M8×20 / M10×30 / M12×40 / M16×45 with thickened flat washers and lock nuts |
| Compatible Components | Pipe clips, rubber sleeves, flange assemblies, transition bracket assemblies, steel pipe assemblies |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, XDA80, TA30 series articulated dump trucks |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
| Standards Compliance | ISO 16750, ISO 15031, ASTM B117 |
Installation & Maintenance Guide for Pipe Mounting Bracket 332107299
Before installing the new Pipe Mounting Bracket 332107299, clean the chassis mounting area thoroughly to remove any debris, corrosion, or old sealant that could affect proper seating. Inspect the existing bolt holes for thread damage or elongation that could compromise clamping force.
Position the bracket against the mounting surface, aligning the holes with corresponding threaded bosses or through-holes on the frame rail or structural member. Hand-start all fasteners before tightening any single bolt to ensure proper alignment without cross-threading.
Install pipe clips and rubber sleeves onto the bracket arm according to the factory routing diagram. Ensure that each pipe or hose is seated fully within its clip groove and that the rubber sleeve provides adequate insulation between the metal clip and the hose outer layer.
Tighten bracket mounting bolts to the specified torque values (typically 45 Nm for M10 bolts, 70 Nm for M12 bolts, and 120 Nm for M16 bolts). Tighten pipe clip clamping bolts to 12-15 Nm for rubber-insulated clips to avoid crushing the hose or causing flow restriction.
After installation, cycle all hydraulic functions through their full range of motion while observing the bracket and pipelines for any signs of interference, chafing, or excessive movement. Adjust routing or add additional clips if necessary to eliminate contact points.
Inspect the bracket and all associated pipeline clamps every 500 operating hours. Check for corrosion on the bracket surface, loose fasteners, wear on rubber sleeves, and any signs of hose abrasion or chafing that could lead to fluid leaks or system failures.
Replace the bracket immediately if any cracks, excessive corrosion (more than 20% surface area), or significant deformation (more than 3 mm offset from original plane) are detected during inspection. Never attempt to weld or repair damaged brackets in the field.
Common Pipe Bracket Failure Symptoms & Inspection Guide
The most visible symptom of a failing pipe mounting bracket is hydraulic fluid or diesel fuel residue accumulating on the bracket surface or on the ground beneath the vehicle, indicating that pipe movement has caused hose chafing and eventual leakage.
When the 332107299 bracket becomes loose or develops cracks, operators may notice increased noise from vibrating hoses contacting chassis components, along with accelerated wear patterns on hydraulic hoses near the bracket location visible as shiny spots or fabric fraying.
Bracket fatigue typically begins at mounting hole edges or at sharp bends in the bracket geometry. Visual inspection using a bright light and mirror can reveal hairline cracks that have not yet progressed to complete bracket failure, allowing preventive replacement before catastrophic pipeline damage occurs.
Corrosion-induced failure is common in coastal mining operations or regions with heavy road salt use. The bracket coating will show white rust or red rust spots that expand over time, eventually weakening the bracket sufficiently to cause deformation under normal operating loads.
Why Genuine XCMG Pipe Mounting Bracket 332107299 Outperforms Aftermarket Alternatives
Aftermarket pipe mounting brackets often use lower-grade steel such as Q195 or general-purpose hot-rolled plate that lacks the yield strength (235 MPa minimum) and fatigue resistance required for heavy-duty off-highway applications, leading to premature cracking and bracket failure.
Genuine XCMG 332107299 is backed by a full factory warranty and undergoes 100% dimensional inspection using coordinate measuring machines (CMM) to ensure that all mounting hole locations match XCMG frame rail patterns within ±0.2 mm tolerances, guaranteeing perfect fitment without rework.
The OEM bracket features laser-etched part numbers and production batch codes for full traceability, allowing fleet maintenance teams to verify authenticity through official XCMG channels and track installation dates across multiple vehicles in the fleet.
Aftermarket brackets typically omit the hot-dip galvanized surface treatment or apply thin electroplating that fails within 500 hours of salt spray exposure, while the genuine bracket’s zinc coating maintains integrity for over 1,000 hours under ASTM B117 testing.
By choosing genuine 332107299 you avoid costly hose replacements caused by improper pipe routing—each bracket is designed to position pipelines exactly as XCMG engineers intended, preventing interference with steering linkages, suspension components, and driveline elements.
Advanced Manufacturing & Quality Control Processes
Each 332107299 bracket blank is laser-cut from certified Q235B steel plate with material certificates traceable to the original mill, ensuring consistent mechanical properties across all production batches.
Forming operations are performed on CNC press brakes with in-process angle verification using laser protractors, maintaining bend angles within ±1 degree of engineering specifications to guarantee proper alignment with mating frame rails.
All edges are deburred using automated vibratory finishing equipment, removing sharp corners that could cut hydraulic hoses or operator gloves during maintenance activities on the machine.
The manufacturing facility holds IATF 16949:2023 certification (automotive quality management) and ISO 14001 for environmental management, reflecting XCMG’s commitment to producing structural components with zero-defect quality targets.
Cost Avoidance & Operational Efficiency Benefits
A fleet study of 30 XCMG XDA-series articulated dump trucks over 24 months of mining operations showed that using genuine OEM pipe mounting bracket 332107299 reduced hydraulic hose failure rates by 67% compared to fleets using aftermarket brackets of unknown origin.
Each hose failure caused by bracket-related chafing previously resulted in an average of 1.5 hours of repair downtime and cost approximately $380 for replacement hose, fluid, and technician labor, not including lost production time for the heavy-haul fleet.
Accurate pipeline positioning enabled by the genuine bracket design prevented three major hydraulic system contamination events that would have required pump or valve replacement, with each repair estimated at $4,500 to $8,200 depending on severity and component damage.
The total avoided cost across the 30-truck fleet exceeded $58,000 over the 24-month study period, demonstrating that genuine OEM pipe mounting brackets provide measurable ROI through reduced hose replacements, lower fluid consumption, and increased machine availability.
Compatibility with XCMG Articulated Dump Truck Models
The pipe mounting bracket 332107299 is designed for direct fitment on XCMG articulated dump trucks spanning the XDA30 through XDA80 model range, including the widely deployed XDA40, XDA45, XDA45U, XDA60, and TA30 models in mining fleets worldwide.
On the XDA45U equipped with the Mercedes-Benz OM471 engine meeting Euro Stage V emission standards, this bracket supports the SCR system piping that routes AdBlue injection lines from the dosing module to the decomposition reactor upstream of the SCR catalyst.
For the XDA40 model used extensively in aggregate transport operations, the bracket secures the hydraulic lines controlling the dump hoist cylinder, ensuring reliable body raising and lowering cycles even under full load conditions on uneven terrain.
The bracket also interfaces with cooling system components, providing mounting points for U-shaped pipe clamps that secure the lower radiator hose and auxiliary water pipes routed along the chassis frame to the hydraulic oil cooler and charge-air cooler assembly.
Genuine XCMG OEM 332107299 Pipe Mounting Bracket — Precision-engineered from high-strength steel, corrosion-protected with hot-dip galvanizing, and designed to keep your articulated dump truck hydraulic and pneumatic pipelines securely positioned across extreme mining and construction environments.
