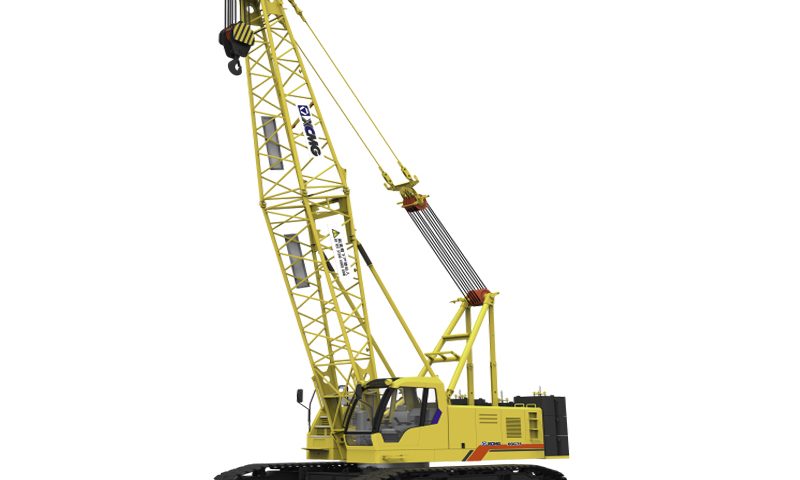

XGC75 Crawler Crane

Product Category: Crawler Crane
Brand: XCMG
Model: XGC75
Price: $100000.00-$1000000.00 / EA Based On The Features
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas
Rating:
4.9 /5 based on 177 votes

XGC75

Product Feature

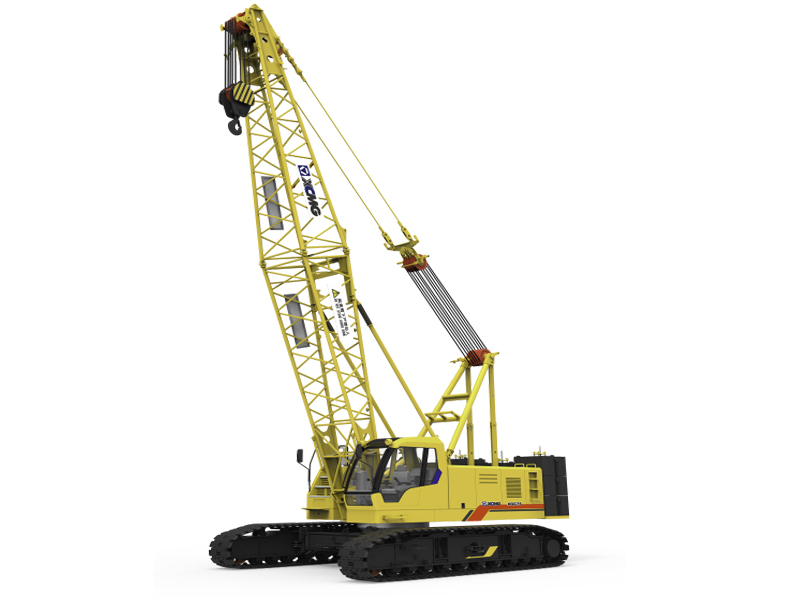

XGC75 is a new generation crawler crane which is successfully developed on the basis of XCMG second generation product . Inheriting the advantages from the old generation product XGC55, XGC75 and XGC85, XGC55 crawler crane pays more attention to the improvement of crane performance, economy, transport convenience and operation comfort. The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-pulling function, main hook quick release function, main and auxiliary hook block one-key switch function, slewing fine motion control and etc., the crane’s performance is superior to that with other domestic brands in various aspects. XGC75 crawler crane has a widerangeofapplication, energy equipment installation and etc..

Product Parameters

Item	Unit	Parameter value
Parameter Item	–	XGC75
Operation performance parameter		*
Max. rated lifting capacity for boom	(t)	75
Max. rated lifting capacity for fixed jib	(t)	12
Max. rated lifting capacity for luffing jib	(t)	—
Max. load moment	(t.m)	286
Max. rated lifting capacity for tower jib	(t)	—
Max. rated lifting capacity for boom single top	(t)	6.5
Max. rated lifting capacity for special jib	(t)	—
Dimension parameter		*
Boom length	(m)	13～58
Boom luffing angle	(°)	-3～80
Fixed jib length	(m)	7～19
Tower jib length	(m)	—
Max. dimension of single unit in transport state(L×W×H)	(m)	12.7×3.4×3.4
Fixed jib offset angle	(°)	10、30
Special jib length	(m)	—
Speed parameter		*
Max. single line speed for hoist mechanism	(m/min)	128
Max. single line speed for boom luffing mechanism	(m/min)	70
Max. single line speed for jib luffing mechanism	(m/min)	—
Max. slewing speed	(r/min)	3
Max. travel speed	(km/h)	1.4
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.08
Max. single line speed for tower jib luffing mechanism	(m/min)	—
Max. single line speed for superlift luffing	(m/min)	—
Engine		*
Model	–	SC7H210/QSB6.7
Engine power	(kW)	155/153
Emission	–	National III/EU III
Mass parameter		*
Overall crane mass	(t)	61(main hook, 13m boom)
Max. mass of single unit in transport state	(t)	37
