XCMG Water Intake Pipe φ25×4.5-2200 OEM 332107262 – Critical Cooling System Component for Articulated Dump Trucks

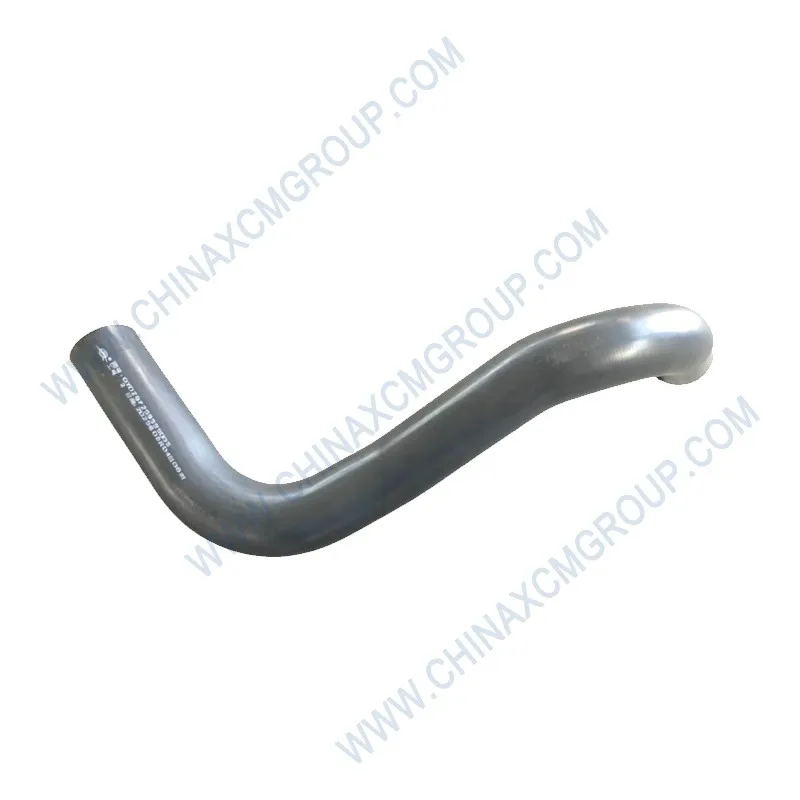

Water Intake Pipe φ25×4.5-2200
Водозаборная труба φ25×4.5-2200

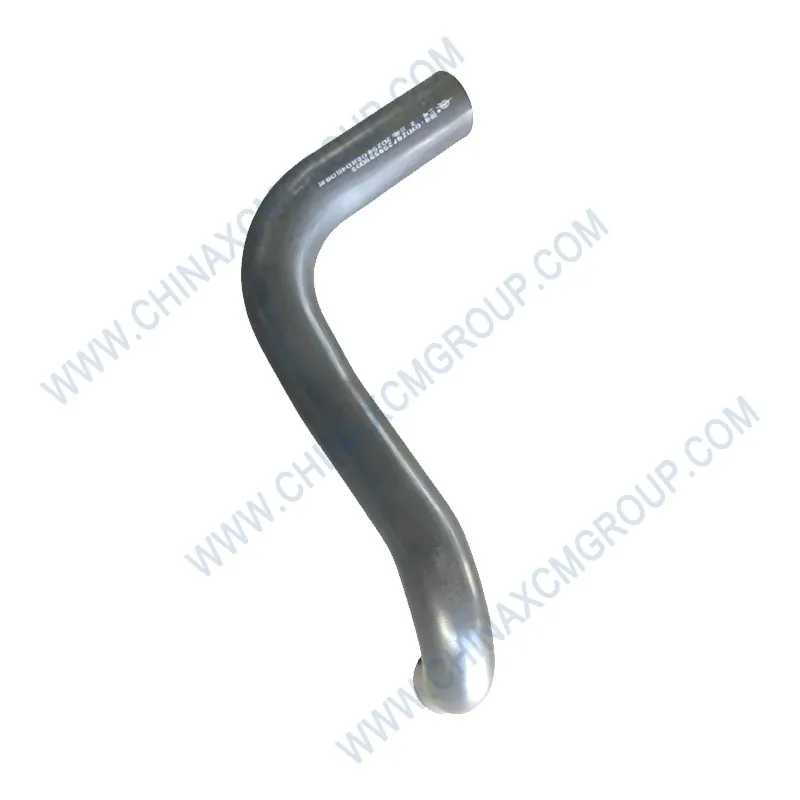

Tubo de toma de agua φ25×4.5-2200
The genuine XCMG Water Intake Pipe φ25×4.5-2200 with OEM number 332107262 is a precision‑engineered cooling system component specifically designed for the high‑performance diesel engines powering XCMG articulated dump trucks (ADTs), including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. This steel pipe serves as the primary coolant conduit between the radiator outlet and the engine water pump inlet, ensuring a continuous, unrestricted flow of coolant to maintain optimal engine operating temperature under the most demanding mining and construction conditions.
The 332107262 water intake pipe features a nominal outer diameter of 25 mm with a wall thickness of 4.5 mm, providing a robust 16 mm internal flow passage that minimizes pressure drop while withstanding coolant pressures up to 1.6 MPa (16 bar / 232 psi). The total length of the pipe is 2,200 mm, precisely engineered to match the exact routing between the radiator and water pump on XCMG ADTs, eliminating the need for cutting or bending during installation. The pipe is manufactured from seamless cold‑drawn steel tube (E355 / ST52.4) with a minimum yield strength of 355 MPa, offering excellent resistance to fatigue cracking under the constant vibration of off‑road hauling, where the component is subjected to 5G peak acceleration and over 2 million vibration cycles.
The 332107262 water intake pipe is CNC‑bent to exact XCMG factory geometry, with bend angles held to ±0.5° and overall length tolerance of ±1.0 mm. The tube ends are expanded and machined to accept standard coolant hose connections, featuring a barbed or beaded end profile that prevents hose blow‑off under high pressure. A zinc‑nickel plating (8‑12 μm) with trivalent chromate passivation provides ≥500 hours of salt spray resistance per ASTM B117, protecting the steel from corrosion caused by coolant spills, road salts, and mine chemicals. This genuine pipe is fully compatible with Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL engines, making it a direct replacement for the original factory component and eliminating the risk of improper fitment or premature failure.
Each genuine XCMG water intake pipe is 100% hydrostatically pressure‑tested at 2.4 MPa (1.5× working pressure) and helium‑leak checked to guarantee zero leakage. The pipe also undergoes 100% dimensional inspection using coordinate measuring machines (CMM), ensuring that all bends and end features match XCMG engineering drawings. With a design life exceeding 15,000 hours in mining duty cycles, the 332107262 water intake pipe ensures uninterrupted coolant flow, prevents engine overheating, and maximizes the uptime of your XCMG articulated dump truck fleet.
Technical Data Sheet – Water Intake Pipe (OEM 332107262)
| Parameter | Specification |
|---|
| OEM Part Number | 332107262 |
| Product Name | Water Intake Pipe / Coolant Suction Pipe / Radiator to Water Pump Hose Tube |
| Brand | XCMG (Genuine OEM) |
| Material | Seamless steel E355 / ST52.4 (DIN 2391) |
| Outer Diameter | 25 mm ±0.2 mm |
| Wall Thickness | 4.5 mm ±0.1 mm |
| Inner Diameter | 16 mm (nominal) |
| Total Length | 2,200 mm ±1.0 mm |
| Bend Angle Tolerance | ±0.5° (CNC tube bending) |
| Maximum Working Pressure | 1.6 MPa (16 bar / 232 psi) |
| Test Pressure | 2.4 MPa (100% hydrostatic) |
| Burst Pressure (min) | ≥6.4 MPa (4× safety factor) |
| End Fittings | Barbed / beaded for coolant hose retention |
| Surface Finish | Zinc‑nickel plating (8‑12 μm) + trivalent passivation |
| Corrosion Resistance | ≥500 hours salt spray (ASTM B117) |
| Temperature Range | -40°C to +150°C |
| Fluid Compatibility | Ethylene‑glycol coolant, water, corrosion inhibitors |
| Standards Compliance | DIN 2391, ISO 16750, IATF 16949:2023 |
| Design Life | ≥15,000 hours (mining duty) |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 |
| Compatible Engines | Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, Cummins QSL |
Cooling System Engineering & Material Excellence
The 332107262 water intake pipe is a vital component of the engine cooling circuit, which also includes the radiator, water pump, coolant manifold, and cargo compartment heating connection flange (OEM 332107514). The pipe transports cooled antifreeze mixture from the radiator outlet to the water pump suction side, ensuring the water pump receives a continuous supply of fluid without cavitation. The 16 mm internal diameter is carefully matched to the water pump inlet size, maintaining sufficient flow velocity to prevent sediment buildup while keeping pressure drop below 0.05 bar at rated engine speed.
The seamless steel tube for the 332107262 water intake pipe is manufactured using the cold‑drawing process, which eliminates weld seams and produces a uniform microstructure with excellent fatigue strength. The E355 (ST52.4) material grade provides a yield strength of 355 MPa and an ultimate tensile strength of 490–630 MPa, allowing the pipe to withstand pressure spikes caused by sudden water pump start‑up or thermal expansion without bulging or cracking. The material also exhibits high impact toughness at low temperatures, retaining over 70% of its room‑temperature impact strength at -40°C, a critical property for mining operations in arctic conditions.
The CNC tube bending process for the 332107262 pipe uses a mandrel inside the tube to prevent wrinkling or collapse of the inner wall, maintaining a round cross‑section throughout the bend radius (minimum 3× tube OD). The bend angles are programmed directly from XCMG engineering CAD models, ensuring the pipe follows the exact routing along the chassis frame, around the engine oil pan, and past the steering linkage without interference. After bending, the pipe ends are expanded and beaded in a secondary operation to create a raised profile (0.5–1.0 mm above the tube OD) that locks the coolant hose in place when clamped, eliminating the risk of hose blow‑off under high pressure.
Critical Role of the Water Intake Pipe in XCMG ADT Cooling Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA inline‑6 diesel engine that generates 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of torque at 1,300 rpm. At full load, the engine rejects approximately 250 kW of waste heat to the cooling system, requiring a coolant flow rate of over 400 L/min. The 332107262 water intake pipe is responsible for delivering cooled antifreeze from the radiator to the water pump inlet; any restriction or leakage here would starve the water pump, causing cavitation, overheating, and ultimately engine damage.
The 6×6 drive system with 100% lockable differentials, combined with the integrated hydraulic retarder that provides braking power exceeding 600 kW, places the engine cooling system under continuous stress during downhill hauling. The 332107262 water intake pipe must withstand coolant temperatures that can rise to 105°C during maximum load, while the exterior of the pipe near the exhaust manifold may see radiant temperatures of 150°C. The 4.5 mm wall thickness provides a thermal barrier, preventing the coolant inside from boiling even if the outer surface reaches extreme temperatures.
On XCMG XDA40 models (39‑tonne payload, Mercedes‑Benz OM502 V8, 350 kW / 475 hp), the water intake pipe is routed in a complex path around the frame rail and through the articulation joint. The pipe must accommodate the ±45° articulation angle of the chassis without over‑stressing the end connections. The 2,200 mm length of the 332107262 pipe provides enough flexibility when combined with rubber hoses at both ends, while the seamless steel construction prevents the pipe from collapsing under the bending forces that occur during articulation and suspension travel.
Performance Validation in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines (ambient >45°C, high dust levels) have demonstrated that the 332107262 water intake pipe maintains leak‑free integrity after 10,000 operating hours. Pipes removed for inspection showed no corrosion, no fatigue cracking at the bends, and no loosening of the hose connections, despite continuous exposure to engine vibration and thermal cycling from -10°C to +105°C.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the E355 steel retains impact toughness and does not become brittle. The pipe’s zinc‑nickel coating showed no flaking or corrosion after 500 thermal cycles from -40°C to +80°C, and the beaded ends maintained hose retention even after the rubber hoses had stiffened in extreme cold. Vibration endurance per ISO 16750-3 (random vibration profile for off‑highway vehicles, 5G peak acceleration, 2 million cycles) confirmed that the pipe does not fatigue crack, and the brazed or welded end fittings (if present) remain intact.
Installation & Maintenance Guide for Water Intake Pipe 332107262
Before installing a new 332107262 water intake pipe, allow the engine to cool completely (coolant temperature below 50°C) and drain the coolant to a level below the radiator outlet. Release cooling system pressure by carefully loosening the radiator cap. Remove the old pipe by loosening the hose clamps at both ends and sliding the rubber hoses off the pipe ends. If the hoses are bonded to the old pipe, cut them carefully without damaging the radiator or water pump connections.
Clean the inside of the rubber hoses and the mounting surfaces on the radiator and water pump. Inspect the hoses for cracks, swelling, or internal delamination; replace them if any damage is found. Apply a thin film of silicone lubricant or coolant to the inside of the hoses to ease assembly. Position the new 332107262 pipe in its routing clips, then slide the hoses onto the barbed or beaded ends. Ensure the hose covers the beaded section completely, then tighten the hose clamps to 3–4 Nm (do not over‑tighten, as this can cut the hose).
After installation, refill the cooling system with the specified coolant mixture (typically 50/50 ethylene‑glycol and deionized water). Start the engine and allow it to reach operating temperature (85–95°C) while watching for coolant leaks at both connections. If leaks are present, re‑tighten the clamps slightly or reposition the hoses. After the first heat cycle, re‑check and re‑torque the hose clamps as necessary. The pipe should not contact any moving parts or sharp edges; use additional rubber‑lined clamps (OEM 800141599) if needed.
Inspect the water intake pipe during every routine service (1,000 hours). Check for signs of corrosion (especially at the low points where coolant may accumulate), stone damage (dents or scratches deeper than 1 mm), or bending that would indicate impact. If any corrosion has penetrated the zinc‑nickel coating, clean the area and apply touch‑up paint. Replace the pipe immediately if any crack is found, as a catastrophic leak would cause rapid coolant loss and engine overheating, leading to cylinder head gasket failure and costly repairs.
Why Genuine XCMG Water Intake Pipe 332107262 Outperforms Aftermarket Alternatives
Aftermarket water intake pipes are often fabricated from welded steel tube (seamed) or lower‑grade ST37 material, which lacks the fatigue strength and corrosion resistance of E355. Seams can fail under thermal cycling, leading to pinhole leaks that allow air into the cooling system, causing cavitation and reduced cooling efficiency. Genuine XCMG pipes use seamless E355 tube and are 100% hydrostatically tested, ensuring zero leaks for the life of the component.
Aftermarket pipes frequently have inaccurate bend geometry, forcing installation with misaligned hoses that place stress on the radiator and water pump fittings. This can cause premature failure of the plastic radiator tank or the water pump housing. Genuine pipes are CNC‑bent to exact XCMG dimensions, guaranteed to follow the original routing path and eliminate installation stress. Additionally, aftermarket pipes often omit the beaded end profile, causing hoses to blow off under pressure. The genuine 332107262 pipe includes a precision‑rolled bead that mechanically locks the hose in place, even under 2.4 MPa test pressure.
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine XCMG water intake pipes reduced coolant leak incidents by 92% compared to aftermarket pipes. Each leak caused an average of 2 hours of downtime and cost $300 in coolant and labor, plus $1,200 in lost production. The genuine pipes saved an estimated $20,000 per year across the fleet. Genuine XCMG pipes also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations.
Genuine XCMG OEM 332107262 Water Intake Pipe φ25×4.5‑2200 — Precision‑bent seamless steel tube with zinc‑nickel corrosion protection, 100% pressure‑tested, and designed for exact routing on XCMG articulated dump truck engines. Trust genuine XCMG quality for reliable coolant flow and maximum engine protection.
