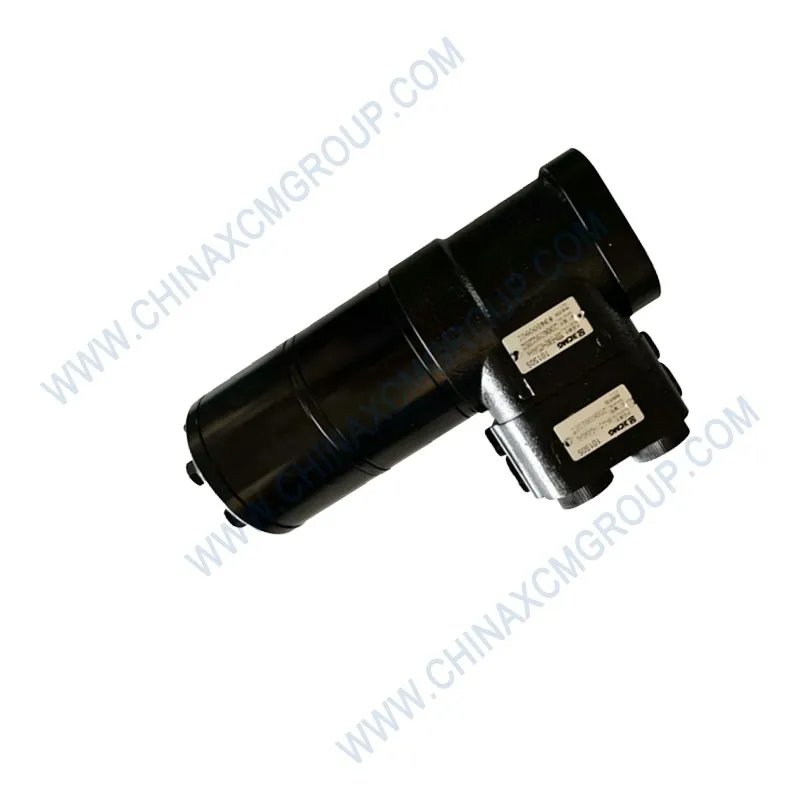

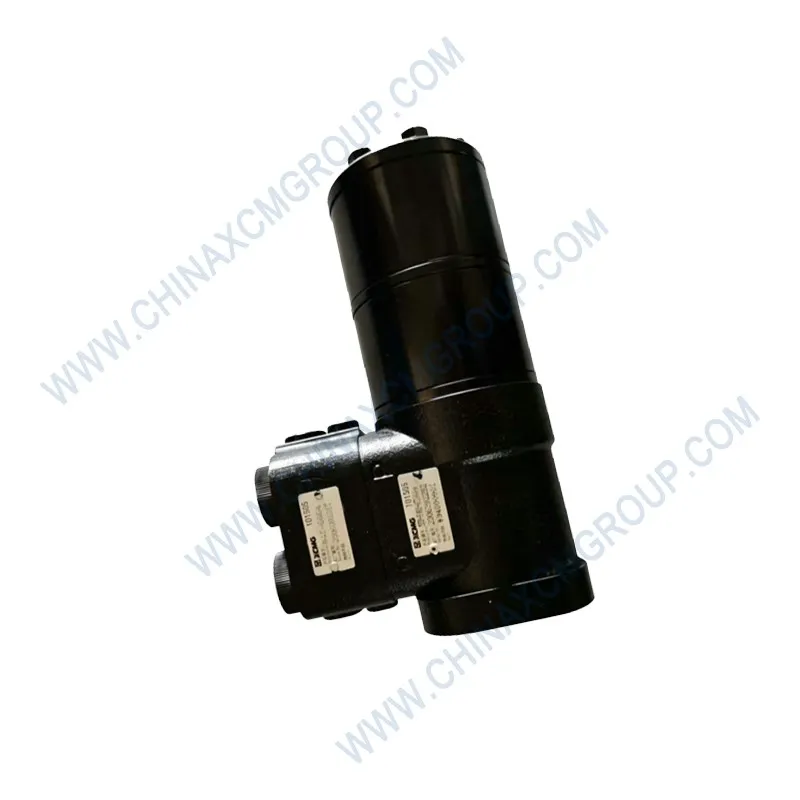

The XCMG 803421338 Steering Gear is a precision hydraulic steering unit designed for articulated dump trucks and heavy equipment. With OEM number 803421338, this steering gear ensures accurate and responsive steering control under the most severe operating conditions. Its robust construction and advanced hydraulic design provide reliable steering torque and minimal effort for the operator, enhancing machine maneuverability and safety in mining, construction, and quarrying environments.
The 803421338 Steering Gear features a high-strength cast iron housing with precision-ground internal components, ensuring long-lasting performance and minimal internal leakage. The unit incorporates a built-in relief valve to protect against pressure spikes, and its balanced design provides consistent steering feel across the entire operating range. This genuine XCMG part is manufactured to the exact OEM specifications, guaranteeing a direct replacement that restores original steering precision and reliability.
Whether used in heavy-duty dump trucks or wheel loaders, the XCMG steering gear delivers exceptional control and durability. Replacing a worn or damaged steering gear with the 803421338 component eliminates play, reduces steering effort, and extends the service life of the entire hydraulic system, making it an essential investment for fleet maintenance.
| Parameter | Specification / Value |
|---|---|
| OEM Number | 803421338 |
| Product Name | Steering Gear |
| Brand | XCMG |
| Type | Hydraulic orbital steering gear |
| Maximum Operating Pressure | 175 bar (2,540 psi) |
| Steering Torque (rated) | 40 N·m (350 lb·in) |
| Displacement per Revolution | 200 cm³ (12.2 in³) |
| Maximum Input Speed | 150 rpm |
| Operating Temperature | -30°C to +100°C |
| Port Thread Size | SAE #6 and #8 O-ring ports |
| Weight | 12.5 kg (27.5 lbs) |
| Compatible Models | XCMG DA30, DA40, DA45, XDA40 articulated dump trucks |
| Application | Hydraulic steering systems |
The 803421338 Steering Gear is a fundamental component in the hydraulic steering system of XCMG articulated dump trucks. It converts hydraulic pressure into mechanical torque to turn the wheels, providing the operator with precise control over the vehicle’s direction. Its orbital design ensures smooth and responsive steering, even at low engine speeds, making it ideal for tight maneuvering in loading and dumping areas. This steering gear is engineered to deliver consistent performance over thousands of operating hours, significantly reducing the risk of steering failure and improving overall machine safety.
Manufactured to XCMG’s original equipment specifications, this steering gear guarantees a perfect fit and reliable function. Its robust cast iron housing and precision-machined internal parts ensure minimal internal leakage and high volumetric efficiency. The built-in pressure relief valve protects the system from overpressure, while the balanced spool design provides a consistent steering feel across the entire operating range. This genuine OEM part is produced using high-quality materials and advanced manufacturing processes, ensuring long-term durability and dependable operation in harsh off-road conditions.
By choosing the 803421338 steering gear, fleet operators can restore original steering precision, reduce operator fatigue, and enhance overall vehicle safety, making it a critical investment for any maintenance program.
The 803421338 steering gear is distinguished by its robust construction and high-performance hydraulic design. The cast iron housing provides excellent structural rigidity and resistance to shock loads, while the precision-ground internal rotor and stator ensure smooth, efficient fluid transfer. The gear incorporates a dynamic pressure relief valve that prevents excessive pressure buildup, protecting the steering system from damage. Its low-friction seal design minimizes internal leakage, maintaining consistent steering response even after extended use.
The unit features a unique load-sensing capability that adjusts steering assist based on demand, providing lighter steering at low speeds and firmer feel at high speeds. This improves operator control and reduces effort, especially during parking maneuvers. The steering gear is also designed for easy installation, with standard SAE O-ring ports and mounting flange dimensions that match the original equipment. The part number is clearly stamped on the housing for quick identification.
Additionally, the steering gear is compatible with a wide range of hydraulic fluids, including mineral oils and synthetic esters, offering flexibility for different operating environments. Its ability to withstand extreme temperatures from -30°C to +100°C makes it suitable for both cold and hot climate operations.
With a rated displacement of 200 cm³ per revolution, this steering gear provides ample flow to ensure rapid steering response, even with large-diameter tires.
Replacing a worn or damaged steering gear with the genuine XCMG 803421338 part restores precise steering control, eliminating play and reducing steering effort. This directly improves operator comfort and productivity, especially during long shifts. The enhanced responsiveness allows for more accurate positioning of the vehicle, reducing the risk of collisions and damage to surrounding equipment.
The steering gear’s low internal leakage maintains high system efficiency, reducing the load on the hydraulic pump and improving fuel economy. By providing consistent assist across all operating conditions, it ensures predictable steering behavior, which is critical for safety in rough terrain. The built-in relief valve prevents pressure spikes that can cause hose bursts or seal failure, extending the life of the entire steering circuit.
Furthermore, the gear’s robust construction ensures long-term reliability, reducing the frequency of replacements and associated downtime. Operators will notice a significant improvement in steering feel and control, leading to increased confidence and reduced fatigue. These performance benefits translate directly into higher machine availability and lower total cost of ownership.
Ultimately, the 803421338 steering gear is a key component for maintaining optimal vehicle maneuverability and safety, making it a valuable upgrade for any fleet.
The 803421338 steering gear is used extensively in XCMG articulated dump trucks, including the DA30, DA40, DA45, and XDA40 models. It is the core component of the hydraulic steering system, converting steering wheel input into precise wheel angle changes. Its robust design handles the high loads and frequent articulation cycles common in mining and quarrying operations. The steering gear is also used in some XCMG wheel loaders and specialized carriers where hydraulic steering is employed.
In dump trucks, the steering gear ensures that operators can maneuver safely in tight spaces, such as loading zones and narrow haul roads. Its responsive performance is critical for avoiding obstacles and maintaining stability on uneven ground. The gear’s reliability is essential for minimizing downtime, as steering failure can render the machine inoperable and pose a safety risk. By stocking the 803421338 steering gear, fleet operators can quickly address steering issues and keep their equipment productive.
Additionally, this steering gear is compatible with various hydraulic fluids and can be used in retrofitting older machines to restore original steering performance. Its standardized mounting pattern allows for easy installation, reducing labor time and complexity.
The gear’s versatility and proven reliability make it a preferred choice for maintenance teams across multiple equipment types.
XCMG implements stringent quality controls in the production of the 803421338 steering gear. The cast iron housing is manufactured using advanced molding techniques to ensure uniform wall thickness and freedom from porosity. Internal components, such as the rotor and stator, are machined to tight tolerances and then heat-treated for optimal hardness and wear resistance. Each unit undergoes a series of functional tests, including pressure and leakage checks, to verify that it meets performance specifications.
The steering gear is also subjected to endurance testing, simulating thousands of steering cycles to confirm its long-term reliability. The seals are tested for compatibility with a wide range of hydraulic fluids and temperature extremes. Additionally, the casting is coated with a durable paint finish to resist corrosion in harsh environments. With XCMG’s commitment to quality, the 803421338 steering gear delivers consistent, dependable performance that you can trust for your fleet’s critical steering systems.
Every steering gear is traceable and backed by XCMG’s comprehensive quality management system, ensuring full accountability and support. The manufacturing process adheres to ISO 9001:2015 standards, guaranteeing world-class quality and continuous improvement.
This attention to detail ensures that each steering gear provides long-lasting, reliable service in the most demanding applications.
Installing the 803421338 steering gear requires careful attention to hydraulic cleanliness and proper torque settings. Begin by relieving the hydraulic system pressure and draining the fluid from the steering circuit. Remove the old steering gear, taking note of the port connections and mounting bolt orientation. Clean the mounting surface and ensure that the new gear’s O-rings are in good condition. Install the new gear with new O-rings, hand-tighten the mounting bolts, and torque them to the manufacturer’s specified value (typically 45–55 N·m). Connect the hydraulic lines to the correct ports, ensuring they are not cross-threaded.
After installation, refill the hydraulic system with the recommended fluid and bleed the air from the steering circuit by cycling the steering wheel from lock to lock several times. Check for leaks at all connections and verify that the steering operates smoothly and without hesitation. Regularly inspect the steering gear for signs of leakage, corrosion, or damage. Periodically check the mounting bolts for tightness and ensure that the hydraulic fluid is clean and at the correct level.
If the steering becomes heavy or unresponsive, inspect the gear for internal wear or contamination. Always use genuine XCMG replacement parts and fluids to maintain optimal performance and longevity. Following these guidelines will ensure reliable steering operation and extend the service life of the steering system.
Proper installation and regular maintenance are key to preventing steering failures and ensuring the safety of the operator and the machine.
The 803421338 steering gear is specifically designed for XCMG articulated dump trucks and serves as a direct OEM replacement. It matches the original mounting pattern, port sizes, and displacement characteristics, ensuring a seamless fit without modifications. While the gear is optimized for XCMG equipment, its standard SAE ports and common mounting dimensions may allow it to be used in other heavy machinery with similar steering requirements.
However, for guaranteed fit and performance, XCMG recommends using this part only on its intended models. Fleet operators can simplify inventory by stocking this steering gear for multiple DA-series trucks, as it is used across several models. Always verify the specific steering gear displacement and port configuration required for your machine by consulting the XCMG parts manual. Cross-referencing with other manufacturers may be possible, but the XCMG part ensures original equipment quality and reliability.
Using genuine XCMG parts ensures compliance with the equipment’s safety and performance standards, providing peace of mind and long-term reliability. The steering gear is also compatible with standard hydraulic fluids and seal materials, offering flexibility for maintenance teams.
For critical steering systems, always prioritize genuine OEM components to avoid potential safety hazards and system failures.
Investing in the genuine XCMG 803421338 steering gear is a cost-effective decision that prevents steering issues that can lead to accidents, downtime, and expensive repairs. A worn steering gear can cause erratic steering, increased effort, and premature wear of other steering components, such as pumps and cylinders. Replacing it with this OEM part restores factory-fresh steering performance, reducing operator fatigue and improving productivity.
Compared to generic aftermarket alternatives, the XCMG steering gear offers superior material quality, precision manufacturing, and a longer service life. Its robust construction and efficient hydraulic design minimize internal leakage, improving overall system efficiency and reducing fuel consumption. This translates into lower operating costs over the equipment’s lifecycle. The reduced need for frequent adjustments or repairs also saves on maintenance labor and parts costs.
By choosing XCMG genuine parts, you protect your investment and ensure that your equipment remains safe and reliable. The 803421338 steering gear delivers exceptional value for money, making it an indispensable part of any preventive maintenance program. Proactively replacing aging steering gears avoids unexpected failures and ensures your machines operate at peak performance.
Additionally, using genuine XCMG parts helps maintain the resale value of your equipment, as buyers recognize the quality and care put into maintenance.
The XCMG 803421338 steering gear is a precision-engineered hydraulic component that ensures accurate, responsive steering in the most demanding heavy equipment applications. Its robust construction, advanced hydraulic design, and durable materials make it an essential part of any articulated dump truck’s steering system. By choosing this genuine OEM part, you secure a perfect fit, consistent performance, and long service life.
The steering gear’s ability to withstand high pressures, extreme temperatures, and harsh environments reduces downtime and lowers maintenance costs, enhancing overall fleet productivity. Don’t compromise on steering safety and performance. Equip your XCMG equipment with the 803421338 steering gear and experience the reliability that comes with genuine quality.
Keep your fleet operating safely and efficiently with XCMG genuine components. The 803421338 steering gear is your guarantee of secure, reliable steering control for years to come.
Upgrade your maintenance inventory with the XCMG 803421338 steering gear and ensure your heavy equipment remains in peak condition. Trust XCMG for all your hydraulic steering needs – your partner in durability and performance.
For more information or to place an order, rely on your local XCMG dealer or visit our official channels.
