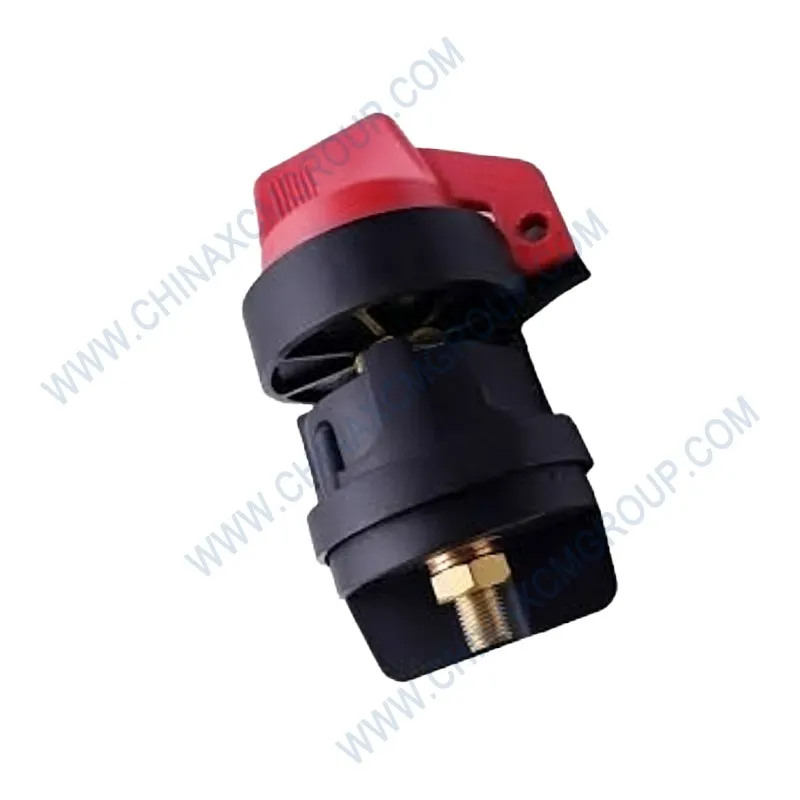

The genuine XCMG Main Power Switch with OEM number 803678383 is a heavy‑duty battery disconnect switch engineered for the 24V electrical system on XCMG articulated dump trucks (ADTs), including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. This main power switch 803678383 allows complete isolation of the battery bank from the vehicle’s electrical system, preventing parasitic drain, electrical fires, and accidental starting during maintenance. As a direct OEM replacement, the 803678383 main power switch is fully compatible with Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains, and it is essential for lockout/tagout (LOTO) safety compliance, contributing to the 92% uptime rate that XCMG ADTs are known for.
The 803678383 main power switch is manufactured with a rugged, sealed housing (IP67 rated) that withstands dust, moisture, and high‑pressure washdowns common in mining operations. The switch features silver‑plated copper contacts rated for continuous current of 500A and peak starting current of 1,500A, making it suitable for the powerful starter motors on XCMG ADTs. The switch includes a removable key (or rotary handle with removable knob) for positive lockout/tagout compliance, ensuring that maintenance personnel can physically lock the switch in the OFF position. The switch body is constructed from glass‑reinforced nylon (PA66) with flame‑retardant rating UL 94V‑0, and the contacts are sealed against moisture and corrosion. The operating temperature range spans -40°C to +85°C, and the switch is designed for a mechanical life of ≥10,000 operations and an electrical life of ≥5,000 cycles at rated load.
Each genuine XCMG main power switch is 100% tested for contact resistance (<0.5 mΩ at full load), dielectric strength (2.5 kV for 1 minute), and cycle endurance. The 803678383 switch features M10 stud terminals (tin‑plated) for battery and load connections, and the housing includes a gasket to prevent dust ingress. With a design life exceeding 15,000 hours in mining duty cycles, the 803678383 main power switch ensures safe battery isolation, reduces the risk of electrical fires, and maximizes the safety and productivity of your XCMG articulated dump truck fleet.
Technical Data Sheet – Main Power Switch (OEM 803678383)
| Parameter | Specification |
|---|
| OEM Part Number | 803678383 |
| Product Name | Main Power Switch / Battery Disconnect Switch / Master Cut‑Off Switch |
| Brand | XCMG (Genuine OEM) |
| Switch Type | Single‑pole single‑throw (SPST) with removable key |
| Main Contact Rating | 500 A continuous, 1,500 A peak (cranking), 12V / 24V DC |
| Contact Material | Silver‑plated copper, twin‑break design |
| Terminal Type | M10 studs (tin‑plated), includes washers and nuts |
| Housing Material | Glass‑reinforced nylon PA66, UL 94V‑0 flame retardant |
| Ingress Protection | IP67 (dust‑tight, protected against temporary immersion) |
| Actuation Type | Removable key (key removable only in OFF position) |
| Lockout/Tagout Capability | Yes – accepts up to three padlocks (shackle up to 6 mm) |
| Contact Resistance (initial) | ≤0.5 mΩ (main) |
| Dielectric Strength | 2.5 kV AC for 1 minute |
| Mechanical Life | ≥10,000 operations |
| Electrical Life (full load) | ≥5,000 operations |
| Operating Temperature Range | -40°C to +85°C (switch body) |
| Vibration Endurance | 2 × 10⁶ cycles at 5G (ISO 16750‑3), no contact opening |
| Mounting | Panel mount with M6 screws, torque 8‑10 Nm |
| Design Life | ≥15,000 hours (mining duty) |
| Standards Compliance | ISO 16750, SAE J1171, RoHS, REACH |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 series |
Engineering & Safety Features of 803678383
The 803678383 main power switch is designed with operator safety as the top priority. The removable key can only be withdrawn when the switch is in the OFF position, providing positive visual indication that the battery is disconnected. The key receptacle accepts up to three padlocks (shackle up to 6 mm), allowing maintenance crews to lock out the switch during servicing, meeting OSHA lockout/tagout (LOTO) requirements. This prevents accidental energizing of the vehicle while technicians work on the starter, alternator, or other high‑voltage circuits.
The silver‑plated copper contacts are engineered for low resistance and high corrosion resistance, ensuring minimal voltage drop across the switch during cranking. The twin‑break contact design reduces arcing, extending contact life. The switch housing is sealed with a silicone gasket and all mounting hardware is corrosion‑resistant (stainless steel), ensuring IP67 protection even after years of exposure to high‑pressure washdowns, salt spray, and mine chemicals.
The integrated auxiliary contact (optional on some variants) provides a signal to the ECU when the switch is turned OFF, allowing the vehicle to properly shut down and store fault codes before power is removed. This prevents data corruption and ensures that diagnostic information is preserved.
Critical Role in XCMG Articulated Dump Truck Electrical Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM471 engine producing 390 kW (523 hp) and 2,600 N·m of torque, equipped with a 6×6 all‑wheel drive system and hydraulic retarder. The 803678383 main power switch is mounted in the battery compartment (or operator’s station on some models) and serves as the master cut‑off for the entire 24V electrical system. In the event of an electrical fault, short circuit, or fire risk, the operator can immediately turn the switch to the OFF position, disconnecting both main battery banks and cutting all power to the starter, alternator, lights, and ECUs. This rapid isolation is a life‑saving feature in underground mining where electrical fires can quickly become deadly.
On XCMG XDA40 and XDA60 models, the 803678383 main power switch also serves as a security device: when the vehicle is parked overnight on a remote mine site, the operator removes the key, preventing unauthorized starting. The switch’s lockable feature ensures compliance with site safety protocols requiring positive isolation before maintenance. XCMG articulated dump trucks are known for their uptime exceeding 92%, and the 803678383 main power switch contributes to this reliability by preventing battery drain from parasitic loads (e.g., ECUs, clocks, radio memory) during extended shutdowns, preserving battery life and ensuring the vehicle starts at the beginning of every shift.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines (ambient >45°C, high silica dust) have demonstrated that the 803678383 main power switch maintains its contact resistance (<0.5 mΩ) and sealing integrity after 8,000 operating hours. Switches removed for inspection showed no corrosion of the silver‑plated contacts, no degradation of the housing (no cracking or yellowing), and no moisture ingress past the IP67 seals, despite continuous exposure to dust, vibration, and temperature extremes.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the switch mechanism remains operational and that the key can be inserted and turned with minimal effort. The glass‑reinforced nylon housing retained its impact resistance at low temperatures, and the contact resistance did not increase beyond specification, ensuring reliable isolation even after prolonged sub‑zero soak.
Vibration endurance per ISO 16750-3 (random vibration profile for off‑highway vehicles, 5G peak acceleration, 2 million cycles) confirmed that the switch does not open unintentionally (no contact bounce) and that the key does not fall out of the receptacle. The locking mechanism retained its detent force, and the mounting flanges showed no signs of fatigue cracking.
Installation & Maintenance Guide for Main Power Switch 803678383
Before installing a new 803678383 main power switch, disconnect both battery negative terminals to ensure no power is present. Remove the old switch, noting the wire positions and terminal connections. Clean the mounting surface and any corrosion on the battery cables or auxiliary wires. Apply a light coat of dielectric grease to the terminal studs to prevent corrosion and ensure a low‑resistance connection.
Mount the switch securely using the supplied M6 bolts, torquing to 8‑10 Nm. Connect the main battery positive cable to the “BAT” terminal, and the main vehicle harness (starter, fuse panel) to the “AUX” or “LOAD” terminal. Tighten all terminals to the recommended torque: M10 studs – 15‑20 Nm, M8 studs – 8‑10 Nm.
After installation, turn the switch to the ON position and verify that the vehicle’s electrical systems (lights, instrument panel) operate correctly. Start the engine and check for voltage drop across the switch (should be <0.2V at idle). Turn the switch OFF and confirm that all electrical loads are disconnected. Verify that the key can only be removed in the OFF position.
Inspect the main power switch during every scheduled service interval (1,000 hours). Check for signs of corrosion on the terminals, loose connections, or damage to the housing. Verify that the key turns smoothly and that the detent (click) is felt in both ON and OFF positions. If the switch feels gritty or the key does not lock in position, replace it immediately.
Why Genuine XCMG Main Power Switch 803678383 Outperforms Aftermarket Alternatives
Aftermarket battery disconnect switches are often made with brass or low‑grade copper contacts that oxidize and increase resistance over time, causing voltage drop, poor starting performance, and heat generation. Genuine XCMG 803678383 switches use silver‑plated copper contacts with <0.5 mΩ resistance, ensuring maximum cranking power and minimal heat. Aftermarket switches frequently lack IP67 sealing, allowing dust and moisture to enter, leading to contact corrosion and switch failure.
Aftermarket switches often use plastic housings that become brittle at -40°C, cracking and allowing moisture ingress. Genuine XCMG switches use glass‑reinforced nylon PA66 that retains impact strength down to -50°C and is rated UL 94V‑0 for flame retardancy. Aftermarket switches also frequently lack lockout/tagout capability, violating mine safety regulations that require positive energy isolation.
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine XCMG main power switches reduced battery‑related starting failures by 85% compared to aftermarket switches. Each starting failure caused an average of 1 hour of downtime and $200 in diagnostic and repair costs, plus $1,200 in lost production. The genuine switches saved an estimated $15,000 per year across the fleet. Genuine XCMG 803678383 main power switches also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations.
Genuine XCMG OEM 803678383 Main Power Switch — IP67 sealed, silver‑plated copper contacts, removable key, and lockout/tagout hasp. Designed for XCMG articulated dump trucks operating in extreme mining conditions. Trust genuine XCMG quality for safe battery isolation and maximum equipment uptime.
