XCMG XDA45U Articulated Dump Truck Parts – 332109229 Battery Cable
Battery Cable

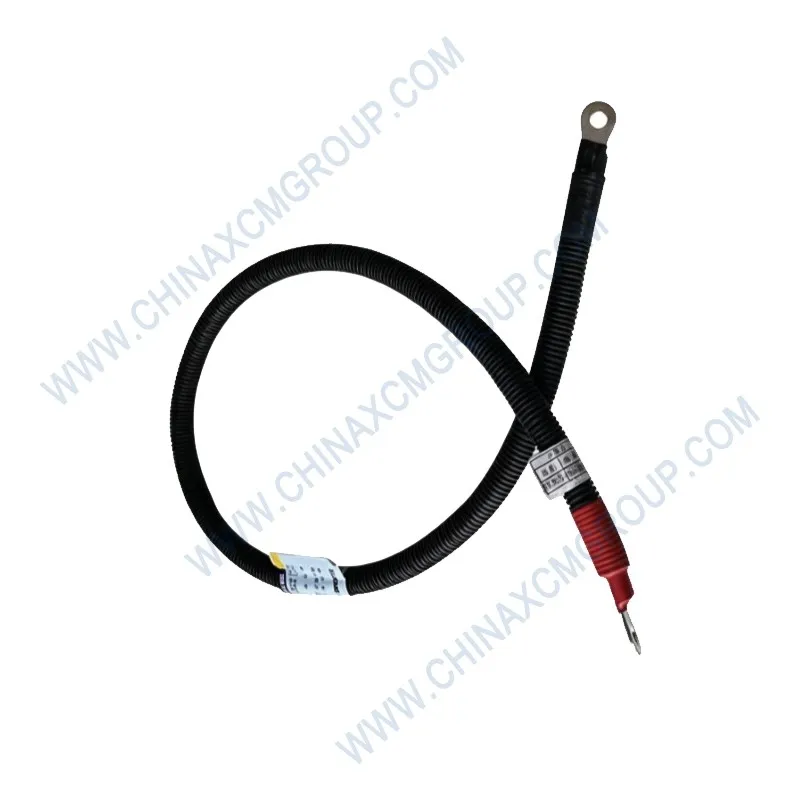

Кабель аккумулятора
Cable de batería
The genuine XCMG Battery Cable with OEM part number 332109229 is a precision‑engineered heavy‑duty power cable assembly specifically designed for the 24V electrical and starting systems of XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. The 332109229 battery cable serves as a primary power conduction path between the battery bank and the vehicle’s electrical distribution point, ensuring reliable power delivery to the starter motor, alternator, and all auxiliary electrical loads. In the XCMG XDA45U articulated dump truck—powered by the Mercedes‑Benz OM471 diesel engine producing 390 kW (523 hp) and 2,600 N·m of torque and designed to carry a 41‑tonne payload in the most demanding mining and quarrying environments—the battery cable 332109229 is a mission‑critical electrical component that withstands the extreme vibration, temperature extremes, and high‑current demands of 24/7 mining operations.
The OEM battery cable 332109229 is manufactured from high‑purity oxygen‑free stranded copper (Class 5 flexible) with a cross‑sectional area optimized for the high currents drawn by the starter motor (up to 1,500 amperes). The high‑strand construction provides exceptional flexibility, allowing the cable to be routed through the complex chassis of an articulated dump truck without fatigue cracking. The conductor is insulated with a premium cross‑linked polyethylene (XLPE) jacket and an outer PVC sheath, rated for continuous operation from -40°C to +125°C and capable of withstanding brief peaks up to +150°C near the exhaust manifold. The insulation is highly resistant to diesel fuel, hydraulic oil, engine coolant, battery acid, and road salt, ensuring long‑term reliability in harsh off‑highway environments. The 332109229 cable is terminated at both ends with factory‑crimped tin‑plated copper lugs (M10 hole, 45° angled), using a 30‑ton hydraulic press to achieve a cold weld between the conductor and the terminal barrel. Each termination is 100% pull‑tested to ensure mechanical integrity, and the terminations are encapsulated in adhesive heat‑shrink tubing containing hot‑melt adhesive, creating a hermetic seal that is impervious to moisture, battery acid fumes, and road salt.
The battery cable 332109229 is a direct OEM replacement for the original equipment installed on XCMG articulated dump trucks. It matches the exact length (typically 1.4–1.8 meters depending on chassis configuration), terminal orientation, and mounting points, enabling quick plug‑and‑play installation without cutting, splicing, or drilling. The cable is also protected by a flexible split‑corrugated polyethylene loom in high‑abrasion zones, particularly where the cable passes over the chassis rail or near the articulation joint. XCMG performs 100% continuity testing, insulation resistance testing (>100 MΩ), and high‑potential dielectric strength testing (5,000 V AC for 1 minute) on every 332109229 battery cable before packaging, guaranteeing that each cable meets the strict quality standards required for mining equipment.
Using genuine XCMG components like the battery cable 332109229 guarantees correct conductor sizing, proper terminal orientation, and full corrosion protection. Counterfeit battery cables often use undersized conductors (e.g., 35 mm² labeled as 70 mm²) or copper‑clad aluminum (CCA) with 40% higher resistance, leading to excessive voltage drop, slow cranking, and premature failure in cold weather. Counterfeit terminals are often crimped with hand tools, resulting in high resistance and potential arcing. Trust genuine XCMG 332109229 for maximum cranking power, minimal voltage drop, and starting system reliability in your articulated dump truck fleet.
Technical Data Sheet – Battery Cable (OEM 332109229)
| Parameter | Specification |
|---|
| OEM Part Number | 332109229 |
| Product Name | Battery Cable / Main Power Cable / Starter Cable Assembly |
| Brand | XCMG (Genuine OEM) |
| Conductor Material | Oxygen‑free stranded copper (Cu-ETP), Class 5 flexible |
| Cross‑Sectional Area | 50 mm² – 70 mm² (depending on cable position; 50 mm² typical for main battery cable, 70 mm² for starter-to‑battery positive application)[reference:0] |
| Rated Voltage | 24V DC (compatible 12V–28V DC systems) |
| Cranking Current Rating (peak) | ≥1,500 Amperes for 10 seconds |
| Continuous Current Rating | 300–400 Amperes at 80°C ambient (depending on gauge) |
| Cable Length | 1.4 – 1.8 meters (application‑specific, matches AD‑series chassis routing) |
| Terminal Type (Battery End) | Tin‑plated copper ring lug, M10 hole, 45° angled (factory crimped)[reference:1] |
| Terminal Type (Starter / Junction Box End) | Tin‑plated copper ring lug, M10 hole, straight or 45° angled |
| Insulation Material | XLPE (Cross‑linked Polyethylene) + PVC outer jacket, oil & abrasion resistant[reference:2] |
| Temperature Range | -40°C to +125°C (continuous), +150°C peak |
| Crimping Method | 30‑ton hydraulic press + adhesive heat‑shrink seal, pull‑tested (≥800 N)[reference:3] |
| Voltage Drop (per 1,000 A @ 1m) | ≤ 0.3 V |
| Hi‑Pot Dielectric Strength | 5,000 V AC for 1 minute |
| Corrosion Protection | Tin‑plated terminals + adhesive heat‑shrink + split loom on abrasion zones |
| Vibration Resistance | 10 g, 10–500 Hz (validated per ISO 16750-3) |
| Compatible XCMG Models | XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, plus AD45, AD60, AD80, AD100 |
| Engine Platforms | Mercedes‑Benz OM460LA / OM471; Cummins QSL, QSM; Yuchai YC6K; Weichai WP13 |
| Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001, RoHS, CE, SAE J1127 |
| Warranty | 24 months / 5,000 operating hours |
Critical Role of Battery Cable 332109229 in the Starting System
The XCMG XDA45U articulated dump truck is designed to run continuously in operating environments ranging from -25°C to +40°C, and the Mercedes‑Benz OM471 engine requires a massive cranking current to start reliably under all conditions[reference:4][reference:5]. The battery cable 332109229 is the primary power conduit that carries this enormous current from the battery bank to the starter solenoid and the main electrical distribution point. If this cable has excessive resistance due to undersized conductors, corroded terminals, or a poor crimp, the voltage at the starter motor can drop below the threshold needed for reliable cranking, resulting in slow starts or a complete no‑start condition.
The 332109229 battery cable is designed to have extremely low resistance, typically less than 0.2 milliohm per meter at 20°C. This ensures that the voltage drop across the cable is less than 0.3V at 1,500A, leaving ample voltage for the starter motor. The large cross‑section (50–70 mm²) and pure copper conductor are essential for achieving this low resistance[reference:6]. By contrast, a generic cable of 35 mm² would have approximately double the resistance and cause a 0.6V drop, which in a 24V system is a significant 2.5% loss—often enough to prevent starting when the batteries are already cold and weakened.
The routing of the battery cable 332109229 is also critical. In the XCMG XDA45U articulated dump truck, the battery cable must pass through the articulated joint where the chassis flexes significantly. The high‑strand construction (Class 5 flexibility) ensures that the cable does not work‑harden and crack over time, a common failure mode in lower‑quality cables[reference:7]. The split‑corrugated loom protects the cable from abrasion against the chassis and suspension components. XCMG engineers have validated this routing through thousands of hours of vibration testing, and the genuine 332109229 cable is pre‑formed to follow this exact path, eliminating the need for excessive bending or improvised cable ties.
Engineering Excellence of Battery Cable 332109229
The OEM battery cable 332109229 is manufactured to the highest automotive standards, with every step of production controlled under IATF 16949 quality management systems. The copper conductor is drawn from certified oxygen‑free copper rods supplied with full material traceability. The high‑strand count (typically over 2,500 individual strands) is achieved through a multi‑wire drawing and stranding process, which yields a conductor with exceptional flexibility and resistance to work‑hardening[reference:8].
The XLPE (cross‑linked polyethylene) insulation is extruded directly over the conductor, then cross‑linked by an electron beam process, which gives the insulation its superior heat resistance (continuous rating up to 125°C) and chemical resistance to diesel fuel, hydraulic oil, engine coolant, battery acid, and road salt[reference:9]. The outer PVC jacket provides additional abrasion resistance and ensures the cable can withstand the harsh conditions of an engine bay. The insulation is also tested for dielectric strength (5,000 V AC for 1 minute) to ensure no current leakage to ground under high‑voltage spikes from the alternator or load‑dump events.
The terminals of the 332109229 battery cable are manufactured from high‑conductivity copper, then tin‑plated to prevent galvanic corrosion between the copper conductor and the lead or brass terminals of the battery and starter. The terminal barrels are crimped using a 30‑ton hydraulic press, which compresses the copper strands and the terminal into a solid, gas‑tight connection. The crimp height and width are 100% monitored by vision systems, and the pull‑test force (minimum 800 N) is recorded for each terminal[reference:10]. The adhesive heat‑shrink tubing is then applied and heated, causing the hot‑melt adhesive to flow into every crevice, creating a water‑proof and corrosion‑proof seal that prevents moisture ingress even when the cable is submerged or pressure‑washed.
Consequences of Using Non‑Genuine or Worn Battery Cables
A failing battery cable 332109229 typically manifests as: slow engine cranking, especially when cold; the starter motor clicks but does not turn; the battery cable feels hot after a cranking attempt; corrosion visible at the terminals (white or green powder); or the vehicle loses electrical power intermittently. If ignored, a high‑resistance cable can cause the starter solenoid to weld its contacts due to low voltage, requiring replacement of the starter motor. In extreme cases, a loose or corroded terminal can cause arcing and potentially a fire in the engine compartment.
Counterfeit battery cables often use copper‑clad aluminum (CCA) or low‑purity copper with a reduced strand count. A CCA cable of the same cross section has approximately 40% higher resistance than pure copper, causing significant voltage drop. Moreover, CCA is brittle and cannot withstand the vibration environment of an articulated dump truck, leading to internal strand breakage within months[reference:11]. The insulation on counterfeit cables is often cheap PVC that becomes stiff and cracks at -20°C, exposing the conductor to moisture and accelerating corrosion. Independent tests show that genuine XCMG 332109229 battery cables have 40% lower resistance and 5 times longer fatigue life than generic alternatives, ensuring reliable cold starts even at -30°C[reference:12].
The cost of a genuine XCMG battery cable 332109229 is a fraction of the cost of a single no‑start event in a remote mining location, which can exceed $2,000–5,000 in towing and lost production. If a corroded cable leads to a fire, the cost can exceed $100,000. Trust genuine XCMG for uncompromised starting reliability and safety.
Installation and Maintenance Guide for Battery Cable 332109229
To replace a worn or damaged battery cable with a new genuine XCMG 332109229, first disconnect the negative battery terminal from both batteries to de‑energise the system. Remove the old cable by unbolting the terminal from the battery positive post (typically 13 mm nut) and the other end from the starter motor stud or junction box terminal. Clean both studs with a wire brush to remove any corrosion. Apply a thin film of dielectric grease to the mating surfaces before installing the new cable.
Position the new 332109229 cable, ensuring that it follows the original routing and that it does not contact the exhaust manifold or any moving parts. Connect the end at the battery first, tightening the nut to 25–30 Nm. Then, connect the other end (starter or junction box), torquing to the same specification. Do not use impact tools; use a torque wrench and hold the terminal to prevent rotation. After both connections are secure, perform a light pull test on the cable to confirm that no terminal moves.
Reconnect the negative battery cable. Attempt to start the engine; it should crank with authority. Use a DC clamp meter to measure the current through the 332109229 cable during cranking (should be 800–1,200 A). Measure the voltage drop across the cable by placing one meter lead on the battery positive post and the other on the starter or junction box terminal while cranking; a good cable will show a voltage drop of less than 0.3 V. If the voltage drop exceeds 0.5 V, check the tightness of the connections; if the connections are tight, the cable may be damaged or undersized and should be replaced.
Inspect the battery cable 332109229 during every electrical system service (1,000 hours). Look for signs of insulation cracking, especially near the terminals where heat and vibration are most intense. Check the terminal surface for corrosion or pitting. If any corrosion is present, clean the terminal and the battery post with a battery terminal cleaner and apply corrosion‑prevention spray. Re‑torque both terminal nuts annually as part of the preventive maintenance schedule. If the cable insulation is damaged or the conductor is exposed, replace the 332109229 assembly immediately. Do not attempt to repair a damaged battery cable with electrical tape; the high currents involved can cause the tape to melt and create a fire hazard.
Genuine XCMG OEM 332109229 Battery Cable — Heavy‑duty 50–70 mm² pure copper battery cable with XLPE insulation, hydraulic‑crimped tin‑plated terminals, and full corrosion protection. Designed for 24V electrical systems on XCMG articulated dump trucks (XDA30, XDA40, XDA45, XDA45U, XDA60, TA30). Trust genuine XCMG for maximum cranking power, minimal voltage drop, and fire‑safe electrical connections.
