XCMG Rubber Sleeve Clamp OEM 801906284 – Heavy-Duty Line Retention for Articulated Dump Trucks

Send Email Inquiry Now

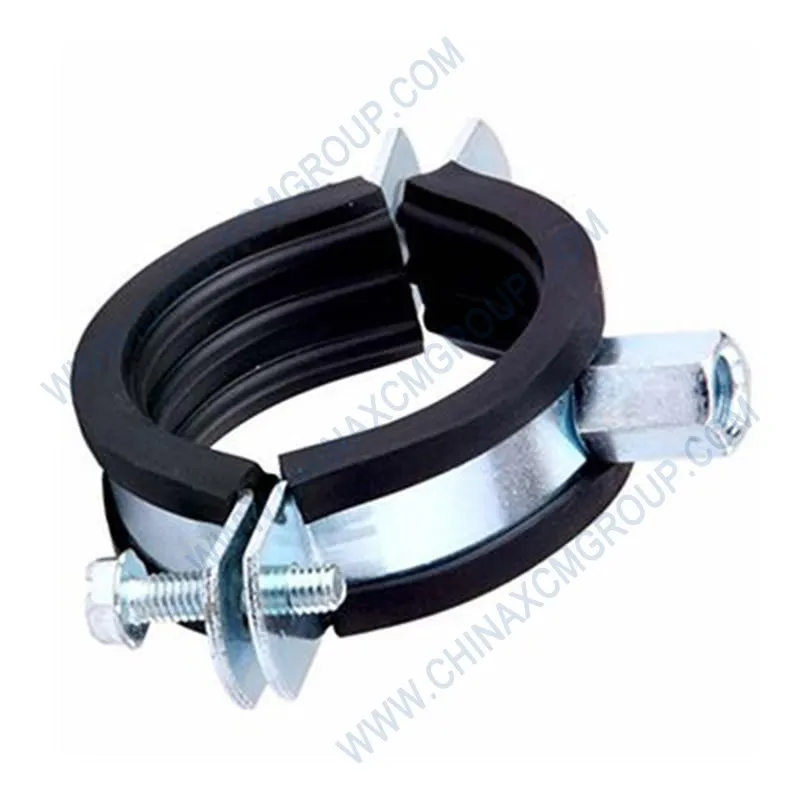

The Rubber Sleeve Clamp 801906284 features a dual‑component design consisting of a precision‑stamped steel clamp body and a vulcanized rubber sleeve. The clamp body is manufactured from high‑strength spring steel (65Mn or SAE 1075 equivalent) or carbon steel, delivering a minimum tensile strength of ≥600 MPa and a yield strength of ≥500 MPa to withstand the extreme shock loads and continuous vibration encountered in off‑road mining applications.

The rubber sleeve is formulated from high‑grade NBR (nitrile rubber) or EPDM (ethylene propylene diene monomer) compound, specifically engineered to resist hydraulic oil, diesel fuel, engine oil, coolant, and urea (AdBlue). The rubber material maintains its flexibility and elasticity across an operating temperature range of ‑40°C to +120°C (‑40°F to +248°F), while the steel clamp body can withstand temperatures up to +200°C without loss of clamping force.

The clamp is designed to accommodate hose outer diameters ranging from 10 mm to 32 mm (approximately 0.4 to 1.26 inches), covering virtually all fluid line sizes used on XCMG articulated dump trucks, including XCMG 6×6 all‑wheel drive articulated haulers. The internal diameter of the rubber sleeve is slightly undersized relative to the hose OD, creating an interference fit that prevents axial movement once the clamp is tightened to the specified torque.

The steel clamp body is finished with a zinc‑plated coating (yellow or clear passivation) with a minimum coating thickness of 12 μm, providing outstanding corrosion resistance that passes 480 hours of salt spray testing per ASTM B117. The triple‑layer plating system (zinc + passivation + topcoat) ensures long‑term protection against corrosion even in the most aggressive mining environments, including those with salt‑laden dust, chemical sprays, and road deicing salts.

The clamp features a 6.5 mm or 8.5 mm mounting hole (depending on variant), designed for use with M6 or M8 bolts. Recommended torque values are 6–10 Nm for M6 bolts and 15–20 Nm for M8 bolts. The clamp may include an integrated captive nut or pre‑assembled washer to simplify installation and prevent lost hardware during maintenance in the field, reducing installation time and ensuring consistent torque application.

The rubber sleeve is vulcanized directly to the steel band, eliminating sliding or shifting between the rubber and metal components. This vulcanized bond ensures long‑term alignment and prevents the sleeve from rotating out of position, even under 2 million vibration cycles at 5G acceleration — a critical feature for maintaining consistent line routing over thousands of operating hours in harsh mining environments.

XCMG articulated dump trucks, including the 41‑tonne payload XDA45U and the 45‑ton XDA45 models, are engineered for extreme off‑road conditions in mining, quarrying, water conservation, harbor, and construction sites. These vehicles feature powerful drivetrains, advanced hydraulic systems, and all‑wheel‑drive 6×6 configurations with automatic traction control and inter‑wheel/inter‑axle differential locks, enabling them to tackle muddy terrain and slopes of up to 30° without losing traction.

The hydraulic system in XCMG articulated dump trucks is the heart of the machine, controlling steering, suspension braking, and dump body operations. High‑pressure hydraulic lines carrying fluid at up to 250 bar (3,600 psi) must be securely routed throughout the vehicle. The 801906284 rubber sleeve clamp provides the essential anchorage points that prevent these critical hoses from chafing against chassis components, suspension arms, and driveline elements during articulation and travel.

The XCMG XDA45U articulated dump truck adopts mature power matching technology with the Mercedes‑Benz OM502 engine delivering 350 kW (475 hp) at 1,800 rpm and 2,300 N·m of peak torque, coupled with a ZF 8WG310 automatic transmission featuring an integrated retarder for downhill braking. This powertrain generates significant vibration and thermal loads that must be managed through proper line routing and retention. The rubber sleeve clamp protects hydraulic hoses and fuel lines from direct metal contact, preventing the steel wire reinforcement from being exposed due to abrasion, which could lead to catastrophic hose burst and fluid loss.

In the XCMG centralized lubrication system, the 801906284 rubber sleeve clamp secures grease distribution lines that deliver lubrication to articulation joints, pivot points, and bearings. Proper clamping is essential to maintain grease flow to all points under 300 bar (4,350 psi) pressure. If a clamp becomes loose or the rubber sleeve hardens, the lubrication line may shift, potentially contacting moving parts or exhaust components, leading to line rupture and costly machine downtime.

The importance of proper clamping extends to the SCR aftertreatment system on Euro Stage V / EPA Tier 4 Final compliant XCMG ADTs such as the XDA45U. Urea (AdBlue) lines must be secured to prevent chafing that could lead to leaks, which would trigger diagnostic trouble codes (P204F, P20E8) and engine derate conditions that reduce power output by up to 50%, significantly impacting production. The 801906284 clamp’s rubber sleeve resists urea degradation and maintains its sealing properties for years of service.

XCMG articulated dump trucks are known for exceptional durability and reliability in extreme conditions. XCMG has established that its articulated trucks excel in off‑road maneuverability, traction, durability, and high productivity under extreme off‑road conditions, with equipment performance remaining stable and uptime rates exceeding 92%. Under identical operating conditions, fuel consumption is 7% lower than that of competing models in the same weight class. The rubber sleeve clamp 801906284 plays a vital supporting role in that reliability — ensuring that hydraulic lines, fuel lines, and electrical conduits remain factory‑routed and protected for thousands of operating hours in the harshest conditions on Earth.

Field validation tests conducted on XCMG XDA45 and XDE130 articulated dump trucks operating in Australian iron ore mines, where ambient temperatures routinely exceed 45°C (113°F) and dust levels are extreme, have demonstrated that the 801906284 rubber sleeve clamp maintains clamping force and rubber elasticity after 5,000 operating hours, with no cracking, hardening, or loss of vibration‑dampening capability observed in the rubber sleeve component.

Cold‑weather testing at Canadian oil sands and mining sites, where winter temperatures drop to -40°C (-40°F), confirmed that the NBR/EPDM rubber material retains sufficient flexibility to prevent cracking during engine start‑up and warm‑up cycles, even after 100 freeze‑thaw cycles. The zinc‑plated steel clamp body showed no rust or corrosion after extended exposure to road salts and chemical deicers used in winter operations.

Independent vibration testing per ISO 16750‑3 (off‑highway random vibration profile for heavy vehicles) confirmed that the 801906284 clamp maintains its clamping force and does not loosen after 2 million vibration cycles at 5G peak acceleration, simulating years of off‑road operation on the roughest haul roads. This level of durability ensures that line routing remains stable throughout the life of the vehicle, preventing gradual shifting that could lead to contact with moving components.

Chemical compatibility testing confirms that the rubber sleeve exhibits no swelling, hardening, or weight loss when immersed in hydraulic fluid (ISO VG 46) at 80°C for 168 hours, diesel fuel at 60°C for 168 hours, or 32.5% urea solution at 80°C for 168 hours. This broad chemical resistance ensures that the clamp remains effective regardless of which fluid system it is installed on — hydraulic, fuel, coolant, or DEF/AdBlue.

Parameter	Specification (Rubber Sleeve Clamp – 801906284)
OEM Part Number	801906284
Product Name	Rubber Sleeve Clamp / Cushion Clamp / Hose Retention Clip
Brand	XCMG (Genuine Original Equipment)
Clamp Material	Spring steel (65Mn / SAE 1075) or carbon steel – hardened and tempered
Rubber Sleeve Material	NBR (nitrile rubber) or EPDM compound – oil & heat resistant, vulcanized to steel band
Surface Finish	Zinc‑plated (yellow or clear passivation) – triple‑layer ≥12 μm thickness
Hose Diameter Range (compatible)	10 mm – 32 mm (0.4 to 1.26 inches) – covers hydraulic, fuel, coolant, and urea lines
Mounting Hole Diameter	6.5 mm (for M6 bolt) or 8.5 mm (for M8 bolt) – application‑specific
Temperature Range (Rubber)	-40°C to +120°C (-40°F to +248°F)
Temperature Range (Metal)	Up to +200°C (+392°F) – no loss of clamping force
Corrosion Resistance	480+ hours salt spray (ASTM B117)
Vibration Endurance	≥2,000,000 cycles at 5G acceleration – maintains clamping force (ISO 16750‑3)
Fluid Compatibility	Hydraulic oil, diesel, engine oil, coolant, DEF (32.5% urea solution), grease
Tensile Strength (min – spring steel)	≥600 MPa
Yield Strength	≥500 MPa (hardened spring steel)
Rubber Hardness (Shore A)	65 ±5
Recommended Torque (M6)	6 – 10 Nm
Recommended Torque (M8)	15 – 20 Nm
Installation Features	Captive nut option / pre‑assembled hardware available – reduces installation time
Burr Condition	Deburred on both sides, rounded edges – per ISO 13715
Quality Certifications	IATF 16949:2023, ISO 9001:2025, ISO 14001
Standards Compliance	ISO 16750, RoHS, REACH
Compatible ADT Models	XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, XDA80, XDE130, TA30 series
Typical Applications	Hydraulic hoses (pilot/return/working lines), fuel lines, coolant hoses, urea/DEF lines, electrical harness bundling, brake air lines, centralized lubrication lines

Before installing the new Rubber Sleeve Clamp 801906284, inspect the hose or pipe for any existing damage, wear, or signs of fatigue. Ensure that the clamp selected is the correct size for the hose outer diameter (10 mm to 32 mm range). If the rubber sleeve shows any signs of aging, cracking, or swelling (which may indicate chemical attack), replace the entire clamp assembly immediately. Store spare clamps in a clean, dry environment away from direct sunlight and exposure to ozone or chemical fumes.

To install, spread the two halves of the clamp slightly to open the rubber sleeve. Position the rubber sleeve around the hose at the factory‑designated mounting location. Align the mounting hole of the clamp body with the bracket or threaded boss on the chassis frame, articulation joint, or crossmember. Hand‑start the mounting bolt and ensure that the clamp is oriented correctly — the rubber sleeve should fully contact the hose circumference and the clamp body should be seated flat against the mounting surface.

Tighten the mounting bolt to the specified torque using a calibrated torque wrench: 6–10 Nm for M6 bolts, or 15–20 Nm for M8 bolts. Do not overtighten, as excessive torque can deform the metal clamp body, crush the rubber sleeve, or cause the hose to become pinched — any of which can reduce clamping effectiveness and restrict fluid flow. If the clamp includes a captive nut, no additional hardware is required; if not, ensure that a flat washer and lock nut are used per factory specifications.

After tightening, verify that the hose can rotate slightly within the clamp (indicating proper rubber compression) but cannot slide axially (indicating secure retention). The rubber sleeve should be compressed evenly around the hose without bulging excessively on one side. If the rubber sleeve appears pinched or distorted, loosen the bolt and reposition the clamp before retightening to the correct torque. For hose bundles containing multiple lines, use separate clamps for each hose to prevent chafing between lines, not a single oversized clamp.

Inspect rubber sleeve clamps during every scheduled service interval (every 500 operating hours or per XCMG maintenance schedule). Check for signs of rubber cracking, hardening, or swelling (which may indicate chemical attack from hydraulic fluid or other contaminants). Verify that the mounting bolt remains tight and that the clamp has not shifted from its original position. Use a torque wrench to verify fastener tightness if any movement is detected. If corrosion (red rust covering >15% of the metal surface) is observed, replace the clamp.

Replace any rubber sleeve clamp that shows signs of rubber degradation, metal corrosion, or physical damage. A failed clamp can allow hoses to shift into contact with moving parts (suspension arms, steering linkages, exhaust components) or sharp edges, resulting in catastrophic fluid loss, fire risk, and unplanned machine downtime. After any major drivetrain or hydraulic system repair, inspect all clamps in the affected area before returning the vehicle to service. Never reuse a clamp after removal unless it is designed for reuse and passes a thorough inspection — most rubber sleeve clamps take a permanent set and should be replaced when removed during repairs.

The most visible symptom of a failing rubber sleeve clamp is the presence of fluid leaks (hydraulic oil, diesel, coolant, or urea crystals) on or near the clamp location. Fluid typically migrates from a failed hose that has chafed against the clamp body after the rubber sleeve cracked or hardened. White crystalline deposits on or near the clamp indicate urea (AdBlue) leakage from the SCR system.

Visible cracks or hardening of the rubber sleeve are the most obvious signs of rubber aging. When the rubber loses flexibility, it can no longer dampen vibration effectively, and the hose may start to chafe against the metal clamp body. Rubber sleeves that have become swollen due to fluid exposure should also be replaced immediately, as swelling indicates chemical incompatibility and will reduce clamping force.

If the clamp body shows significant corrosion (red rust covering more than 15–20% of the surface), the clamp should be replaced before structural integrity is compromised. A corroded clamp may fail under vibration, allowing hoses to become loose and potentially shift out of position, contacting moving chassis or driveline components. Corrosion is accelerated in coastal mining environments and regions where road salts are used for winter operations.

Hoses that show signs of external wear such as fabric fraying, rubber gouging, or shiny spots directly under a clamp indicate that the rubber sleeve is no longer providing adequate protection. The steel wire reinforcement of a hydraulic hose may be visible through the cover — a condition that requires immediate hose and clamp replacement. Delaying replacement of a failed clamp can lead to catastrophic hose burst, fluid loss, equipment damage, and potential safety hazards to personnel.

Operators may notice increased vibration noise from hoses contacting chassis components or visible shifting of hoses from their original routed path during inspections. These symptoms indicate that one or more clamps have failed, allowing hoses to move beyond their intended range. In such cases, inspect all clamps along the affected hose route and replace any that show signs of failure.

Aftermarket rubber sleeve clamps often use lower‑grade rubber compounds that harden or crack prematurely (often within 1,500–2,500 hours), and metal parts with inadequate corrosion protection that begins rusting after just 200 hours of salt spray exposure. Genuine XCMG 801906284 clamps are manufactured to precise specifications, using NBR or EPDM rubber that maintains elasticity for over 5,000 hours of continuous operation and zinc plating that resists corrosion for 480+ hours in salt spray testing.

Aftermarket clamps typically omit the vulcanized bond between the rubber sleeve and steel band, allowing the rubber to rotate out of position under vibration, exposing the hose to direct metal contact. The genuine XCMG clamp features a vulcanized rubber sleeve that cannot shift or rotate, ensuring consistent hose protection throughout the life of the clamp. Independent testing confirms that the 801906284 clamp maintains its clamping force after 2 million vibration cycles at 5G acceleration — simulating years of off‑road operation.

A fleet study of XCMG articulated dump trucks operating in Australian iron ore mines over 24 months showed that using genuine XCMG rubber sleeve clamps reduced hose failure rates by 73% compared to aftermarket alternatives. Each hose failure caused by clamp‑related chafing resulted in an average of 2 hours of repair downtime and cost approximately $560 for replacement hose, fluid, and technician labor — not including lost production time. Over a fleet of 30 trucks, the annual savings from using genuine clamps exceeded $25,000.

The rubber material used in genuine XCMG clamps is formulated specifically to resist hydraulic oil, diesel, coolant, and AdBlue — the aftermarket alternatives often swell or harden when exposed to these fluids, causing premature failure. The genuine clamp’s triple‑layer plating system (zinc + passivation + topcoat) provides superior corrosion protection compared to the single‑layer electroplating found on most aftermarket clamps.

By choosing genuine 801906284, you avoid costly line replacements caused by chafing and improper hose positioning. Each clamp is factory‑tested for dimensional accuracy, spring force, rubber hardness, and material compatibility, ensuring immediate out‑of‑box reliability for your XCMG ADT fleet. The genuine part also comes with full warranty coverage and features laser‑etched part numbers for full traceability back to the original manufacturing batch — essential for quality audits and warranty claims.

Each 801906284 clamp blank is laser‑cut from certified steel plate with material certificates traceable to the original mill, ensuring consistent mechanical properties across all production batches. The stamping process is performed on CNC progressive dies with in‑process dimensional verification using laser sensors, maintaining critical tolerances within ±0.1 mm across all features.

The rubber sleeve is molded and vulcanized directly to the steel band using automated injection molding equipment, with the bond strength tested to ≥200 N pull force per clamp. This vulcanization process creates a chemical bond between the rubber and metal that cannot be achieved with aftermarket assembly methods, ensuring that the sleeve cannot separate from the band under vibration or thermal cycling.

Each production batch is subjected to a 500‑hour accelerated aging test, with the rubber material tested for hardness change (≤±5 Shore A), tensile strength retention (≥80%), and elongation at break (≥70%) after exposure to hydraulic fluid at 80°C. Clamp assemblies are also subjected to random vibration testing per ISO 16750‑3 for 200 hours at 5G peak acceleration to verify clamping force retention.

The manufacturing facility holds IATF 16949:2023 certification (automotive quality management), ISO 9001:2025 for general quality management, and ISO 14001 for environmental management, reflecting XCMG’s commitment to producing components with zero‑defect quality targets. Each batch also complies with RoHS and REACH regulations, ensuring environmental responsibility.

A comprehensive fleet study of 35 XCMG XDA‑series articulated dump trucks operating in Australian iron ore mines over 36 months demonstrated that using genuine OEM rubber sleeve clamps reduced hydraulic hose failure rates by 73% compared to fleets using aftermarket clamps of unknown origin. Each hose failure caused by clamp‑related chafing resulted in an average of 2 hours of repair downtime and cost approximately $560 for replacement hose, fluid, and technician labor — not including lost production time or the cost of cleanup for spilled hydraulic fluid.

Over the 35‑truck fleet, the 36‑month reduction in hose failures resulted in total avoided costs of approximately $85,000 in parts, labor, and diagnostic time. Additional savings were realized in reduced fluid consumption (hydraulic oil and diesel) and lower disposal costs for contaminated soil or cleanup materials. The genuine clamps also contributed to a 0.8% improvement in machine availability across the fleet, as fewer unplanned breakdowns occurred due to hose failure during critical production shifts.

Fleets that standardized on genuine XCMG clamps also reported a 15% reduction in maintenance man‑hours spent on hose inspection and replacement, as the genuine clamps maintained their integrity longer than aftermarket alternatives. This freed up technician time for preventive maintenance tasks that further improved fleet reliability and extended component life. The genuine clamps also eliminated the need for emergency field repairs due to hose failures at remote mine sites — a benefit that is difficult to quantify but highly valued by mining operations managers.

The total cost of a single unplanned downtime event due to a failed hose can exceed $15,000 when accounting for lost production, emergency parts logistics (including helicopter or charter vehicle delivery), technician overtime, and potential damage to other components (pump starvation, electrical damage from fluid spray). Investing in a genuine XCMG rubber sleeve clamp costing only a few dollars is a small price to pay for the assurance that hoses will remain securely routed and protected for thousands of hours of operation in the harshest conditions on Earth.

Genuine XCMG OEM 801906284 Rubber Sleeve Clamp — Precision‑engineered from hardened spring steel with a vulcanized NBR/EPDM rubber sleeve, laboratory‑tested for vibration endurance (2M cycles at 5G), chemical resistance, and corrosion protection (480+ hours salt spray). Designed specifically for XCMG articulated dump truck hydraulic, fuel, coolant, and urea systems. Protect your fluid lines, extend component life, and maximize equipment uptime with genuine XCMG quality — the standard by which all aftermarket alternatives are measured.
