Turbocharger Pipe
Труба турбокомпрессора
Tubo de turbocompresor

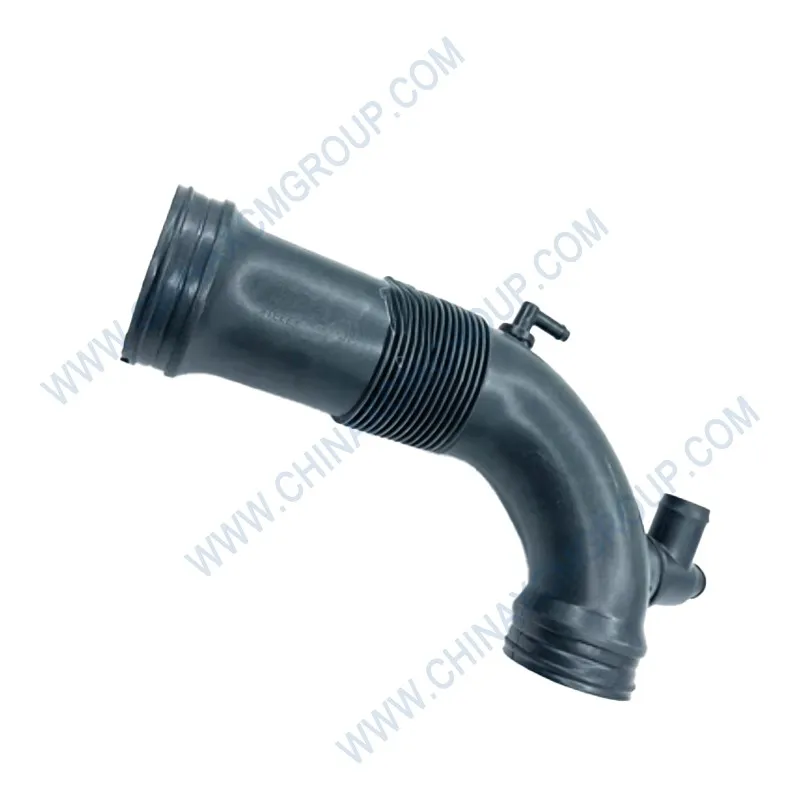

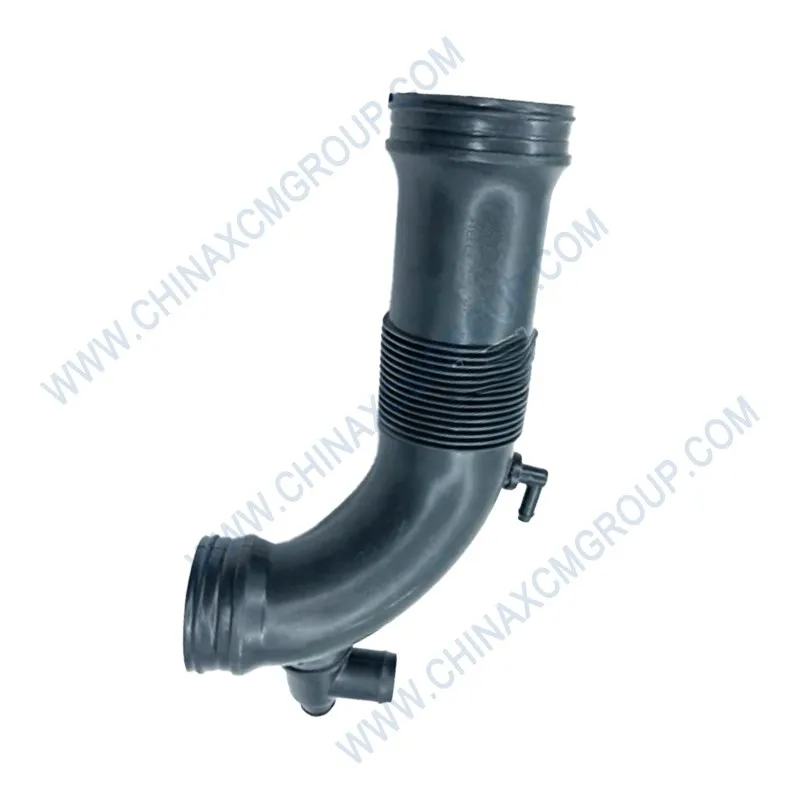

The 332109278 Turbocharger Pipe is a precision‑engineered air conduit designed to transport compressed air from the turbocharger outlet to the engine intake manifold on XCMG articulated dump trucks. This critical engine component ensures that the turbocharger’s boosted air reaches the cylinders efficiently, maximizing engine power output and fuel economy while reducing emissions. Manufactured from high‑grade aluminized steel with a heat‑resistant coating and precision‑formed to OEM specifications, the 332109278 turbocharger pipe delivers exceptional thermal stability, pressure resistance, and long‑term durability, making it an indispensable part for maintaining engine performance in the most demanding mining, quarrying, and heavy construction operations.
The 332109278 Turbocharger Pipe is a precision‑engineered air conduit designed to transport compressed air from the turbocharger outlet to the engine intake manifold on XCMG articulated dump trucks.
This critical engine component ensures that the turbocharger’s boosted air reaches the cylinders efficiently, maximizing engine power output and fuel economy while reducing emissions.
In the harsh operating conditions typical of mining and quarrying, the turbocharger pipe is subjected to extreme heat (up to 300°C), high‑pressure pulses, and vibration.
The 332109278 pipe is engineered to withstand these stresses while maintaining a leak‑tight seal, ensuring that the engine receives the correct air‑fuel mixture for optimal combustion.
Manufactured from high‑grade aluminized steel with a heat‑resistant coating and precision‑formed to OEM specifications, this pipe delivers exceptional thermal stability, pressure resistance, and long‑term durability.
This component is a direct OEM replacement, restoring original turbocharger performance after damage or wear, ensuring that the vehicle maintains its rated power and fuel efficiency.
The 332109278 Turbocharger Pipe is fundamental to the engine’s turbocharging system, which directly affects power output and environmental compliance.
Turbochargers compress intake air, allowing the engine to burn more fuel and produce more power without increasing displacement. The pipe delivers this compressed air with minimal pressure loss.
A compromised pipe – with a crack, leak, or restriction – can reduce boost pressure, causing a drop in power, increased fuel consumption, and higher exhaust emissions.
By maintaining the integrity of the charge‑air path, the 332109278 pipe ensures that the engine meets Tier 4 / Stage V emission standards and delivers the performance expected in heavy‑duty applications.
The 332109278 Turbocharger Pipe features a carefully engineered design that balances aerodynamic efficiency, structural strength, and thermal resistance.
The pipe is manufactured from aluminized steel, which provides a protective aluminium‑silicon alloy layer that resists oxidation and corrosion at elevated temperatures.
Precision‑formed bends and smooth internal surfaces minimise pressure drop and turbulence, ensuring that the compressed air flows freely to the engine.
The ends are beaded to provide a secure grip for silicone hose couplings, ensuring a leak‑free connection that can withstand the thermal expansion and vibration of the engine.
A high‑temperature silicone coating (black) is applied over the aluminized layer, offering additional protection against heat, abrasion, and chemicals commonly found in engine bays.
The pipe’s geometry is optimised to fit within the tight confines of the engine compartment, with precise routing that avoids contact with hot manifolds, moving belts, or sharp edges.
Reinforcing ribs or gussets are incorporated at critical bends to prevent collapse under vacuum or pressure pulsation, ensuring long‑term structural integrity.
The 332109278 Turbocharger Pipe is manufactured using a multi‑layer protection system that ensures reliable performance in the harshest thermal environments.
The base material is a high‑strength steel alloy with a low coefficient of thermal expansion, which minimises distortion during rapid heating and cooling cycles.
The aluminized coating (Al‑Si alloy) provides a diffusion barrier that prevents oxygen and moisture from reaching the steel substrate, resisting scaling and rust.
The outer silicone coating is formulated to withstand continuous temperatures up to 300°C and offers excellent resistance to engine oils, coolants, and road salts.
This dual‑layer protection extends the service life of the pipe far beyond that of uncoated steel, reducing the frequency of replacements and maintaining engine performance.
The 332109278 Turbocharger Pipe is produced in ISO 9001 and ISO 14001 certified facilities, ensuring consistent quality and environmental responsibility.
The raw steel coil is sourced from approved mills and undergoes rigorous incoming inspection, including chemical composition analysis, tensile testing, and coating thickness verification.
The pipe is formed using computer‑controlled mandrel bending machines that maintain a smooth inner surface and prevent wrinkling or kinking.
After forming, the pipe is cut to precise length, and the ends are beaded using a rotary swaging process that ensures uniform bead height and profile.
The aluminizing process is carried out in a continuous dip bath with tight temperature control, ensuring a uniform coating thickness of 10–15 µm.
The silicone topcoat is applied using electrostatic spray technology, followed by a curing cycle that produces a hard, durable finish.
Each pipe is 100% inspected for dimensional accuracy, coating integrity, and surface finish. A sample from each batch is subjected to high‑temperature cycling tests and pressure burst tests.
The result is a turbocharger pipe that delivers consistent, reliable performance, with a service life that matches or exceeds that of the original equipment.
The 332109278 Turbocharger Pipe is a critical component for ensuring the long‑term health and performance of the diesel engine on XCMG articulated dump trucks.
Leaks in the charge‑air system can cause a significant reduction in boost pressure, resulting in decreased power, increased fuel consumption, and higher exhaust gas temperatures.
Over time, a small leak can lead to turbocharger overspeed, compressor surge, or even catastrophic turbo failure, necessitating costly repairs.
The 332109278 pipe is designed to provide a reliable, airtight seal that maintains boost pressure and prevents unfiltered air from entering the engine, which could cause abrasive wear.
Regular inspection of the turbocharger pipe for signs of cracking, chafing, or corrosion is recommended. Any damaged pipes should be replaced immediately with genuine OEM parts.
Using a genuine XCMG 332109278 pipe ensures that the replacement part meets the exact material and dimensional specifications of the original, guaranteeing optimal engine performance.
The 332109278 Turbocharger Pipe is specifically designed for XCMG articulated dump trucks equipped with XCMG diesel engines, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 models.
These vehicles are deployed in a wide range of demanding applications, including open‑pit mining, quarrying, heavy construction, water conservancy, and harbour operations.
The pipe is typically installed between the turbocharger compressor outlet and the charge‑air cooler (intercooler) or directly to the intake manifold, depending on the engine configuration.
Beyond articulated dump trucks, this pipe may also be used in other XCMG equipment that shares the same engine architecture, such as certain wheel loaders, excavators, and motor graders.
The pipe’s standard 76 mm diameter and beaded ends make it compatible with common silicone hose couplings, facilitating straightforward replacement in the field.
When replacing a worn or damaged pipe, using the genuine 332109278 part ensures correct fitment, material strength, and heat protection, safeguarding the engine from performance loss.
It is always recommended to inspect the connecting hoses and clamps when installing a new pipe, and to replace any deteriorated components to ensure a leak‑tight system.
Installing the 332109278 Turbocharger Pipe is a straightforward procedure that can be completed with basic hand tools, minimizing downtime.
Before installation, inspect the new pipe for any signs of damage or coating defects. Check the beaded ends for uniformity and freedom from burrs.
Clean the mating flanges or hose connections on the turbocharger and intake components to remove any dirt, carbon deposits, or old sealant.
Position the pipe in the engine bay, routing it along the original path and ensuring that it does not contact any moving parts or exhaust manifolds. Use the factory brackets and clamps to secure it.
Slide the silicone hose couplings onto the beaded ends and tighten the worm‑drive or constant‑tension clamps to the recommended torque (typically 5–7 N·m). Avoid overtightening.
Start the engine and check for boost leaks by listening for hissing sounds or using a soap‑solution spray. If leaks are detected, re‑position the clamps and re‑tighten.
During routine maintenance, inspect the turbocharger pipe for signs of cracking, blistering, or coating degradation. Replace the pipe immediately if any damage is found.
Keeping a spare 332109278 pipe on hand can help minimize downtime during unexpected failures, ensuring that the vehicle can be returned to service quickly.
The 332109278 Turbocharger Pipe is manufactured in accordance with the highest quality standards, with every production batch subjected to comprehensive testing and inspection.
The facility is certified to ISO 9001 and ISO 14001, and the manufacturing process follows XCMG’s stringent OEM specifications, ensuring that each pipe meets the required performance criteria.
Raw material certificates are verified, and incoming inspection includes chemical analysis, tensile testing, and coating weight measurement.
During production, dimensional checks are performed at each stage – bending, cutting, beading, and coating – to ensure consistency.
A sample from each batch is subjected to a 200‑hour thermal cycling test (from ambient to 300°C) to verify coating adhesion and dimensional stability.
Pressure burst tests are conducted to confirm that the pipe can withstand at least 3.0 bar without rupture.
These rigorous quality assurance measures guarantee that every 332109278 turbocharger pipe delivers the reliability, durability, and performance expected from a genuine XCMG component.
Using genuine XCMG 332109278 pipes ensures proper fit, optimal boost performance, and compatibility with the vehicle’s turbocharging system.
The 332109278 Turbocharger Pipe is an essential component for maintaining the engine power, fuel efficiency, and emissions compliance of XCMG articulated dump trucks.
As a non‑engine air delivery part, this pipe ensures that the turbocharger’s boosted air reaches the engine without loss, enabling the vehicle to perform at its rated capacity.
Its aluminized steel construction, heat‑resistant coating, and precision forming ensure exceptional thermal stability, corrosion resistance, and long‑term durability in the most demanding mining, quarrying, and construction environments.
With its precise OEM fitment and uncompromising quality, this turbocharger pipe offers outstanding value and peace of mind for fleet operators, maintenance professionals, and equipment owners alike.
Choosing the genuine XCMG 332109278 turbocharger pipe safeguards your engine from performance loss, reduces fuel costs, and ensures that your articulated dump truck remains productive, reliable, and compliant.
Always source genuine XCMG parts from authorised distributors to guarantee authenticity, compliance with OEM specifications, and long‑term performance.
Whether for planned maintenance or emergency repairs, the 332109278 turbocharger pipe is the trusted choice of professionals who demand the highest standards of quality and reliability in their heavy equipment.
