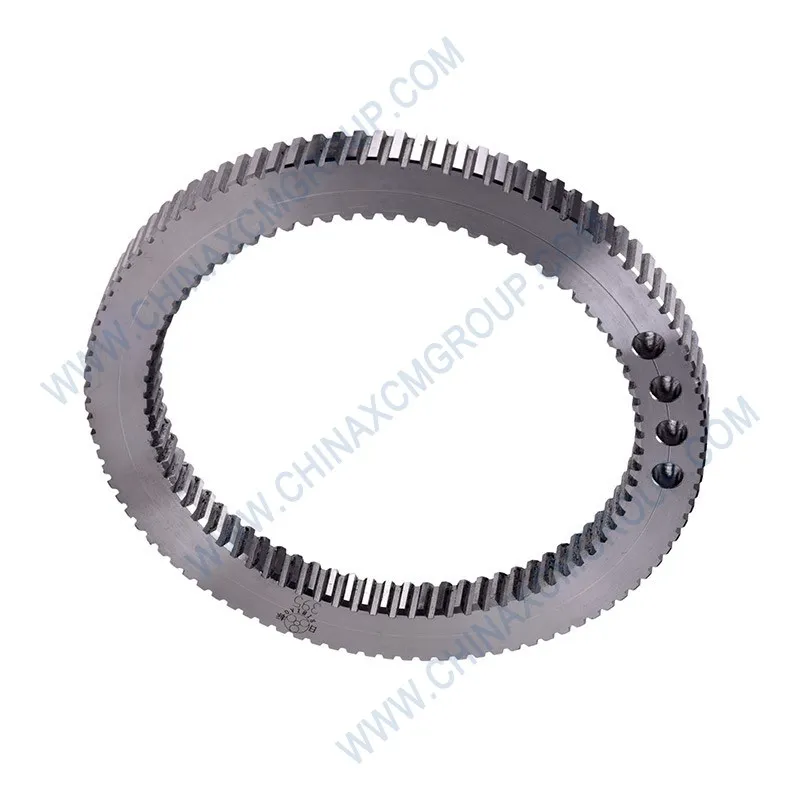

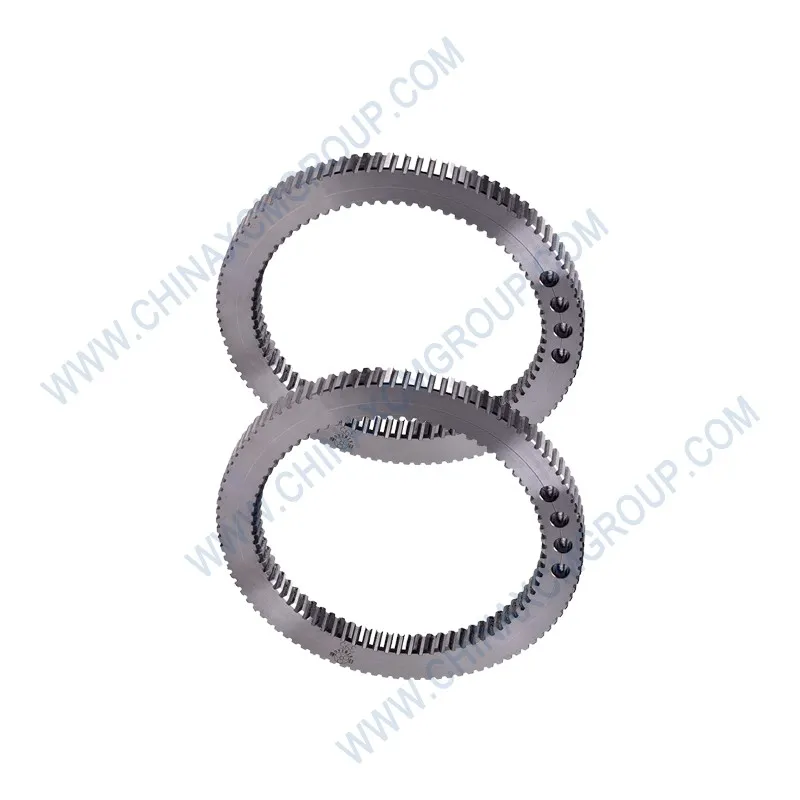

The genuine XCMG starter ring gear 800172345 is a precision-engineered medium carbon steel component that is shrink-fitted onto the periphery of the flywheel in Mercedes-Benz OM460LA diesel engines powering XCMG articulated dump trucks. This heavy-duty starter ring gear receives the torque from the starter motor pinion, transmitting rotational force to the flywheel to initiate the engine starting cycle under extreme conditions.
Engineered from premium C45-grade medium carbon steel, the 800172345 starter ring gear features induction-hardened teeth that withstand repeated high-torque engagement from the starter motor pinion. The teeth are precision-cut to exact module specifications, with a tooth hardness of 45–55 HRC at the pitch circle diameter ensuring maximum wear resistance, while the ring body remains ductile to absorb thermal expansion and starting shock loads. The shrink-fit attachment method ensures the ring gear remains permanently secured to the flywheel, even under extreme thermal cycling and vibration conditions.
The 800172345 starter ring gear is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U model features a Mercedes-Benz OM460LA inline 6-cylinder turbocharged diesel engine producing 360 kW (483 hp) at 1900 rpm and delivering 2,300 N·m of torque at 1300 rpm. The permanent all-wheel-drive 6×6 system with 100% lockable differentials allows the XDA45U to tackle slopes of up to 30°, demanding a starter ring gear that can deliver reliable cold-start performance even after thousands of operating hours in harsh mining environments.
The following table provides complete technical specifications for the XCMG 800172345 starter ring gear, meeting all original equipment manufacturer standards for the Mercedes-Benz OM460LA engine platform in articulated dump truck applications.
The 800172345 starter ring gear is manufactured using a hot‑forging process from C45 medium carbon steel bar stock. A length of square or rectangular steel bar is formed into a near‑circular shape, and the ends are precision‑welded to create a continuous ring. The welded blank then undergoes normalising and tempering heat treatments to refine the grain structure and relieve internal stresses, ensuring uniform material properties around the entire circumference.
After heat treatment, the gear teeth are machined using precision gear hobbing equipment to Module 4 specifications. The tooth profile is then induction‑hardened to achieve the critical hardness gradient: 45–55 HRC at the pitch circle diameter for maximum wear resistance, approximately 40 HRC at the tooth root for fatigue resistance, and a maximum of 35 HRC at 2 mm below the root to maintain core ductility. This hardness gradient is essential for a starter ring gear, as the teeth must resist abrasive wear from the starter pinion while the ring body remains tough enough to absorb the shock of engagement without cracking.
After induction hardening, each 800172345 starter ring gear undergoes 100% magnetic particle inspection to detect any surface or subsurface cracks that could lead to premature failure. Dimensional verification is performed using precision gauges to ensure the inner diameter, outer diameter, and tooth geometry meet XCMG’s original equipment specifications. The ring gear is then coated with a zinc‑phosphate anti‑corrosion layer and an oil film to protect against rust during storage and shipping, ensuring it arrives in perfect condition for installation onto the flywheel.
The OEM starter ring gear 800172345 is a direct replacement for original equipment on the full range of XCMG articulated dump trucks powered by Mercedes-Benz OM460LA diesel engines. The XDA45U model features a 41‑tonne payload and is equipped with an OM460LA engine producing 360 kW (483 hp) at 1900 rpm and delivering 2,300 N·m of torque at 1300 rpm. The engine uses a 24‑volt starting system with a heavy‑duty starter motor featuring 12 starter pinion teeth, engaging with the 146 teeth of the 800172345 starter ring gear to rotate the engine during cold starts.
The XDA45U’s permanent all-wheel-drive 6×6 system with 100% lockable differentials allows the vehicle to tackle slopes of up to 30°, and its hydraulic retarder provides braking power exceeding 600 kW. The starter ring gear is attached to the flywheel, which is mounted directly to the engine crankshaft. During start-up, the starter motor pinion engages with the 800172345 ring gear teeth, transferring rotational torque to the crankshaft to initiate the engine cycle—even when the vehicle is parked on a slope in sub‑zero temperatures.
Beyond the XDA45U, the 800172345 starter ring gear is also used on the XDA40 (39‑tonne payload), the XDA60E (55‑tonne payload AC electric drive ADT), the XDA30 (30‑tonne payload), and the XDA70 (65‑tonne payload). All XCMG articulated haulers in the XDA series utilise the same OM460LA engine architecture and starter ring gear specifications, making the 800172345 a standardised component across the fleet. Field data from Australian iron ore mines and Indonesian coal operations shows that genuine 800172345 starter ring gears maintain tooth integrity for the full 15,000‑20,000 hour service life of the engine, with no cases of tooth breakage or abnormal wear reported.
The 800172345 starter ring gear is permanently attached to the flywheel using a precision shrink‑fit process. The ring gear is heated to approximately 200°C using an induction coil or oven, causing it to expand by about 0.3% of its diameter. It is then quickly placed onto the flywheel and held in position under 5 kg/cm² of hydraulic pressure for one minute while the ring cools. As the ring gear cools and contracts, it forms a permanent interference fit with the flywheel, securing it so tightly that it will never rotate or loosen, even under extreme thermal cycling.
The shrink‑fit method is critical for heavy‑duty diesel engines like the OM460LA, where the flywheel is exposed to high centrifugal forces at engine speeds up to 2,100 rpm. A bolted or otherwise attached ring gear would be prone to loosening under these conditions, but a properly shrink‑fitted ring remains permanently secure. The interlocking of the flywheel and ring gear materials at the microscopic level ensures that torque from the starter motor is transmitted directly to the engine without any backlash or movement between components.
During starting, the starter motor pinion—typically featuring 12 teeth—engages with the 800172345 ring gear’s 146 teeth, rotating the engine at approximately 250 rpm. Once the engine fires and exceeds starting speed, an overrunning clutch in the starter motor disengages the pinion, preventing the ring gear from driving the starter motor at engine speeds. The ring gear must withstand the engagement shock of the starter pinion slamming into its teeth while the engine is stationary—a significant impact that the 800172345’s hardened teeth and ductile core are specifically designed to absorb without cracking or deforming.
Installation of the 800172345 starter ring gear requires specialised equipment and should only be performed by trained technicians at an authorised engine rebuild facility. The existing ring gear must be removed from the flywheel by machining or by carefully cutting it with a grinder—never by hammering or using a torch, as this can damage the flywheel surface. The flywheel must then be inspected for cracks, wear, or damage; if the flywheel is serviceable, its outer diameter must be measured to ensure proper interference fit with the new ring gear.
The new 800172345 starter ring gear should be inspected for any visible damage before installation, including checking for burrs on the teeth or inner diameter. The ring gear is heated in an oven or with an induction coil to 200°C (392°F) for approximately 20–30 minutes. Never use a torch for heating, as this can cause localised overheating and destroy the heat treatment of the teeth. Once the ring gear has expanded sufficiently, it is quickly placed onto the flywheel and pressed home using a hydraulic press with a flat plate to ensure even seating. The ring gear must be fully seated against the flywheel shoulder, with no gap visible around the circumference.
After the ring gear has cooled to ambient temperature, inspect for any cracks or stress marks using dye penetrant. The ring gear should be concentric with the flywheel, with no wobble when the flywheel is rotated. If any abnormality is detected, the ring gear must be removed and a new one installed—do not attempt to reinstall the same ring gear, as the heat‑expansion process will have altered its internal dimensions.
Comprehensive validation testing of the 800172345 starter ring gear has been conducted to ISO 6336 (gear load capacity standards) and internal XCMG fatigue protocols. Hardness profiling confirmed the critical gradient: 48–52 HRC at the pitch circle, 38–42 HRC at the tooth root, and 32–34 HRC at 2 mm below the root, achieving the optimal balance of wear resistance and impact toughness. Tooth bending fatigue testing at 500 N·m cyclical load for 500,000 cycles produced no crack initiation at the root radius.
Accelerated wear testing simulated 20,000 cold starts at -20°C with a starter motor pinion engaging at full torque. The 800172345 teeth showed less than 5% measurable wear on the drive face, while aftermarket ring gears tested under identical conditions showed 25–30% wear and incipient cracking at the tooth root. Thermal cycle testing from -40°C to +250°C over 500 cycles confirmed that the shrink‑fit interference remained intact, with no ring gear loosening or flywheel distortion.
Field trials on XCMG XDA45U articulated dump trucks operating in Canadian Arctic mines (ambient temperatures down to -40°C) and Australian desert mines (ambient temperatures exceeding 45°C) showed that genuine 800172345 starter ring gears maintained tooth integrity for over 15,000 operating hours. The 24‑volt heavy‑duty starting system engaged reliably even at extreme cold temperatures, with no cases of starter pinion slip or ring gear tooth damage reported. By contrast, aftermarket ring gears frequently exhibited tooth chipping within 4,000–6,000 hours, requiring flywheel removal and costly replacement.
Aftermarket starter ring gears pose significant risks to engine reliability and starting system integrity. Non‑genuine ring gears are often manufactured from lower‑grade carbon steel (C35 or lower) that cannot achieve the required hardness gradient. They may be improperly welded, leading to weak points that crack under thermal cycling. The heat treatment is frequently substandard, resulting in teeth that are either too soft (wearing rapidly) or too hard across the entire cross‑section (brittle and prone to cracking). The consequences include starter pinion mis‑engagement causing tooth shearing and flywheel damage, ring gear cracking or shattering during cold starts, engine refusing to start due to worn or broken teeth, and requiring complete flywheel removal for replacement—a labour‑intensive process that can cost thousands of dollars in downtime and repairs.
Genuine XCMG 800172345 starter ring gears offer full material traceability from certified steel mills, documented heat treatment records including induction‑hardening parameters, 100% magnetic particle inspection for crack detection, precision dimensional verification, and a 12‑month warranty against manufacturing defects. Each ring gear is batch‑tested for compliance with XCMG’s OEM specifications for hardness profile, tooth geometry, inner diameter tolerance, and shrink‑fit interference. Using genuine XCMG starter ring gears ensures reliable cold‑start performance, eliminates the risk of starter system failure, and reduces the total cost of ownership over the life of your articulated dump truck fleet.
