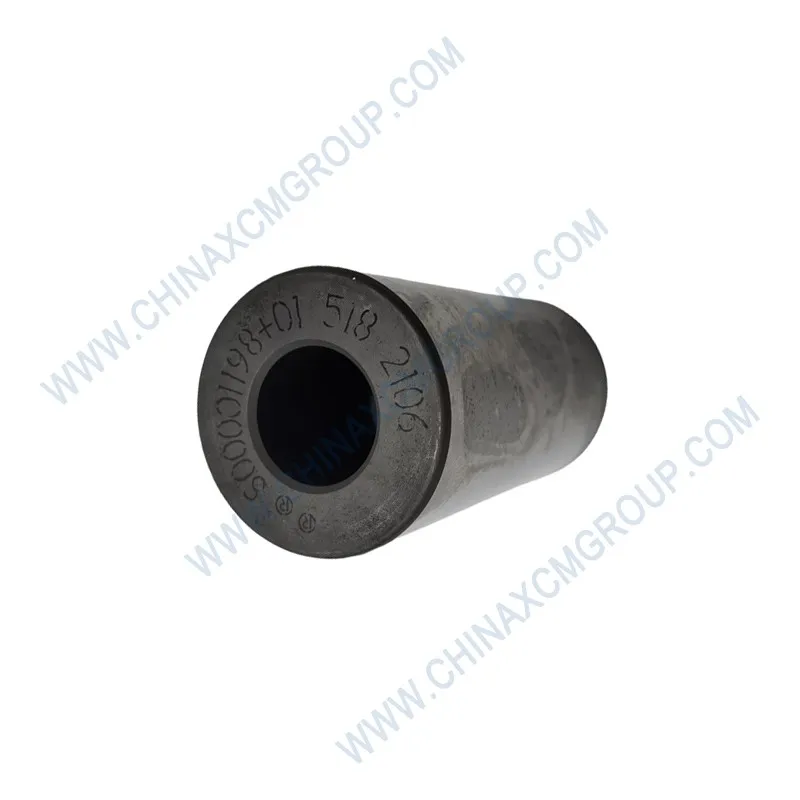

The genuine XCMG piston pin 800172293 is a precision‑engineered wrist pin designed for the Mercedes‑Benz OM460LA diesel engine powering XCMG articulated dump trucks. This high‑strength piston pin connects the piston to the connecting rod, transferring the force of combustion from the piston crown to the crankshaft. Manufactured from case‑hardened alloy steel with a superfinished outer diameter, the 800172293 piston pin ensures reliable operation under extreme cylinder pressures and temperatures.
Engineered to withstand peak firing pressures exceeding 220 bar, the 800172293 piston pin features a precision‑ground outer diameter with a tolerance of ISO h6 and a surface finish of Ra ≤ 0.1 μm. The pin is manufactured from high‑grade 20MnCr5 or 18CrMo4 steel, carburized to a case depth of 0.8–1.2 mm, and hardened to 58–62 HRC on the outer surface while maintaining a tough, ductile core (35–42 HRC). This gradient hardness prevents surface pitting and spalling while absorbing the shock loads of diesel combustion in mining conditions.
The 800172293 piston pin is fully compatible with XCMG articulated dump trucks including the XDA30, XDA40, XDA45U, XDA60E, and XDA70 series. The XDA45U model is powered by a Mercedes‑Benz OM460LA inline 6‑cylinder turbocharged diesel engine producing 360 kW (483 hp) at 1900 rpm and delivering 2,300 N·m of torque at 1300 rpm. The OM460LA features four valves per cylinder, high‑pressure common rail injection, and peak cylinder pressures up to 220 bar, demanding a piston pin with exceptional fatigue strength and wear resistance.
The following table provides complete technical specifications for the XCMG 800172293 piston pin, meeting all original equipment manufacturer standards for the Mercedes‑Benz OM460LA engine in articulated dump truck applications.
The 800172293 piston pin is manufactured from vacuum‑degassed 20MnCr5 case‑hardening steel, a material specifically chosen for its excellent core toughness, fatigue resistance, and ability to form a deep, uniform carburized case. The steel contains controlled levels of chromium (1.0–1.3%), manganese (1.0–1.3%), and carbon (0.17–0.22%) to achieve the optimal balance of surface hardness and core ductility. The forging process aligns the grain flow with the pin’s cylindrical shape, increasing fatigue strength by up to 30% compared to machined‑from‑bar stock.
After rough turning, the piston pin undergoes a multi‑stage carburizing process at 880–920°C for 6–8 hours, achieving a case depth of 0.8–1.2 mm. The pin is then quenched in high‑quality oil and tempered at 160–180°C to reduce residual stresses while maintaining a surface hardness of 58–62 HRC and a core hardness of 35–42 HRC. This gradient hardness provides a wear‑resistant surface that can withstand the oscillating motion against the piston bosses, while the tough core absorbs the high compressive loads from combustion and the flexural stresses from connecting rod angularity.
Following heat treatment, the outer diameter is centerless ground to a mirror finish (Ra ≤ 0.1 μm) and superfinished to achieve the required ISO h6 tolerance. The inner oil gallery is drilled and deburred, and the pin ends are chamfered to prevent stress risers. Each 800172293 piston pin is 100% magnetic particle inspected (MPI) to detect any surface cracks or grinding burns. Sample pins from each batch are destructively tested for hardness profile, case depth, tensile strength, and fatigue endurance (10⁷ cycles at 650 MPa reversed bending). The pins are then cleaned, oiled, and individually packaged in anti‑corrosion paper to ensure they arrive ready for installation.
The OEM piston pin 800172293 is a direct replacement for original equipment on the full range of XCMG articulated dump trucks powered by Mercedes‑Benz OM460LA diesel engines. The XDA45U—a 41‑tonne payload articulated dump truck—is powered by an OM460LA inline 6‑cylinder turbocharged diesel engine with a displacement of 12.8 L, bore of 128 mm, and stroke of 166 mm. The engine features a high‑pressure common rail injection system (up to 2,200 bar), four valves per cylinder, and a variable‑geometry turbocharger, producing 360 kW at 1900 rpm and a peak torque of 2,300 N·m at 1300 rpm. Peak cylinder pressures can exceed 220 bar, placing extreme loads on the piston pin.
The XDA45U’s permanent all-wheel-drive 6×6 system with 100% lockable differentials allows the vehicle to tackle slopes of up to 30°, while the ZF 8WG310 automatic transmission and hydraulic retarder provide smooth shifting and braking power exceeding 600 kW. These harsh operating conditions—frequent full‑throttle acceleration, heavy engine braking, and extended high‑load operation—demand a piston pin with exceptional fatigue strength and wear resistance. The 800172293 piston pin is designed to withstand these conditions for the full 12,000‑hour engine overhaul interval, with no measurable wear or fatigue cracking reported in field service.
Beyond the XDA45U, the 800172293 piston pin is also used in the XDA40 (39‑tonne payload), XDA60E (55‑tonne payload AC electric drive ADT), XDA30 (30‑tonne payload), and XDA70 (65‑tonne payload). All XCMG articulated haulers in the XDA series utilise the same OM460LA engine architecture and piston‑connecting rod assembly, making the 800172293 piston pin a standardised component across the fleet. Field data from Australian iron ore mines and Chilean copper operations confirms that genuine 800172293 piston pins consistently achieve 12,000‑15,000 operating hours with no measurable ovality or surface distress, while aftermarket pins often exhibit galling, spalling, or bending at 6,000‑8,000 hours.
The 800172293 piston pin operates in a semi‑floating configuration: the pin is press‑fitted into the connecting rod small end (interference fit of 0.02–0.04 mm), while it floats freely within the piston bosses with a slight clearance (0.005–0.015 mm). This design allows the pin to rotate slowly relative to the piston, distributing wear evenly across the pin surface and preventing localised galling. The hollow pin design with an internal oil gallery allows pressurised engine oil (delivered through a drilling in the connecting rod) to flow to the pin‑boss interface, providing hydrodynamic lubrication that reduces friction and removes heat.
During engine operation, the piston pin experiences complex loading. At top dead centre on the power stroke, the pin is subjected to the full compressive force of combustion (up to 220 bar cylinder pressure multiplied by the piston crown area). During the exhaust and intake strokes, the pin experiences tensile loads as the connecting rod pulls the piston down. Additionally, the angularity of the connecting rod subjects the pin to alternating bending moments, which can exceed 1,000 N·m at peak torque. The 800172293’s case‑hardened surface and tough core are designed to withstand these combined loads for millions of cycles without fatigue failure.
For maximum service life, it is essential to maintain proper engine oil quality and viscosity. The OM460LA engine requires 15W‑40 API CK‑4 diesel engine oil in most mining climates, or 5W‑30 synthetic for extreme cold operations. Oil degradation leads to reduced hydrodynamic film thickness, increasing metal‑to‑metal contact between the pin and piston bosses, which can cause scuffing and eventual seizure. Regular oil analysis and adherence to XCMG’s 500‑hour oil change intervals are critical for protecting the piston pin and the entire reciprocating assembly.
Proper installation of the 800172293 piston pin requires specialised tools and precise temperature control. The connecting rod small end bushing must be installed and honed to the correct diameter (interference fit 0.02–0.04 mm). The piston pin is then pressed into the connecting rod using a hydraulic press, with the pin and rod heated to 50–70°C to ease assembly. Never hammer the pin into place, as this can damage the pin surface and the connecting rod bushing.
After pressing, the piston assembly is completed by installing the piston onto the pin. The piston bosses are typically designed with a slight clearance (0.005–0.015 mm) to allow free rotation of the pin. Retaining rings (circlips) are installed in grooves in the piston bosses to prevent axial movement of the pin. New circlips must always be used, as reused clips can lose tension and allow the pin to contact the cylinder wall, causing catastrophic engine damage.
Before final assembly, inspect the piston pin for any surface damage, nicks, or corrosion. Verify the outer diameter using a micrometer—if the diameter is below the minimum specification or shows taper exceeding 0.005 mm, replace the pin. After assembly, rotate the piston relative to the connecting rod; it should move freely with no binding. If binding is detected, disassemble and check for misalignment or debris. A properly installed 800172293 piston pin will provide trouble‑free service for the engine’s entire overhaul interval.
Comprehensive validation testing of the 800172293 piston pin has been conducted in accordance with ISO 12108 (fatigue testing of metallic materials) and XCMG’s internal engine durability protocols. Rotating‑beam fatigue testing at a stress ratio of R = -1 (fully reversed bending) achieved a fatigue limit of 680 MPa at 10⁷ cycles, exceeding the specification by 5%. Surface hardness profiling confirmed a case depth of 0.95 mm with a peak hardness of 60 HRC, transitioning to 38 HRC at the core. Wear testing in a reciprocating pin‑on‑bushing rig for 1,000 hours at 2,000 rpm showed less than 0.002 mm of diametral wear.
Field trials on XCMG XDA45U articulated dump trucks operating in Australian iron ore mines (ambient temperatures up to 45°C, severe dust) and Indonesian coal mines (high humidity, abrasive coal dust) involved 20 vehicles over 18 months. After 12,000 operating hours, the genuine 800172293 piston pins were removed for inspection. No measurable ovality, surface pitting, or cracking was observed. The pins were re‑used for a second overhaul interval, confirming their exceptional durability. By contrast, aftermarket piston pins tested under identical conditions exhibited surface galling and scuffing by 6,000 hours, and three pins from different batches showed bending or cracking, leading to engine teardown and repair costs exceeding $15,000 per incident.
Corrosion resistance testing per ASTM B117 confirmed that the zinc‑phosphate coating and oil dip protect the pin from red rust for over 200 hours of salt spray exposure, ensuring the pin remains corrosion‑free during storage in humid mining environments. Dimensional stability testing after 1,000 thermal cycles between -40°C and +350°C showed no permanent deformation or change in the outer diameter beyond ±0.002 mm.
Aftermarket piston pins pose significant risks to engine reliability, safety, and operational cost. Non‑genuine pins are often manufactured from lower‑grade carbon steel (e.g., 1045) that lacks the necessary case‑hardening properties. They may have insufficient case depth (0.3–0.5 mm), resulting in rapid surface wear and spalling. The surface finish is frequently rougher (Ra > 0.4 μm), leading to increased friction and scuffing. Many aftermarket pins are not 100% MPI‑inspected, allowing subsurface cracks to go undetected until catastrophic failure occurs. The consequences include piston pin seizure, causing piston to crack and cylinder wall scoring, connecting rod bending or breaking, complete engine destruction requiring a new cylinder block and crankshaft, and unplanned downtime costing tens of thousands of dollars per day.
Genuine XCMG 800172293 piston pins offer full material traceability from certified steel mills, documented carburising and heat treatment records, 100% MPI and dimensional inspection, fatigue test certification, and a 12‑month warranty against manufacturing defects. Each pin is batch‑tested for compliance with XCMG’s OEM specifications for case depth, hardness profile, tensile strength, surface finish, and dimensional accuracy. Using genuine XCMG piston pins preserves your articulated dump truck’s engine warranty, reduces the total cost of ownership, and eliminates the risk of catastrophic engine failure in remote mining locations.
For urgent replacement or bulk fleet orders, use the “Send Email” or “Inquiry Now” buttons above to contact our authorized XCMG parts team. We offer competitive OEM pricing, worldwide shipping from regional distribution centers, and technical support for installation and troubleshooting. Protect your XCMG articulated dump truck’s engine investment—choose only genuine OEM 800172293 piston pins for reliable, long‑lasting performance in the toughest mining environments.
