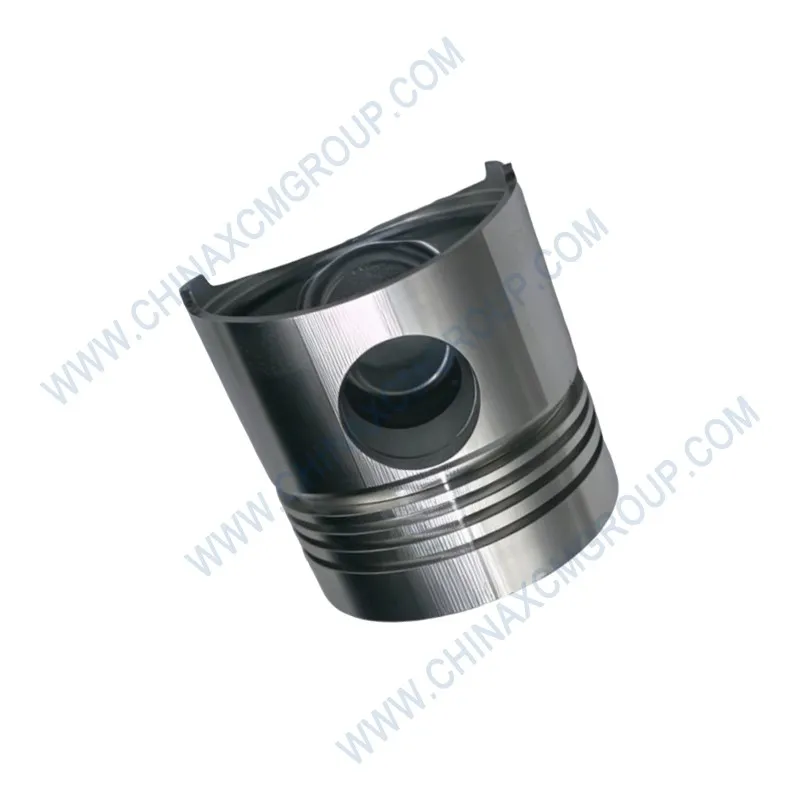

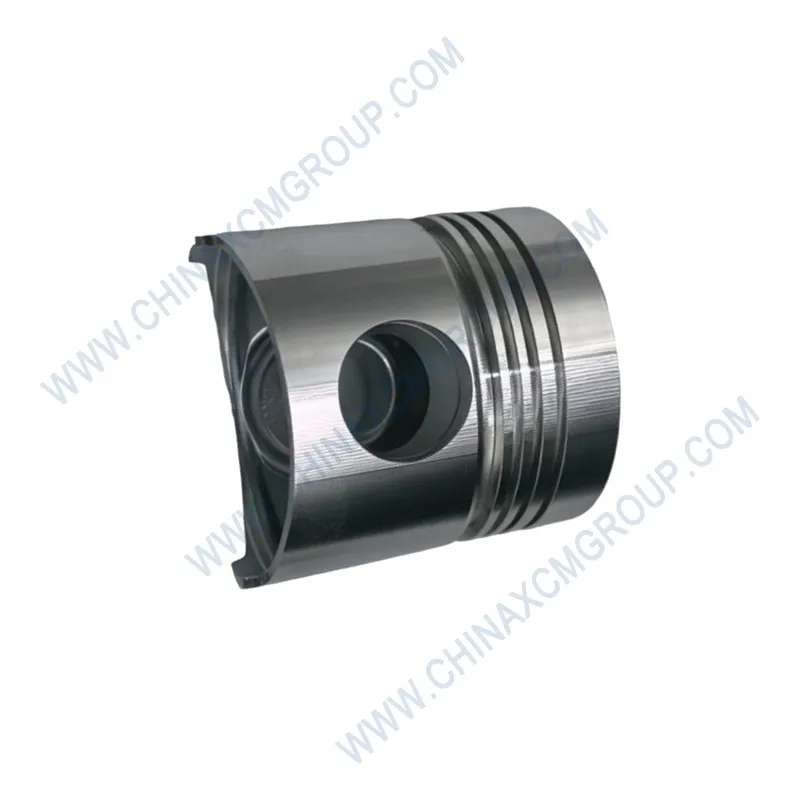

The XCMG Piston with OEM number 800172327 is a precision‑engineered reciprocating component designed for the high‑performance diesel engines powering XCMG articulated dump trucks (ADTs). This genuine 800172327 piston forms the core of the combustion chamber, converting the explosive force of ignited fuel into linear motion that drives the crankshaft. XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 ADTs rely on 800172327 for maximum power output, fuel efficiency, and long‑term durability under extreme loads.
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA inline six‑cylinder diesel engine producing 360 kW (483 hp) at 1,900 rpm and an immense 2,300 N·m of peak torque at 1,300 rpm. Inside each cylinder, the piston 800172327 experiences combustion pressures exceeding 200 bar (20 MPa) and temperatures up to 600°C on its crown. To survive these extreme conditions, the piston is manufactured from a eutectic aluminum‑silicon alloy specially formulated for high‑temperature strength and fatigue resistance. The hypereutectic silicon content (typically 16‑18%) forms a hard, wear‑resistant phase that improves cylinder bore compatibility and reduces scuffing risk during cold starts.
The piston 800172327 undergoes a sophisticated multi‑stage manufacturing process that begins with precision casting to achieve the complex geometry of the crown, ring belt, and skirt. Special heat treatment then modifies the grain structure, adding strength and durability while improving thermal fatigue resistance. The crown is hard anodized—an electrolytic process that converts the aluminum surface into a thick, dense aluminum oxide layer (25‑50 µm). This anodized coating provides extremely low friction, reduces carbon buildup, and significantly prolongs wear resistance in the high‑temperature combustion environment. The piston skirt is specially ground and tapered over its full length, allowing it to expand to a perfect cylindrical fit against the cylinder liner wall when the engine reaches operating temperature, minimizing cold‑start noise and friction.
Advanced Design Features of the OEM Piston
The piston 800172327 incorporates three precisely machined ring grooves for compression rings, a scraper ring, and an oil control ring. The top compression ring groove is positioned close to the crown to minimize the crevice volume where unburned fuel can accumulate, thereby reducing hydrocarbon emissions. The groove is reinforced with a cast‑in nickel‑resistant insert or anodized to prevent micro‑welding and wear under high loads. The second ring groove is slightly offset and features a stepped profile that improves gas sealing and reduces oil consumption. The oil control ring groove includes multiple drain holes that allow scraped oil to return to the crankcase, maintaining proper lubrication while preventing excessive oil from reaching the combustion chamber.
To manage the enormous heat generated during high‑load operation, the piston 800172327 features a sophisticated oil cooling gallery—a sealed annular channel cast just below the crown. A dedicated piston cooling jet (part of the engine’s lubrication system) directs a continuous stream of engine oil into this gallery. The oil absorbs heat from the crown area and returns it to the crankcase, where it is cooled by the oil pan and recirculated. This active cooling system can reduce the crown temperature by as much as 50‑70°C, dramatically improving the piston’s fatigue life and preventing thermal cracking. This cooling design is critical for ADTs operating in heavy mining environments where engines may run near full load for hours at a time.
Field Performance and Failure Prevention
XCMG field data from XDA40 ADT fleets operating in Australian iron ore mines and Chilean copper mines demonstrates that the genuine piston 800172327 achieves an average service life exceeding 12,000‑15,000 hours when used with recommended lubricants, proper air filtration, and high‑quality diesel fuel. Aftermarket pistons manufactured from lower‑grade materials with inadequate heat treatment or incorrect dimensional tolerances often fail prematurely due to piston cracking (usually starting at the ring grooves), scuffing (adhesive wear on the skirt), ring land fracture, or seizure caused by excessive thermal expansion. The superior material quality, precision machining, and advanced cooling design of the genuine XCMG piston directly contribute to reduced maintenance costs and extended overhaul intervals for ADT operators.
Common failure indicators for a worn piston 800172327 include excessive oil consumption (blue exhaust smoke), loss of compression (hard starting, rough idle, reduced power), metallic knocking noise from the cylinder (piston slap), and elevated blow‑by pressure in the crankcase (visible as smoke from the oil filler cap). When replacing a piston, XCMG strongly recommends replacing all pistons in the same engine bank as a matched set to ensure balanced cylinder performance and equal compression. The cylinder liner should also be inspected for wear and replaced if necessary, as a worn liner will accelerate wear on a new piston. The piston pin and connecting rod should be inspected for wear or damage, and new piston rings should always be installed with a new piston.
Compatibility Across the XCMG ADT Range
The piston 800172327 is compatible with the full range of XCMG articulated dump trucks: XDA30 (30‑ton payload, powered by Yuchai YCK11400‑T300), XDA40 (39‑ton payload, Benz OM502 V8 diesel), XDA45 (45‑ton), XDA45U (41‑ton, Mercedes‑Benz OM460LA), and TA30 (30‑ton). The piston’s 128 mm nominal bore and 166 mm stroke are perfectly matched to the OM460 engine platform. For the OM502 V8 used in the XDA40, the piston shares the same bore size, compression height, and pin diameter, allowing consistent part inventory management for fleets operating multiple ADT models. XCMG offers the piston 800172327 in standard size (STD) as well as oversize versions (0.25 mm, 0.50 mm, and 0.75 mm oversize) to accommodate cylinder liner reconditioning.
Beyond articulated dump trucks, the piston 800172327 is also used in XCMG wheel loaders (LW series) and motor graders (GR215, GR300, GR350) that share the same engine architecture. This cross‑platform compatibility simplifies parts inventory management for large fleets operating multiple XCMG machine types. The piston is designed to work with genuine XCMG piston rings, piston pins, snap rings, and connecting rods. Using a complete XCMG piston, ring, and pin kit (available as a set) ensures proper ring gap, correct pin clearance, and optimized compression sealing. Bulk orders include a certificate of conformity with full batch traceability, providing fleet managers with documented quality assurance.
Global Supply Chain and Quality Assurance
XCMG’s manufacturing facility for the piston 800172327 is certified to IATF 16949:2023 (automotive quality management) and ISO 9001:2025. Each production batch is 100% dimensionally inspected using coordinate measuring machines, with critical features such as ring groove width, pin bore diameter, and compression height verified to strict tolerances. Random samples per batch are subjected to destructive metallurgical testing to confirm hardness profiles, material composition, and microstructure. A 2% sample per batch is also tested for thermal fatigue resistance using a cyclic heating and cooling test rig, with the piston crown repeatedly heated to 350°C and oil‑cooled back to ambient temperature for 1,000 cycles, with no cracking permitted.
The genuine XCMG piston 800172327 is stocked in regional distribution centers located in the United States (Houston), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2‑5 business days for most global destinations, with emergency air freight available within 24 hours for critical repairs. Each piston is individually packaged in a protective foam‑lined box to prevent surface damage during transit, and bulk orders include a full test report and certificate of conformity. Use the inquiry button above to request a quote or place an order for genuine XCMG piston 800172327.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172327 is an original manufacturer reference for a genuine XCMG piston. All specifications are derived from XCMG engineering standards and field validation data.
