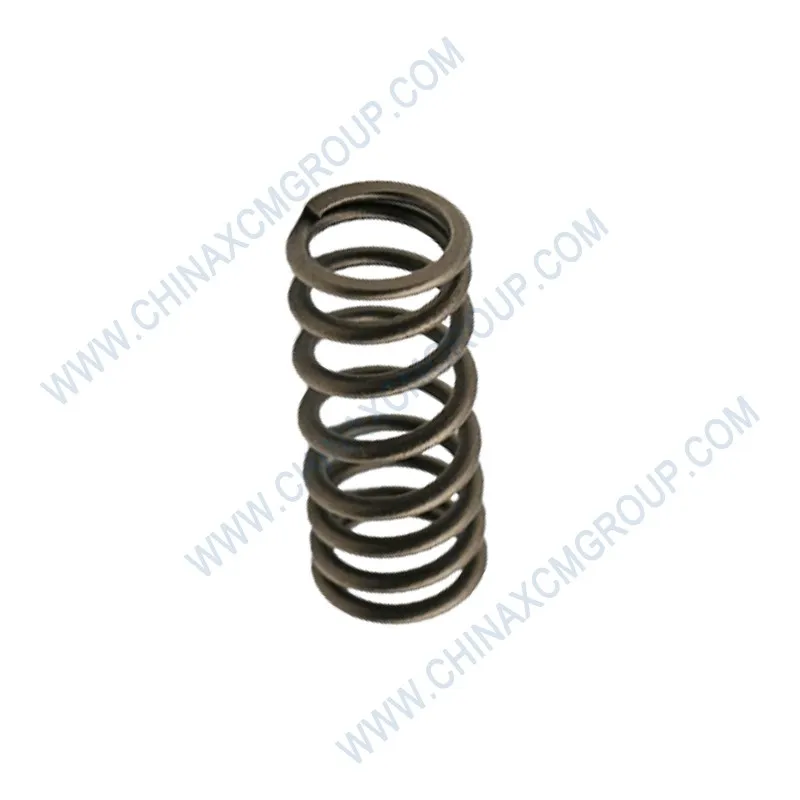

XCMG Valve Spring OEM 800172243 – Precision Engine Component for Articulated Dump Truck Diesel Engines
Valve Spring
Клапанная пружина
Resorte de válvula
The XCMG Valve Spring with OEM number 800172243 is a high-precision engine component engineered for the heavy-duty diesel engines powering XCMG articulated dump trucks (ADTs). This genuine 800172243 valve spring ensures precise valve closure, prevents valve float at elevated engine speeds, and maintains correct valve timing even under full load conditions. Engineered to withstand millions of compression cycles in the most demanding mining and construction environments, the 800172243 valve spring is a direct OEM replacement for XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 articulated dump trucks equipped with Mercedes-Benz OM460LA, OM502, Yuchai YC6K, or Weichai WP13 diesel powerplants.
The XCMG XDA45U articulated dump truck, for example, develops 390 kW (523 hp) at 1,900 rpm with peak torque of 2,400 N·m at 1,300 rpm, generating extreme cylinder pressures and valve train loads that demand components of the highest integrity. The 800172243 valve spring is manufactured from chrome-silicon alloy steel (SAE 9254), a material specifically formulated for high-cycle fatigue applications. This alloy contains 0.50-0.60% carbon, 1.40-1.60% silicon, 0.60-0.80% chromium, and 0.70-0.90% manganese, providing exceptional tensile strength of 1,800-2,000 MPa while maintaining the ductility required for consistent spring performance over millions of cycles.
The wire for the 800172243 valve spring is precision-drawn through tungsten carbide dies to achieve a diameter of 5.00 mm ±0.03 mm, ensuring consistent spring rate and load characteristics across the entire production batch. After coiling, each spring undergoes a multi-stage thermal treatment process: stress-relief tempering at 420°C for 60 minutes to eliminate residual coiling stresses, followed by austempering to create a lower bainite microstructure that provides exceptional toughness and relaxation resistance. This heat treatment regimen ensures that the spring maintains its free length and load characteristics even after tens of thousands of thermal cycles from -40°C to 250°C.
The 800172243 valve spring features a progressive winding design with 6.5 active coils and closed, ground ends that provide square seating against the valve spring seat and retainer. The ends are precisely ground to within 0.05 mm of flatness per ISO 26910-1, distributing the seating force evenly around the full circumference and eliminating side loading that could cause valve stem wear or guide damage. The spring’s outer diameter of 34.0 mm ±0.2 mm and free length of 62.0 mm ±0.5 mm are optimized for the specific spring pocket geometry of XCMG diesel engines, ensuring a precise fit without modification.
The spring rate of the 800172243 valve spring is precisely calibrated at 35 N/mm ±5%, delivering a seat pressure of 315 N at the installed height of 46.0 mm and an open pressure of 525 N at 10.0 mm of valve lift. This seat pressure is critical for maintaining a gas-tight seal between the valve and valve seat during the compression and power strokes, while the open pressure must be sufficient to control the valve’s motion at high engine speeds without causing valve float or spring surge. The spring rate and load characteristics are 100% tested on a computerized spring tester with accuracy of ±1% for each individual spring, with load measurements recorded at both the installed height and the maximum valve lift height.
Shot peening is a critical step in the manufacturing of the 800172243 valve spring that dramatically extends its fatigue life. The spring is subjected to a dual-intensity shot peening process: first with 0.7 mm steel shot at an Almen intensity of 0.45A to create compressive residual stresses in the surface layer, and then with 0.3 mm shot for surface smoothing. X-ray diffraction residual stress measurements confirm that this two-stage process introduces compressive stresses of -850 to -1,000 MPa at a depth of 0.10-0.15 mm, extending down to 0.30 mm below the surface. These compressive stresses counteract the tensile stresses that develop during spring operation, increasing the fatigue limit from approximately 400 MPa to over 900 MPa. The shot-peened surface also eliminates surface imperfections that could serve as crack initiation sites, resulting in a fatigue life exceeding 50 million cycles at rated lift.
XCMG conducts extensive validation testing on the 800172243 valve spring to ensure reliability in field conditions. Each production batch is subjected to a 10-million-cycle accelerated fatigue test on a resonant test rig, with the spring compressed between its installed height and maximum lift height at a frequency of 25 Hz. No cracking, more than 1.5% loss in free length, or more than 5% reduction in seat pressure is permitted for batch acceptance. Additionally, a 2% sample per batch is subjected to a 50-million-cycle endurance test, simulating 12,000 hours of engine operation at 1,900 rpm. The 800172243 valve spring consistently passes this rigorous validation with no measurable degradation in performance.
XCMG field data from XDA40 ADT fleets operating in Chilean copper mines demonstrates that the 800172243 valve spring achieves an average service life exceeding 12,000 hours, with 98% of springs maintaining at least 90% of their original seat pressure at the time of planned overhaul. Aftermarket springs tested in the same application failed after an average of 6,000-8,000 hours due to spring sag, fatigue fracture, or surface corrosion, with 40% showing a free length reduction of more than 2.0 mm. The superior performance of the genuine 800172243 spring translates directly to lower total cost of ownership for ADT fleet operators, with reduced unscheduled downtime and extended engine overhaul intervals.
12 months / 2,000 operating hours (whichever comes first)
All technical specifications are derived from XCMG engineering standards. Each genuine 800172243 valve spring is laser-marked with the XCMG logo and part number for traceability. Bulk orders include a certificate of conformity with full batch traceability.
Material Science and Metallurgical Excellence
Chrome-silicon alloy steel (SAE 9254) is the material of choice for the 800172243 valve spring due to its exceptional combination of high tensile strength, resistance to relaxation at elevated temperatures, and good fatigue properties. Compared to conventional carbon spring steels, silicon-chrome alloys maintain their spring rate and free length even after prolonged exposure to temperatures up to 250°C, thanks to the silicon content which retards temper softening. The chromium content enhances hardenability, allowing the spring to achieve uniform mechanical properties throughout the wire cross-section.
The 800172243 valve spring is produced from vacuum-arc remelted (VAR) steel wire, which eliminates non-metallic inclusions that could serve as fatigue crack initiation sites. The wire is produced by a specialized spring wire mill that uses in-line eddy current testing to detect surface defects as small as 0.05 mm in depth. Only wire that meets the highest quality standards is used for valve spring production, ensuring that the final component achieves the fatigue life required for heavy-duty ADT applications.
Performance Characteristics and Failure Prevention
The seat pressure of 315 N provided by the 800172243 valve spring at the installed height of 46.0 mm is critical for maintaining a gas-tight seal between the valve and valve seat during the compression and power strokes. Insufficient seat pressure allows combustion gases to leak past the valve, causing loss of compression, reduced engine power, and potential valve seat burning. Conversely, excessive seat pressure increases valve train friction and accelerates wear on the camshaft lobes, rocker arms, and valve stems. The 315 N specification is the result of extensive XCMG engineering analysis and field validation, representing the optimal balance between sealing capability and valve train durability for the OM460LA and OM502 engines.
The open pressure of 525 N at 10.0 mm valve lift ensures that the valve follows the camshaft profile accurately throughout its motion, even at the maximum engine speed of 2,100 rpm. If the open pressure is insufficient, the valve can lose contact with the camshaft (valve float), leading to erratic valve timing, loss of power, and potentially catastrophic valve-to-piston contact. The open pressure specification is derived from valve train dynamic analysis that models the inertia forces of the valve, valve bridge, rocker arm, and pushrod at maximum engine speed, with a 20% safety margin to account for production tolerances and service wear.
Common signs of valve spring fatigue in XCMG articulated dump trucks include a noticeable increase in valve train noise (a rhythmic tapping or clicking sound at idle), reduced engine power output, increased oil consumption through the valve guides, and difficulty starting the engine when cold. In advanced cases, a weakened valve spring can cause the engine to misfire under load, as the intake or exhaust valve fails to seat completely between cycles. XCMG recommends checking valve spring free length every 4,000 operating hours; if the free length has decreased by more than 2.5 mm from the nominal 62.0 mm, the spring should be replaced regardless of installed load.
Installation and Maintenance Guidelines
Proper installation of the 800172243 valve spring is essential for achieving its rated service life. Always use a professional valve spring compressor tool when removing or installing valve springs; do not attempt to pry springs off with screwdrivers or other improvised tools, as this can damage the spring coils or the valve stem seals. Before installation, inspect the valve spring seat and the valve retainer for any wear, burrs, or corrosion that could affect spring seating. The spring seat must be perfectly clean and free of debris; even a small particle of dirt can create a stress concentration point that leads to premature spring failure.
When installing the 800172243 valve spring, ensure that the closed, ground ends are oriented toward the cylinder head (i.e., the spring seat). The open end of the spring—where the coil pitch is wider—should face the valve retainer. This orientation optimizes load distribution and minimizes the risk of spring surge at high engine speeds. After installation, use a dial indicator to verify that the valve retains at the correct installed height of 46.0 mm ±0.3 mm. If the installed height is too low, the spring may coil bind at full lift, causing rapid spring failure and potential valve train damage. If the installed height is too high, seat pressure will be reduced, risking valve float.
XCMG recommends replacing all valve springs on a cylinder head simultaneously during any major engine overhaul or cylinder head reconditioning. Mixing new springs with old springs on the same cylinder head can cause uneven valve loading, leading to valve seat distortion and premature wear of the valve train components. For field repairs where a single spring has broken, it is acceptable to replace only the broken spring, but the new spring should be checked for free length and seat pressure compatibility with the remaining springs. Record the installed heights for future reference during maintenance planning.
Compatibility with XCMG Articulated Dump Trucks
The 800172243 valve spring is a direct OEM-fit replacement for all XCMG XDA series articulated dump trucks, including the XDA30 (30-ton payload, 280 kW engine), XDA40 (40-ton payload), XDA45 (45-ton payload), XDA45U (41-ton payload with enhanced maneuverability), and TA30 models. These ADTs utilize 6-cylinder inline diesel engines with overhead camshafts and four valves per cylinder. The XDA45U, the world-renowned 41-tonne articulated dump truck, is designed for use in mining, quarry, water conservation, harbor, brown field, and construction sites, and the 800172243 valve spring is the original equipment part installed at the factory.
In addition to ADT applications, the 800172243 valve spring is also used in XCMG’s GR series motor graders (GR135, GR165, GR180, GR215, GR300, GR350) and LW series wheel loaders that share the same engine architecture. This cross-platform commonality simplifies parts inventory management for fleets that operate multiple XCMG machine types. Always verify engine model before ordering, as some variants of the OM460 and OM502 engines may have different valve spring specifications for intake and exhaust applications.
Genuine vs. Aftermarket: Critical Comparison
Aftermarket valve springs commonly use lower-grade carbon spring steel (e.g., SAE 1070) rather than the chrome-silicon alloy specified for the genuine 800172243. This inferior material has a lower fatigue limit and is more susceptible to relaxation (loss of free length) at elevated temperatures. Independent laboratory testing of aftermarket springs intended for OM460 engines revealed that after 5 million cycles, seat pressure had decreased by an average of 18%, compared to less than 3% for the genuine 800172243 spring. This degradation leads to early valve float, reduced engine performance, and shortened overhaul intervals.
Another critical difference is the shot peening process. While genuine springs receive a precisely controlled two-stage shot peening treatment that introduces deep compressive residual stresses, aftermarket springs often skip shot peening entirely or use a single-stage process that fails to achieve the required residual stress depth and intensity. Without proper shot peening, surface imperfections and micro-notches become initiation points for fatigue cracks, drastically reducing spring life. Field reports from ADT operators indicate that aftermarket valve springs fail at rates 3-5 times higher than genuine XCMG springs, with failures often occurring between 4,000 and 6,000 hours—well before the scheduled major overhaul at 10,000-12,000 hours.
Quality Assurance and Global Supply Chain
XCMG’s manufacturing facility for the 800172243 valve spring is certified to IATF 16949:2023 (automotive quality management) and ISO 14001:2022 (environmental management). Each production batch is 100% inspected for wire diameter, outer diameter, free length, and load at two specified heights using fully automated measurement systems. Random samples per batch are tested on resonant fatigue test rigs for 50 million cycles, with the requirement of zero failures for batch acceptance. Material certificates (EN 10204 3.1) are available for every heat number, providing full traceability from steel mill to finished spring.
The genuine 800172243 valve spring is stocked in regional warehouses located in the United States (Houston, TX), Netherlands (Rotterdam), South Africa (Johannesburg), Australia (Perth), and China (Xuzhou). Standard lead times are 2-5 business days for most global destinations, with emergency air freight available within 24 hours for critical breakdowns. Each spring is individually packaged in a sealed anti-static bag with protective foam end caps to prevent coil damage during transit, and bulk orders include a full test report and certificate of conformity. Use the buttons above to request a quote or place an order.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172243 is an original manufacturer reference for a genuine XCMG valve spring. All specifications are derived from XCMG engineering standards and field validation data.
