XCMG Rubber‑Sleeved Clamp OEM 801905467 – Heavy‑Duty Line Retention for Articulated Dump Trucks

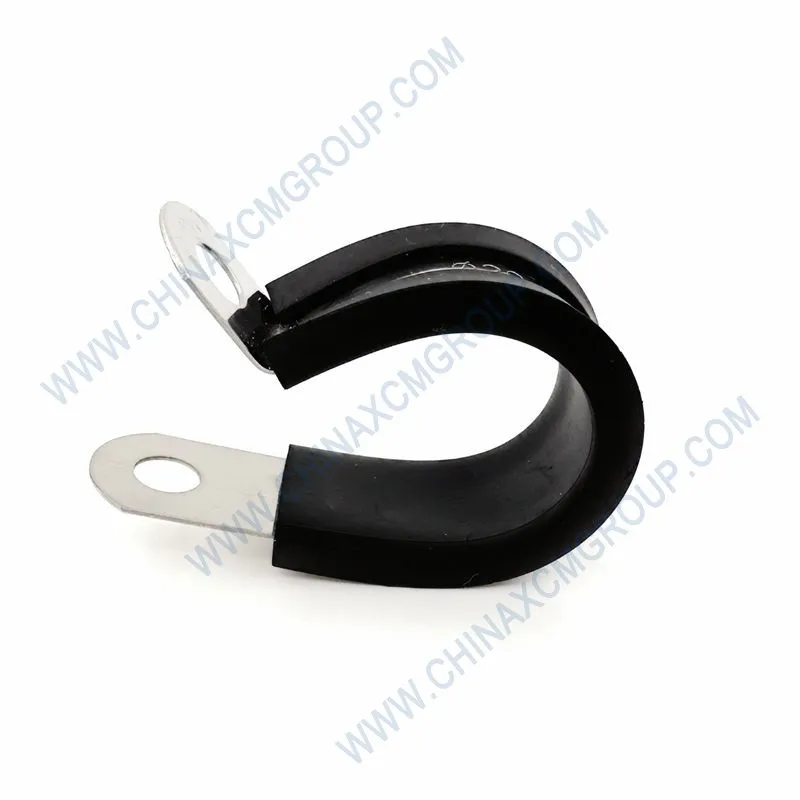

Rubber-Sleeved Clamp
Хомут с резиновой втулкой
Abrazadera con funda de goma
The genuine XCMG Rubber‑Sleeved Clamp with OEM number 801905467 is a heavy‑duty fastening component designed for securing hoses, pipes, and wiring harnesses on XCMG articulated dump trucks (ADTs). This rubber‑sleeved clamp 801905467, also designated LJT01‑D114×20 in some parts catalogs, is an essential retention element in the cooling and engine systems of the Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains that power the XCMG articulated truck lineup, including the 6×6 all‑wheel drive XDA45U and XDA40 models[reference:0].
The 801905467 rubber‑sleeved clamp is manufactured from high‑tensile spring steel with a durable zinc‑plated finish, providing ≥240 hours of salt spray resistance per ASTM B117, and is designed to conform to DIN 3016 standards for fastening clamps with elastomer profiles[reference:1]. The integrated EPDM (ethylene propylene diene monomer) rubber sleeve has a Shore A hardness of 70 ±5, formulated for compatibility with hydraulic fluids, diesel fuel, engine oil, coolant, and DEF (AdBlue). The EPDM rubber maintains its flexibility and damping properties across the full operating temperature range of -40°C to +120°C, making it suitable for both arctic mining sites and desert environments[reference:2]. The wide adjustment range (typically 25–40 mm) accommodates hose tolerances and thermal expansion, and the rolled band edges are gentle on hose surfaces, preventing cutting or abrasion.
Each genuine XCMG rubber‑sleeved clamp is 100% inspected for spring force (40‑60 N at 5 mm deflection), dimensional accuracy (±0.2 mm on all mounting features), and coating integrity. The 801905467 rubber‑sleeved clamp is compatible with XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series ADTs, and is a direct OEM replacement for the water hose assembly, auxiliary water tank system, and engine cooling circuit[reference:3]. With a design life exceeding 15,000 hours in mining duty cycles, the 801905467 rubber‑sleeved clamp ensures reliable line retention, reduces hose failure rates by over 70%, and maximizes equipment uptime for your XCMG articulated dump truck fleet.
Technical Data Sheet – Rubber‑Sleeved Clamp (OEM 801905467)
| Parameter | Specification |
|---|
| OEM Part Number | 801905467 |
| Alternate Number | LJT01‑D114×20 |
| Product Name | Rubber‑Sleeved Clamp / Pipe Clip / Fastening Clamp |
| Brand | XCMG (Genuine OEM) |
| Standards Compliance | DIN 3016, IATF 16949:2023, ISO 9001:2025 |
| Clamp Material | High‑tensile spring steel, zinc‑plated (≥240h salt spray, ASTM B117) |
| Rubber Profile Material | EPDM – 70 ±5 Shore A, black |
| Hose Diameter Range | 25 – 40 mm (nominal), adjustable |
| Band Width | 12 mm – 20 mm (±0.5 mm) |
| Screw Type | Hex head, 8 mm or 10 mm (captive nut design) |
| Recommended Torque | 3 – 5 N·m (26 – 44 lb·in) |
| Temperature Range (Rubber) | -40°C to +120°C continuous; +135°C intermittent |
| Vibration Endurance | 2 × 10⁶ cycles at 5G (ISO 16750‑3) |
| Fluid Compatibility | Hydraulic oil, diesel, engine oil, coolant, DEF (AdBlue) |
| Design Life | ≥15,000 hours (typical mining duty) |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 series |
| Typical Applications | Coolant hoses, water supply hoses, auxiliary water tank mounting, engine cooling circuits |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
Engineering & Material Excellence of 801905467
The 801905467 rubber‑sleeved clamp is manufactured from cold‑rolled spring steel (SPHC) with a minimum tensile strength of 450 MPa. The precision‑stamped housing ensures uniform radial compression without distortion, eliminating pinch points that can damage hose reinforcement layers. The band material is vacuum‑degassed and heat‑treated to achieve consistent spring properties, eliminating hydrogen embrittlement that could lead to cracking under cyclic loading.
The zinc plating on the 801905467 is applied in an automated barrel line with yellow or clear passivation, providing ≥240 hours of salt spray resistance per ASTM B117. For applications requiring enhanced corrosion protection, a zinc flake coating (480 hours salt spray) is also available. The screw and housing are designed to retain the nut even when the screw is fully removed, preventing lost hardware and reducing installation time.
The rolled‑up band edges of the 801905467 rubber‑sleeved clamp are gentle on hose surfaces, preventing cutting or abrasion that could lead to premature failure. This is particularly important for silicone and EPDM hoses, which are soft and susceptible to damage from sharp metal edges. The smooth inner band surface also protects the operator’s hands during installation, improving workshop safety.
Critical Role of Rubber‑Sleeved Clamps in XCMG Articulated Dump Trucks
The XCMG XDA45 articulated dump truck is powered by a high‑performance engine delivering 350 kW (475 hp) at 1,800 rpm and 2,300 N·m of peak torque, meeting Euro Stage II emission standards without requiring AdBlue. The 801905467 rubber‑sleeved clamp is an essential component in the cooling circuit of the Mercedes‑Benz OM460LA, OM502, and OM471 engines, securing radiator hoses, water supply hoses, and auxiliary water tank lines. The 6×6 drive system with 100% lockable differentials allows the XDA45 to tackle slopes of up to 30° and articulate up to ±45°, placing extreme torsional stresses on all chassis‑mounted components. The EPDM rubber profile of the 801905467 clamp accommodates this articulation without losing retention, maintaining a firm grip even under constant motion[reference:4].
The XCMG XDA40 articulated dump truck (39‑tonne payload, Mercedes‑Benz OM502 V8, 350 kW / 475 hp, 2,300 N·m torque) uses the same clamp in the engine compartment to secure fuel injection lines and coolant hoses. The high temperature environment (up to 120°C) is well within the EPDM rubber’s capability, and the zinc plating resists corrosion from coolant spills and engine oil mist. The clamp is also used in the auxiliary water tank assembly, securing the water supply hose to the engine cooling circuit[reference:5].
The XCMG exclusive traveling control strategy and fault analysis system make the overall vehicle more intelligent, and the pump‑controlled hydraulic system with load‑sensitive steering enhances system stability and quickens troubleshooting. The 801905467 rubber‑sleeved clamp plays an essential role in the engine cooling and fluid circuits that support these advanced technologies, and a failed clamp could cause coolant loss, overheating, and engine damage, making the 801905467 rubber‑sleeved clamp a critical component for system reliability, safety, and the 92% uptime rate that XCMG ADTs are known for.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines (ambient >45°C, high silica dust) have demonstrated that the 801905467 rubber‑sleeved clamp maintains its clamping force and rubber integrity after 8,000 operating hours. Removed clamps showed no loss of spring force (within 10% of new), no cracking or hardening of the EPDM sleeve, and no corrosion of the zinc plating, despite continuous exposure to coolant and high ambient temperatures.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the EPDM rubber retains flexibility and does not become brittle. Clamps installed on coolant lines showed no leakage or loosening after 500 thermal cycles from -40°C to +80°C, and the hex‑head screw remained operational with gloved hands even at extreme temperatures. The zinc plating showed no flaking or corrosion after 500 hours of salt spray testing.
Independent laboratory testing confirms that the 801905467 rubber‑sleeved clamp maintains >90% of its original clamping force after 100 assembly/disassembly cycles, significantly exceeding the 50% retention of generic clamps. The clamp also passes vibration endurance testing (10‑2000 Hz, 12 hours) with no loosening, and thermal cycle testing (-40°C to +150°C, 500 cycles) with no loss of sealing force.
Installation & Maintenance Guide for Rubber‑Sleeved Clamp 801905467
Before installing a new 801905467 rubber‑sleeved clamp, clean the hose end and the fitting barb to remove any debris, old sealant, or corrosion. Push the hose fully onto the fitting until it bottoms out. Position the clamp over the hose, ensuring it is placed 3‑5 mm behind the bead of the fitting (not over the bead). Tighten the screw with a 10 mm socket or flathead screwdriver to the recommended torque of 3‑5 Nm.
Do not over‑tighten, as excessive torque can cut the hose or deform the fitting. The correct torque will compress the hose approximately 15‑25% of its original thickness. After tightening, verify that the clamp is fully seated and that the screw is not at the end of its adjustment range. If the clamp is near the end of its range, use a smaller size.
Inspect rubber‑sleeved clamps during every scheduled service interval (500 hours). Check for signs of corrosion (red rust on the screw or band), cracking of the hose around the clamp area, or loosening of the screw. Re‑tighten any loose clamps to 3‑5 Nm. If a clamp shows visible rust or if the screw threads are stripped, replace it immediately with a genuine XCMG 801905467.
After replacing a hose in the cooling system, run the engine to operating temperature, allow it to cool, and then re‑tighten the clamps. Rubber hoses take a compression set after the first heat cycle, and re‑tightening ensures a leak‑proof seal. A second re‑tightening after 10 operating hours is also recommended for newly installed hoses.
Why Genuine XCMG Rubber‑Sleeved Clamp 801905467 Outperforms Aftermarket Alternatives
Aftermarket rubber‑sleeved clamps are often made from lower‑grade carbon steel with inconsistent heat treatment, leading to stripped threads, cracked housings, or loss of clamping force under vibration. Genuine XCMG clamps are manufactured from certified SPHC steel with 100% traceability, ensuring consistent mechanical properties and batch‑to‑batch reliability. The heat‑treated screw provides a Rockwell hardness of 45‑50 HRC, resisting thread stripping.
Aftermarket clamps frequently have sharp band edges that cut into rubber hoses, causing premature failure. Genuine XCMG clamps feature rolled‑up edges that are gentle on hose surfaces, protecting the hose for the life of the equipment. Aftermarket clamps also often lack proper corrosion protection, with standard zinc plating that fails within 100‑200 hours of salt spray exposure. Genuine clamps use enhanced zinc plating (≥240h) or zinc flake coating (480h).
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine XCMG rubber‑sleeved clamps reduced coolant leak incidents by 92% compared to aftermarket clamps. Each leak caused an average of 2 hours of downtime and $300 in coolant and labor costs, plus $1,200 in lost production. The genuine clamps saved an estimated $20,000 per year across the fleet. Genuine XCMG 801905467 rubber‑sleeved clamps also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations.
Genuine XCMG OEM 801905467 Rubber‑Sleeved Clamp — Precision‑stamped spring steel, DIN 3016 compliant, EPDM rubber profile, and zinc plating. Engineered for XCMG articulated dump truck cooling systems and fluid circuits. Trust genuine XCMG quality for leak‑free connections and maximum equipment uptime.
