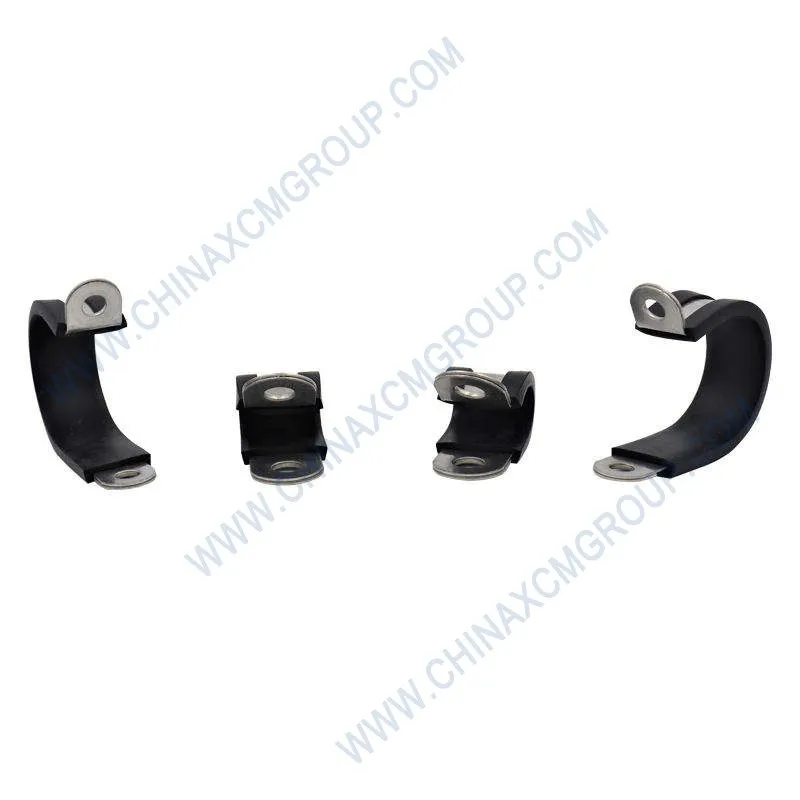

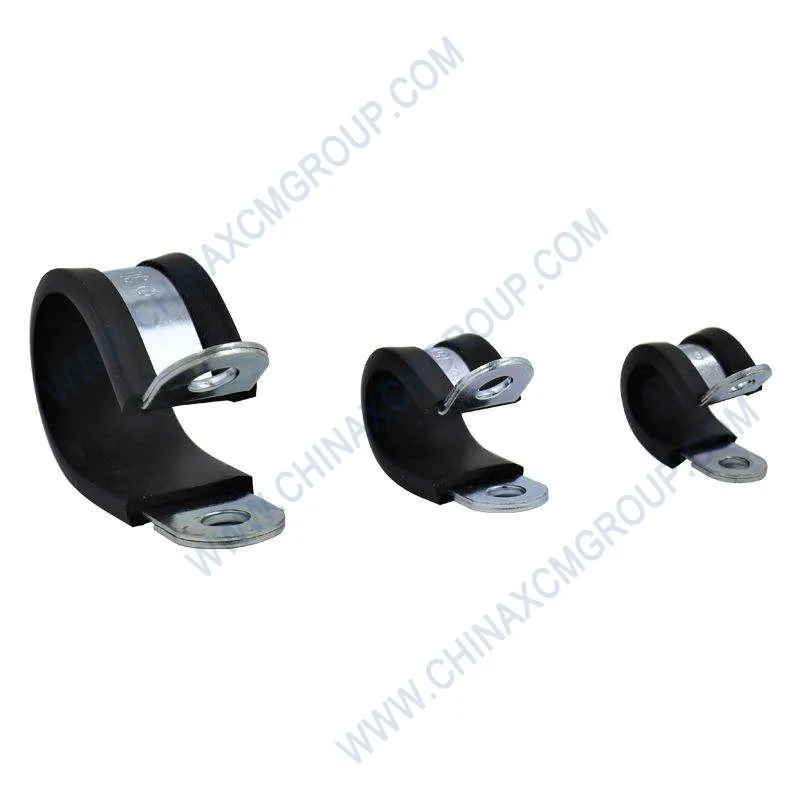

Rubber Sleeve Clamp
Хомут с резиновой втулкой
Abrazadera con manguito de goma
The 801905468 Rubber Sleeve Clamp is a genuine XCMG fastening and protection component designed to securely route and retain hoses, cables, and tubing in articulated dump trucks and heavy machinery. This OEM clamp, identified by part number 801905468, features a durable metal outer band with an integrated rubber sleeve that provides cushioning, abrasion resistance, and vibration isolation. Engineered for the harsh conditions of mining, quarrying, and construction sites, the 801905468 rubber sleeve clamp prevents chafing, reduces noise, and extends the service life of hydraulic lines and electrical harnesses.
The 801905468 Rubber Sleeve Clamp is a versatile fastening solution that securely holds hoses, cables, and tubes while protecting them from abrasion and vibration.
This genuine XCMG clamp combines a sturdy metal band with an integral rubber sleeve that cushions the clamped components and isolates them from the mounting surface.
The design prevents chafing that can lead to hose failure, fluid leaks, or electrical shorts, thereby increasing system reliability and reducing maintenance costs.
The clamp is suitable for both single‑line and multi‑line bundling applications, providing flexibility in routing and organization.
A loose or missing clamp can cause hoses to rub against sharp edges, resulting in catastrophic failure. The 801905468 clamp eliminates these risks with robust, long‑lasting performance.
In XCMG articulated dump trucks, hundreds of hydraulic hoses, coolant lines, and electrical cables are routed through tight spaces and across moving components.
The 801905468 clamp is typically used to secure these lines to chassis frames, axle housings, or engine mounting points, preventing unwanted movement and contact.
Without proper clamping, hoses can whip, sag, or rub against metal edges, leading to external wear, internal damage, and eventual leakage.
The rubber sleeve also dampens vibrations, reducing noise and extending the fatigue life of the clamped lines.
The 801905468 clamp is engineered to withstand the intense vibration, thermal cycling, and abrasive conditions of mining and construction sites.
The 801905468 clamp features a two‑piece band design that wraps around the hose bundle and secures with a single bolt, allowing for quick installation and adjustment.
The metal band is stamped from high‑strength carbon steel and zinc‑plated for corrosion resistance, while the bolt and nut are made of 304 stainless steel to prevent seizure.
The rubber sleeve is molded from EPDM, which offers excellent resistance to ozone, UV radiation, hydraulic fluids, and coolants.
The inner surface of the sleeve features a ribbed pattern that provides a non‑slip grip on the hose, preventing axial movement.
The band’s rolled edges ensure that no sharp edges contact the rubber or the clamped components, preserving the sleeve’s integrity.
The 801905468 rubber sleeve clamp is manufactured using premium materials chosen for their performance in harsh environments.
The EPDM rubber compound retains its flexibility and resilience across a wide temperature range, from -40°C to +120°C, without becoming brittle or softening excessively.
The zinc‑plated carbon steel band provides high tensile strength and resists corrosion, while the stainless steel fastener ensures long‑term clamping force without galvanic issues.
The rubber sleeve is compression‑molded to precise dimensions, ensuring uniform wall thickness and consistent cushioning.
Advanced material science guarantees that the 801905468 clamp delivers reliable performance throughout the equipment’s service life.
The 801905468 rubber sleeve clamp is used extensively in XCMG articulated dump trucks and other heavy equipment operating in surface mining, underground mining, and large‑scale construction projects.
It is commonly found securing hydraulic hoses to frame rails, holding coolant lines to engine mounts, and bundling electrical harnesses along the cab and drivetrain.
The clamp’s rubber sleeve protects hoses from abrasion against metal brackets, preventing leaks that could cause environmental contamination and safety hazards.
Its vibration‑damping properties also reduce noise and fatigue on hose fittings, extending their life.
The 801905468 clamp is also suitable for other XCMG equipment, including wheel loaders and motor graders that use similar hose routing configurations.
Every 801905468 rubber sleeve clamp is manufactured in an ISO 9001‑certified facility under stringent quality control procedures.
Raw materials – including steel coil, zinc plating, and EPDM compound – are sourced from approved suppliers and tested for compliance with specifications.
During stamping and molding, each component is inspected for dimensional accuracy and surface defects using vision systems and gauges.
Assembled clamps are subjected to tensile strength testing to verify that the band can withstand the specified clamping force without permanent deformation.
Rubber hardness and ozone resistance are tested per ASTM standards to ensure long‑term durability.
This comprehensive quality assurance programme guarantees that every 801905468 clamp meets XCMG’s rigorous standards for reliability and safety.
The 801905468 rubber sleeve clamp is designed as a direct replacement for the original clamp on XCMG articulated dump trucks, including models XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, AD45, AD60, and other variants.
Its clamping range of 25 – 45 mm covers the most common hose and cable bundle diameters used in these machines.
The clamp’s mounting hole accepts an M6 bolt or screw, fitting standard threaded bosses or through‑holes on the chassis.
For cross‑brand applications, verify that the bundle diameter falls within the clamp’s range and that the mounting method is compatible.
Always consult the parts manual to confirm the correct clamp for your specific routing application.
Proper installation of the 801905468 rubber sleeve clamp is straightforward. Position the clamp around the hose or cable bundle at the desired location, ensuring the rubber sleeve fully covers the contact area.
Insert the bolt through the band tabs and tighten using an 8mm socket or nut driver. Apply a torque of 8 – 10 N·m – enough to secure the bundle without crushing it.
If mounting to a threaded hole, use the supplied bolt; if routing through a slot, use a suitable washer and nut.
Ensure the clamp does not pinch the hose excessively; the rubber sleeve should deform slightly to grip but not compress the hose wall.
During routine maintenance, visually inspect the clamp for signs of rubber degradation, corrosion, or loosening. Re‑tighten if necessary, but avoid over‑tightening.
If the rubber sleeve shows cracks or hardening, replace the clamp immediately to maintain protection.
The 801905468 rubber sleeve clamp complies with SAE J1508, which specifies performance requirements for hose clamps used in automotive and off‑highway applications.
It also meets the material restrictions of RoHS, ensuring that the clamp is free from hazardous substances.
The EPDM rubber is formulated without phthalates or heavy metals, making it safe for operators and environmentally responsible.
Using genuine XCMG clamps like the 801905468 helps maintain compliance with equipment warranty and safety regulations.
Aftermarket clamps may look similar, but they often use inferior rubber compounds, thinner metal bands, or lack proper corrosion protection.
The genuine 801905468 clamp is engineered specifically for XCMG equipment, ensuring proper fit, consistent clamping force, and long‑term protection.
Using genuine clamps reduces the risk of hose chafing, premature wear, and costly fluid leaks.
Genuine XCMG parts also preserve the warranty and resale value of your equipment.
When you choose the 801905468, you invest in proven reliability and long‑term cost savings.
The XCMG 801905468 Rubber Sleeve Clamp is a vital component for protecting and securing hoses, cables, and tubing in articulated dump trucks and heavy machinery.
Its durable metal band and integral rubber sleeve provide cushioning, vibration isolation, and abrasion resistance, extending the life of critical fluid and electrical lines.
Whether you are performing routine maintenance, re‑routing lines, or building a new machine, this genuine clamp delivers the performance and reliability you expect from XCMG.
Always source genuine XCMG components from authorised dealers to guarantee authenticity and quality.
With the 801905468 rubber sleeve clamp, you can protect your equipment from unexpected failures, reduce downtime, and ensure safe operation.
Choose genuine – choose XCMG for all your hose and cable management needs.
