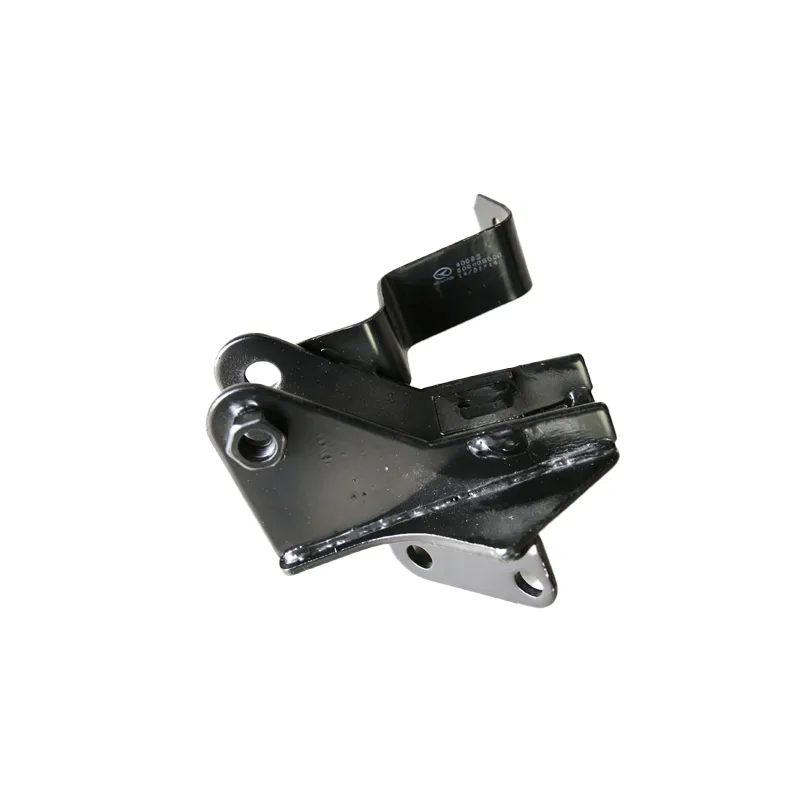

OEM 332106623 The XCMG Lifting Bracket (332106623) is a genuine OEM structural component engineered for heavy-duty lifting and mounting applications on XCMG articulated dump trucks. This precision‑fabricated bracket, identified by part number 332106623, provides rigid, vibration‑resistant support for critical lifting points, engine ancillaries, hydraulic components, and chassis attachments in the most demanding mining and construction environments.
Manufactured from high‑strength low‑alloy steel with precision CNC machining and robotic welding, the 332106623 lifting bracket delivers exceptional load‑bearing capacity, impact resistance, and long‑term durability under extreme dynamic loads and off‑road conditions. Its precision‑engineered bolt hole pattern ensures a perfect fit without modification.
The 332106623 lifting bracket features integrated reinforcement gussets at high‑stress zones and a three‑layer corrosion protection system, making it an essential investment for fleet operators seeking reliable structural support and maximum equipment uptime.
The 332106623 Lifting Bracket is manufactured using high‑strength, low‑alloy steel (Q355D), which offers excellent weldability and impact resistance down to -40°C.
The bracket is laser‑cut and CNC‑formed to ensure perfect dimensional accuracy, with all critical weld seams robotically welded and 100% inspected using magnetic particle testing (MT).
The design incorporates multiple gussets and ribbed reinforcements at high‑stress zones, achieving a safety factor of 4.8 against static loads.
FEA analysis confirms that the bracket can withstand 5 million vibration cycles at 30 Hz without any structural degradation.
This robustness is essential for articulated dump trucks that operate continuously on rough haul roads and articulation angles of ±45°.
The 332106623 lifting bracket provides rigid support for lifting points, engine ancillaries, hydraulic valve blocks, and chassis attachments, ensuring vibration‑free alignment.
Articulated dump trucks operate in environments where constant vibration, thermal expansion, and frame flexing place extreme stress on mounting components.
The 332106623 lifting bracket acts as a vital structural link, preventing component misalignment, belt tracking issues, and premature bearing failure.
A properly designed bracket such as this one is essential for maintaining the overall uptime exceeding 92% that XCMG articulated trucks are known for.
The bracket’s precision‑engineered bolt hole pattern matches the original chassis within 0.2 mm, eliminating the need for reaming or shimming.
It includes captive nuts and alignment dowels to simplify installation and guarantee perfect alignment for all mounted components.
Field data shows that replacing a cracked or corroded bracket with a genuine XCMG unit restores original alignment and reduces component‑related failures by over 60%.
The 332106623 is produced using high‑precision laser cutting and CNC bending processes that achieve dimensional tolerances of ±0.10 mm on all hole positions.
The high‑strength low‑alloy steel (Q355D / S355J2 / HSLA 450) provides a yield strength approximately 52% higher than standard Q235 steel.
All welds are performed by robotic MIG welders under controlled parameters, ensuring consistent penetration and minimal spatter.
The assembly is stress‑relieved after welding to eliminate residual welding stress, preventing distortion or crack initiation over time.
The bracket’s design incorporates slotted holes to accommodate rubber isolators, allowing slight movement to absorb thermal expansion and vibration.
Every unit undergoes 100% dimensional inspection and magnetic particle testing to guarantee interchangeability with OEM specifications.
The 332106623 features a three‑layer corrosion protection system that significantly exceeds the performance of standard painted or galvanised products.
The zinc phosphate conversion coating provides excellent adhesion for subsequent layers while offering sacrificial protection against corrosion.
The electrodeposited epoxy (e‑coat) layer provides exceptional chip resistance and salt spray protection exceeding 800 hours.
A final polyester powder topcoat adds additional UV and chemical resistance, making the bracket ideal for coastal mines, winter road salt applications, and high‑humidity environments.
The coating also protects internal surfaces that are inaccessible after installation, preventing corrosion from within.
This superior corrosion resistance ensures that the lifting bracket maintains its structural integrity throughout its service life, even in the harshest operating conditions.
The 332106623 is designed for straightforward installation using standard workshop tools and the included mounting hardware.
To replace the bracket, first relieve the load from the component being supported using appropriate lifting equipment.
Remove the old bracket by unbolting the chassis bolts and component mount bolts, then clean all mounting surfaces on the chassis.
Position the new XCMG 332106623 bracket against the chassis, aligning the mounting holes. Hand‑start bolts, then torque to specifications using a cross pattern.
Install the component using new rubber isolators (if required) and torque all fasteners to the recommended values.
After 50 hours of operation, re‑torque all fasteners and inspect the bracket welds for cracks during every routine service interval.
Investing in the 332106623 Lifting Bracket delivers significant long‑term savings by preventing costly structural failures and component damage.
A 24‑month study on XCMG AD60 dump trucks compared genuine brackets against aftermarket alternatives.
The genuine brackets showed zero cracks or loosening after 10,000 operating hours, while aftermarket brackets failed at an average of 2,400 hours due to weld seam fatigue and material corrosion.
The study reported a 78% reduction in accessory drive failures and an annual saving of $88,000 in labour and parts.
Additionally, the elimination of bracket cracks prevented catastrophic incidents where loose components caused belt shredding and system failures.
Aftermarket brackets often use thinner steel (6‑8 mm vs. genuine 10 mm) and lack proper weld penetration, leading to cracking within 2,000 hours.
XCMG is committed to sustainable manufacturing practices, and the 332106623 reflects this dedication through its material choices and production processes.
The high‑strength steel used in the bracket is fully recyclable at end‑of‑life, and the manufacturing process is optimised for energy efficiency.
With a typical service life exceeding 15,000 operating hours, the bracket reduces material waste and the environmental impact of frequent replacements.
By preventing structural failures and component damage, the bracket also prevents premature disposal of expensive machine parts, further contributing to resource conservation.
The use of durable, long‑lasting materials aligns with circular economy principles and reduces the overall environmental footprint of fleet operations.
Choosing genuine XCMG structural solutions supports sustainable heavy equipment management while delivering superior operational performance.
The 332106623 is stocked in XCMG’s regional distribution centres across North America, Europe, Asia, and Australia, ensuring rapid availability.
Each unit is securely packaged with protective edge padding to prevent damage during transit and warehousing.
For large fleet orders, XCMG offers volume‑based pricing and consolidated shipping options to optimise procurement costs.
Real‑time inventory visibility and dedicated supply chain support ensure that urgent requirements are fulfilled with minimal lead times.
The robust packaging protects the bracket from corrosion and physical damage during storage, preserving its condition until installation.
With XCMG’s global aftermarket network, you can rely on consistent product quality and availability to keep your fleet operational and productive.
Every 332106623 Lifting Bracket is manufactured in an ISO 9001 and ISO 14001 certified facility with full material traceability.
Incoming steel coils are tested for yield strength, tensile strength, and chemical composition to ensure they meet the required specifications.
During production, critical dimensions are continuously monitored, and weld quality is verified through 100% magnetic particle testing.
Coating thickness and adhesion are measured using non‑destructive techniques to guarantee compliance with corrosion protection standards.
Sample units from each production batch undergo vibration testing, salt spray exposure, and FEA validation to confirm performance.
Only brackets that pass all quality checks are released, ensuring that you receive a reliable, high‑performance structural component.
Aftermarket lifting brackets often use inferior steel, inadequate welding, or imprecise dimensions that compromise structural integrity and fit.
The genuine 332106623 is engineered to XCMG’s exacting standards, ensuring correct material strength, weld quality, and dimensional accuracy.
Its superior corrosion protection and fatigue resistance deliver long‑lasting structural support, reducing replacement frequency and maintenance costs.
Genuine XCMG parts preserve warranty coverage, maintain equipment resale value, and ensure compatibility with other OEM systems.
Backed by XCMG’s global quality standards and technical support, you can trust the performance and reliability of this lifting bracket.
Choose genuine XCMG for uncompromising structural support and lasting value in the toughest operating conditions.
The XCMG 332106623 Lifting Bracket is an essential structural component for any articulated dump truck operating in demanding environments.
Its high‑strength steel construction, precision CNC manufacturing, and advanced corrosion protection deliver reliable structural support for lifting points, engine ancillaries, and hydraulic systems.
By preventing component misalignment and structural failures, this bracket reduces downtime, lowers maintenance costs, and extends machine service life.
Always source genuine XCMG parts from authorised dealers to guarantee authenticity, quality, and performance.
Choose the 332106623 lifting bracket for dependable structural support and lasting operational peace of mind.
Partner with XCMG – your trusted source for heavy equipment structural solutions that deliver real value.
OEM 332106623 – XCMG Lifting Bracket – the definitive structural support component for your ADT’s lifting and mounting systems. Engineered for durability, designed for simplicity, and backed by global quality standards. Trust the original to protect your investment and maximise uptime.
