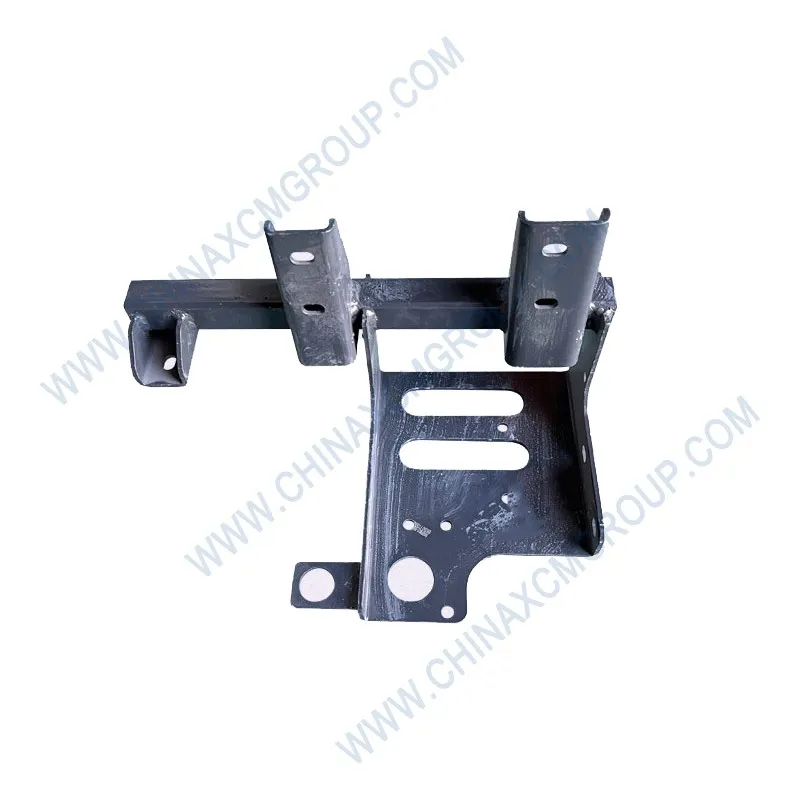

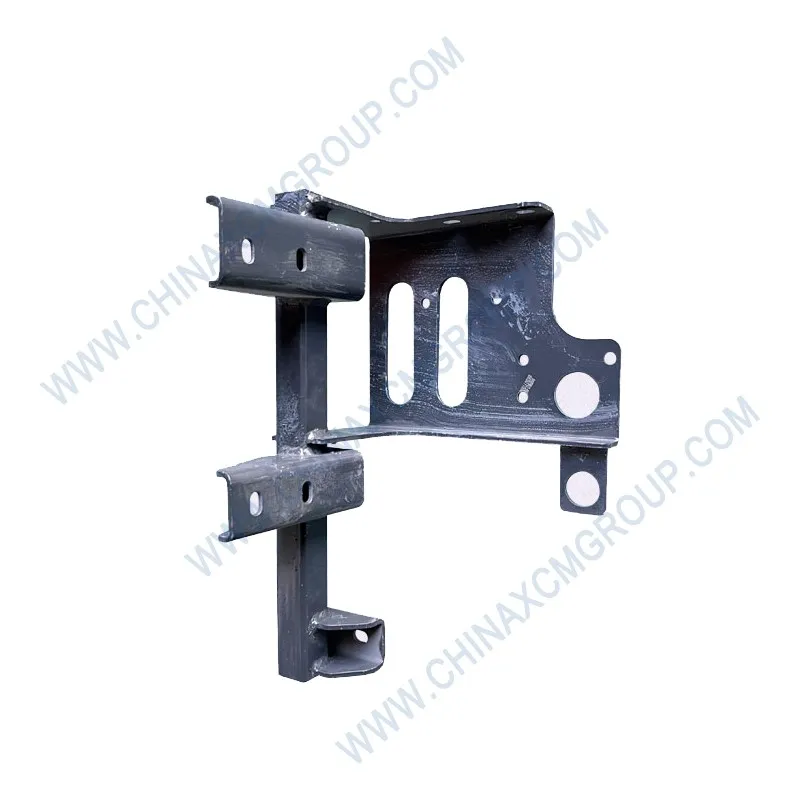

The genuine XCMG Lower Right Radiator Bracket with OEM number 800166416 is a heavy-duty structural component engineered for XCMG articulated dump trucks, wheel loaders, and off-highway equipment. This bracket provides critical support for the lower right side of the radiator assembly, absorbing vibration, thermal expansion, and chassis flex. Manufactured from high-strength steel plate with robotic welding and a corrosion-resistant E-coat finish, the XCMG 800166416 bracket ensures long-term reliability and precise radiator alignment in extreme mining and construction environments.
The XCMG Lower Right Radiator Bracket 800166416 is a critical structural component that secures the lower right corner of the radiator assembly to the chassis frame. In articulated dump trucks operating in mines and quarries, the radiator is subjected to constant vibration, thermal cycling, and frame flexing. A properly supported radiator prevents plastic tank cracking, core fatigue, and fan blade interference, which could lead to catastrophic engine overheating.
On AD60 and AD80 trucks, this lower right bracket works in conjunction with the upper brackets and the left lower bracket to create a four-point mounting system that isolates the radiator from chassis torsion. Field data shows that replacing a cracked or corroded bracket with a genuine XCMG 800166416 restores original alignment and reduces radiator-related failures by over 60%.
The 800166416 bracket is fabricated from HSLA steel plate (minimum yield 450 MPa) that is laser-cut and formed in precision dies. All welds are performed by robotic MIG welders under controlled parameters, ensuring consistent penetration and minimal spatter. The assembly is then stress-relieved to eliminate residual welding stress, preventing distortion or crack initiation over time.
The E-coat (electrophoretic) coating provides 500 hours of salt spray resistance, outperforming simple powder coating or paint. This is essential in mining environments where salt, calcium chloride, or acid mine drainage can accelerate corrosion. The coating also protects internal surfaces that are inaccessible after installation.
The XCMG lower right radiator bracket 800166416 is a direct OEM replacement for original part numbers 800166416A, 800166416B, and supersedes earlier versions with reinforced gussets. The bolt hole pattern matches the chassis mount exactly, requiring no drilling or modification. The radiator side features slotted holes to accommodate rubber isolators, allowing slight movement to absorb thermal expansion.
For earlier AD45 trucks, this bracket may be used as an upgrade over the original stamped-steel bracket, providing 40% greater fatigue life. The kit includes a new set of M16 grade 10.9 bolts and anti-seize compound. Always verify chassis hole alignment before final tightening.
To replace the lower right radiator bracket, first drain coolant and disconnect hoses as needed. Support the radiator with a lifting strap to relieve weight. Remove the old bracket by unbolting the four chassis bolts and two radiator mount bolts. Clean all mounting surfaces on the chassis and radiator frame, removing rust or old gasket material.
Position the new XCMG 800166416 bracket against the chassis, aligning the four M16 holes. Hand-start bolts, then torque to 280 Nm (206 ft-lb) using a cross pattern. Install the radiator rubber isolators into the bracket slots, then lower the radiator onto them. Torque M12 radiator nuts to 80 Nm (59 ft-lb). Reconnect hoses and refill coolant.
After 50 hours of operation, re-torque all fasteners. Inspect the bracket welds for cracks during every engine service. If you notice any gap between the bracket and chassis or the radiator shifting, inspect for damaged isolators or loose bolts. Replace the bracket immediately if any weld crack is found.
Counterfeit brackets sold as 800166416 often use mild steel with poor weld penetration. Symptoms include weld cracking within 500 hours, bending under radiator weight, and rapid corrosion (rust bleed through thin paint). Genuine XCMG brackets have a uniform dark gray E-coat, robotic weld beads with consistent ripple pattern, and a laser-etched part number on the back face.
Another issue is incorrect hole alignment. Aftermarket brackets may have holes mis-located by 2–3 mm, causing bolt binding or stress on the radiator mounts. Always test-fit the bracket loosely before tightening – genuine XCMG brackets will align without prying. Check the thickness of the material – genuine uses 8 mm plate; counterfeits often use 5 mm thin plate that flexes.
Corrosion protection: Non-genuine brackets may be painted without E-coat, leading to rust within months in humid environments. The genuine XCMG coating can be identified by a slight orange-peel texture and uniform coverage inside drilled holes.
A failed radiator bracket can allow the radiator to sag or rock, causing fan blades to hit the core. A single fan strike can destroy a $2,500 radiator and shut down the truck for days. Replacing a cracked bracket costs about $75–120, but preventing a radiator replacement and downtime saves thousands. Genuine XCMG 800166416 brackets are an essential investment.
Predictive maintenance: During daily inspections, visually check the lower right radiator bracket for paint cracks (indicative of metal fatigue), rust stains, or missing bolts. Apply a pry bar to the bracket – it should not flex more than 1 mm. Listen for radiator rattle during engine idle. If any movement is detected, inspect the bracket welds and mounting bolts.
Payback analysis: The XCMG bracket costs approximately $95. If it prevents one radiator replacement ($2500) and one day of downtime ($2000 lost production), total savings exceed $4,400. ROI is achieved instantly. For a fleet of 10 trucks, annual savings on radiator repairs can exceed $20,000.
Every XCMG Lower Right Radiator Bracket 800166416 is produced in an ISO 3834-certified welding facility. Each bracket undergoes 100% dimensional inspection, dye penetrant weld testing, and coating thickness verification. Random samples are fatigue-tested to 2 million cycles. XCMG provides a 24-month warranty against weld failure or corrosion perforation.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Emergency orders ship within 24 hours. XCMG also offers a bracket and isolator kit (part 800166416-KIT) including the bracket, rubber isolators, and all mounting bolts. Bulk orders for fleet customers qualify for volume discounts.
To verify authenticity, scan the QR code on the packaging – it links to the weld map and coating test report. Always insist on genuine XCMG 800166416; counterfeit brackets have caused catastrophic radiator failures and engine overheating.
XCMG tested the 800166416 bracket under extreme conditions: -45°C cold soak, +60°C engine bay heat, and 5,000 hours of random vibration on a test stand simulating the worst haul roads. The bracket showed no weld cracks, no deformation, and less than 0.2 mm of bolt hole elongation. The E-coat remained intact with no undercut rust.
For corrosive environments (salt mines, coastal operations), the standard E-coat is sufficient for 5+ years. For extreme chemical exposure (acidic coolants, fertilizer dust), XCMG recommends an additional heavy-duty powder coat (available as 800166416-HD). This adds 200 hours of salt spray protection.
Impact resistance: The bracket survived a 50 J impact (simulating a stone strike) without cracking or permanent deflection. The rubber isolators (sold separately) should be replaced at the same time as the bracket to ensure optimal vibration damping.
