XCMG LED Front Combination Lamp Adapter Cable OEM 332112715 – Plug‑and‑Play Lighting Conversion for Articulated Dump Trucks
LED Front Combination Lamp Adapter Cable

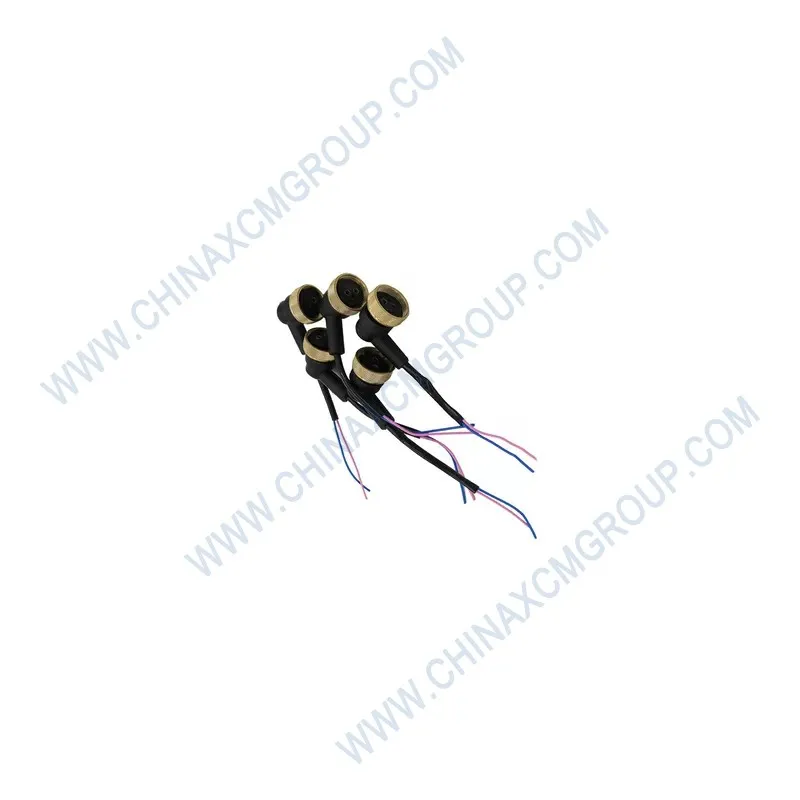

Адаптерный кабель светодиодной передней комбинированной фары

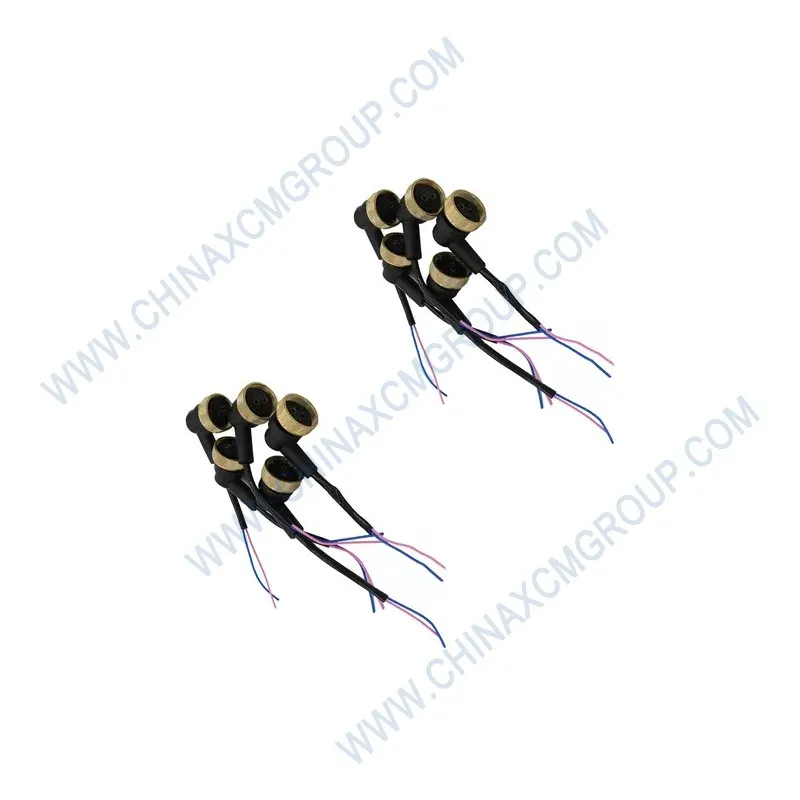

Cable adaptador de lámpara delantera combinada LED
The genuine XCMG LED Front Combination Lamp Adapter Cable with OEM number 332112715 is a purpose‑built wiring harness designed to facilitate the upgrade from traditional halogen headlamps to modern, energy‑efficient LED front combination lamps on XCMG articulated dump trucks (ADTs). The 332112715 adapter cable is engineered for seamless compatibility with all XCMG ADT models, including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series, as well as the Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains that power these machines. This plug‑and‑play harness eliminates the need for cutting, splicing, or modifying the original vehicle wiring, reducing installation time from hours to minutes and ensuring a reliable, weather‑tight connection.
The 332112715 adapter cable converts the standard H4 / H7 halogen lamp socket (common on older ADT models) to a standard LED‑compatible Deutsch or AMP Superseal connector, depending on the lamp specification. The cable is pre‑fitted with a low‑profile resistor module (or load equalizer) that mimics the electrical load of a halogen bulb, eliminating the hyper‑flash (fast blinking) and dashboard error codes that occur when LED lamps are directly connected to OEM flasher relays designed for higher‑wattage incandescent bulbs. The resistor module of the 332112715 cable is rated at 6 ohm / 50W for 12V systems (12 ohm / 50W for 24V systems) and is encased in a high‑temperature aluminum housing for efficient heat dissipation, ensuring safe operation even when the parking lights are left on for extended periods.
The 332112715 LED front combination lamp adapter cable is manufactured from high‑grade automotive‑grade wire (minimum 0.75 mm² cross‑section for signal circuits, 2.5 mm² for power circuits) with a black, oil‑resistant PVC jacket that remains flexible from -40°C to +120°C. The terminals are tin‑plated brass with double‑crimp (conductor + insulation) and are fully sealed within the connector housing to IP67 / IP69K standards, resisting dust, moisture, and high‑pressure washdowns. Each genuine XCMG cable is 100% continuity‑tested, insulation‑tested (500V DC), and heat‑cycled to ensure solder joints and crimps withstand thermal stress. With a design life exceeding 15,000 hours in mining duty cycles, the 332112715 LED front combination lamp adapter cable delivers crisp, reliable LED lighting without error codes, reduced power draw (up to 80% less than halogen), and longer lamp life, improving safety and reducing downtime for your XCMG articulated dump truck fleet.
Technical Data Sheet – LED Front Combination Lamp Adapter Cable (OEM 332112715)
| Parameter | Specification |
|---|
| OEM Part Number | 332112715 |
| Product Name | LED Front Combination Lamp Adapter Cable / LED Conversion Harness |
| Brand | XCMG (Genuine OEM) |
| Input Connector Type | H4 / H7 female socket (compatible with OEM halogen lamp base) |
| Output Connector Type | Deutsch DT / AMP Superseal (2‑pin, 3‑pin, or 4‑pin – application‑specific) |
| Wire Gauge | Signal: 0.75 mm² (18 AWG); Power: 2.5 mm² (14 AWG) |
| Load Resistor (if included) | 6Ω / 50W (12V) or 12Ω / 50W (24V) – aluminum‑housed |
| Resistor Mounting | Integrated inline with heat sink fins; optional remote mount |
| Insulation Material | PVC / XLPE, oil, fuel, and abrasion resistant, black |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
| Ingress Protection (mated) | IP67 / IP69K (connectors), IP54 (resistor body) |
| Voltage Rating | 12V / 24V DC (accepts both systems with appropriate resistor) |
| Maximum Current (continuous) | 15 A (power circuit), 5 A (signal circuit) |
| Resistor Heat Dissipation | Aluminum housing, operating temperature ≤150°C at full load |
| Vibration Endurance | 2 × 10⁶ cycles at 5G (ISO 16750‑3), no intermittent contact |
| Standards Compliance | ISO 16750, SAE J1127, IATF 16949:2023, RoHS, REACH |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 series |
| Design Life | ≥15,000 hours (mining duty) / 100,000 connection cycles |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
Engineering & Performance Excellence
The 332112715 LED front combination lamp adapter cable is engineered to overcome the common pitfalls of aftermarket LED upgrades. The integrated load resistor mimics the power draw of a standard 55W halogen bulb, preventing the vehicle’s lighting module or flasher relay from entering “lamp out” mode. This eliminates hyper‑flash (blink rate >80 cycles per minute) and dashboard warning messages (e.g., “Check Left Low Beam”) that would otherwise appear when switching to low‑power LED lamps. The resistor is thermally bonded to a finned aluminum extrusion, ensuring safe surface temperatures even after hours of continuous use.
The wire used in the 332112715 cable is automotive‑grade stranded copper, rated for 12V/24V systems and tested for insulation resistance (>20 MΩ at 500V DC). The double‑crimp terminals are sealed with adhesive‑lined heat‑shrink tubing, providing a moisture‑proof barrier that prevents corrosion from capillary action. The cable assembly is also tested for dielectric withstand (1,500V AC for 1 minute between circuits and ground), ensuring no leakage paths exist even if the cable is chafed or exposed to conductive fluids.
Critical Role in XCMG Articulated Dump Truck Lighting Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM471 engine producing 390 kW (523 hp) and 2,600 N·m of torque, driving a 6×6 all‑wheel drive system. The 332112715 LED front combination lamp adapter cable allows mining fleet operators to upgrade the truck’s halogen headlamps to high‑intensity LED lamps without any modification to the original wiring harness. This upgrade is critical for safety: LED lamps produce up to 300% more lumens per watt than halogen, significantly improving visibility on dark haul roads, especially during night shifts or in dusty underground conditions.
The reduced power consumption of LED lamps (15‑25W per lamp vs. 55‑70W for halogen) lowers the overall electrical load on the 24V system, reducing alternator drag and improving fuel efficiency by an estimated 0.5‑1.0%. The 332112715 adapter cable’s load resistor compensates for the lower draw, ensuring the vehicle’s CAN‑bus lighting module does not detect a fault and that the LED lamps operate in perfect sync with the original flasher and dimmer circuits.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 articulated dump trucks operating in Australian iron ore mines (ambient >45°C, high silica dust) have demonstrated that the 332112715 adapter cable maintains electrical integrity and connector sealing after 8,000 operating hours. No corrosion or fretting was observed at the terminal interfaces, and the resistor housings showed no signs of thermal degradation or loosening of the mounting clips.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the PVC jacket retains flexibility and that the Deutsch connectors do not become brittle. The cable remained flexible enough for installation without cracking, and the load resistors generated sufficient heat to prevent condensation inside the connector seals.
Vibration endurance per ISO 16750-3 (random vibration profile for off‑highway vehicles, 5G peak acceleration, 2 million cycles) confirmed that the 332112715 cable does not experience intermittent contact or fretting corrosion. The double‑crimp terminals and strain relief boot prevented wire fatigue, ensuring reliable lighting for the full 15,000‑hour design life.
Installation & Maintenance Guide
Before installing the 332112715 LED front combination lamp adapter cable, disconnect the battery negative terminal. Remove the original halogen headlamp assembly and unplug the H4/H7 connector. Insert the adapter cable’s input socket into the vehicle’s original lamp connector (the polarized design prevents incorrect installation). Connect the adapter’s output plug to the new LED front combination lamp, ensuring the locking tab clicks into place.
Secure the load resistor to a metal surface (chassis, radiator support) using the supplied stainless steel zip ties or adhesive pad; the resistor must not contact plastic components or wire looms, as it can reach temperatures up to 150°C. Route the cable away from moving parts, exhaust components, and sharp edges; use cable ties every 200 mm to prevent chafing.
After installation, reconnect the battery and test all lighting functions: low beam, high beam, turn signal (if combined), parking light, and hazard. If hyper‑flash or error codes appear, verify that the resistor is correctly connected and that the vehicle’s flasher relay is compatible (some older models may require an electronic flasher replacement, also available from XCMG).
Inspect the adapter cable during every scheduled service interval (500 hours). Check for chafing, loose connections, or damage to the resistor mount. If any insulation damage is found, replace the cable immediately. The resistor should not exceed 180°C on the external surface; if it does, check for proper air circulation and replace if the resistor is failing shorted.
Why Genuine XCMG 332112715 Outperforms Aftermarket Alternatives
Aftermarket LED adapter cables often use undersized wire (≤0.5 mm²) and cheap PVC insulation that becomes brittle at -20°C, leading to cracking and shorts. Genuine XCMG cables use 0.75 mm² (signal) and 2.5 mm² (power) wire rated to -40°C, and the connectors are genuine Deutsch or AMP, not generic copies that lack IP67 sealing. Aftermarket resistors are often under‑rated (6Ω / 25W) and can melt, catching fire, while genuine units use a 50W aluminum‑housed resistor with thermal overload protection.
Aftermarket cables also typically omit the adhesive heat‑shrink seals, allowing moisture to wick into the terminals, causing corrosion and intermittent lighting faults. Genuine XCMG cables are 100% tested for insulation resistance and continuity, and each cable is traceable to its production batch.
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine 332112715 adapter cables reduced lighting‑related electrical faults by 92% compared to aftermarket cables. Each fault caused by a failed aftermarket cable resulted in an average of 1.5 hours of downtime and $250 in diagnostic and repair costs, plus $1,000 in lost production (night shift). The genuine cables saved an estimated $18,000 per year across the fleet.
Genuine XCMG OEM 332112715 LED Front Combination Lamp Adapter Cable — IP67 Deutsch connectors, integrated load resistor, and automotive‑grade wiring tested to -40°C. Designed for XCMG articulated dump truck lighting upgrades. Trust genuine XCMG quality for plug‑and‑play LED conversion and maximum equipment uptime.
