XCMG Working Device

The XCMG Working Device is a remarkable feat of engineering, designed to deliver high – performance and reliability in heavy – machinery operations. This device is composed of a series of precisely – crafted components that work in harmony to ensure smooth and efficient functionality.

Product Description of XCMG Working Device

Structural and Guiding Components
At the core of the XCMG Working Device, the T – Sleeve provides a fundamental structural support and guiding function. It acts as a stable base around which other components interact, ensuring that the device’s operations are well – coordinated. The T – Bushings T – BUSHING are strategically placed to minimize friction between moving parts. Their high – quality construction and precise dimensions allow for seamless movement, enhancing the overall efficiency of the working device.
Sealing and Protection
To safeguard the internal components from environmental contaminants, the device is equipped with effective sealing mechanisms. The Dust protection ring DUSTPROOFSEAL and O – Rings, including the specifically sized O – Ring 145×10, create a reliable barrier. These elements prevent dust, dirt, and moisture from infiltrating the device, which is crucial for maintaining the performance and longevity of the internal parts.
Fastening and Adjustment
Fasteners play a vital role in holding the device together. The Bolt M16×90, Bolt M20×160, and Bolt M16×140, paired with Washers 16 WASHER, Nut M20 10 (Dacromet), and Nut M16 respectively, ensure a secure connection between components. The 10 (Dacromet) coating on the Nut M20 offers excellent corrosion resistance, making it suitable for use in harsh working conditions. The Adjustment plate SPACER, Adjustment pad SPACER, and Adjustment shims SPACER allow for fine – tuning of the device’s structure. They help in achieving the optimal alignment and functionality of the components, ensuring that the device operates at its best.
Moving Parts and Linkages
The moving parts of the XCMG Working Device are connected by Shaft PINs and supported by Bearing BUSHINGs. The Rocker plate LINK, Single Rod LINK, connecting rod assembly LINK ASSEMBLY, and Rocker LINK form a complex linkage system. This system enables the transfer of force and motion, allowing the device to perform a wide range of tasks with precision. The use of multiple Shaft PINs and Bearing BUSHINGs ensures smooth and stable movement, reducing wear and tear on the components.
Lubrication and Maintenance
The Oil cup – 2 NIPPLE is an important feature for the device’s maintenance. It provides a convenient way to lubricate the moving parts, ensuring that they operate smoothly. Regular lubrication through this oil cup helps to reduce friction and extend the service life of the components.

In conclusion, the XCMG Working Device is a well – designed and robust component. Its combination of high – quality components, effective sealing, reliable fastening, and proper lubrication makes it a reliable choice for heavy – machinery applications, where performance and durability are of utmost importance.

Product Parameters of XCMG Working Device

ITEM	PART NO.	PART NAME	Q’TY
1	329900667	Adjustment pads SPACER	2
1	329900717	Adjustment pads SPACER	2
2	803172437	Dust protection ring DUSTPROOFSEAL	2
3	800514228	BUSHING	2
4	310705596	Movable arm (5680) BOOM	1
4（A）	310707636	XE215G Boom Assembly BOOM ASSEMBLY	1
5	310705650	Shaft PIN	1
6	310705672	Pressure plate SPACER	2
7	805338263	Washer 16	4
8	805006417	Bolt M16×30 10.9 (Dacromet)	4
9	805046677	Bolt M20×160	3
10	310705671	Stop sleeve BUSHING	2
11	805238375	Nut M20 10 (Dacromet)	6
12	310705670	Shaft PIN	1
13	329900661	Adjustment pad SPACER	2
14	329900662	Adjustment pad SPACER	2
15	310705669	Shaft PIN	1
16	329900660	Adjustment spacer SPACER	2
17	310705647	Shaft PIN	1
18	329900666	Adjustment pads SPACER	4
19	803083611	Bucket Cylinder ARM CYLINDER	1
20	803083613	Right arm cylinder BOOM CYLINDER (R)	1
21	803083612	Left boom cylinder BOOM CYLINDER (L)	1
22	329900658	Adjustment pad SPACER	4
23	310705652	Shaft PIN	2
24	310705673	Plate SPACER	2
25	805338261	Washers 12	4
26	805046469	Bolt M12×25	4
27	801140026	Oil cup-2 NIPPLE	1
ITEM	PART NO.	PART NAME	Q’TY
1	310705659	T-Sleeve	2
2	803172436	Dust protection ring DUSTPROOFSEAL	8
3	329900903	O-Ring	4
3	803176144	O-Ring 145×10	4
4	310705657	T-Bushings T-BUSHING	1
5	310705660	Adjustment plate SPACER	12

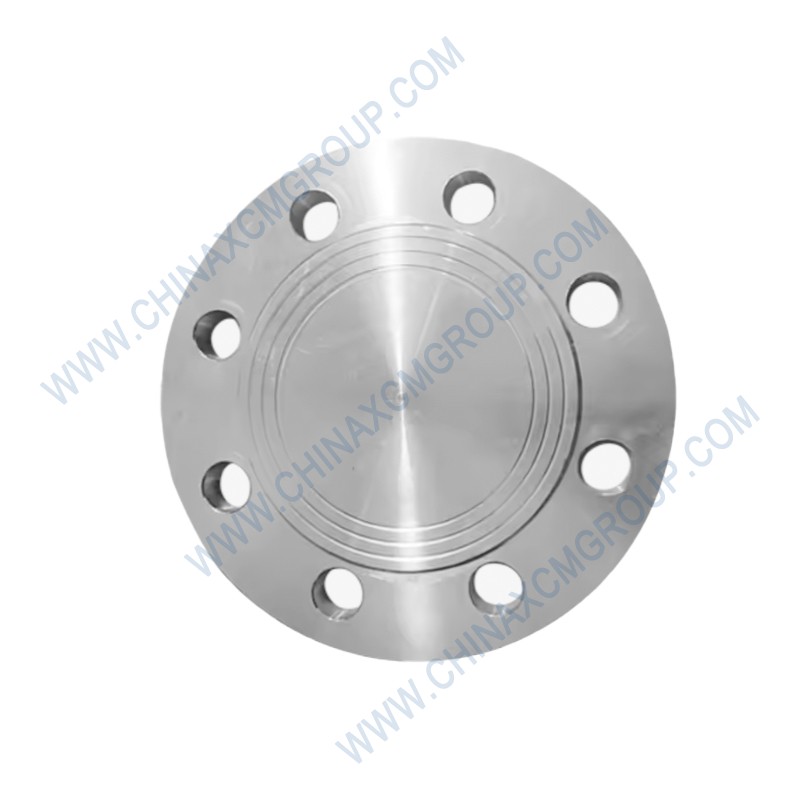

6	310705656	Flange plate PLATE	1
7	805338296	Washers 16 WASHER	4
8	805006391	Bolt M16×90	4
9	310705658	Shaft PIN	1
10	310705663	Bearing BUSHING	2
11	310705664	Shaft PIN	1
12	310705662	Bearing BUSHING	1
13	803172435	Dust protection ring DUSTPROOF SEAL	2
14	329900654	Adjustment pad SPACER	4
15	310705562	Rocker plate LINK	1
16	310705661	Shaft PIN	1
17	310705666	Shaft PIN	1
18	329900660	Adjustment shims SPACER	6
20	310705665	Bearing BUSHING	2
21	310705655	Single Rod LINK	1
21（A）	310707638	connecting rod assembly LINK ASSEMBLY	1
22	310705561	Rocker LINK	1
23	805046677	Bolt M20×160	4
24	805238375	Nut M20 10 (Dacromet)	8
25	805046465	Bolt M16×140	2
26	805238374	Nut M16	4
27	801140026	Oil cup-2 NIPPLE	7
28	803172437	Dust protection ring DUSTPROOFSEAL	2
29	310705668	Bearing BUSHING	2
30	310705667	Shaft PIN	1
31	310705669	Shaft PIN	1
32	803083610	Bucket Cylinder BUCKET CYLINDER	1
33	310705565	BUCKET CYLINDER Bucket (2900) ARM	1
33(A)	310707637	XE215G Bucket Rod Assembly ARM ASSEMBLY	1
34	310705533	Bucket (1.0) BUCKET	1

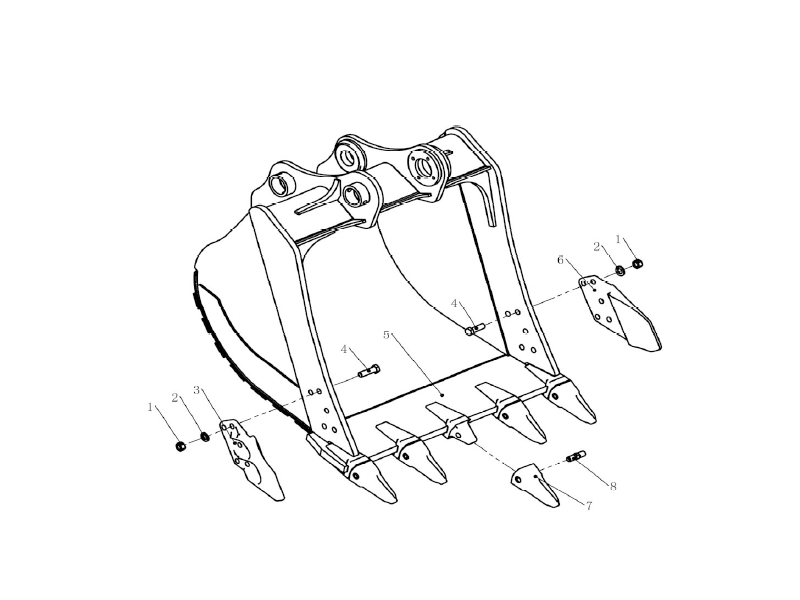

ITEM	PART NO.	PART NAME	Q’TY
1	805203192	“Nut M24 10 (Dacromet)”	10
2	805338299	Washers 24 (Dacromet)	10
3	819908880	RIGHT SIDE TEETH	1
4	805004832	Bolt M24×80	10
5	310705534	Bucket body BUCKET	1
6	819908881	LEFT SIDE CUTTER	1
7	819908740	TOOTH	5
8	819909818	Cross pin & spring SNAP LINK	5
