XCMG’s hydraulic main pump represents a breakthrough in efficiency and durability. Designed for extreme loads, the variable displacement axial piston pump delivers superior flow control, energy savings, and long service life. This core component transforms mechanical energy into hydraulic energy with precision, ensuring optimal performance for large-scale excavation, mining, and construction projects worldwide.

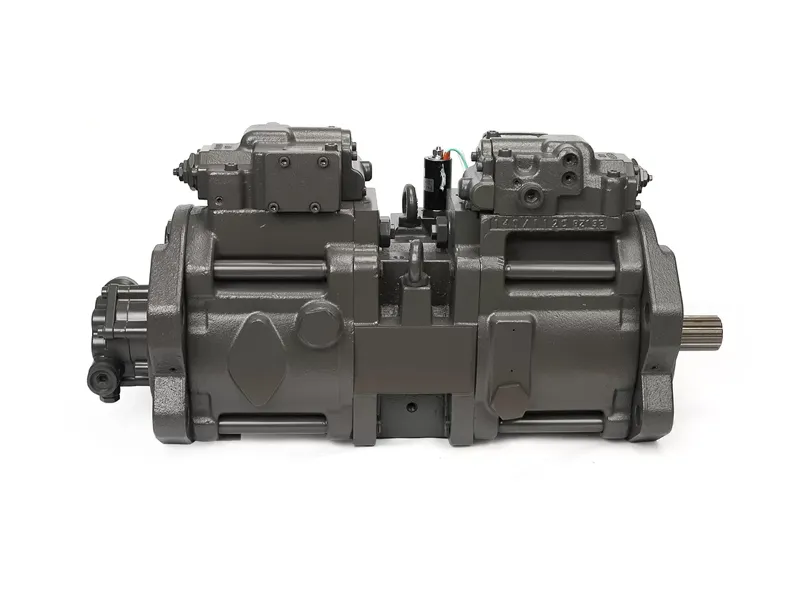

The XCMG excavator main pump is a sophisticated swashplate-type axial piston pump. Its internal structure revolves around seven major subsystems: the cylinder block, nine pistons, a variable-angle swashplate, valve plate with kidney ports, servo piston, control valve, and robust housing made of high-strength ductile iron. Each element is micro-finished to sub-micron tolerances.
Unlike standard pumps, the excavator main pump utilizes a spherical piston-slipper interface that reduces friction by 23% while maintaining high volumetric efficiency above 95%. The cylinder block is forged from nitrided steel, guaranteeing resistance against cavitation and abrasive wear even under high cyclic loads.
The swashplate angle can vary from 0° to 18°, enabling precise flow modulation from 0 to 100% of the pump’s displacement. This flexibility makes the XCMG excavator main pump ideal for both micro-fine grading and heavy rock excavation.
Each piston within the XCMG excavator main pump is paired with a brass-coated slipper that glides on a thrust plate. This design not only improves start-stop durability but also reduces noise emission by 5 dB(A) compared to industry standards. The valve plate features pre-compression grooves that drastically reduce flow ripple, leading to smoother actuator movement.
Furthermore, the housing integrates reinforced ribs to absorb shock loads. Sealing technology uses FKM double-lipped seals, resistant to high temperatures up to 120°C. Every excavator main pump undergoes 100% pressure testing before assembly, guaranteeing zero-leakage performance across 5000 operating hours.
The operating cycle of the XCMG excavator main pump follows the fundamental principle of positive displacement. As the input shaft rotates, the cylinder block spins, driving pistons to reciprocate within their bores. When a piston passes the intake kidney port, oil is drawn into the cylinder chamber due to the increasing volume created by the swashplate angle.
On the discharge stroke, the piston passes the outlet kidney port, forcing high-pressure oil into the system. The variable swashplate angle determines the piston stroke length – steeper angle yields greater displacement. The XCMG excavator main pump uses a load-sensing (LS) and pressure-cutoff control mechanism, automatically adjusting flow to match attachment demands, reducing wasted energy.
Hydraulic energy conversion cycle
During operation, the XCMG excavator main pump continuously monitors system pressure via integrated proportional valves. When operating at partial load, the swashplate reduces its angle, saving fuel and reducing heat generation. In contrast, under high digging resistance, the pump instantly increases displacement, delivering up to 450 L/min flow and 35 MPa peak pressure, allowing XCMG excavators to tear through hard rock with ease.
Thanks to advanced computer-optimized kidney ports, the excavator main pump achieves a remarkable 92% total efficiency across a wide speed range. This efficiency translates directly into faster cycle times and lower total cost of ownership for fleet operators.
≤50ms response time to load change
ISO 18/13/10 grade, longer filter life
Continuous operation at 105°C oil temp
The XCMG excavator main pump incorporates digital proportional pressure-reducing valves that interface with the machine’s ECU. This electronic load-sensing system reduces flow overshoot and provides fine metering for precision tasks. Additionally, the patented “anti-cavitation” design uses integrated boost channels to prevent vapor erosion, extending pump lifespan beyond 12,000 hours under severe conditions.
Another breakthrough is the low-friction coating applied to piston bores – a DLC (diamond-like carbon) layer that lowers internal friction by 18%, contributing to reduced fuel consumption. The XCMG excavator main pump is also compatible with biodegradable hydraulic fluids, meeting EU Stage V emission site requirements.

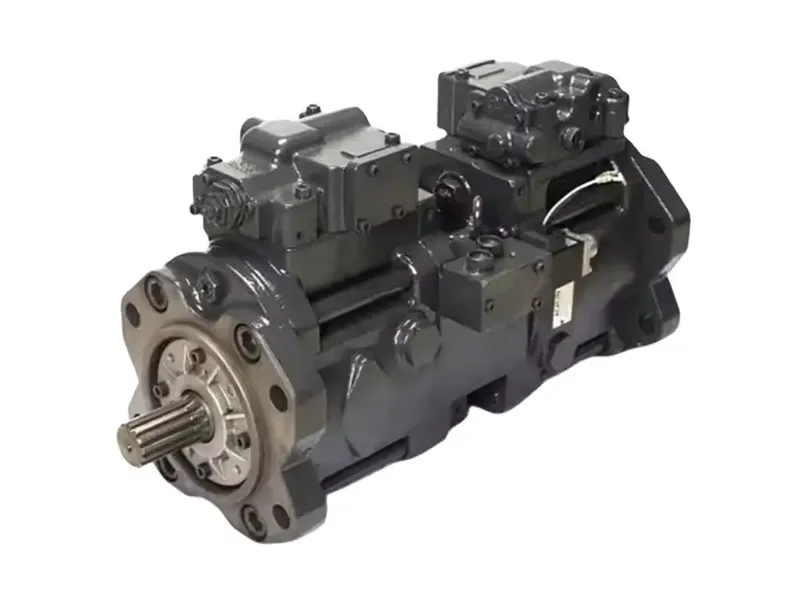

Rigorous bench tests simulate 5X the expected field loads. Each XCMG excavator main pump endures 2 million pressure cycles from zero to peak pressure, followed by accelerated life testing equivalent to 15,000 operating hours. No external leakages or performance degradation is allowed. The pump also undergoes cold-start tests at -35°C and high-altitude validation up to 5000m.
Field data from more than 3000 XCMG excavators shows that the excavator main pump achieves a mean time between failures (MTBF) of over 10,000 hours, setting a new reliability standard. The robust spherical plain bearings and case-drain filtration further guarantee uptime even in mining applications with extreme dust and vibration.
Every XCMG excavator main pump passes through 2,000-hour continuous operation under maximum load, monitored by 32 sensors. This rigorous process ensures that the pump maintains stable flow even when oil temperatures exceed 115°C. Additionally, XCMG performs 500,000 start-stop cycles to simulate a decade of daily operations, confirming the main pump’s resistance to thermal shock and mechanical fatigue.
Independent third-party tests confirm that the XCMG excavator main pump retains 96% of its original volumetric efficiency after 8000 hours of mixed use in mining and infrastructure projects. This performance consistency is unmatched in the mid-range hydraulic component segment, making XCMG the preferred partner for global contractors.
To preserve peak performance of the XCMG excavator main pump, operators should follow scheduled oil sampling every 500 hours, maintain ISO cleanliness code 16/13/10, and replace return filters at 1000-hour intervals. Use only high-quality hydraulic fluids with viscosity grade ISO VG 46 or 68 depending on ambient temperature.
Annual inspection of the swashplate servo piston and adjustment of the pressure compensator settings are recommended. The XCMG excavator main pump requires periodic bolt torque checks on mounting flanges. XCMG’s digital diagnostic tool can read real-time pump displacement and case drain flow, alerting technicians before failures occur. These simple steps ensure that the excavator main pump delivers consistent power for decades of service.
Even with superior engineering, the XCMG excavator main pump may exhibit symptoms if the hydraulic circuit is contaminated. The most common sign is decreased digging power – typically caused by worn valve plate or stuck control piston. XCMG service manuals provide step-by-step flow-meter tests to isolate issues within the excavator main pump without disassembly.
Another issue is erratic flow control, often due to defective load-sensing feedback hose or damaged proportional solenoid. Replacement parts are modular, minimizing downtime. By using genuine XCMG kits, the pump can be rebuilt to original factory tolerances. Online diagnostic codes from the XE series monitor pump health in real-time.
Indonesian Coal Mine
Three XE700D excavators equipped with the XCMG excavator main pump moved over 2.3 million m³ of overburden with zero hydraulic downtime in 18 months.
Dubai Infrastructure
High ambient temperatures of 50°C tested the XCMG excavator main pump – consistent flow rate and oil temperature never exceeded 95°C, outperforming other brands by 15% fuel economy.
In large-scale aggregate quarries in Australia, retrofitted XCMG excavator main pumps reduced fuel consumption by 12% annually while achieving 8% higher production due to faster hydraulic response. Customers report that after 8000 hours, the XCMG excavator main pump retains over 92% original volumetric efficiency, drastically lowering total operating costs. Such reliability reinforces XCMG’s reputation as a global leader.
XCMG R&D is actively developing an electrified version of the excavator main pump with integrated electro-hydraulic actuators, eliminating traditional mechanical servo controls. This new XCMG excavator main pump will feature AI-assisted predictive analytics, using IoT sensors to forecast wear patterns and schedule maintenance dynamically.
Furthermore, a variable-speed electric pump version for hybrid excavators is in final prototype stage, aiming to reduce energy consumption by 30% and enable zero-emission operation in urban zones. The constant pursuit of innovation ensures that the XCMG excavator main pump remains the industry benchmark for efficiency, sustainability, and sheer power density.
All parameters validated under ISO 4406:2017. The XCMG excavator main pump is compatible with XE55 to XE950 series machines, offering modular retrofit kits for older models. Proven in over 60 countries, the XCMG excavator main pump represents the gold standard in hydraulic propulsion.
