XSC30/1200 XSC Series Water Well Drilling Rig

Product Feature

  • XSC30/1200
  • XSC/XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability.
  • Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.
  • The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
  • Performance Characteristics:
  1. With good travelling performance, which adapts to severe road conditions such as muddy road, sand, snowfield, upland etc.
  1. Reduces the wearing of the drill stem thread, and increases service life of the drill stem. Adapt to the reverse circulation construction.
  1. Ensures good drilling performance and improves working efficiency.
  1. Reduces the number of workers and work intensity on the job site.
  1. With no shock when start and stop, the control is highly accurate and energy-efficient.
  1. Realizes loading and unloading drill stem without assistance of workers and reduces work intensity.
  2. Insulates the noise and dust of the job site efficiently and improves operating environment greatly.

Product Parameters

Parameter

Unit

XSC30/1200

Drilling capability

Drilling depth

m

3000(φ114)

Max. diameter of working floor

mm

φ820

Feeding system

Max. liting capacity

kN

1200

Max. feeding capacity

kN

260

Max. lifting speed

m/min

30

Max. feeding speed

m/min

60

Stroke

mm

15240

Top drive

Max. torque

N.m

27500/18300

Max. speed

r/min

120/180

I.D

mm

φ105

Floating distance

mm

100

Max. tilting angle

°

85

Deck engine

Type



CAT C18

Rated power

kW

571

Tool winch

Hoisting capacity

kN

50

Breakout device

Max. breakout torque

N.m

95000

Mud pipe

I.D

mm

φ76

Max. pressure

MPa

35

Chassis

Rated power

kW

327

Highest speed

km/h

80

Max. climbing gradient

%

45

Working dimension

mm

14680*5184*(13800~21400)

Transportation dimension

mm

14200*2550*4000

Weight

t

55

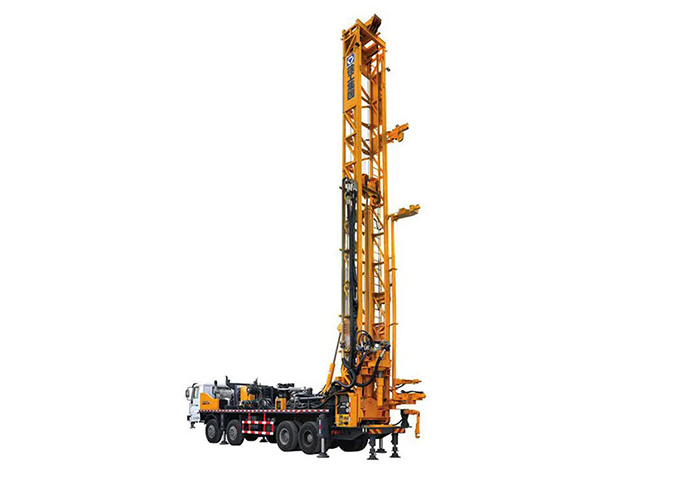

Product Show
