XGC88000 Crawler Crane

Product Feature

  1. Luffing rope double rope force balance technique  The rope end of the two superlift luffing winches and two luffing   winches are connected to ensure luffing winch single line pull consistent,and the applied force between the two boom structure consistent,and to avoid boom structure damage due to uneven applied force and    improve crane operation safety.
  2. XGC88000 adopts design of three independent power units. Each power unit equips with 641KW (860hp) U.S. Cummins engine with strong power; the spacious power box space is easy for maintenance and repair work.Each power unit acts as movable hydraulic power working station and can work as power source during crane assembly/disassembly process to improve assembly efficiency. The three power units can work as spare  power unit for each other.
  3. XGC88000 has several moving mode, such as swing, straight travel,crab travel, cross travel, etc. which reduces ground treatment area.

Product Parameters

ItemUnitParameterItemUnitParameter
Parameter ItemXGC88000Max. single line speed for hoist mechanism(m/min)60
Operation performance parameter *Max. single line speed for boom luffing mechanism(m/min)63
Max. rated lifting capacity for boom(t)3600 Max. single line speed for jib luffing mechanism(m/min)
Max. rated lifting capacity for fixed jib(t)Max. slewing speed(r/min)0.024
Max. rated lifting capacity for luffing jib(t)Max. travel speed(km/h)0.37
Max. load moment(t.m)Grade ability(%)6
Max. rated lifting capacity for tower jib(t)2300Mean ground pressure(MPa)
Max. rated lifting capacity for boom single top(t)100 Max. single line speed for tower jib luffing mechanism(m/min)70
Max. rated lifting capacity for special jib(t)2400 Max. single line speed for superlift luffing(m/min)
Dimension parameter *Engine *
Boom length(m)60~120(heavy type)/ 126~144(light type)ModelQSK23
Boom luffing angle(°)Engine power(kW)3×641
Fixed jib length(m)EmissionEU II
Tower jib length(m)36~108(optional)Mass parameter *
Max. dimension of single unit in transport state(L×W×H)(m)13×3.5×3.4Overall crane mass(t)5350(main hook+60m boom)
Fixed jib offset angle(°)Max. mass of single unit in transport state(t)65
Special jib length(m)15~33(optional)Speed parameter *

Product Show

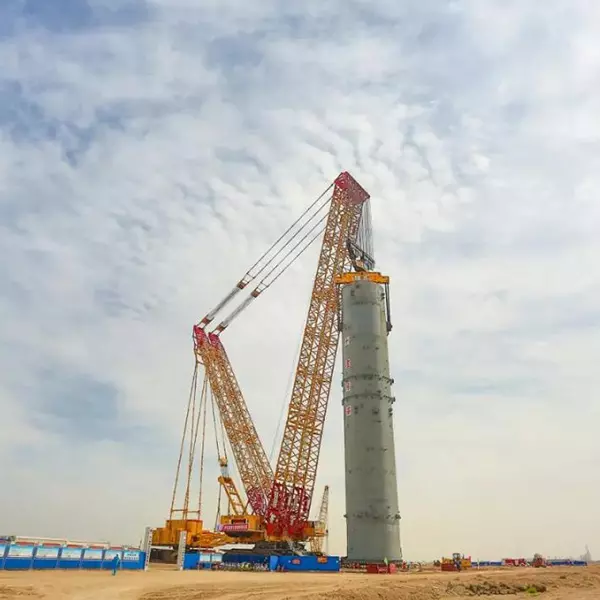

XGC88000 Crawler Crane

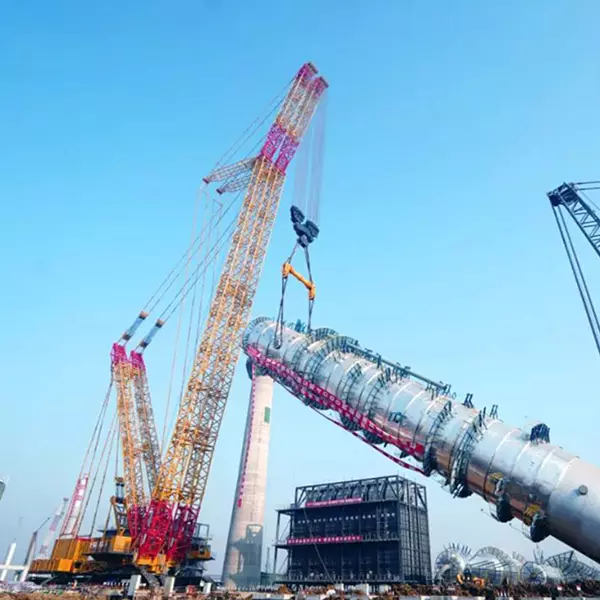

XGC88000 Crawler Crane

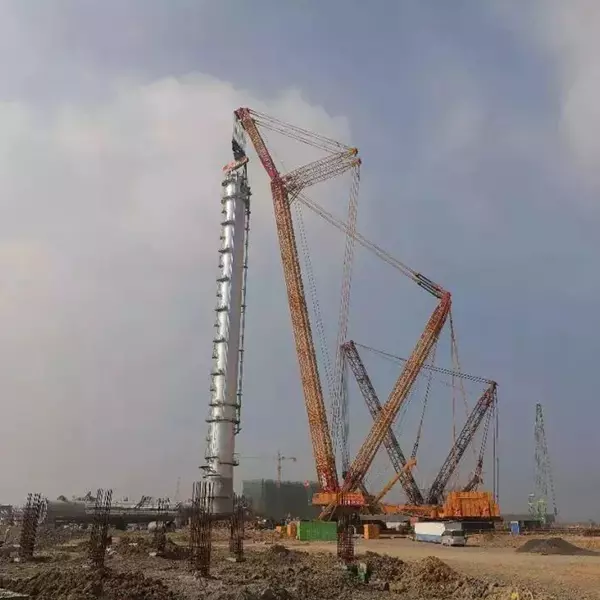

XGC88000 Crawler Crane

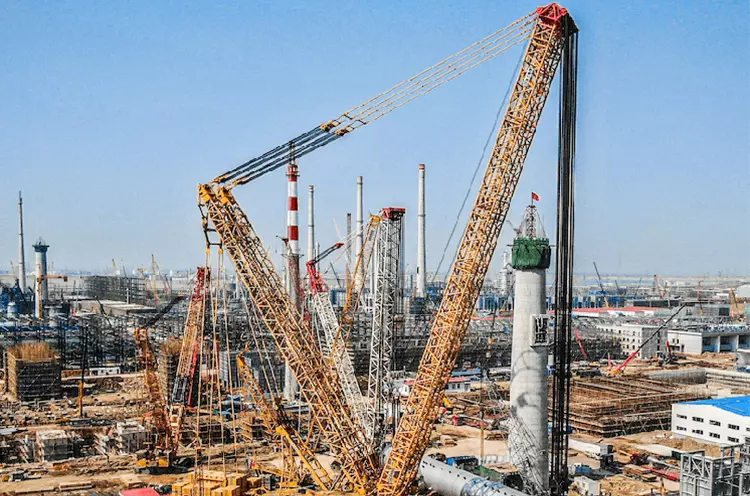

XGC88000 Crawler Crane
