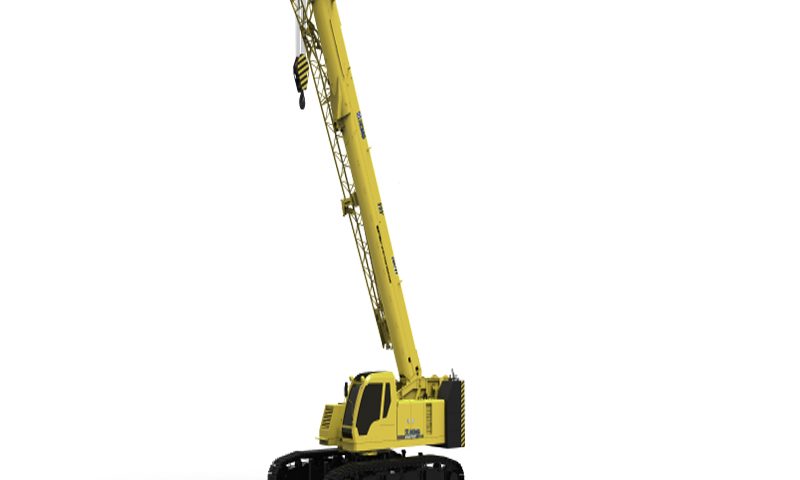

XGC75T Crawler Crane

Product Category: Crawler Crane
Brand: XCMG
Model: XGC75T
Price: $100000.00-$1000000.00 / EA Based On The Features
Delivery Time: 1-90DAYS
Supply Capacity: 1-500UNITS / Year Waiting for Your Order in Stock
Product Origin: China
After-sales Service: Engineers available to service machinery overseas
Rating:
4.9 /5 based on 177 votes

XGC75T

Product Feature

XGC75T telescopic crawler crane is suitable for urban building construction (municipal, factories, buildings, venues), transportation infrastructure (subway, high-speed rail, roads, bridges and culverts); especially prominent is especially suitable for muddy, soft ground, height change frequent steel structure plant construction area. It has the functions of lifting weight walking, counterweight self-disassembly, small angle lifting, narrow space operation and so on.

Product Parameters

Item	Unit	Parameter value
Parameter Item	–	XGC75T
Dimension parameter		*
Overall crane length	(mm)	14463
Overall crane width(extend/retract)	(mm)	5060/3400
Overall crane height	(mm)	3500
Center distance between drive roller and driven roller	(mm)	5525
Crawler shoe width	(mm)	760
Weight parameter		*
Total mass in travel state	（kg）	79888
Travel parameter		*
Travel speed with no load	(km/h)	2.5
Travel speed with full load	(km/h)	1.5
Min. ground clearance	(mm)	480
Max. grade ability	(%)	10
Ground pressure	(MPa)	0.096
Power parameter		*
Noise near ear（dB）	(A)	80
Engine model	–	Weichai WP7.270
Engine rated power	(kw)	199
Engine rated speed	(r/min)	2000
Engine emission standard	–	National off-road stage III
Volume parameter		*
Hydraulic oil tank volume	(L)	1000
Fuel tank volume	(L)	550
Main performance parameter		*
Max. rated lifting capacity	(t)	75
Min. rated radius	(m)	3
Max. load moment–basic boom	(kN·m)	4436
Max. load moment–longest boom	(kN·m)	1443
Lifting height–basic boom	(m)	11.6
Lifting height–longest boom	(m)	46
Lifting height–longest boom+jib	(m)	62.1
Boom length–basic boom	(m)	12.2
Boom length–longest boom	(m)	47
Boom length–longest boom + jib	(m)	64.5
Jib offset angle	(°)	0、15、30
Working speed		*
Boom raising time	(s)	60
Boom fully-extending time	(s)	110
Max. slewing speed	(r/min)	2
Hoisting speed(no load, the 4th layer) main hoist system	(m/min)	140
Hoisting speed(no load, the 4th layer) aux. hoist system	(m/min)	90
