XCMG 100 Ton Crane

What Models Of XCMG 100 Ton Cranes Are Available?

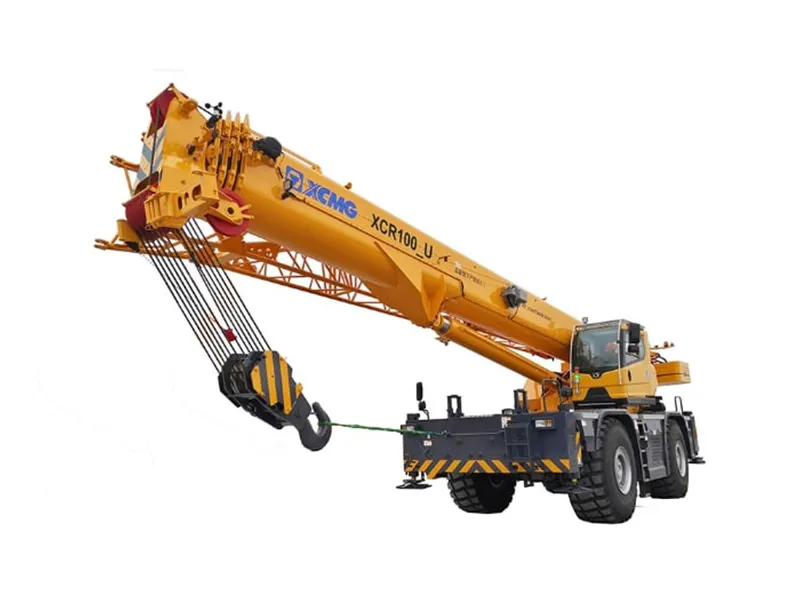

The XCR100U is equipped with a 157.5-foot (approximately 48.7-meter) main boom and a 100-metric-ton lifting capacity. When paired with a two-section jib, it can reach a maximum lifting height of 214.9 feet (approximately 65.5 meters), offering an exceptional working radius in the off-road crane class.
A Cummins engine rated at 280 horsepower (2,200 rpm) powers the chassis and crane, paired with a torque converter-type power-shift transmission. With two-wheel and four-wheel drive options, four steering modes, and the ability to drive with the boom extended to the rear, it boasts one of the smallest turning radii among 100-metric-ton-class off-road cranes. Four-wheel drive and differential locks ensure stable operation on virtually any terrain.
Driver safety protection technology ensures controllability during travel, while the information-rich cab and ergonomic controls allow operators to remain comfortable and focused during long shifts.

Equipped with a 6-section, U-shaped cross-section main boom measuring 64 meters; maximum lifting capacity of 100 metric tons; maximum lifting height of 92.6 meters; maximum operating radius of 62 meters; its overall performance leads its class.
A low-speed, high-torque power transmission system achieves a perfect balance between power output and fuel efficiency, reducing fuel consumption by more than 12% and improving hill-climbing capability by 10%.

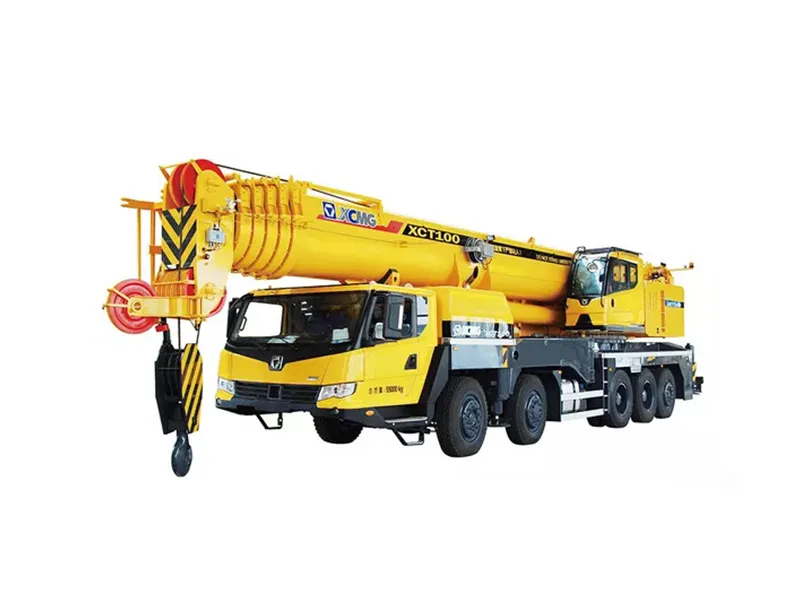

The XCT100 is also the first four-wheel-drive truck crane capable of handling a wide range of road conditions. Hydraulically controlled follow-up steering technology at the rear of the chassis provides two steering modes—one for highways and another for tight turns—ensuring stability and reliability during high-speed travel while maintaining excellent maneuverability at low speeds.

The innovative boom system features an embedded pulley block, a plug-and-play boom head, and an internationally advanced U-shaped boom, delivering exceptional lifting performance and ensuring safe and reliable lifting operations.
Unique telescoping technology prevents bending of the core tube and hydraulic cylinders, as well as boom fractures caused by operator error, thereby enhancing operational safety.
Eight patented technologies ensure smooth operation and high energy efficiency in the lifting, slewing, and luffing systems.
The torque limiter features a color LCD display, enabling intelligent fault diagnosis with industry-leading precision.
The use of a new high-torque starting-point hydraulic motor makes secondary lifting safer.
Ergonomic design makes the cab and control room more spacious and operation more convenient.
Six unique manufacturing processes ensure the product’s high quality.

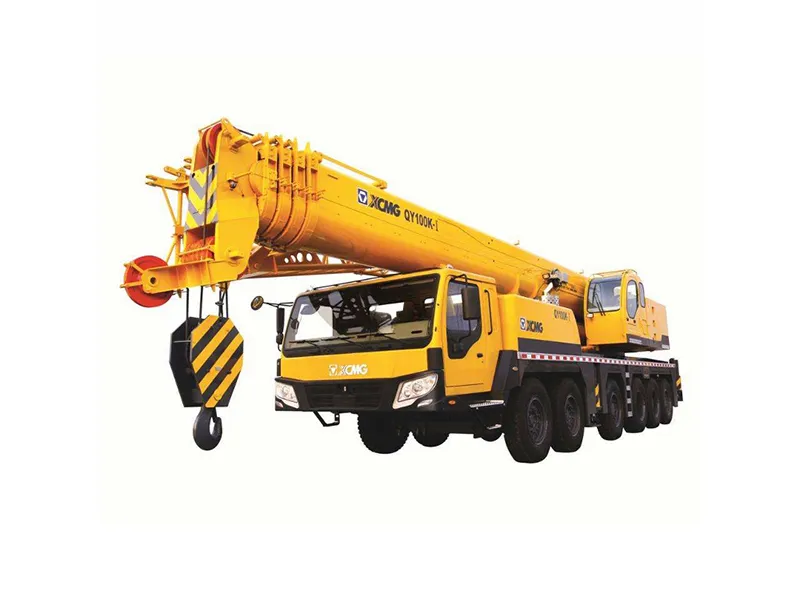

Item			Unit
Dimensions	Overall length	15600×3000×3850	mm
Weighet	Operation mass in travel state	1420+2420+1800+1420+1505	mm
	Axle load	54900	kg
	1st axle	8000	kg
	2nd axle	8000	kg
	3rd axle	7900	kg
	4th axle	12000	kg
	5th axle	12000	kg
	6th axle	7000	kg
Power	Superstructure engine	TAD720VE/TAD750VE/OM906LAE2/3/BF6M1013EC
	Superstructure engine rated output	174/2300 181/2300 180/2200 174/2300	KW/(r/min)
	Superstructure engine max torque	875/1400 1050/1500 900/1200-1600 875/1400	N.m/(r/min)
	Carrier engine	ISME420.30 MO460LA.E3A/1 WP12.460N
	Carrier engine rated output	306/1900 360/1800 338/1900	KW/(r/min)
	Carrier engine max torque	2010/1200 2200/1300 2100/1000-1400
Travel	Approach angle	20	°
	Departure angle	14	°
	Braking distance(at 30km/h)	≤10	m
	Max.grade ability	40	%
	Min.turning diameter	24	m
	Min.ground clearance	300	mm
	Fuel consumption per 100km	70	L
Lifting Performance	Max.total rated lifting capactiy	100	t
	Min.rated working radius	3	m
	At counterweight	4200	mm
	At auxilary winch	4590	mm
	Base boom	3450(4m×88t)	kn.m
	Full-extended boom	1925(2.4m×8.3t)	kn.m
	Full-extended boom+Jib	708(25.8×2.8t)	kn.m
	Longitudinal distance	7.56	m
	Lateral distance	7.6	m
	Base boom	13.5	m
	Full-extended boom	50.9	m
	Full-extended boom+Jib	70.4	m
	Base boom	13.5	m
	Full-extended boom	51	m
	Full-extended boom+Jib	51+18.1+4	m
Working speed	Jib offset	0,15,32	°
	3Boom raising	75	s
	Full-extending	160	s
