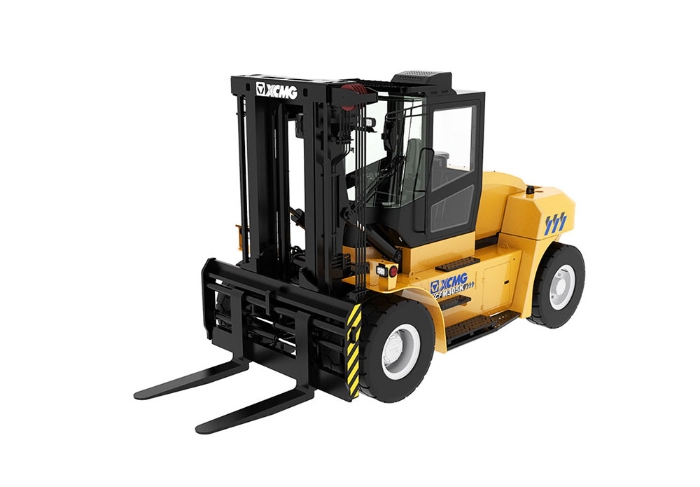

XCF305K Counterbalanced forklift

Product Feature

Counter-balanced Forklift  is Streamlined shape, full suspension structure, mainstream configuration, excellent radiator Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment.  It can also be used to handle steel coils, bulk materials, concrete, logs, 20 ‘containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations.

Product Parameters

ItemUnitParameter
Overall weightkg4460
Rated capacitykg3000
Maximum lifting heightmm3000
Maximum travelling speed (unloaded\loaded)km/h19/17
Maximum lifting speed (unloaded\loaded)km/h480/430
Maximum gradeability(loaded)0.2
Dimensions without fork2700×1225×2035
Wheel basemm1700
Load centermm500
Minimum turning radius2500
Type of mast Secondary standard type
Fork dimensionsmm1070×125×45
Fork adjustment range (mm)
Optional
