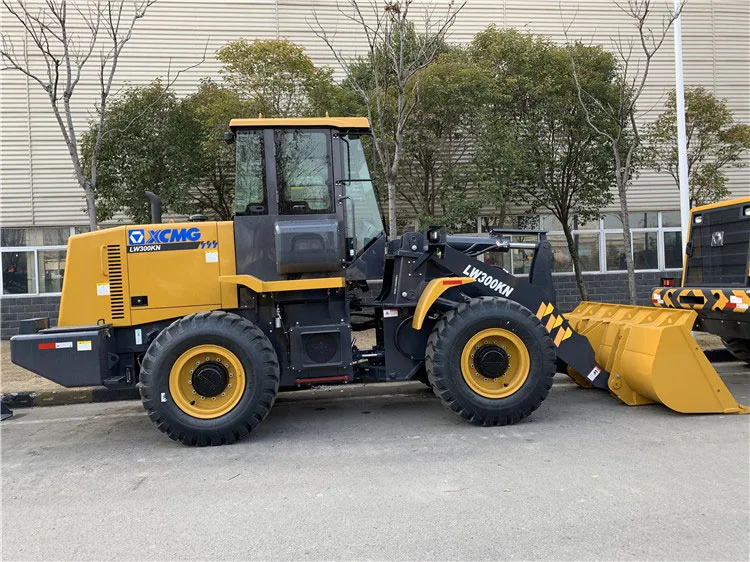

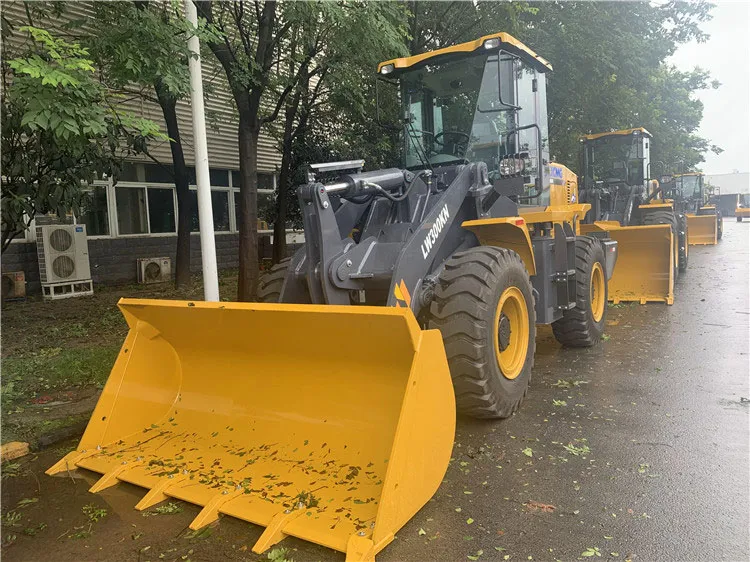

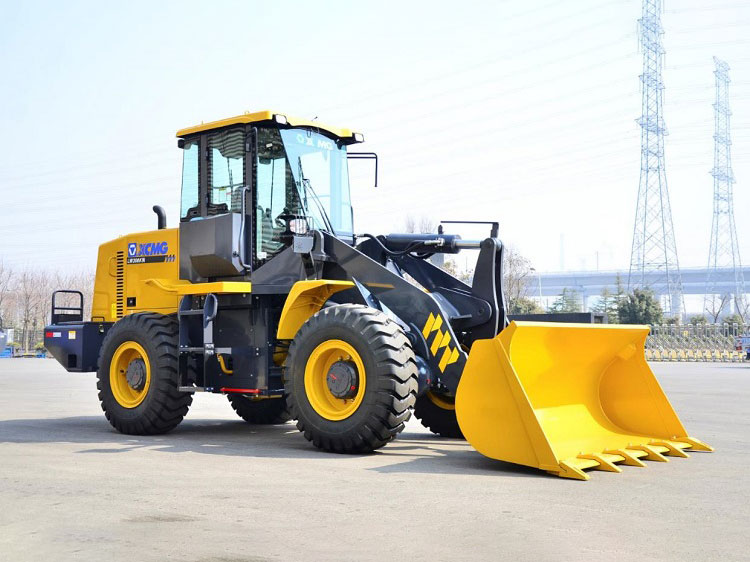

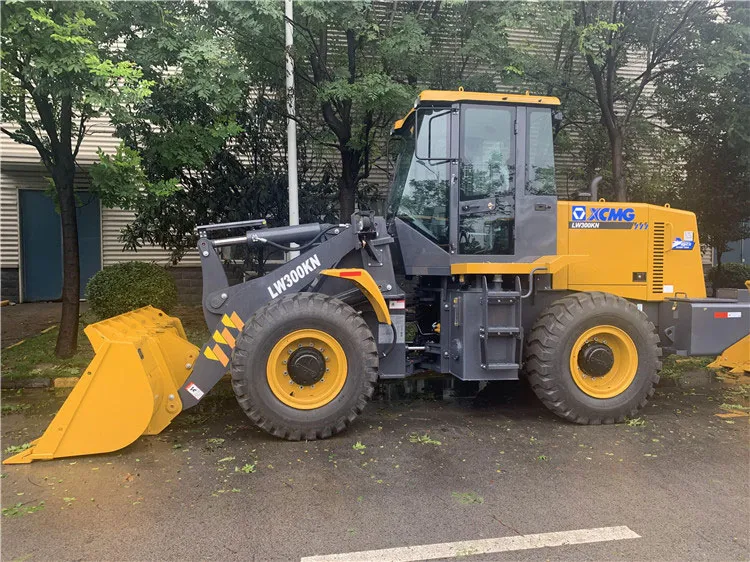

XCMG LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability. With the features of maturity and reliability of the old model, LW300KN is improved all round, and leads in the same kind of product.
LW300KN is extensively applicable for earth- moving projects, aggregate yards, municipal constructions, and other bulk material transports.
Log clamp I/ Log clamp IV (offset tooth)/ Toad’s mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.

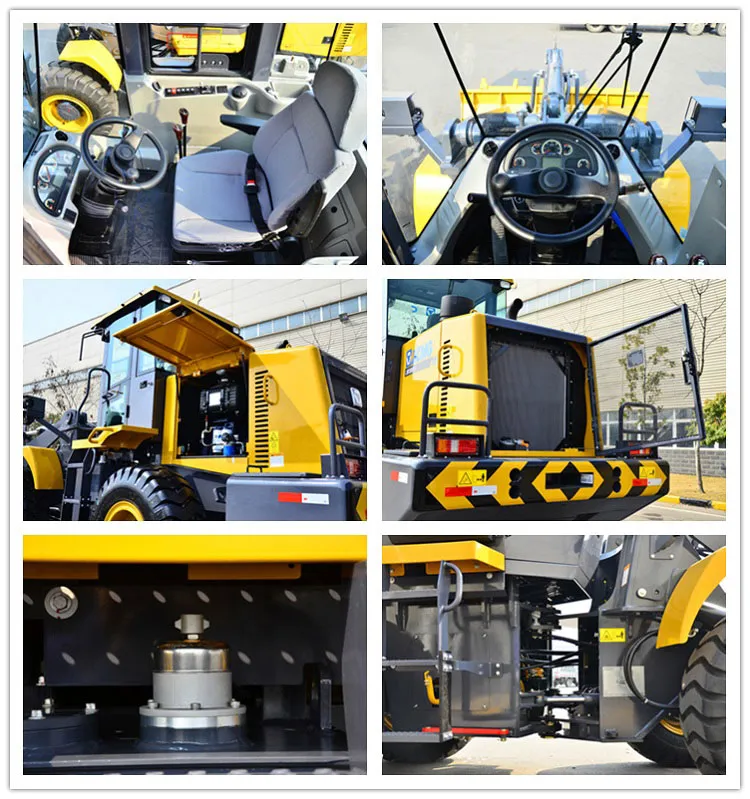

LW300KN features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions. Great strength Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5~2.5 |
| Machine weight | kg | 10900±200 |
| Dump clearance at maximum lift | mm | 2770~3260 |
| Reach at maximum lift | mm | 1010~1210 |
| Wheel base | mm | 2900 |
| Tread | mm | 1850 |
| Height of hinge at maximum lift height | mm | 3830 |
| Working height(fully lifted) | mm | 4870 |
| Max.breakout force | kN | 130 |
| Max.horse power | kN | 95 |
| Hydraulic cycle time-raise | s | 5.4 |
| Total hydraulic cycle time | s | 9.3 |
| Min. turning radius over tyres | mm | 5170 |
| Articulation angle | ° | 38±1 |
| Gradeability | ° | 28 |
| Tyre size | 17.5-25-12PR | |
| Overall machine dimension L×W×H | mm | 7245×2482×3320 |
