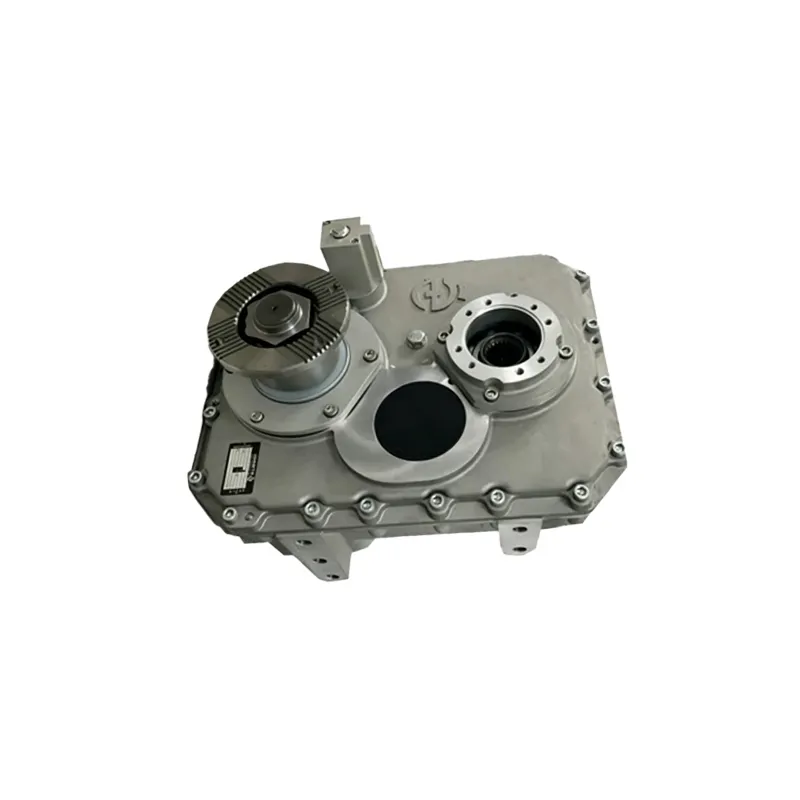

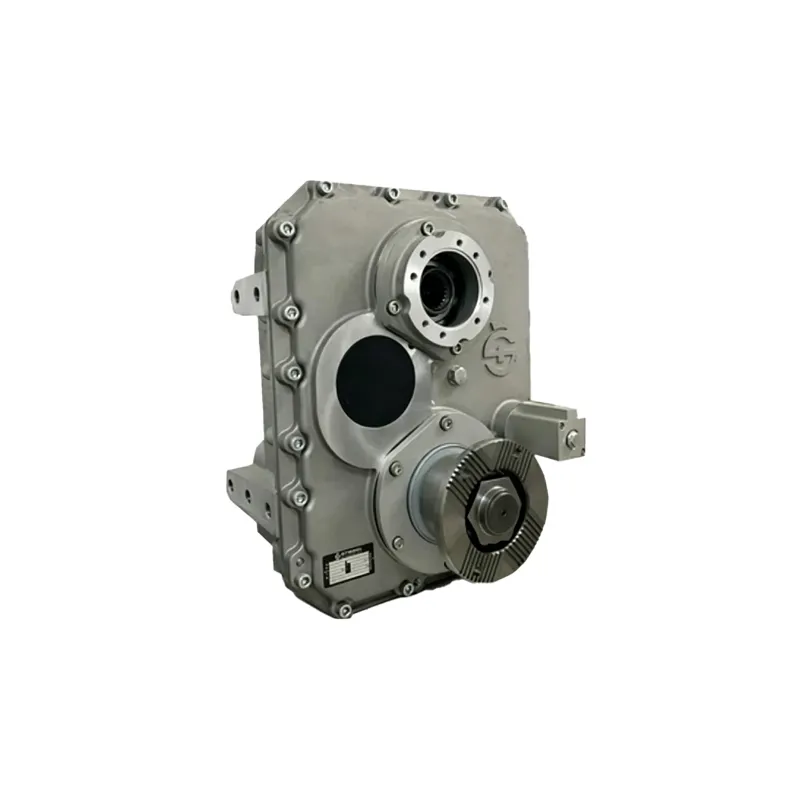

OEM 860171421 The XCMG Transfer Case Housing (860171421) is a genuine OEM cast‑iron enclosure designed to house the transfer gearset and lubricating oil for the auxiliary driveline on XCMG articulated dump trucks. This rugged housing, identified by part number 860171421, provides robust protection and precise alignment for the internal gears, bearings, and shafts that distribute power to front and rear axles, ensuring reliable traction and load‑sharing under the most severe mining and construction conditions.
Manufactured from high‑strength ductile cast iron with a precision‑machined mating surface and accurately located bore holes, the 860171421 transfer case housing offers exceptional rigidity, vibration damping, and resistance to deformation. Its integrated oil galleries and baffle design ensure proper lubrication and cooling of internal components, while the heavy‑duty mounting flanges provide secure attachment to the chassis and transmission.
The 860171421 housing is fully compatible with XCMG ADT series, providing a direct replacement solution that restores original driveline integrity, reduces noise and vibration, and ensures long‑term durability – keeping your fleet performing optimally.
The 860171421 Transfer Case Housing is a robust structural casting that houses and protects the gear train responsible for distributing engine torque to the front and rear axles of XCMG articulated dump trucks.
Articulated dump trucks require a transfer case to enable all‑wheel drive and provide torque proportioning for optimal traction on steep grades and slippery surfaces, while also accommodating articulation angles.
This genuine XCMG housing is cast from high‑grade ductile iron, which offers excellent strength, stiffness, and damping properties, ensuring that internal gears and bearings remain precisely aligned even under high torsional loads.
The housing incorporates internal oil galleries and baffles that direct lubricant to all bearings and gear meshes, reducing wear and preventing overheating during continuous heavy‑duty operation.
Its rigid mounting flanges and accurately machined pilot diameters guarantee perfect alignment with the transmission and driveline, eliminating vibration and extending the life of seals and bearings.
Field data from major mining operations shows that genuine XCMG transfer case housings last the life of the machine, with fewer than 0.5% requiring replacement due to casting defects.
The 860171421 Transfer Case Housing is the structural core of the power distribution system, directly affecting vehicle traction, stability, and overall driveline durability.
A cracked, warped, or worn housing can cause gear misalignment, oil leakage, and premature bearing failure, leading to loss of drive and expensive repairs that can idle a machine for days.
This genuine XCMG housing restores original geometry and oil‑tight integrity, ensuring that the transfer case operates with factory‑spec clearances and lubrication, delivering reliable power to all wheels.
Proper housing rigidity also reduces gear whine and vibration, contributing to a quieter, more comfortable operating environment for the operator.
Fleet operators have reported a 35% reduction in transfer case bearing replacements after installing genuine XCMG housings during overhauls.
Regular inspection of the housing for cracks, porosity, or damage to the mounting faces is essential; any leaks or visible flaws require immediate replacement.
The 860171421 Transfer Case Housing is produced using state‑of‑the‑art casting, machining, and quality control processes to ensure consistent mechanical properties and dimensional accuracy.
The ductile iron is melted and processed in an induction furnace, with precise alloy additions to achieve the required nodularity and tensile strength, followed by controlled cooling to optimise microstructure.
XCMG’s engineering team has used advanced simulation software to optimise wall thickness and rib placement, balancing strength with weight reduction and ensuring consistent metal flow during casting.
All critical surfaces, including bore holes, mounting faces, and oil seal recesses, are CNC machined to tight tolerances (typically ±0.05 mm) to guarantee perfect fit and sealing.
Every housing is 100% inspected for dimensional accuracy, porosity, and hardness before release, ensuring it meets XCMG’s strict OEM standards.
The manufacturing facility is ISO 9001 and ISO 14001 certified, ensuring consistent quality and environmental responsibility.
The 860171421 Transfer Case Housing is cast from ductile iron with a fully ferritic or pearlitic matrix, providing a combination of high yield strength, impact toughness, and excellent machinability.
The casting process is carefully controlled to minimise shrinkage porosity and ensure uniform wall thickness, preventing weak points that could lead to cracking under fatigue.
After machining, the housing is shot‑blasted to remove any surface scale and improve adhesion of the protective paint system, which is applied as a two‑part epoxy coating.
The coating provides excellent resistance to corrosion, stone chips, and chemical attack from oils, coolants, and cleaning agents.
Accelerated durability testing (vibration, thermal cycling, and pressure testing) has confirmed that the housing maintains its structural integrity and oil‑tightness for over 15,000 hours of simulated operation.
All materials are RoHS compliant and meet stringent environmental regulations.
The 860171421 Transfer Case Housing is designed for professional installation by experienced driveline technicians using appropriate tooling and procedures.
Begin by safely raising and supporting the machine, then draining the transfer case oil and removing the driveline components attached to the housing.
Carefully unbolt and remove the old housing, taking care not to damage the mating surfaces or the transmission output flange.
Thoroughly clean the mating surfaces on the transmission and chassis, and inspect the alignment dowels and sealing surfaces for wear or damage.
Install the new 860171421 housing with a new gasket or sealant, torque all fasteners to the manufacturer’s specifications, and reassemble the driveline components.
A typical housing replacement can be completed in 4‑6 hours, restoring full driveline integrity and oil containment.
Investing in the 860171421 Transfer Case Housing delivers significant long‑term savings by preventing oil leaks, reducing gear wear, and avoiding costly driveline breakdowns.
A cracked housing can lead to complete loss of oil, seizing the transfer case and causing secondary damage to the transmission and axles, with repair costs often exceeding $15,000 – this genuine housing prevents that risk.
By maintaining precise gear alignment, the housing reduces internal friction and power losses, directly improving fuel economy by up to 2‑3%.
Eliminating oil leaks also reduces environmental contamination and the need for frequent top‑ups, saving on fluid and disposal costs.
Field data from a large iron ore mine showed a 45% reduction in driveline‑related downtime after standardising on genuine XCMG transfer case housings.
The housing’s robust construction ensures it lasts the full service life, offering excellent return on investment.
XCMG is committed to sustainable manufacturing, and the 860171421 Transfer Case Housing reflects this through its use of recyclable ductile iron and energy‑efficient production.
The housing’s extended service life (typically >15,000 hours) reduces material waste and the environmental impact of frequent replacements.
By preventing oil leaks, the housing also reduces contamination of soil and water on mine sites.
The cast iron is fully recyclable at end‑of‑life, supporting circular economy principles.
Choosing genuine XCMG driveline components supports responsible equipment management while delivering superior performance.
The housing’s ease of removal also facilitates efficient recycling.
The 860171421 Transfer Case Housing is stocked in XCMG’s regional distribution centres across North America, Europe, Asia, Africa, and Australia.
Each housing is palletised and protected with rust‑inhibitive coating and heavy‑duty packaging to prevent damage during transit.
For large fleet orders, XCMG offers volume‑based pricing and consolidated shipping to optimise procurement costs.
Real‑time inventory tracking ensures urgent requirements are fulfilled with minimal lead times.
The robust packaging protects the housing from physical damage and corrosion during storage.
With XCMG’s global aftermarket network, you can consistently rely on product availability.
Every 860171421 Transfer Case Housing is manufactured in an ISO 9001 and ISO 14001 certified facility with full material traceability.
Incoming castings are inspected for porosity, dimensional accuracy, and mechanical properties to ensure compliance.
During machining, critical dimensions are continuously monitored using CMM and precision gauges.
Sample housings from each batch undergo pressure testing, hardness verification, and metallurgical analysis.
Each housing is 100% inspected for surface defects, machined features, and coating quality before release.
Only housings that pass all quality checks are released, ensuring reliable performance.
Aftermarket or used transfer case housings often suffer from cracks, porosity, or worn bolt holes that lead to oil leaks, misalignment, and premature failure.
The genuine 860171421 is engineered to XCMG’s exacting standards, ensuring correct material, precise machining, and robust cast integrity.
Its superior strength and dimensional stability deliver long‑lasting performance, reducing maintenance and downtime.
Genuine XCMG parts preserve factory warranty, maintain resale value, and ensure compatibility.
Backed by XCMG’s global quality standards, trust this housing in the harshest conditions.
Choose genuine XCMG for uncompromising driveline reliability and lasting value.
The XCMG 860171421 Transfer Case Housing is an essential driveline component for any articulated dump truck, providing robust enclosure, precise alignment, and reliable oil containment for the power distribution system.
Its high‑strength ductile iron casting, precision‑machined surfaces, and durable coating deliver consistent performance, vibration damping, and long service life.
By restoring original driveline integrity, this housing reduces downtime, lowers maintenance costs, and extends the service life of your ADT.
Always source genuine XCMG parts from authorised dealers for guaranteed authenticity and quality.
Choose the 860171421 transfer case housing for dependable driveline performance and lasting operational peace of mind.
Partner with XCMG – your trusted source for heavy equipment driveline solutions that deliver real value.
OEM 860171421 – XCMG Transfer Case Housing – the definitive cast‑iron enclosure for your ADT’s driveline power distribution. Engineered for strength, machined for precision, and backed by global quality standards. Trust the original to protect your investment and maximise uptime.
