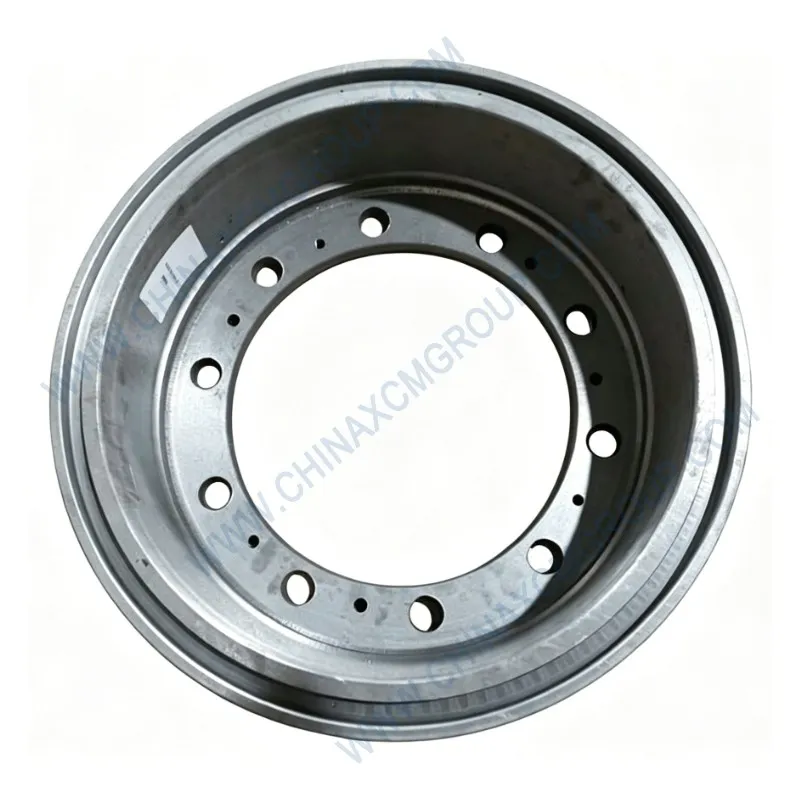

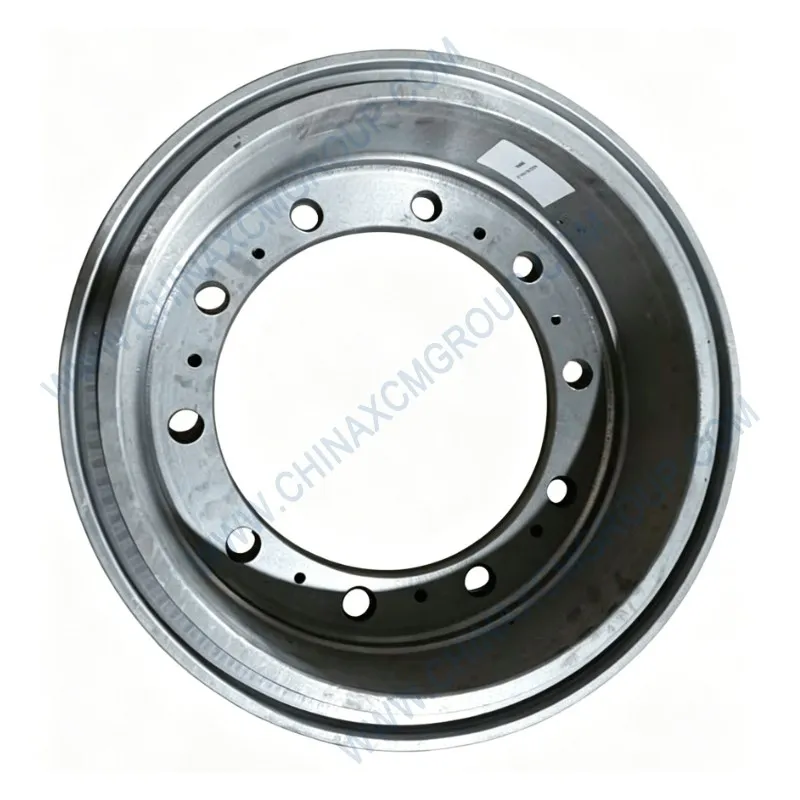

The genuine XCMG 860149743 Brake Drum is a precision‑cast, heavy‑duty spare part designed for XCMG GR series motor graders. This OEM brake drum provides reliable stopping power for the grader’s wheel brake system, converting kinetic energy into heat through friction with brake shoes. Manufactured from high‑grade grey cast iron (GG20/GG25) with optimized metallurgy for heat dissipation and wear resistance, the 860149743 brake drum withstands repeated thermal cycling without cracking or warping. The drum is dynamically balanced to minimize vibration during braking, ensuring operator comfort and consistent deceleration.
The 860149743 brake drum features a precision‑machined inner braking surface with a specified surface finish (Ra 1.6–3.2 μm) to provide optimal friction with XCMG original brake linings. The drum is vented or solid depending on the application, with integrated cooling ribs that enhance heat dissipation. The mounting flange is drilled to match the hub bolt pattern on GR135, GR165, GR180, GR215, GR260, GR300, GR350, and GR2003 graders. This spare part is a direct replacement for worn or cracked drums, restoring original braking performance and safety.
A worn or out‑of‑round brake drum reduces braking efficiency, causes pedal pulsation, and can lead to brake fade or failure. Replacing a damaged drum with genuine XCMG 860149743 restores smooth, effective braking and ensures operator safety. Keep this critical spare part in your inventory to minimize downtime during brake system repairs.
| Parameter | Specification |
|---|---|
| OEM Number | 860149743 |
| Brand | XCMG (Genuine Original Equipment) |
| Product Type | Brake Drum – Spare Part (Service Replacement) |
| Outer Diameter | 420 mm (±1.0 mm) |
| Inner Braking Diameter (Nominal) | 380.0 mm (new, standard wear limit 384.0 mm) |
| Drum Width (brake surface) | 120 mm (±0.5 mm) |
| Flange Bolt Pattern / PCD | 8 holes, 275 mm PCD, M16 studs |
| Material | High‑grade grey cast iron (GG25 / EN-GJL-250), grade 250 min tensile |
| Hardness (Brinnell) | 187–241 HB |
| Surface Finish (braking surface) | Ra 1.6–3.2 μm (machined, non‑directional) |
| Dynamic Balance | ISO 21940 G16 (max residual unbalance 150 g·mm) |
| Maximum Operating Temperature | 450°C (840°F) – intermittent braking |
| Heat Dissipation Features | Integral cooling ribs on outer circumference |
| Max Wear Limit (inner diameter) | 384.0 mm (4 mm oversize, replace immediately) |
| Compatible Brake Shoes | XCMG original brake shoe kit (lead‑free lining) |
| Standards Compliance | ISO 9001:2015, XCMG Q/XCMG 1150-2023 |
| Compatible Models | XCMG GR135, GR165, GR180, GR215, GR260, GR300, GR350, GR2003 |
| Superseded Part Numbers | 860149100, 860149200, 860149700, 860149740 |
The 860149743 brake drum is a vital component of the grader’s wheel brake system. It rotates with the wheel hub, and when the brake pedal is applied, brake shoes press against the inner surface, creating friction to slow or stop the machine. Proper drum condition is essential for effective braking, especially when grading on slopes or handling heavy loads.
Over time, the drum’s inner diameter wears, becomes out‑of‑round, or develops grooves and heat cracks (thermal crazing). A worn drum reduces the contact area with brake shoes, increasing stopping distance and risking brake fade. In extreme cases, a cracked drum can shatter, causing total brake loss and severe safety hazards. Regular inspection is mandatory.
XCMG designs the 860149743 drum with specific metallurgy to resist heat checking and maintain consistent friction. The cooling ribs improve heat dissipation, reducing the risk of brake fade during repeated stops. Replacing a worn drum with genuine OEM ensures the grader meets original braking performance standards, protecting operators and bystanders.
XCMG manufactures the 860149743 brake drum using a precision sand‑casting process with controlled cooling to achieve a uniform pearlitic structure. The grey cast iron grade GG25 offers high thermal conductivity, excellent damping capacity, and resistance to heat checking. Each casting is X‑ray inspected for porosity and internal defects before machining.
CNC vertical turning centers machine the outer diameter, mounting flange, and inner braking surface in a single setup to ensure concentricity within 0.05 mm. The braking surface is finish‑turned with a specific feed rate to achieve the required surface roughness (Ra 1.6–3.2 μm), which provides optimal bedding for new brake shoes. The drum is then dynamically balanced.
Quality control includes 100% dimensional inspection, hardness testing, and a runout check. Random samples are subjected to thermal cycling tests (from ambient to 500°C repeatedly) to verify crack resistance. XCMG’s foundry is ISO 9001 certified, and each 860149743 drum is stamped with a production date code and the XCMG logo for traceability.
When replacing a brake drum, always change both sides (left and right) to maintain balanced braking. Remove the wheel, then the drum retaining screws. Use a drum puller if the drum is seized due to rust. Inspect the brake shoes, wheel cylinders, and hardware – replace any worn parts simultaneously.
Clean the hub flange and apply a thin layer of anti‑seize compound to prevent corrosion. Install the new 860149743 drum, ensuring it rotates freely without dragging on the shoes. Adjust the brake shoe clearance to factory specification (typically 0.5–0.8 mm). Torque the wheel studs in a crossing pattern to the value in the service manual (approx. 450 Nm for M16 studs).
After installation, perform a static brake test: press the brake pedal several times to seat the shoes, roll the machine forward and stop, checking for even braking. Recheck drum temperature after a short test drive – abnormally high heat indicates dragging shoes. Keep spare 860149743 drums in your shop to support quick turnaround during brake overhauls.
Aftermarket brake drums often use lower‑grade cast iron (GG15 or recycled material) with inconsistent hardness. This leads to rapid wear, heat checking, and cracking within months. Many have poor concentricity, causing pedal pulsation and uneven brake lining wear. Genuine XCMG drums are made from GG25 with strict metallurgical control for maximum durability.
Counterfeit drums may have incorrect stud hole patterns or off‑center bores, making installation difficult or causing vibration. Some lack proper balancing, leading to wheel hop and premature bearing failure. Genuine XCMG 860149743 drums are dynamically balanced and dimensionally verified to match original grader hubs perfectly.
XCMG provides a 12‑month warranty against casting defects. Each drum is painted with a high‑temperature coating (up to 650°C) on external surfaces to resist corrosion. Using OEM brake drums reduces maintenance costs and enhances safety – the price difference is minimal compared to the cost of a brake‑related accident or downtime. Always insist on genuine replacement parts.
Visual indicators: heat cracks on the inner braking surface (visible as small jagged lines), deep grooves, scoring, or a bluish discoloration indicating extreme overheating. Audible indicators: grinding or scraping noise when braking, which may indicate the drum is worn beyond the maximum diameter and the shoe metal is contacting the drum.
Preventive replacement is recommended every 4,000 operating hours or when the inner diameter exceeds 384.0 mm (4 mm over new). During every brake inspection, measure the drum diameter at several points using an inside micrometer – if the drum is out‑of‑round by more than 0.3 mm, replace it. Never machine (turn) a worn drum beyond the wear limit; replacement is mandatory.
Keep a stock of 860149743 drums in your fleet warehouse. When replacing brake shoes, always inspect the drum and replace if any doubt exists. Combining old drums with new shoes reduces braking effectiveness and may cause the shoes to bed unevenly. A proactive approach to brake component replacement ensures maximum safety and lowest total cost of ownership.
The XCMG 860149743 Brake Drum is stocked in regional distribution centers: Houston (USA), Rotterdam (Netherlands), Dubai (UAE), and Shanghai (China). Standard air freight delivers within 2–5 business days worldwide. Express courier (DHL/FedEx) provides 1–2 day shipping for emergency brake repairs.
Bulk orders of 5+ drums receive volume discounts and can be shipped by sea freight. Each drum is packed in a heavy‑duty foam‑lined carton with desiccant bags to prevent rust. For large fleets, consignment stock programs ensure immediate availability. Our parts specialists provide technical support for brake system diagnosis. Export documentation and customs clearance assistance are available.
Don’t compromise safety with worn or cracked brake drums. Order the genuine XCMG 860149743 Brake Drum (Spare Part) today and restore reliable stopping power to your motor grader. This component is critical for operator safety and machine control – only OEM quality guarantees the performance you need.
Upgrade your grader’s braking reliability with XCMG genuine brake drums. Engineered for high thermal capacity, dimensional precision, and durability. Use the buttons above to request a quote or email our parts specialists. Keep your XCMG grader safe and productive – choose 860149743 OEM drum.
