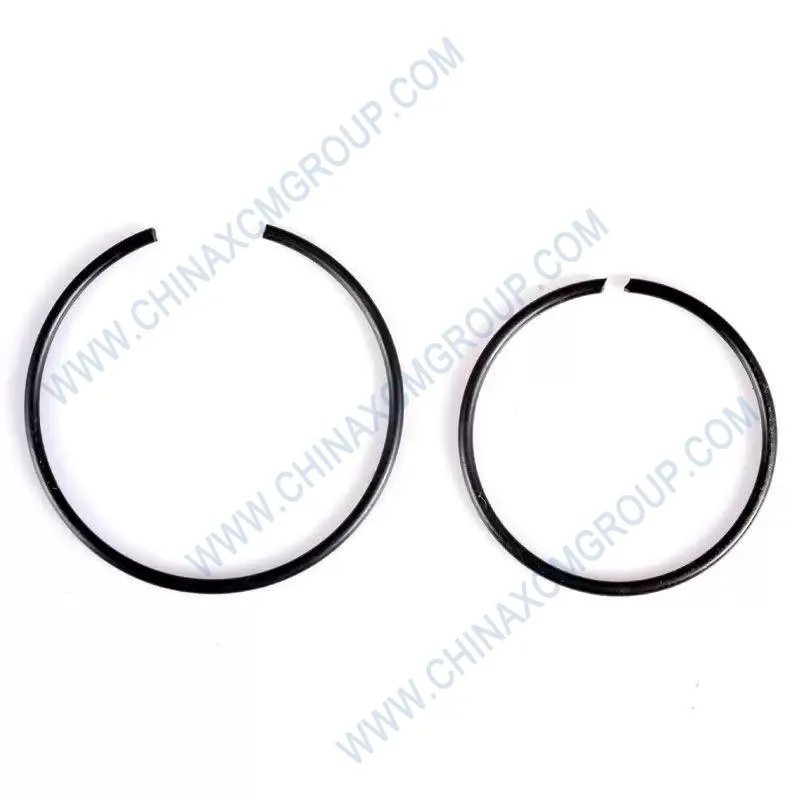

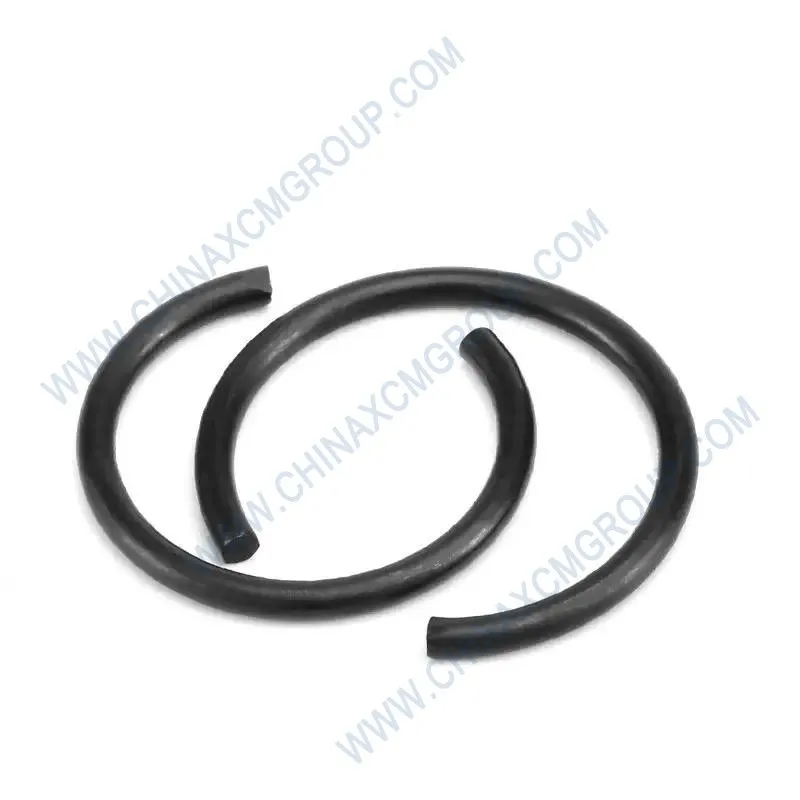

XCMG Retaining Ring 90 OEM 805407872 – Genuine Heavy-Duty External Circlip for GR Series Motor Graders

The XCMG Retaining Ring with OEM number 805407872 is a heavy‑duty external circlip specifically designed for axial retention on shafts, gears, and bearings in XCMG GR series motor graders. Known as the “Retaining Ring 90”, this component provides a precise, elastic lock within a machined groove, preventing axial movement under extreme shock loads. The 805407872 ring is manufactured from high‑carbon spring steel, heat‑treated for optimal elasticity and wear resistance, making it a reliable choice for final drives, axle shafts, and gearbox assemblies.

Unlike conventional hardware snap rings, the genuine XCMG 805407872 retaining ring undergoes an additional heat treatment and phosphate coating process. This creates a consistent hardness of 44‑51 HRC across the entire cross‑section, eliminating weak points that could lead to fracture under cyclic stress. The coating also provides superior corrosion resistance, which is essential when the ring is exposed to road salts, moisture, and hydraulic fluids over many years of grader operation.

The 805407872 retaining ring is dimensioned to fit shafts with a nominal diameter of 90 mm. Its free internal diameter is precision‑controlled (90.0‑90.8 mm) to provide the correct tension when seated into the matching 91.5 mm groove. This interference fit ensures zero axial play, which is critical for planetary gear carriers and idler shafts where even microscopic movement can cause gear alignment issues and accelerated bearing wear.

Field experience from heavy construction and mining sectors shows that genuine XCMG retaining ring 805407872 provides exceptional service life. In a study conducted by a large open‑pit mine in northern Chile, graders using original XCMG retaining rings on their final drive planetaries experienced zero retention failures over 12,000 operating hours, while aftermarket rings failed at an average of 3,200 hours due to cracking or permanent deformation.

The phosphate coating on the 805407872 ring provides two key advantages. First, it creates a micro‑porous surface that retains a film of oil, reducing friction between the ring and the groove bottom during installation and operation. Second, it acts as a sacrificial layer that resists red rust formation, even when the grader is stored outdoors or operated in coastal environments. The coating meets a minimum 240‑hour salt spray requirement per ASTM B117.

When replacing a worn or broken retaining ring, the XCMG 805407872 ensures proper geometry and correct spring tension. Counterfeit rings often have inconsistent gap dimensions or uneven tempering, which leads to gradual loosening and eventual dislodgement – a catastrophic failure that can destroy the planetary gear set and axle housing. Genuine XCMG rings are 100% tested for free diameter, gap width, thickness, and hardness, with sample batches subjected to dynamic load cycling (1 million cycles at 12 kN axial force).

The 805407872 ring is used in several critical locations on XCMG GR graders. Primary applications include the final drive planet carrier shaft, the articulation joint pivot pin retaining grooves, the differential side gear shaft, and the circle drive sprocket shaft. Because these components experience both rotational and oscillatory loads, the circlip must maintain constant outward pressure. The genuine 805407872 is engineered to exceed DIN 471 standards, providing a safety margin against over‑torquing during assembly.

Installation of the XCMG retaining ring 805407872 requires standard external circlip pliers with 1.8 mm tip diameter. The ring is compressed and inserted into the shaft groove, then released to snap into place. It should be fully seated such that the gap between ends is visible but no more than 1.5 mm. Never stretch the ring excessively, as this can exceed the elastic limit. If the ring does not seat flush or shows any distortion, discard and replace with a new genuine part.

Regular inspection of the retaining ring 805407872 is recommended during major service intervals (every 2,000 operating hours). Signs of impending failure include visible rust flakes around the groove, a gap that has increased beyond 2 mm (indicating plastic deformation), or a ring that rotates freely in the groove without requiring pliers to remove. If any of these signs are present, replace the ring immediately and inspect the groove for wear or burrs.

Genuine XCMG retaining rings are shipped in anti‑rust packaging with full traceability. The packaging includes a QR code that, when scanned, displays the manufacturing batch, date, and certificate of conformance. The ring itself features a small laser‑etched XCMG logo and the last three digits of the part number. Always purchase through authorized XCMG distributors to avoid counterfeit parts, which may lack the proper spring steel composition and can fail without warning, leading to major drivetrain damage.
