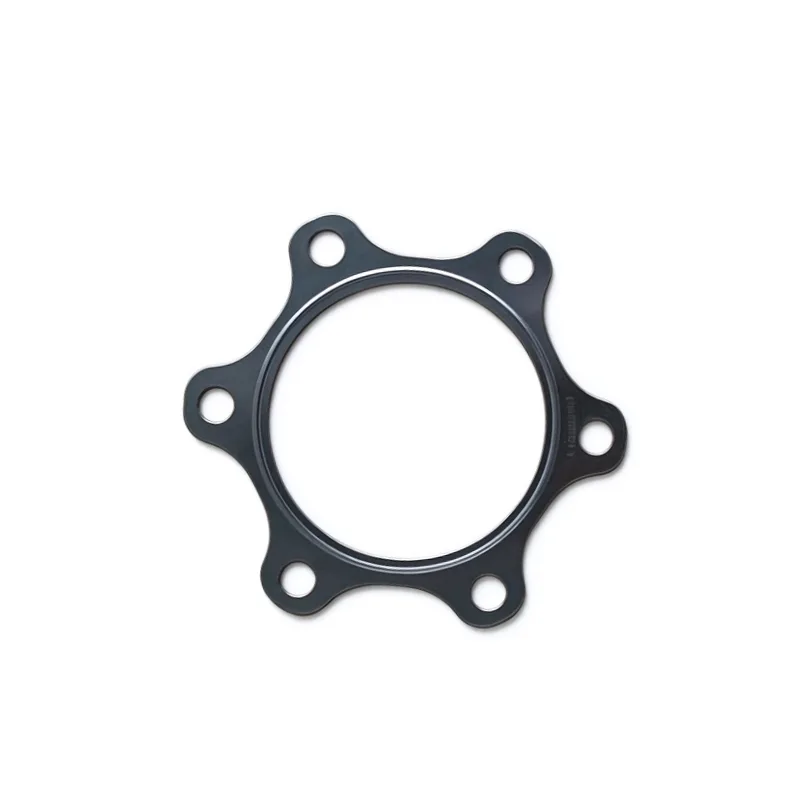

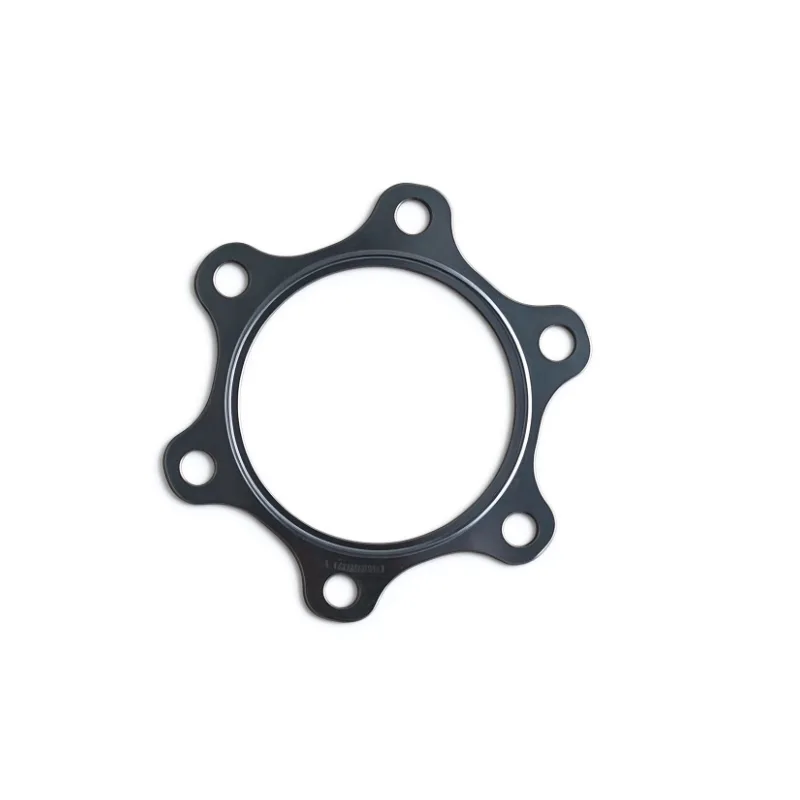

OEM 860149611 The XCMG Flange Gasket 860149611 is a genuine OEM sealing gasket engineered to stop hydraulic oil leakage at bolted flange joints on XCMG excavators.
Identified by part number 860149611, this factory-made gasket is compressed between two flange faces, filling surface imperfections and holding a pressure-tight seal.
It is cut from oil-resistant, high-compressibility sheet material with accurate bolt holes and bore, so it seats flat without blocking oil flow.
Exact OEM outline, thickness, and hole spacing allow direct replacement without trimming, adding sealant, or modifying the flange faces.
By sealing evenly under clamp load, this flange gasket protects pumps, valve blocks, and pipe connections from weeping, pressure loss, and contamination.
The 860149611 Flange Gasket is cut from oil-resistant sheet material that keeps its sealing properties in hot hydraulic oil service.
High compressibility lets the gasket flow into small machining marks and scratches on the flange faces, so oil cannot find a leak path.
Good recovery means the gasket springs back as pressure cycles, which keeps the joint tight between service intervals.
Accurate bore and bolt holes match the OEM flange, so the gasket does not intrude into the oil passage or cover a bolt hole.
Uniform thickness keeps clamp load even across the flange, which prevents distortion and localized over-compression.
Exact OEM dimensions allow direct replacement without trimming or sealant, keeping the repair clean and quick.
Production starts with certified sheet material checked for thickness, compressibility, tensile strength, and oil resistance before cutting.
Dies are made to the XCMG drawing, so the bore, outer contour, and bolt holes are punched cleanly with no ragged edges.
Cut gaskets are checked for dimensional accuracy, flatness, and edge quality, because burrs or tears can start a leak.
Finished parts are dusted or bagged so they stay clean and do not stick together during storage and transport.
Batch records let XCMG trace every 860149611 gasket back to its sheet lot and die cut run, so quality questions are resolved fast.
A flange gasket is the soft interface between two rigid metal faces, and it is the part that actually holds the oil in.
Metal faces are never perfectly flat, and without a compressible gasket, oil will seep through the microscopic gaps.
The genuine 860149611 fills those gaps evenly, so pressure stays stable and pumps, valves, and cylinders get full flow.
A correct gasket also prevents air from entering the circuit, which avoids noisy operation and erratic actuator movement.
Stopping leaks protects the surrounding paint, wiring, and ground from oil contamination and keeps inspection areas clean.
The 860149611 Flange Gasket installs with standard wrenches, adding only minutes to a normal flange repair.
Park the excavator on firm level ground, lower the attachment, release hydraulic pressure, and lock out the machine before work.
Clean both flange faces, remove the old gasket residue, and inspect for deep grooves or corrosion that could prevent sealing.
Position the new gasket so the bolt holes align, then bring the flanges together without twisting or pinching the gasket.
Tighten the bolts evenly in a cross pattern to the manual torque, then start the engine and check for weeping at the joint.
During routine maintenance, replace the gasket whenever a flange is opened, and never reuse a compressed or damaged gasket.
Every 860149611 gasket is produced in an ISO 9001 and ISO 14001 certified plant with traceability from sheet to packed carton.
Incoming sheet material is tested for thickness and oil resistance, and finished gaskets are measured for bore, outline, and holes.
During production, die condition and sample dimensions are monitored so drift is corrected before parts leave the line.
Post-production checks include visual inspection, dimensional verification, and a trial fit on the XCMG flange fixture.
Sample gaskets from each batch undergo compression and oil soak tests to confirm long-term sealing performance in the field.
Low-cost aftermarket gaskets often use low-grade sheet that hardens, crumbles, or bleeds oil through the material.
A gasket with the wrong thickness or hole spacing can block the oil passage or pinch at the bolts, which causes a leak.
The genuine 860149611 is cut to the XCMG drawing, so bore, outline, thickness, and material match the original part exactly.
Using genuine XCMG parts also preserves warranty coverage, protects resale value, and maintains compatibility with other OEM components.
Backed by XCMG global quality standards and technical support, this flange gasket delivers dependable sealing in harsh conditions.
Choosing the genuine 860149611 gasket prevents a small flange weep from turning into a major hydraulic repair on site.
A leaking flange can cause oil loss, pressure drop, and heat build-up that damages pumps and valves.
Durable material and correct compressibility keep sealing performance consistent across a long service life, reducing replacement frequency.
Reliable sealing also protects surrounding components and fluid life, lowering the total cost of ownership for fleet operators.
Fleet records from construction and mining operations show genuine XCMG gaskets help cut leak-related downtime significantly.
XCMG applies sustainable manufacturing to the 860149611 gasket through efficient die cutting and reduced material waste.
The long service life of the gasket reduces material consumption and lowers the environmental footprint of replacement parts.
Preventing hydraulic oil leaks protects soil and groundwater and supports compliance on sensitive construction sites.
Fibre and rubber materials in this component comply with RoHS and REACH rules for safe handling and responsible disposal.
The 860149611 Flange Gasket is held in XCMG regional distribution centres across North America, Europe, Asia, and Australia.
Each gasket is bagged between flat boards and packed in a sturdy carton that protects it from bending, moisture, and dust.
For fleet-wide orders, XCMG provides volume pricing and consolidated freight options that simplify planning and reduce cost.
Real-time stock visibility and dedicated supply chain support help fill urgent requests quickly, shortening downtime on active projects.
Robust packaging preserves factory condition until installation, preventing the creases and tears common in stored gaskets.
The XCMG Flange Gasket 860149611 is a vital sealing component for XCMG excavators, keeping hydraulic oil inside flange joints in demanding conditions.
Its oil-resistant sheet, accurate outline, and high compressibility deliver dependable sealing in hot, wet, and dusty environments.
By preventing leaks and pressure loss, this gasket reduces downtime, lowers maintenance costs, and extends machine service life.
Always purchase genuine XCMG parts from authorised dealers to guarantee authenticity, quality, and performance for your equipment fleet.
Choose the 860149611 Flange Gasket for dependable sealing and lasting operational peace of mind.
Partner with XCMG, your trusted source for heavy equipment seals and hydraulic components that deliver real value.
OEM 860149611 – XCMG Flange Gasket – the definitive hydraulic flange gasket solution for your excavator pipe, valve block, and pump connections. Engineered for compression and recovery, designed for exact fitment, and backed by global quality standards. Trust the original to protect your investment and maximise uptime.
