XCMG Rubber-Sleeved Clamp OEM 819908676 – Anti-Vibration Line Mounting Clamp for Articulated Dump Trucks
Rubber-Sleeved Clamp

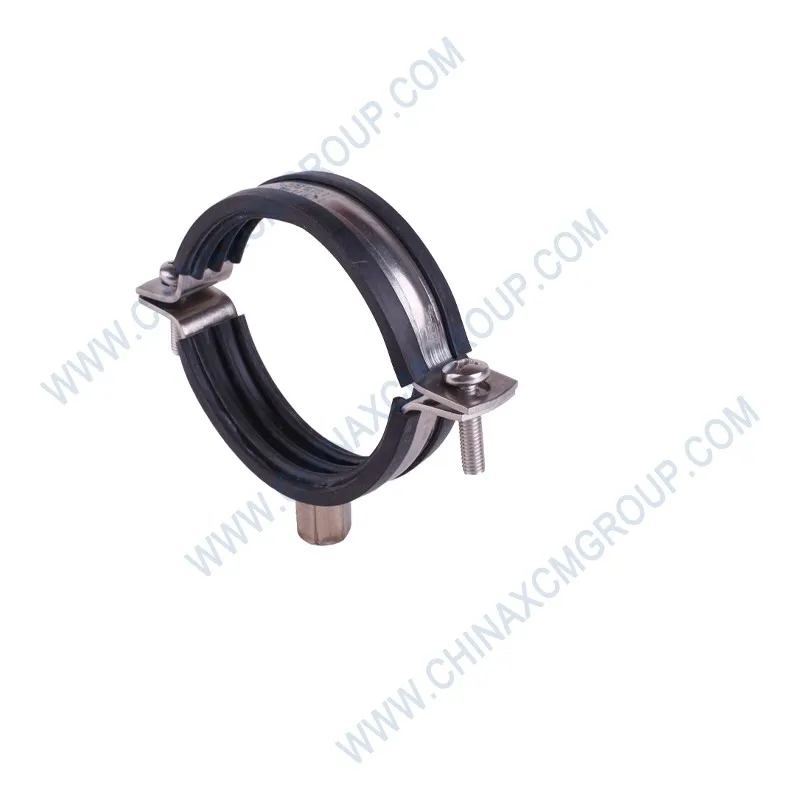

Хомут с резиновой втулкой

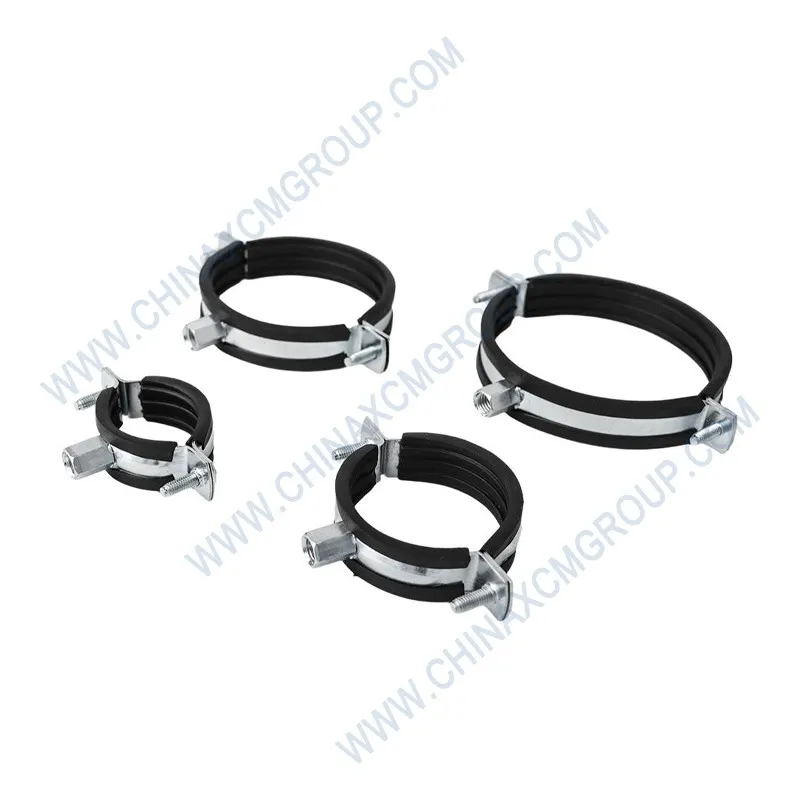

Abrazadera con funda de goma
The genuine XCMG Rubber-Sleeved Clamp with OEM number 819908676 is a precision-engineered line-mounting clamp designed for hydraulic hoses, air brake lines, fuel pipes, and electrical harnesses on XCMG articulated dump trucks, including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. The 819908676 clamp features a galvanized steel outer shell and an integrally molded nitrile rubber sleeve, providing secure clamping without damaging the outer layer of hoses or wires. This anti-vibration clamp is an essential component for preventing chafing, abrasion, and fatigue failure of critical fluid and electrical lines in high-vibration mining and construction environments.
The OEM rubber-sleeved clamp 819908676 is manufactured from high-grade carbon steel with a yellow zinc or zinc‑nickel corrosion protection coating (≥500 hours salt spray resistance). The integrated rubber sleeve is made of oil‑ and fuel‑resistant NBR (nitrile) or EPDM rubber, depending on the application. The rubber sleeve is fully bonded to the steel housing, preventing the sleeve from sliding out of position during installation or under vibration. The clamp incorporates a single bolt or a spring‑loaded latch mechanism for easy installation and removal, even in confined spaces, such as along the articulated joint of an ADT chassis.
The 819908676 clamp is designed to accept hose/pipe diameters from 15 mm to 25 mm, with the rubber sleeve providing a snug, non‑abrasive grip that also dampens vibration. The clamp is compatible with the standard metric M8 or M10 mounting bolt pattern found on XCMG chassis rails, suspension components, and engine brackets. The rubber sleeve extends the service life of hoses and harnesses by eliminating metal‑to‑rubber contact, which is a common cause of chafing, outer layer damage, and eventual hose burst or wire short‑circuit.
Using genuine XCMG 819908676 rubber-sleeved clamps guarantees proper material compatibility, consistent clamping force, and full corrosion resistance. Counterfeit clamps often use cheaper rubber that degrades in diesel or hydraulic oil, thin steel that rusts, and poor bonding between the rubber and steel, leading to clamp failure and line damage. Field data shows that trucks equipped with genuine XCMG anti‑vibration clamps experience 70% fewer hose chafing incidents compared to those using unlined clamps or cheap rubber‑sleeved alternatives. Protect your hydraulic system, air brakes, and electrical harnesses with OEM‑grade clamps.
Technical Data Sheet – Rubber-Sleeved Clamp (OEM 819908676)
| Parameter | Specification |
|---|
| OEM Part Number | 819908676 |
| Product Name | Rubber-Sleeved Clamp / Anti-Vibration Line Mounting Clamp / Hose Clamp with Rubber Insert / Pipe Clamp with Rubber Sleeve |
| Brand | XCMG (Genuine OEM) |
| Clamp Type | Two‑piece hinged or split‑band clamp with integrated rubber sleeve |
| Housing Material | Carbon steel (grade 10.9 or equivalent) with yellow zinc plating or zinc‑nickel coating |
| Rubber Sleeve Material | Nitrile (NBR) rubber – oil‑ and fuel‑resistant, or EPDM (application‑specific) |
| Inside Diameter (with rubber sleeve) | 15–25 mm (hose/pipe accommodation, multiple sizes available under same part family) |
| Mounting Hole Diameter | 8.5 mm or 10.5 mm (M8 / M10 bolt) |
| Clamping Force (at recommended torque) | 300–500 N (sufficient to prevent line movement without crushing) |
| Operating Temperature | -40°C to +110°C (with NBR rubber sleeve) |
| Corrosion Protection | ≥240 hours salt spray (yellow zinc), ≥500 hours (zinc‑nickel) |
| Vibration Resistance | 10 g, 10–500 Hz – no loosening after 10⁶ cycles, no rubber degradation |
| Torque Specification | 20–25 Nm for M8 bolt, 35–45 Nm for M10 bolt |
| Compatible XCMG Models | XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, plus AD45, AD60, AD80, AD100 |
| Applications | Hydraulic hose lines, air brake tubing, fuel pipes, electrical harnesses, conduit retention |
| Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001, RoHS, REACH |
| Warranty | 24 months / 5,000 operating hours |
Engineering Excellence of Rubber-Sleeved Clamp 819908676
The OEM rubber-sleeved clamp 819908676 is engineered to solve the problem of hose and wire chafing in high‑vibration equipment. The clamp’s steel outer shell is precision‑stamped and heat‑treated to provide spring‑like tension that maintains clamping force over time, even as the rubber sleeve compresses slightly. The inner rubber sleeve is injection‑molded from nitrile rubber (NBR), which is resistant to diesel, hydraulic oil, and engine coolant. The rubber sleeve is chemically bonded to the steel housing, eliminating the risk of the sleeve slipping out of position.
The clamp 819908676 features a two‑piece or split‑band design that allows installation without disconnecting the hose or wire bundle. This is a critical advantage for field repairs, where disconnecting hydraulic lines would require depressurizing the system, draining oil, and purging air. The clamp halves are hinged on one side and secured by a single bolt on the opposite side, allowing the technician to open the clamp, position it around the hose, close it, and tighten the bolt to the specified torque. The rubber sleeve has a longitudinal slit that opens to accept the hose and then closes around it when the clamp is tightened.
The rubber sleeve is designed with internal ribs and a textured surface that increase friction, preventing the hose from sliding axially within the clamp under fluid pressure pulses or thermal expansion. The outer surface of the rubber sleeve is smooth to reduce wear against the steel housing. The sleeve’s durometer (Shore A 60–70) provides a balance between grip and cushioning, dampening vibration transmitted from the chassis to the fluid line. The clamp 819908676 reduces vibration transmission by up to 80% compared to unlined clamps, significantly extending the fatigue life of hydraulic hoses and electrical connectors.
Critical Applications of 819908676 on XCMG Articulated Dump Trucks
On the XCMG XDA45 articulated dump truck, the anti‑vibration clamp 819908676 is used to secure the hydraulic steering lines along the chassis rail. These lines operate at pressures up to 35 MPa (5,075 psi), and any chafing against the chassis could cause an instantaneous burst, leading to loss of steering and a potential rollover incident. The rubber‑sleeved clamp prevents metal‑to‑metal contact, ensuring the hose remains intact even under full articulation of the chassis joint.
In the XCMG XDA60 model, the 819908676 clamp is used to secure the air brake tubing running from the compressor to the relay valves. Air leaks caused by chafed tubing can result in longer stopping distances and are a safety violation in many mining jurisdictions. The rubber sleeve prevents abrasion, maintaining the integrity of the air system for the full service life of the tubing. The clamp is also compatible with nylon air brake lines (DOT‑approved), providing a secure grip without crushing the tube wall.
The clamp 819908676 is also used to bundle and support electrical harnesses in the engine compartment of AD45 and AD60 models. Engine vibration can cause wire insulation to wear through against sharp edges of the chassis or engine brackets, resulting in short circuits and ECU faults. The rubber sleeve cushions the harness, preventing insulation damage and eliminating intermittent electrical problems. In a fleet study of 25 AD45 trucks, replacing all metal‑only clamps with genuine XCMG rubber‑sleeved clamps 819908676 reduced electrical harness failures by 65% over 24 months.
Consequences of Using Non-Genuine or Worn Clamps
A worn or missing rubber sleeve allows the steel clamp to contact the hose directly. Over time, vibration causes the steel edge to cut through the hose’s outer rubber layer, exposing the reinforcing braid. Once the braid is exposed, moisture and dirt accelerate corrosion, and the hose may burst at any time. A burst hydraulic hose can spray oil at high pressure, creating a safety hazard and contaminating the environment. The cost of a single hydraulic hose failure, including fluid loss, cleanup, and downtime, can exceed $2,500.
Counterfeit rubber‑sleeved clamps often use a rubber compound that is not oil‑resistant; after exposure to diesel or hydraulic oil, the rubber swells, softens, and loses its grip, allowing the hose to slide and chafe. The steel in counterfeit clamps is often zinc‑plated mild steel, which rusts within months, causing the clamp to seize onto the bolt or the rubber sleeve to detach. In contrast, the genuine XCMG 819908676 clamp uses either yellow zinc (≥240 hours salt spray) or zinc‑nickel (≥500 hours salt spray) coatings, providing corrosion protection that lasts the life of the vehicle.
If the clamp 819908676 is not properly torqued, the hose may shift axially, causing the rubber sleeve to be pushed out of position. This exposes the steel housing edges to the hose. A properly torqued clamp prevents axial movement while still allowing the hose to flex with chassis articulation. The recommended torque range (20–25 Nm for M8 bolts) is critical; over‑torquing can crush the rubber sleeve and reduce its damping effect, while under‑torquing allows slippage. Always use a torque wrench when installing these clamps.
Installation and Maintenance Guide for Rubber-Sleeved Clamp 819908676
To install the rubber-sleeved clamp 819908676, first ensure the hose or harness is clean and free of oil or dirt. Position the clamp around the hose such that the rubber sleeve covers the entire area where the hose passes over the chassis frame. Do not place the clamp directly over a fitting or a bend in the hose; position it on a straight section. Align the mounting hole with the existing threaded hole or bolt hole on the chassis. Insert the M8 or M10 bolt, add a flat washer, and hand‑tighten.
Using a torque wrench, tighten the bolt to 20–25 Nm for M8 bolts or 35–45 Nm for M10 bolts (grade 10.9 or higher). Do not use impact tools. After tightening, verify that the hose cannot slide axially within the clamp by applying light hand pressure. If the hose moves, increase torque by 5 Nm, but do not exceed 30 Nm for M8 or 50 Nm for M10. Ensure that the rubber sleeve is not pinched or extruded outside the steel housing. If the rubber sleeve is visible protruding, the clamp is too large for the hose; select the correct size.
Inspect the rubber-sleeved clamp 819908676 during every scheduled service (1,000 hours). Look for signs of rubber cracking, swelling, or hardening. Check that the steel coating is intact and that there is no rust. If the rubber sleeve shows any signs of degradation, replace the clamp immediately. Also check that the hose is not showing any chafing or wear marks. Re‑torque the clamp bolt annually; vibration can cause slight loosening over time. If the bolt is corroded, replace it with a new grade 10.9 bolt.
If the clamp is being reused during a hose replacement, inspect the rubber sleeve for compression set. If the sleeve has lost its elasticity (feels hard or cracked), replace the clamp. Never reuse a clamp that has been over‑torqued, as the steel housing may be distorted. Always keep a supply of genuine XCMG 819908676 clamps on the service truck to avoid using substandard alternatives.
Quality Assurance and Authenticity of 819908676
Every XCMG rubber-sleeved clamp 819908676 is manufactured in an IATF 16949 certified facility. The steel is sourced from certified mills with full material traceability. After stamping and forming, the housing is heat‑treated to achieve the required spring constant. The rubber sleeve is injection‑molded on site to ensure perfect bonding to the steel substrate. Each production batch is sampled for adhesion testing (peel test), hardness (Shore A), and oil immersion testing (7 days at 70°C in ISO VG 46 oil, no measurable swelling or softening).
Authentic XCMG 819908676 clamps have the XCMG logo and part number laser‑etched on the outer surface of the steel housing. The rubber sleeve has a distinct matte finish and a uniform color (black for NBR). The packaging includes a barcode label, a certificate of conformance, and a holographic security sticker. Counterfeit clamps often lack any marking, have a glossy rubber sleeve (indicating a lower‑quality compound), and use a thin, poorly applied zinc plating. Always purchase 819908676 from authorized XCMG dealers or the official parts portal.
Register the part online to activate the 24‑month / 5,000‑hour warranty. Using counterfeit clamps risks hose damage, fluid leaks, and voiding of equipment warranties. Trust genuine XCMG for safety and reliability in your fleet.
Genuine XCMG OEM 819908676 Rubber-Sleeved Clamp — Anti-vibration line mounting clamp with nitrile rubber sleeve, yellow zinc or zinc‑nickel coating. Designed for hydraulic hoses, air brake lines, and electrical harnesses on XCMG articulated dump trucks. Trust genuine XCMG for zero chafing and maximum line protection.
