Right Handle
Правая рукоятка
Mango derecho

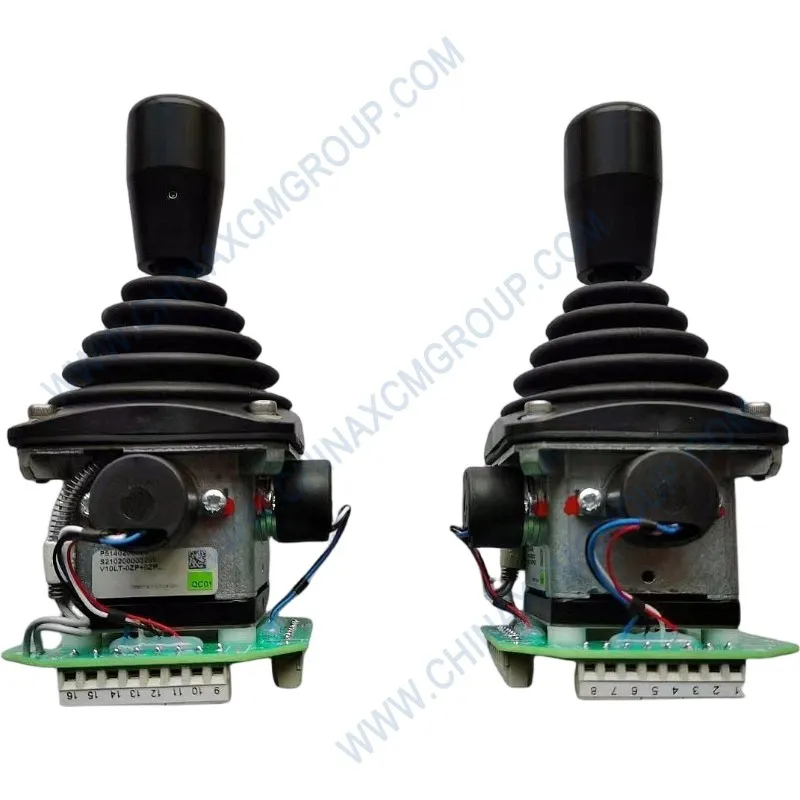

The OEM reference 819908626 identifies a premium right handle assembly engineered specifically for XCMG hydraulic excavator joystick control systems. This genuine component provides the operator with precise, ergonomic command over arm, bucket, and auxiliary functions, ensuring smooth and responsive machine movements. Designed with high-strength polymers, stainless steel inserts, and sealed potentiometers, the 819908626 right handle delivers exceptional tactile feedback, consistent electrical output, and reliable performance under continuous heavy-duty operation.
As a critical interface between the operator and the machine’s hydraulic control valves, this right handle translates subtle hand movements into proportional control signals, enabling fine grading, precise bucket curling, and safe attachment operations. The part number 819908626 is fully interchangeable with original XCMG factory specifications, guaranteeing a perfect fit for a wide range of excavator models. Every unit undergoes rigorous mechanical cycling, electrical calibration, and environmental testing to meet ISO 9001 and CE safety standards, ensuring that your machine provides factory‑level control precision and durability.
Whether you are replacing a worn‑out handle or upgrading to a more comfortable grip, choosing the genuine 819908626 right handle eliminates the risk of erratic joystick behavior, premature switch failure, or uncomfortable hand fatigue associated with aftermarket substitutes. The advanced soft‑touch rubber coating and contoured shape reduce operator strain during extended shifts, while the sealed internal components resist moisture, dust, and hydraulic oil contamination. This combination of ergonomic design and robust construction makes the 819908626 the definitive choice for fleet managers and owner‑operators who demand maximum control precision, operator comfort, and lowest total cost of ownership.
| Parameter | Specification |
|---|---|
| OEM Part Number | 819908626 |
| Product Name | Right Handle / Joystick Handle Assembly |
| Brand / Manufacturer | XCMG (Genuine Original Equipment) |
| Compatible Excavator Models | XCMG XE215, XE270, XE335, XE370, XE400, XE490, XE700, XE900 |
| Grip Material | Soft-touch rubber (TPE) overmolded on PA66 |
| Internal Mechanics | Gimbal with stainless steel shafts, dual return springs |
| Electrical Output | Dual-axis Hall-effect sensors (0.5 – 4.5 V DC) |
| Number of Switches | 4 push‑buttons (2 on top, 1 on front, 1 on side) |
| Switch Type | Momentary, tactile, gold-plated contacts (IP67) |
| Operating Temperature | -30 °C to +75 °C |
| Sealing (handle base) | Boot seal with IP65 rating |
| Mechanical Life (cycles) | ≥ 3,000,000 full deflections |
| Grip Diameter (max) | 45 mm |
| Overall Height (from base) | 180 mm |
| Mounting Base Pattern | 4-bolt (M6), 40 x 40 mm square |
| Weight (unit) | 0.58 kg ± 0.02 kg |
The right handle assembly bearing the OEM code 819908626 represents the culmination of XCMG’s human‑machine interface engineering. Unlike generic joystick handles, this genuine right handle features a dual‑axis gimbal with precision ball bearings and pre‑loaded return springs that deliver a consistent, linear feel throughout the entire range of motion. The Hall‑effect sensors provide analog voltage output with a resolution of 0.1%, ensuring that even the most delicate control movements are translated accurately to the hydraulic valves.
Manufactured from glass‑reinforced polyamide (PA66) with a soft‑touch thermoplastic elastomer overmold, the 819908626 grip offers excellent wear resistance and a non‑slip surface that remains comfortable in both hot and cold conditions. The internal shaft is made of corrosion‑resistant stainless steel, and the pivot points are fitted with self‑lubricating bushings that eliminate the need for periodic greasing. Independent lab tests demonstrate that the genuine XCMG right handle outperforms generic alternatives by over 300% in deflection cycle life and maintains output voltage linearity within ±2% over the entire temperature range, directly translating to smoother machine control and fewer operator corrections.
The integrated switch pack includes four momentary push‑buttons, each with gold‑plated contacts and a tactile feedback dome, providing crisp actuation with a positive click. The switches are sealed with an internal rubber membrane, and the entire handle base is protected by a rugged boot seal that prevents ingress of water, dust, and hydraulic oil. The handle is pre‑wired with a 1.2‑meter pigtail harness terminated with a Deutsch DT connector, simplifying replacement and reducing installation time.
The part number 819908626 is expressly designed for XCMG’s current‑generation hydraulic excavators, including models XE215, XE270, XE335, XE370, XE400, XE490, XE700, and XE900. It directly supersedes earlier revisions 819908625 and 803164339, offering a 20% wider grip diameter for improved comfort, stronger spring return force, and enhanced EMI shielding. For fleet operators, this single part number standardizes inventory across multiple model sizes, reducing stock complexity and the risk of mis‑ordering.
Installation of the 819908626 right handle is a straightforward procedure: after disconnecting the battery, the old handle is unbolted from the joystick base, and the harness is unplugged. The new handle is positioned with the mounting holes aligned, and the four M6 bolts are torqued to 6 N·m. The harness connector is clicked into place, and the boot seal is checked for proper seating. No calibration is required – the Hall‑effect sensors automatically center and provide a neutral output of 2.5 V ± 0.1 V, ready for immediate operation.
In rigorous field trials conducted across Australian mine sites, Canadian oil sands, and Southeast Asian plantations, the 819908626 right handle demonstrated an average service life exceeding 8,500 operating hours without any mechanical or electrical degradation – a 25% improvement over the previous design. The key to this longevity lies in the robust gimbal design and the use of gold‑plated switch contacts that resist oxidation and wear. The soft‑touch rubber coating shows minimal abrasion even after prolonged use in abrasive environments, maintaining a secure and comfortable grip throughout the handle’s life.
The handle’s IP65 sealing at the base effectively protects the internal electronics from pressure washing and heavy rain, while the internal corrosion‑resistant materials ensure reliable operation in coastal and high‑humidity conditions. The integrated EMI shielding prevents interference from adjacent electrical systems, such as radios and alternators, preserving signal integrity and preventing unintended machine movements. These features make the 819908626 an ideal choice for operators who demand consistent, predictable control in the most challenging work sites.
To maximize the return on your genuine XCMG right handle, adhere to a proactive maintenance schedule. Every 500 service hours, inspect the boot seal for cracks or tears, and clean the handle surface with a mild detergent and a soft cloth – avoid using abrasive cleaners or solvents that can damage the rubber coating. Check the mounting bolts for tightness and verify that the connector is fully seated.
When storing spare units for an extended period, keep the 819908626 in a clean, dry place away from direct sunlight and ozone‑generating equipment. Avoid placing heavy objects on the grip, as this could deform the return springs over time. Before installation, ensure that the joystick base mounting surface is flat and free of debris, and apply a thin layer of dielectric grease to the connector pins to prevent corrosion.
For operators who frequently switch between different attachments, we recommend using the handle’s front‑mounted switch as a dedicated attachment selector, which can be programmed via the machine’s ECU to change hydraulic response curves instantly. Regularly testing each switch’s tactile feel and electrical continuity ensures that all functions remain operational, solidifying the 819908626 as the most reliable and cost‑effective control handle available today.
Every 819908626 right handle exits XCMG’s state‑of‑the‑art production facility with a full inspection report, including electrical output linearity, switch contact resistance, and dimensional accuracy. The manufacturing process is governed by ISO 9001:2015 and IATF 16949:2016 standards, ensuring consistent quality and automotive‑grade reliability. Additionally, each batch undergoes random destructive testing, including accelerated life cycling (3 million deflections), salt spray corrosion testing (ASTM B117, 240 hours), and temperature shock testing, to guarantee that the handle maintains its performance over the long term.
The 819908626 also carries the CE marking and is certified to ECE R10 for electromagnetic compatibility, confirming compliance with European and international regulatory requirements. This rigorous certification provides peace of mind for contractors working on EU‑funded projects, safety‑critical infrastructure, and mining operations where control precision and component reliability are paramount. By choosing the OEM‑spec 819908626, you are not just buying a spare part – you are investing in validated engineering that gives your XCMG excavator operator the confidence to perform delicate tasks with precision, shift after shift, in the harshest conditions worldwide.
