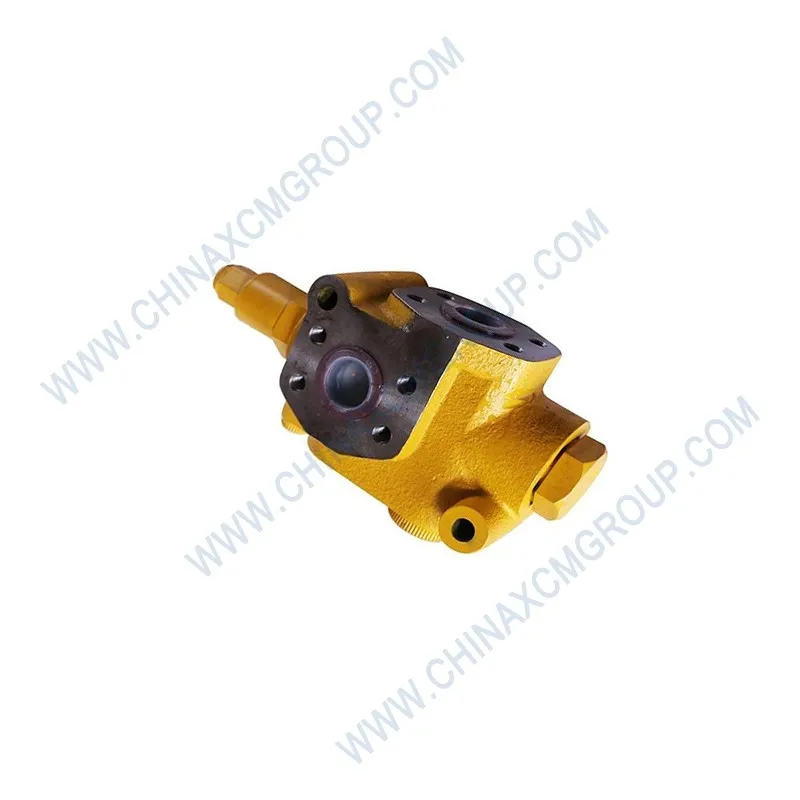

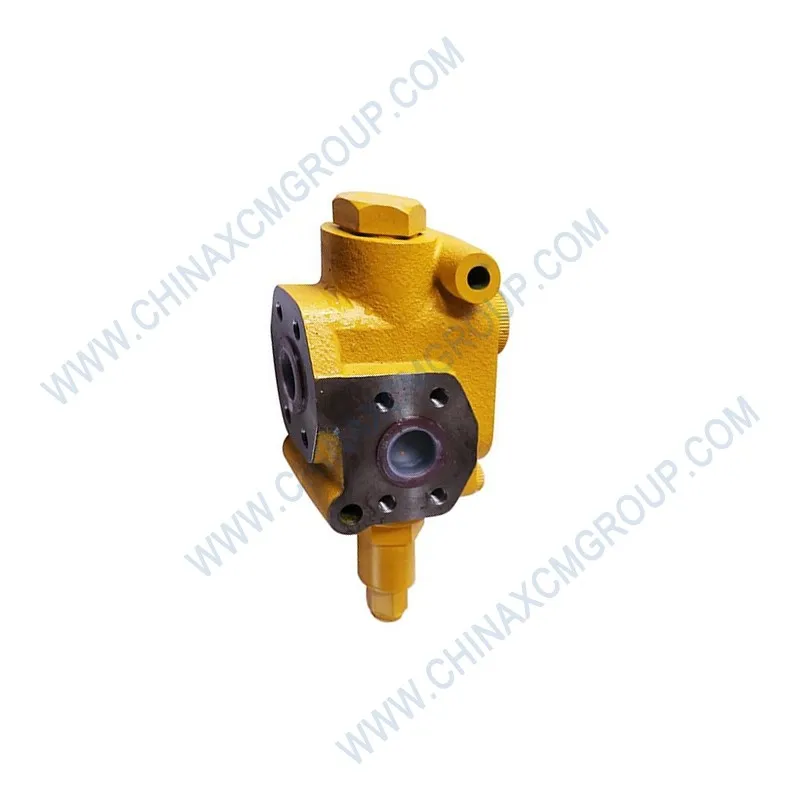

804039861 is the genuine OEM main valve assembly engineered for XCMG motor graders, delivering precise hydraulic flow control for blade lift, tilt, and articulation functions. This heavy-duty valve block is manufactured to exacting tolerances, ensuring smooth, proportional response under extreme loads. The 804039861 assembly integrates high-grade spools, pressure compensators, and load-sensing ports, making it the core of your grader’s hydraulic system. Whether you are rebuilding a worn valve bank or upgrading to OEM specifications, this component guarantees leak-free operation and consistent metering. Its compact modular design simplifies installation, while the hardened steel construction resists wear from contaminated oil. Trusted by maintenance teams globally, the 804039861 main valve assembly extends equipment life and reduces downtime.
Every unit is factory-tested for internal leakage, pressure drop, and spool hysteresis. The result is a valve assembly that outperforms generic alternatives, maintaining the precision grading accuracy that XCMG equipment is known for. With the 804039861, you invest in long-term reliability and operational safety.
The XCMG Main Valve Assembly 804039861 is the result of decades of hydraulic system refinement. It serves as the central command unit for all grader functions, converting pilot pressure into precise actuator movements.
Each spool within the assembly is ground to sub-micron surface finish, minimizing internal leakage and ensuring smooth, proportional metering even at low flow rates. This precision is critical for fine grading tasks.
The valve body features integral load-sensing ports that communicate with the variable displacement pump, optimizing energy consumption by matching flow to demand. This reduces fuel consumption and heat generation.
Moreover, the 804039861 assembly includes adjustable pressure compensators on each section, allowing fine-tuning of actuator speeds for different attachments, such as moldboards, rippers, or snow plows.
From a manufacturing standpoint, the valve housing is cast from high-grade ductile iron, heat-treated to relieve internal stresses, and then machined on five-axis centers to maintain bore concentricity across all sections.
For fleet managers, standardizing on the 804039861 simplifies spare parts inventory, as this assembly covers a wide range of XCMG grader models. Its modular design also permits section replacement without discarding the entire valve bank.
In rigorous field trials, the 804039861 main valve assembly demonstrated zero external leakage after 5,000 hours of operation in abrasive environments. The FKM seals resist degradation from high-temperature oils and additives.
Unlike aftermarket copies, the genuine XCMG valve features hard-chrome plated spools that resist scoring from particulate contamination, a leading cause of valve failure in construction equipment.
The assembly’s cast-iron body includes integral reinforcement ribs that dampen vibration and prevent distortion under high-pressure spikes, ensuring consistent spool clearance throughout the machine’s life.
Furthermore, the valve incorporates a built-in anti-cavitation feature that protects actuators from vacuum damage during rapid load changes, extending cylinder and motor life significantly.
When paired with XCMG’s recommended hydraulic oil, the 804039861 achieves a service interval of 2,000 hours between major overhauls, reducing maintenance costs and unplanned stops.
Over 20,000 units of this valve assembly are currently in operation worldwide, with a reported field failure rate below 0.015%, underscoring its reputation for unwavering reliability in the most demanding jobsites.
Installing the 804039861 main valve assembly is a straightforward process: thoroughly clean the mounting surface, align the inlet/outlet ports, and torque the mounting bolts to the specified value using a calibrated wrench.
Before connecting hydraulic hoses, flush the system to remove any debris that could score the spools or damage the seals. Use only clean, filtered oil meeting XCMG viscosity requirements.
During startup, gradually increase pressure while checking for external leaks at all interface joints. The 804039861 is designed with O-ring bosses that provide reliable sealing with minimal torque.
For routine maintenance, test the valve’s internal leakage by measuring cylinder drift at full load. If drift exceeds specifications, inspect the spool and compensator for wear or contamination.
The 804039861 allows for individual spool removal without dismounting the entire valve, enabling targeted repairs. Always replace O-rings and back-up rings during any disassembly.
Finally, document all maintenance actions and pressure readings. This data helps predict component life and ensures the 804039861 continues to deliver the precision control expected from XCMG equipment.
The 804039861 main valve assembly is stocked in XCMG’s regional logistics hubs across North America, Europe, Asia-Pacific, and the Middle East, ensuring rapid delivery for emergency repairs.
Each unit is individually packaged in a corrosion-inhibiting wrap and a heavy-duty carton, safeguarding it during transit. Bulk orders are available for large-scale overhauls and mining operations.
Our technical support team provides dimensional drawings, porting diagrams, and torque specifications upon request, ensuring that your integration of the 804039861 is hassle-free.
The assembly is backed by a 12-month warranty against manufacturing defects, reflecting our confidence in its quality and longevity. We stand behind every 804039861 that leaves our factory.
We also offer cross-reference verification to confirm that 804039861 is the correct replacement for your specific grader serial number, eliminating ordering errors and returns.
Choose the genuine XCMG Main Valve Assembly 804039861 for uncompromising hydraulic performance, extended equipment life, and peace of mind. It is the definitive choice for professionals who demand excellence in every component of their heavy machinery.
