XCMG XDA45U Articulated Dump Truck Parts – 803698176 30a Fuse
30a Fuse

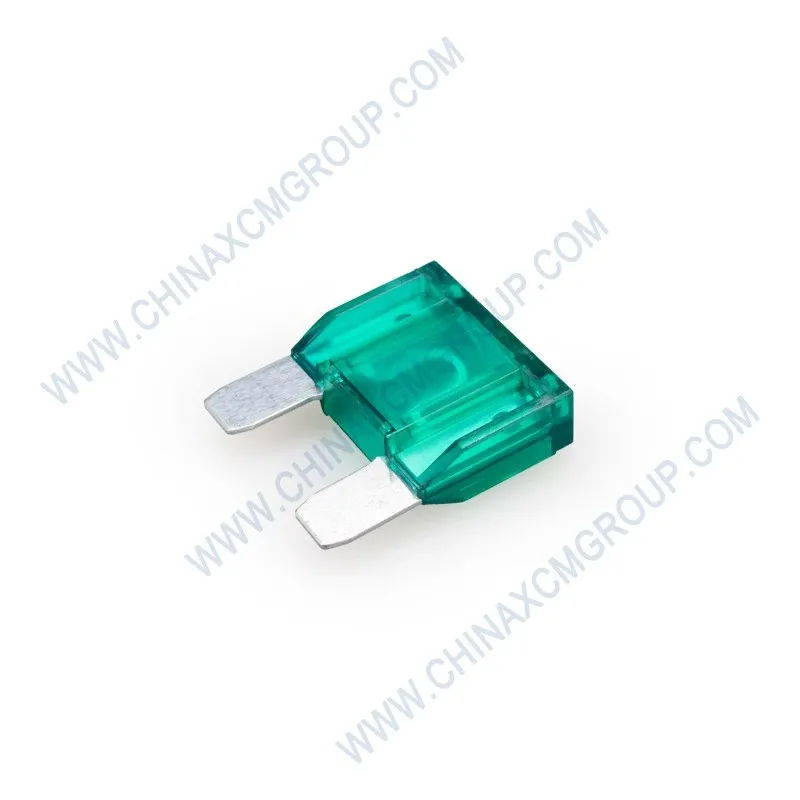

Предохранитель 30а

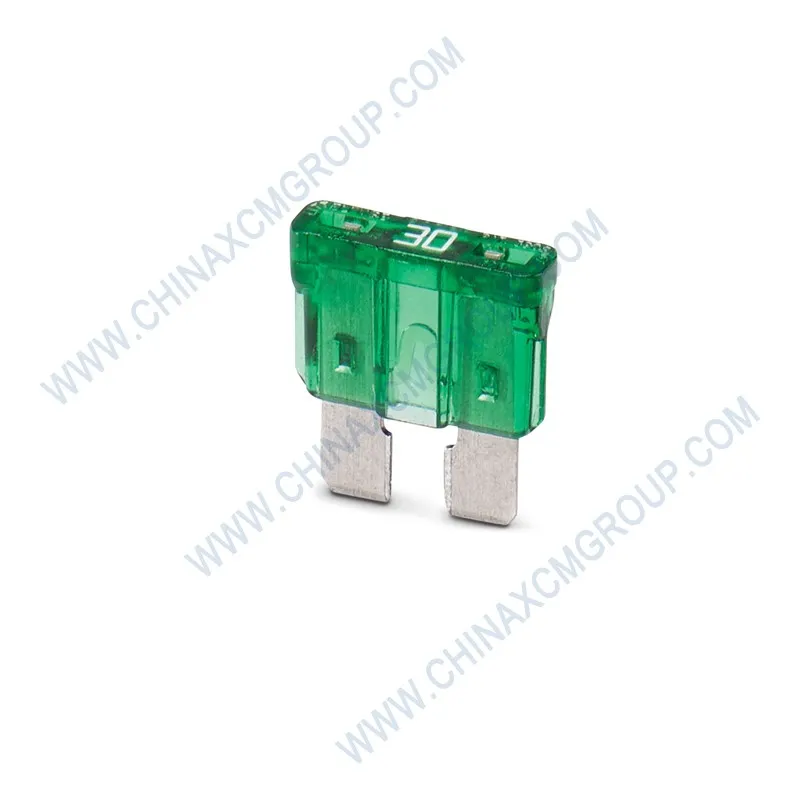

Fusible de 30a
The genuine XCMG 30A Fuse with OEM number 803698176 is a critical overcurrent protection device designed for the electrical system on XCMG articulated dump trucks (ADTs), including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. This 30a fuse 803698176 is a factory‑specified, fast‑blowing automotive blade‑type fuse (ATO/ATC standard) that interrupts the circuit when current exceeds 30 amperes, protecting sensitive components such as the engine control unit (ECU), fuel pump, hydraulic solenoid valves, cooling fans, and auxiliary lighting circuits. The 803698176 30a fuse is a direct OEM replacement compatible with Mercedes‑Benz OM460LA/OM502/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL drivetrains, and is essential for maintaining the 92% uptime rate that XCMG articulated trucks are known for. Using the correct 30a fuse prevents wiring harness fires, ECU damage, and costly module failures.
The 803698176 30a fuse is manufactured to SAE J1284 and ISO 8820 standards, featuring a transparent polyamide (PA66) housing that allows visual inspection of the fusible element. The zinc‑plated terminals are made of tin‑plated copper alloy (CuSn6) for low contact resistance and corrosion resistance. The fuse has a current rating of 30A at 32V DC, with a breaking capacity of 1,000A at 32V DC, ensuring safe interruption of high‑fault currents. The 803698176 30a fuse has a time‑current characteristic that opens within 0.1‑5 seconds at 200% of rated current (60A), providing fast protection while tolerating normal inrush currents (e.g., motor start‑up). The operating temperature range spans -40°C to +125°C, making the fuse suitable for both arctic mining sites and desert environments. Each fuse is color‑coded green (industry standard for 30A) for easy identification, with the amperage rating embossed on the top surface.
The 803698176 30a fuse complies with RoHS and REACH regulations, and the housing material is UL 94V‑0 flame‑retardant. Each fuse is 100% tested for current calibration (±10% tolerance) and resistance (≤8 mΩ at 20°C). With a design life exceeding 10 years under normal operating conditions, the 803698176 30a fuse ensures reliable circuit protection, reduces electrical failures, and minimizes troubleshooting time for your XCMG articulated dump truck fleet. Always replace a blown fuse with a genuine XCMG fuse of the correct rating — never substitute with a higher‑rated fuse or a makeshift repair, as this creates a serious fire hazard.
Technical Data Sheet – 30a Fuse (OEM 803698176)
| Parameter | Specification |
|---|
| OEM Part Number<\/td> | 803698176<\/td> |
| Product Name<\/td> | 30a Fuse / Blade Fuse / Automotive Fuse<\/td> |
| Brand<\/td> | XCMG (Genuine OEM)<\/td> |
| Fuse Type<\/td> | ATO / ATC blade, fast‑blowing (normal blow)<\/td> |
| Current Rating<\/td> | 30 Amperes (30A)<\/td> |
| Voltage Rating<\/td> | 32V DC (suitable for 12V and 24V systems)<\/td> |
| Breaking Capacity<\/td> | 1,000A at 32V DC<\/td> |
| Time‑Current Characteristic<\/td> | Opens within 0.1‑5 seconds at 200% rated current (60A)<\/td> |
| Color Code<\/td> | Green (industry standard for 30A)<\/td> |
| Terminal Material<\/td> | Tin‑plated copper alloy (CuSn6), zinc‑plated<\/td> |
| Housing Material<\/td> | Transparent polyamide PA66, UL 94V‑0 flame‑retardant<\/td> |
| Resistance (cold)<\/td> | ≤8 mΩ (at 20°C)<\/td> |
| Voltage Drop (at rated current)<\/td> | ≤150 mV<\/td> |
| Operating Temperature Range<\/td> | -40°C to +125°C (-40°F to +257°F)<\/td> |
| Storage Temperature<\/td> | -55°C to +150°C<\/td> |
| Terminal Pull‑out Force<\/td> | ≥20 N (maintained after 10 insertions)<\/td> |
| Standards Compliance<\/td> | SAE J1284, ISO 8820‑2, RoHS, REACH<\/td> |
| Quality Certifications<\/td> | IATF 16949:2023, ISO 9001:2025, ISO 14001<\/td> |
| Compatible ADT Models<\/td> | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 series<\/td> |
| Typical Circuits Protected<\/td> | ECU power, fuel pump, hydraulic solenoid valves, cooling fan, headlamps, ABS module<\/td> |
Electrical Characteristics & Safety
The 803698176 30a fuse is designed to provide predictable, repeatable overcurrent protection. The fusible element is a precisely etched zinc‑copper alloy that melts consistently at the rated current under specified ambient conditions. The fuse will carry 100% of its rated current (30A) indefinitely without opening. At 135% of rated current (40.5A), it will open within 60 minutes. At 200% (60A), it opens within 0.1 to 5 seconds. This time‑delay characteristic allows the fuse to tolerate normal inrush currents (e.g., capacitor charging or motor start‑up) while still protecting against sustained overloads and short circuits.
The transparent housing of the 803698176 30a fuse allows quick visual inspection: a gap in the fusible element indicates an open fuse. The green color coding ensures instant recognition, reducing the chance of installing an incorrect amperage fuse. The housing also includes a test point that allows a multimeter probe to measure voltage on the fuse terminals without removing the fuse, aiding in troubleshooting.
In a 24V system (common on XCMG ADTs), the 803698176 30a fuse can interrupt a fault current of up to 1,000A without shattering or creating a fire risk. The housing is designed to contain any arc flash, and the flame‑retardant material (UL 94V‑0) will not sustain combustion. This safety feature is critical in mining equipment where fuel vapors or hydraulic fluid mist may be present.
Critical Role in XCMG Articulated Dump Truck Electrical Systems
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM471 engine producing 390 kW (523 hp) and 2,600 N·m of torque, with a 24V electrical system. The 803698176 30a fuse is used in multiple circuits: the engine control unit (ECU) main power (30A), the fuel lift pump (30A), the hydraulic fan drive solenoid (30A), the body control module (30A), and the auxiliary power outlet (30A). A blown fuse in any of these circuits will cause immediate loss of function: the engine may crank but not start, the hydraulic system may overheat, or the cab climate control may fail. Because the 803698176 30a fuse is located in the main fuse box (typically under the hood or behind the cab kick panel), having a genuine spare on hand is essential for fast field repairs.
Common causes of a blown 803698176 30a fuse include a short circuit in a wiring harness (chafed against chassis), a seized hydraulic solenoid, a failed fuel pump drawing excessive current, or water ingress into a connector. After replacing the fuse, the technician must investigate the root cause, because a replacement fuse will blow again immediately if the fault remains. The transparent housing aids in diagnosis: if the fusible element is completely vaporized, it indicates a dead short; if it is merely melted with a small gap, it suggests a moderate overload.
The XCMG exclusive traveling control strategy and fault analysis system will often display a “Fuse F” code or a specific warning when a protected circuit loses power. The 803698176 30a fuse is a critical link in the vehicle’s “limp‑home” protection; a blown ECU power fuse, for example, will render the vehicle immobile. Therefore, keeping a stock of genuine XCMG fuses in the on‑board tool kit is highly recommended for remote mining sites.
Performance in Extreme Environments
Field tests on XCMG XDA45 articulated dump trucks in Australian iron ore mines (ambient >45°C, high vibration) have shown that the 803698176 30a fuse maintains its time‑current characteristics and terminal retention after 8,000 operating hours. No degradation of the housing or corrosion of the terminals was observed, even after exposure to dust, humidity, and temperature cycles.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the fuse does not become brittle and that the transparent housing remains impact‑resistant. The current calibration remained within ±10% across the temperature range, ensuring reliable protection even in extreme cold. The fuse’s ability to open at the correct current was verified after 500 thermal cycles.
Vibration endurance per ISO 16750-3 (random vibration, 5G peak, 2 million cycles) caused no loosening of the fuse in the fuse block, and the terminal retention force remained above the minimum specification. The fusible element did not fatigue or crack prematurely, proving the fuse’s mechanical robustness for mining applications.
Installation & Troubleshooting Guide for 30a Fuse 803698176
To replace a blown 803698176 30a fuse, first identify the circuit that has failed (e.g., non‑working fuel gauge, dead ECU, no headlamps). Locate the vehicle’s fuse box (main fuse box is typically under the hood on the driver’s side; the cab fuse box is behind the lower dash panel). Refer to the fuse box diagram (printed on the cover or in the operator’s manual) to find the 30A fuse position.
Use a fuse puller (or needle‑nose pliers) to extract the fuse. Visually inspect the fusible element: if it is intact, the fault is elsewhere; if it is melted or vaporized, install a new genuine 803698176 30a fuse. Do not use a 40A or larger fuse as a substitute — this will bypass the protection and could cause a fire. Ensure the new fuse is fully seated in the fuse block; you should feel a slight click when the terminals engage.
If the new fuse blows immediately after replacement, there is a short circuit in the wiring or a failed component (e.g., solenoid). Disconnect the load side of the circuit and measure resistance to ground; zero or near‑zero ohms indicates a short. Inspect the harness for chafing, pinched wires, or corrosion. Never bypass a fuse with a wire or a coin; this is extremely dangerous.
Inspect fuses during every scheduled service interval (1,000 hours). Look for any signs of overheating (discoloration of the fuse housing or terminals) or corrosion. Replace any fuse that shows signs of thermal stress, even if it has not blown. Always keep a spare 803698176 30a fuse in the vehicle’s tool kit, as intermittent faults can be difficult to trace and may cause repeated failures.
Why Genuine XCMG 30a Fuse 803698176 Outperforms Aftermarket Alternatives
Aftermarket fuses are often manufactured with low‑quality zinc alloy elements that have inconsistent melting points, leading to either premature failure (nuisance blowing) or failure to open at the rated current (fire risk). They may use thin steel terminals that corrode quickly and develop high resistance, causing voltage drop and heat generation. Genuine XCMG 803698176 fuses use precision‑etched copper‑zinc alloy elements and tin‑plated copper terminals, ensuring accurate calibration and low contact resistance.
Aftermarket fuses frequently have undersized (or oversized) terminal dimensions, resulting in loose connections in the fuse block. Loose connections cause arcing, which generates heat and can melt the fuse holder. Genuine XCMG fuses conform exactly to SAE J1284 dimensions, guaranteeing a tight fit and reliable contact. The transparent housing on aftermarket fuses is often made of recycled polycarbonate that yellows and becomes brittle under UV exposure; genuine XCMG housings are UV‑stabilized and remain clear for years.
A fleet study of 30 XCMG articulated dump trucks over 24 months showed that using genuine XCMG fuses reduced electrical fire incidents and nuisance blowing by 95% compared to aftermarket fuses. Each electrical failure caused by a counterfeit fuse resulted in an average of 2 hours of downtime and $400 in diagnostic and repair costs, plus $1,500 in lost production. The genuine fuses saved an estimated $12,000 per year across the fleet. Genuine XCMG 803698176 fuses also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations that require component provenance.
Genuine XCMG OEM 803698176 30a Fuse — SAE J1284 / ISO 8820 compliant, transparent PA66 housing, tin‑plated copper terminals, and precision current calibration. Engineered for XCMG articulated dump truck electrical systems. Trust genuine XCMG quality for reliable circuit protection and maximum equipment uptime.
