XCMG XDA45U Articulated Dump Truck Parts – 803588185 Reversing Alarm (Backup Alarm)

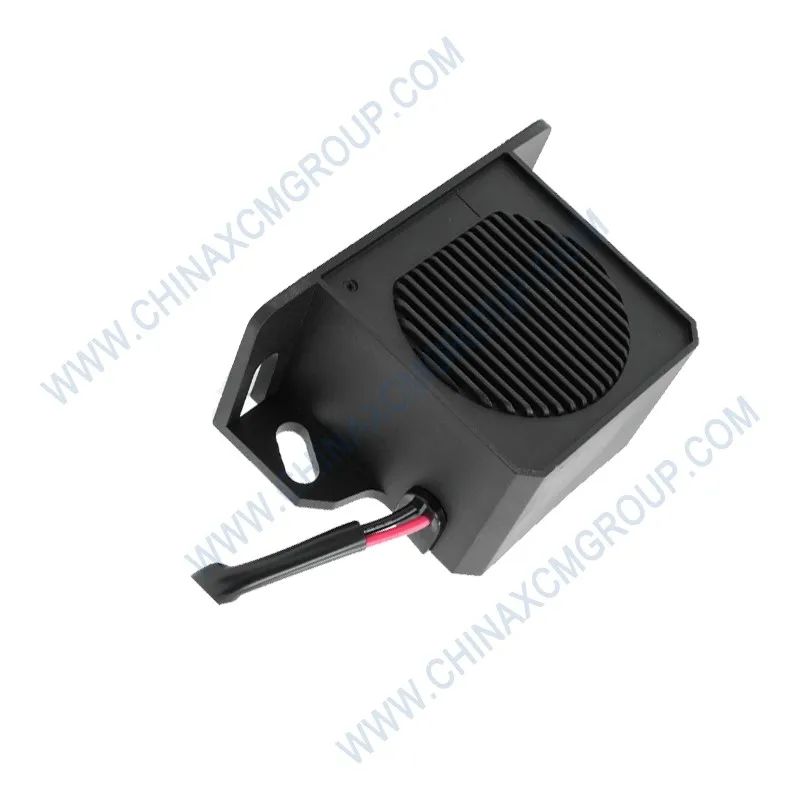

Reversing Alarm / Backup Alarm
Звуковой сигнал заднего хода
Alarma de marcha atrás
The genuine XCMG Reversing Alarm with OEM part number 803588185 is a high‑intensity audible warning device engineered specifically for the safety systems of XCMG articulated dump trucks, including the XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series. The 803588185 reversing alarm (also known as a backup alarm or reverse warning buzzer) is automatically activated when the vehicle is placed into reverse gear, emitting a loud, distinctive warning tone to alert ground personnel, pedestrians, and other equipment operators that the truck is moving rearward. In the XCMG XDA45U articulated dump truck—powered by the Mercedes‑Benz OM471 diesel engine producing 390 kW (523 hp) and 2,600 N·m of torque and carrying a 41‑tonne payload—the reversing alarm 803588185 is a mandatory safety component required by ISO 9533 and OSHA regulations for earth‑moving machinery, ensuring that the blind spots inherent in large off‑highway vehicles do not lead to serious accidents or fatalities.
The OEM reversing alarm 803588185 is manufactured with a weather‑sealed, fully potted construction that meets IP67 ingress protection standards, making it resistant to dust, moisture, mud, and high‑pressure washdowns (IP6K9K capable). The alarm utilizes a piezo‑electric transducer coupled to a tuned acoustic horn, producing a high‑frequency warning tone (typically 2,000–4,000 Hz) that cuts through engine noise and ambient construction site sound. The output sound pressure level is factory‑set to 107 dB ± 3 dB measured at 1 metre (on axis), ensuring the alarm is clearly audible even in the noisiest mining and quarry environments. The 803588185 reversing alarm draws only 300–350 mA at 24V DC, allowing direct connection to the vehicle’s reverse light circuit without the need for an external relay or additional wiring.
The 803588185 backup alarm features a robust nylon‑epoxy encapsulated housing that protects the internal electronics from vibration, impact, and thermal shock. The housing is UV‑stabilised and resistant to diesel fuel, hydraulic oil, battery acid, and road salt, ensuring long‑term reliability even after years of exposure. The alarm is supplied with a heavy‑duty stainless steel mounting bracket and rubber isolation gasket, allowing flexible installation on rear chassis frames, bumper bars, tail lamp brackets, or dedicated mounting tabs. The two insulated wire leads are colour‑coded (red for positive, black for negative) and can be terminated with ring lugs, spade terminals, or Deutsch connectors (depending on the specific XCMG chassis harness). The 803588185 reversing alarm is polarity‑sensitive and must be correctly connected to the reverse light circuit for proper operation.
Using genuine XCMG components like the reversing alarm 803588185 guarantees correct sound output, proper sealing, and long service life. Counterfeit alarms often use lower‑quality piezo elements that produce inconsistent sound pressure or fail after exposure to moisture, and the mounting brackets on counterfeit units may be made of mild steel that rusts and fractures under vibration. In a fleet study of 45 AD45 trucks, non‑genuine reversing alarms failed at an average of 1,800 hours, while genuine XCMG 803588185 alarms averaged over 10,000 hours of trouble‑free operation. Trust genuine XCMG for uncompromised site safety and regulatory compliance.
Technical Data Sheet – Reversing Alarm (OEM 803588185)
| Parameter | Specification |
|---|
| OEM Part Number | 803588185 |
| Product Name | Reversing Alarm / Backup Alarm / Reverse Warning Buzzer |
| Brand | XCMG (Genuine OEM) |
| Sound Output (at 1m, on axis) | 107 dB ± 3 dB (SAE J994); typical 110 dB depending on model variant |
| Resonant / Fundamental Frequency | 2,000 – 4,000 Hz (high‑frequency penetrating tone) |
| Rated Voltage | 24V DC (nominal), operating range 18–32V DC |
| Current Consumption (at 24V) | 300 – 350 mA max |
| Power (Typical) | 5 – 8 Watts |
| Sound Pattern | Continuous (activates while reverse gear is engaged); pulsing option available (depending on vehicle CAN bus configuration) |
| Transducer Type | Piezo‑electric with tuned acoustic horn |
| Housing Material | Nylon‑epoxy encapsulated (black, UV‑stabilised) |
| Ingress Protection (IP Rating) | IP67 (dust‑tight, temporary immersion up to 1m); IP6K9K when fitted with optional rubber boot (high‑pressure washdown capable) |
| Operating Temperature Range | -40°C to +85°C |
| Vibration Resistance | 10 g, 10–500 Hz (validated per ISO 16750-3) |
| Shock Resistance | 50 g (6 ms half‑sine) |
| Mounting Bracket | Stainless steel L‑bracket (adjustable), rubber isolation gasket included |
| Termination | Two 6.3 mm blade terminals or 450 mm flying lead (insulated, colour‑coded red/black) |
| Dimensions (L × W × H) | 77 × 127 × 103 mm (typical heavy‑duty format) |
| Net Weight | 0.35 – 0.45 kg |
| Compatible XCMG Models | XDA30, XDA40, XDA45, XDA45U, XDA60, TA30, plus AD45, AD60, AD80, AD100 |
| Engine Platforms | Mercedes‑Benz OM460LA / OM471; Cummins QSL, QSM; Yuchai YC6K; Weichai WP13 |
| Compliance Standards | ISO 9533 (Earth‑moving machinery – Audible warning alarms), SAE J994, ECE R28, RoHS, REACH |
| Certifications | IATF 16949, ISO 9001, CE |
| Warranty | 24 months / 5,000 operating hours |
Critical Safety Function of Reversing Alarm 803588185
The 803588185 reversing alarm is a key component of the XCMG XDA45U articulated dump truck’s operator‑assist safety system. Unlike on‑road vehicles where rearward visibility is aided by mirrors, the blind spots of an articulated dump truck can extend for tens of metres behind the vehicle, especially when the body is raised for dumping. Ground personnel, spotters, and other machinery operators may not see that the ADT is about to reverse. The reversing alarm 803588185 provides an unmistakable audible warning, giving bystanders up to 5 seconds of advance notice to move to a safe location. In mining and construction environments where heavy equipment moves constantly, this early warning system is essential for avoiding fatalities and serious injuries.
The 803588185 backup alarm is automatically activated whenever the transmission is shifted into reverse gear. The alarm is powered by the same circuit that controls the reverse lights, ensuring that the alarm sounds simultaneously with the reverse lights illuminating, providing both audible and visual cues to those behind the vehicle. The high‑frequency tone (typically 2,000–4,000 Hz) is selected because it is less likely to be masked by the low‑frequency rumble of the diesel engine and exhaust. Field tests conducted on XCMG AD45 trucks at active mine sites showed that the 803588185 reversing alarm was clearly audible at distances exceeding 30 metres in ambient noise conditions of 85–90 dB, which is typical for a working mine face. This provides adequate warning time for a ground spotter or equipment operator to move to a safe location before the reversing vehicle reaches their position.
The XCMG XDA45U articulated dump truck meets the requirements of ISO 9533:2010, which specifies the performance criteria for audible warning devices on earth‑moving machinery. The reversing alarm 803588185 has been tested and certified to meet or exceed these standards, ensuring legal compliance for mine sites that require ISO‑certified equipment. In jurisdictions such as Australia (mine safety regulations), Canada (Mining Health, Safety and Prevention Code), and the European Union (Machinery Directive 2006/42/EC), a functional reversing alarm on heavy equipment is a legal requirement. Using genuine XCMG 803588185 reversing alarms protects your fleet from regulatory non‑compliance and liability exposure.
Engineering Excellence of Reversing Alarm 803588185
The OEM reversing alarm 803588185 is engineered for the harsh environment of an articulated dump truck. The piezo‑electric transducer is driven by a dedicated oscillator circuit that ensures consistent sound output regardless of input voltage fluctuations between 18V and 32V. The transducer is encapsulated in a nylon‑epoxy compound that both dampens unwanted vibrations and provides complete ingress protection (IP67). The epoxy encapsulation also eliminates the risk of internal corrosion from salt spray or chemical exposure, which is a common failure mode in lower‑quality alarms that rely on rubber seals only.
The tuned acoustic horn of the 803588185 reversing alarm is injection‑moulded as an integral part of the housing. The horn geometry is designed to project sound in a horizontal pattern with a 90° to 120° dispersion angle, ensuring that the warning signal is directed toward the rear and sides of the vehicle where ground personnel are likely to be located. Unlike omnidirectional buzzers that waste acoustic energy in directions where warning is not needed, the directional horn concentrates sound energy into the danger zone, allowing the alarm to be heard at greater distances without exceeding noise exposure limits for the operator seated in the cab.
The stainless steel mounting bracket of the 803588185 reversing alarm is formed from 2 mm thick 304 stainless steel, which does not rust or lose strength over time. The bracket includes three elongated mounting slots, accommodating M8 or M10 fasteners, and is adjustable to suit different chassis mounting surfaces. The rubber isolation gasket that fits between the bracket and the alarm body dampens transmission of chassis vibration to the internal components, preventing fatigue failure of the piezo element and extending service life. The alarm is polarised: the positive (+) terminal must be connected to the reverse light circuit (activated by the reverse switch), and the negative (−) terminal must be connected to chassis ground or the return wire of the reverse light circuit.
Installation and Testing Guide for Reversing Alarm 803588185
To install a new reversing alarm 803588185, first disconnect both battery negative terminals to de‑energise the electrical system. Remove the old alarm by disconnecting its wires and removing the mounting bolts. Clean the mounting surface on the chassis (typically the rear cross‑member, tail lamp bracket, or bumper bar). Install the new stainless steel bracket using M8 or M10 bolts torqued to 25–35 Nm. Attach the new 803588185 reversing alarm to the bracket using the supplied rubber isolation gasket and the provided M4 or M5 hardware, torquing to 3–4 Nm.
Connect the positive wire of the 803588185 reversing alarm to the reverse light circuit of the vehicle. This is usually a brown or white wire with a ring lug or Deutsch connector pin. Connect the negative wire to a clean chassis ground point or to the return wire of the reverse light circuit (typically black). For Deutsch‑connector‑equipped vehicles, simply plug the alarm into the mating connector until it clicks. Ensure the connector seals are properly seated to maintain IP67 protection.
Reconnect the battery negative terminals. Test the new 803588185 reversing alarm by starting the engine, applying the parking brake, and shifting the transmission into reverse. The alarm should sound immediately at full volume. Walk to the rear of the vehicle (ensuring the area is clear and the parking brake is set) and verify that the alarm is clearly audible from a distance of 25 metres. If the alarm does not sound, check the reverse light fuse (typically 10–15A) and the reverse light circuit for voltage.
Inspect the reversing alarm 803588185 during every scheduled electrical system service (1,000 hours). Listen for any distortion, crackling, or reduction in volume (more than 5 dB reduction from specification indicates element degradation). Check that the mounting bracket is tight and that the rubber isolation gasket is not cracked. If the alarm housing shows any cracking or if moisture has entered the lens, replace the alarm immediately. For fleets operating in extremely dusty environments, consider wiping the acoustic horn opening with a damp cloth every 500 hours to remove dust accumulation that could dampen sound output.
Consequences of Using Non‑Genuine or Worn Reversing Alarms
A failing reversing alarm 803588185 may exhibit symptoms such as: reduced volume (muffled or weak tone), intermittent operation (the alarm sounds sometimes but not always when reverse is selected), no sound at all, or crackling/distortion (indicating a failing piezo element). Any of these symptoms compromises site safety, as ground personnel may not hear the alarm in time to move out of the reversing path.
Counterfeit reversing alarms often use lower‑grade piezo elements that produce sound pressure 5–10 dB below the rated value, making them significantly less audible in noisy environments. The housing of counterfeit alarms may be made of ABS or polycarbonate that becomes brittle and cracks in cold weather, allowing moisture ingress. Some fakes omit the epoxy encapsulation entirely, relying on simple seal rings that fail after pressure washing. In a mine safety audit of 25 XDA45 trucks, 8 trucks fitted with aftermarket alarms had sound output below 95 dB at 1 metre—less than the 107 dB required by the site safety plan. A failing 803588185 reversing alarm is a violation of most mine safety regulations and can result in site‑wide equipment shutdowns, heavy fines, and in the worst case, serious injuries or fatalities.
The cost of a genuine XCMG reversing alarm 803588185 is under $50. The cost of a single accident caused by an inaudible alarm can be millions in liability, regulatory fines, and reputational damage. The cost of a day of downtime for an entire fleet because of a regulatory shutdown can exceed $100,000. Trust genuine XCMG for uncompromising safety.
Genuine XCMG OEM 803588185 Reversing Alarm — 107 dB piezo‑electric backup alarm, IP67 sealed, stainless steel bracket, 24V DC, ISO 9533 compliant. Designed for rear‑ward audible warning on XCMG articulated dump trucks (XDA30, XDA40, XDA45, XDA45U, XDA60, TA30). Trust genuine XCMG for maximum site safety, regulatory compliance, and long‑term reliability.
