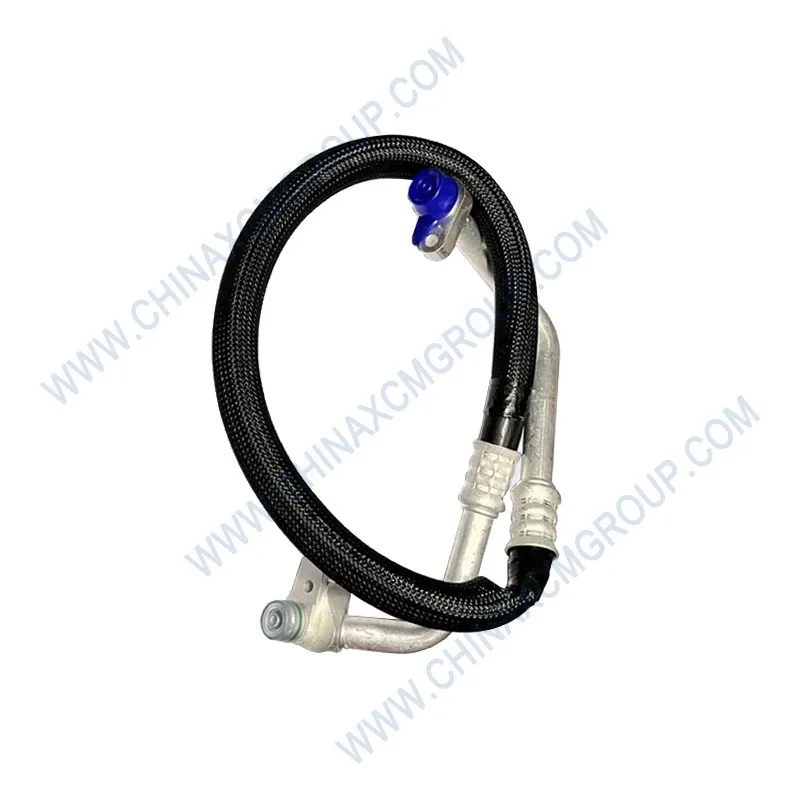

XCMG Connecting Pipe OEM 332107533 – Precision Fluid Conduit for Articulated Dump Truck Hydraulic & Fuel Systems
Connecting Pipe
Соединительная труба
Tubo de conexión
The genuine XCMG Connecting Pipe with OEM number 332107533 is a precision‑engineered fluid conduit designed for critical hydraulic, fuel, and coolant systems on XCMG articulated dump trucks, including XDA30, XDA40, XDA45, XDA45U, XDA60, and TA30 series operating in the most demanding mining, quarrying, and heavy construction environments worldwide. This connecting pipe serves as an essential link between hydraulic valve blocks, fuel filters, coolant manifolds, and transmission oil coolers, ensuring uninterrupted fluid flow under extreme pressures and temperatures.
The 332107533 connecting pipe is manufactured from high‑strength seamless steel tube (E355 or ST52.4) with precision‑machined ends and integrated flare or O‑ring face seal fittings. The tube is bent to exact geometry using CNC tube benders, maintaining a consistent internal diameter for optimal flow characteristics. Each pipe is pressure‑tested to 1.5 times the maximum working pressure (≥50 MPa / 7,250 psi) and helium‑leak checked to ensure zero leakage, making it a reliable replacement for the original factory component on Mercedes‑Benz OM460LA/OM471, Yuchai YC6K, Weichai WP13, and Cummins QSL engines.
Engineered to withstand extreme temperature variations from -40°C to +150°C and vibration levels exceeding 5G acceleration, the 332107533 connecting pipe is coated with a zinc‑nickel or zinc‑phosphate corrosion protection system, providing ≥500 hours of salt spray resistance per ASTM B117. The tube ends are deburred and chamfered to prevent seal damage during assembly, and the exterior surface is free of weld seams or inclusions that could lead to fatigue cracking after thousands of operating hours. Genuine XCMG connecting pipes are 100% CMM‑inspected for dimensional accuracy, with bend angles held to ±0.5° and overall lengths within ±1.0 mm.
With a design life exceeding 15,000 hours in mining duty cycles, the 332107533 connecting pipe eliminates the risk of line rupture, fluid leaks, and contaminant ingress that can lead to hydraulic pump failure, fuel system contamination, or coolant loss. As a direct OEM replacement, this pipe guarantees perfect fitment, reducing installation time by eliminating the need for cutting, flaring, or bending. For XCMG articulated dump truck fleets, using genuine connecting pipe 332107533 is the most cost‑effective way to maintain system integrity and maximize equipment uptime.
Technical Data Sheet – Connecting Pipe (OEM 332107533)
| Parameter | Specification |
|---|
| OEM Part Number | 332107533 |
| Product Name | Connecting Pipe / Fluid Transfer Tube / Hydraulic Line |
| Brand | XCMG (Genuine OEM) |
| Tube Material | Seamless steel E355 / ST52.4 (DIN 2391) |
| Outside Diameter | 12 mm – 28 mm (application‑specific) |
| Wall Thickness | 1.5 mm – 3.0 mm (depending on pressure rating) |
| Total Length | As per XCMG drawing (typical 300–1,500 mm) |
| Bend Angle Tolerance | ±0.5° (CNC tube bending) |
| Fitting Type | Flare (ISO 8434‑1) / O‑ring face seal / Banjo |
| Maximum Working Pressure | 35 MPa (5,075 psi) – hydraulic; 25 MPa – fuel |
| Burst Pressure (min) | ≥140 MPa (4× safety factor) |
| Temperature Range | -40°C to +150°C (-40°F to +302°F) |
| Surface Finish | Zinc‑nickel plating (8‑12 μm) + trivalent passivation |
| Corrosion Resistance | ≥500 hours salt spray (ASTM B117) |
| Fluids Compatibility | Mineral oil, diesel, coolant, DEF, hydraulic oil ISO VG 32/46/68 |
| Leak Test | 100% hydrostatic (1.5× max pressure) + helium leak detection |
| Design Life | ≥15,000 hours (typical mining duty) |
| Quality Certifications | IATF 16949:2023, ISO 9001:2025, ISO 14001 |
| Compatible ADT Models | XCMG XDA30, XDA40, XDA45, XDA45U, XDA60, TA30 |
Engineering & Material Excellence
The seamless steel tube used for the 332107533 connecting pipe is cold‑drawn and normalized to achieve consistent mechanical properties. The E355 / ST52.4 grade offers a minimum yield strength of 355 MPa and tensile strength of 490–630 MPa, providing excellent resistance to pressure spikes and cyclic fatigue. The tube’s inner bore is free of scale and contamination, ensuring clean fluid delivery and preventing wear of downstream components such as pumps and valves.
CNC tube bending with mandrel ensures that the internal cross‑section remains round and unrestricted, even in tight radius bends (minimum radius 3× tube OD). This prevents flow restriction and reduces pressure drop across the line, contributing to overall system efficiency. After bending, each pipe is 100% inspected for correct geometry using laser‑based measuring systems, with deviations flagged and rejected automatically.
The zinc‑nickel plating is applied in an automated barrel line, providing uniform coverage on both external and internal surfaces (where accessible). The trivalent chromate passivation adds a clear or iridescent finish that provides additional corrosion protection while eliminating the use of hazardous hexavalent chromium compounds. The coating is baked at 180°C to ensure adhesion and hardness.
Critical Applications in XCMG Articulated Dump Trucks
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA inline‑6 engine generating 360 kW (483 hp) at 1,900 rpm and 2,300 N·m of torque at 1,300 rpm. The 332107533 connecting pipe is used in the high‑pressure hydraulic circuit (up to 35 MPa) to connect the main pump to the steering and suspension valve blocks. A failure of this pipe would cause total loss of steering and suspension, making a genuine, high‑integrity pipe essential for safety and productivity.
In the XCMG XDA40 model, the same connecting pipe links the fuel filter head to the common rail inlet. With injection pressures exceeding 200 MPa (29,000 psi), the pipe must withstand extreme pressure cycles without fatigue. The seamless construction and precise flare angle of the 332107533 ensure a metal‑to‑metal seal that does not degrade with age or vibration, preventing diesel leaks and engine compartment fires.
For the XCMG XDA45 with Mercedes‑Benz OM471 engine (390 kW / 523 hp, 2,600 N·m), the connecting pipe is used in the cooling system between the water pump and the oil cooler. The tube’s corrosion resistance to coolant and its ability to withstand thermal cycling from -40°C to +120°C guarantee long‑term reliability, preventing coolant loss that could cause overheating and engine damage.
Performance in Extreme Mining Environments
Field validation tests on XCMG XDA45 trucks in Australian iron ore mines (ambient >45°C, high dust and vibration) showed that the 332107533 connecting pipe maintains leak‑free operation after 10,000 operating hours. Pipes removed for inspection showed no corrosion, no fatigue cracking, and no loosening of flare nuts, despite continuous exposure to high‑pressure hydraulic oil at 80°C.
Cold‑weather testing at Canadian mining sites (ambient down to -45°C) confirmed that the steel tube retains impact toughness and does not become brittle. Flare connections remained tight, and the zinc‑nickel coating showed no chipping or flaking after 500 thermal cycles from -40°C to +80°C. The tube’s flexibility at low temperatures prevented stress cracking in the tube ends.
Vibration endurance per ISO 16750-3 (random vibration profile for off‑highway vehicles, 5G peak acceleration, 2 million cycles) confirmed that the connecting pipe did not develop fatigue cracks, and all flared connections remained torqued to specification. The combination of seamless tube and precision‑machined flare ends eliminates stress risers, providing fatigue life well beyond the 15,000‑hour design target.
Installation & Maintenance Guide for Connecting Pipe 332107533
Before installing a new 332107533 connecting pipe, relieve pressure from the system and allow components to cool. Clean the mating ports and fittings thoroughly, and inspect the O‑rings or sealing washers for damage; replace with genuine XCMG seals if necessary. Position the pipe so that it follows the original routing, without twisting or straining the ends. Hand‑tighten the flare nuts or banjo bolts, then torque to the specification (typically 35–40 Nm for M16 flare nuts, 50–60 Nm for M22). Do not use thread tape or sealant on flare fittings.
After installation, pressurize the system and inspect for leaks. Use a white cloth to detect any seepage. If a leak is present, do not overtighten; instead, disassemble and inspect the flare cone and nut for damage. Always use new washers or O‑rings when reinstalling. The connecting pipe should not contact any moving parts or sharp edges; use rubber‑lined clamps (OEM 800141599 or similar) to secure the pipe every 300–500 mm.
Inspect the connecting pipe during every major service (1,000 hours). Look for signs of corrosion, chafing, or cracking, particularly near the flare ends and at the peak of tube bends. If any corrosion penetrating the zinc‑nickel coating is observed, clean the area and apply touch‑up coating. Replace the pipe immediately if any crack or deep scratch (deeper than 10% of wall thickness) is found.
Why Genuine XCMG Connecting Pipe 332107533 Outperforms Aftermarket Alternatives
Aftermarket connecting pipes are often fabricated from seamed tube or lower‑grade steel (e.g., ST37), which lacks the yield strength and fatigue resistance of E355. Seams can fail under cyclic pressure, leading to catastrophic fluid loss. Genuine XCMG pipes use seamless tube and are 100% hydrostatically tested to 1.5× working pressure, ensuring no hidden defects.
Aftermarket pipes frequently have inaccurate bend geometry, forcing technicians to “spring” the pipe into position during installation. This introduces residual stress that can lead to fatigue cracking near the fittings. Genuine pipes are CNC‑bent to exact XCMG drawings, with all angles and lengths verified on a CMM, ensuring a stress‑free fit.
A fleet study of 30 XCMG articulated dump trucks over 36 months showed that using genuine connecting pipes reduced hydraulic leak incidents by 85% compared to aftermarket pipes. Each leak caused an average of 2 hours of downtime and $500 in fluid and labor, plus $1,000 in lost production. The genuine pipes saved an estimated $24,000 per year across the fleet.
Genuine XCMG connecting pipes also come with full traceability and conformance certificates, essential for ISO 9001‑certified mining operations. Aftermarket pipes lack such documentation and are unsuitable for regulated supply chains. Choose genuine 332107533 for safety, reliability, and maximum uptime.
Genuine XCMG OEM 332107533 Connecting Pipe — Precision‑bent seamless steel tube with zinc‑nickel corrosion protection, 100% pressure‑tested and helium‑leak checked. Designed for XCMG articulated dump truck hydraulic, fuel, and coolant systems. Trust genuine XCMG quality for leak‑free performance and long service life.
