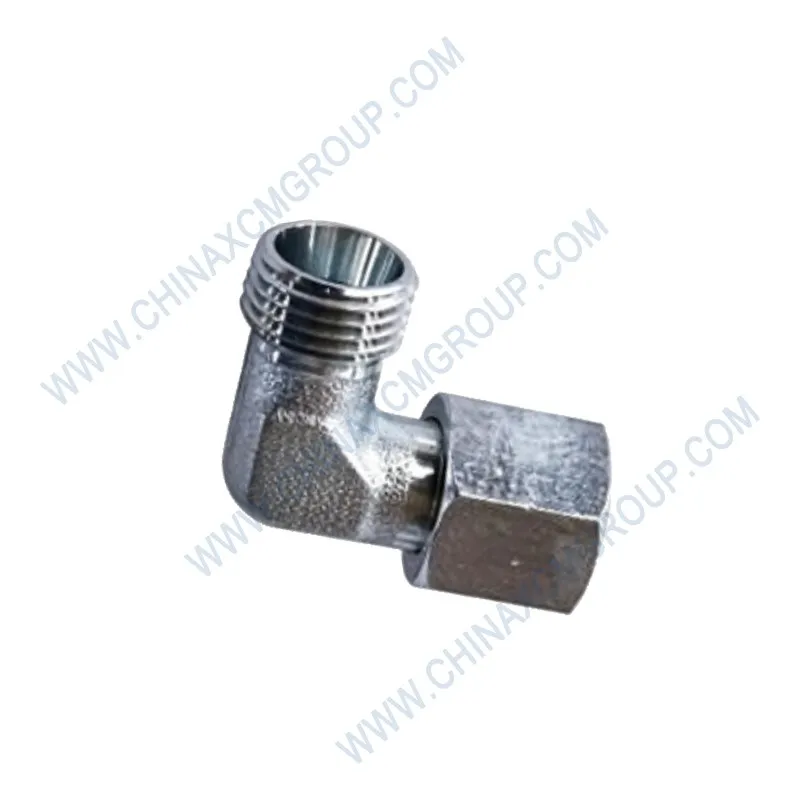

XCMG 803110597 Connector – Precision Heavy-Duty Hydraulic Fitting for Uncompromising Performance

Overview of the XCMG 803110597 Connector

The 803110597 Connector is a foundational component in the hydraulic systems of XCMG articulated dump trucks and other heavy equipment. It provides a secure, leak-free interface between hoses, tubes, and valves, enabling precise control of steering, braking, and implement functions. Its forged construction and precision machining ensure durability under extreme pressure spikes and vibration, making it indispensable for off-highway operations.

Manufactured to the original equipment specifications, this connector guarantees a perfect fit with all standard ports, eliminating the need for adapters. The rolled threads resist galling, while the zinc-nickel coating provides superior corrosion protection in harsh environments. The O-ring sealing face compensates for minor surface imperfections, ensuring a reliable seal from the first installation.

Whether you are servicing a dump truck in a quarry or a wheel loader on a construction site, the 803110597 connector restores hydraulic system reliability quickly. Its compact design and easy installation with standard tools reduce maintenance time, keeping your equipment productive and minimizing operational costs.

By choosing this genuine XCMG component, you protect your investment and ensure your equipment performs at its peak, reducing downtime and extending component life.

Key Features of the 803110597 Connector

The 803110597 connector stands out for its forged steel body, which provides exceptional strength and resistance to fatigue. The forging process refines the grain structure, eliminating porosity and ensuring consistent material properties. The rolled threads work-harden the profile, improving fatigue life and reducing the risk of stripping under high torque.

The zinc-nickel coating offers dual protection—cathodic zinc and hard nickel—resisting over 500 hours of salt spray. It also provides a low-friction surface that reduces assembly torque and prevents seizing. The integrated O-ring groove accepts a standard O-ring, delivering a reliable seal that adapts to thermal expansion and vibration.

Laser-etched part numbers ensure easy identification, simplifying inventory management. Available in straight, 45°, and 90° configurations, the connector offers flexibility for complex hydraulic layouts. It is compatible with a wide range of hydraulic fluids, including mineral oils, synthetic esters, and biodegradable options.

With a working pressure rating of up to 420 bar (6,000 psi), this connector is suitable for the most demanding high-pressure circuits, ensuring reliable performance in critical applications such as steering and braking.

Performance Benefits of the XCMG Connector

Replacing a worn connector with the genuine XCMG 803110597 part immediately eliminates hydraulic leaks, which are a primary source of system inefficiency and contamination. A leak-free connection maintains consistent pressure, ensuring steering, braking, and implement responses are crisp and accurate, directly improving machine control and operator confidence.

The connector’s robust sealing and mechanical strength reduce the risk of sudden failure, which could cause catastrophic fluid loss and expensive downtime. By preventing leaks, it also helps maintain fluid cleanliness, extending the life of pumps, valves, and actuators. This reduces maintenance frequency and fluid consumption, lowering overall operating costs.

Its corrosion-resistant finish ensures long-term functionality in wet, salty, or chemically aggressive environments, reducing replacement frequency. The precise fitment simplifies installation, saving labor time and reducing the risk of assembly errors. Consistent performance helps prevent unexpected breakdowns, maximizing fleet availability.

Ultimately, the 803110597 connector enhances machine reliability, reduces costs, and contributes to a safer work environment, making it a valuable investment for any fleet.

Applications in XCMG Heavy Equipment

The 803110597 connector is widely used in XCMG articulated dump trucks (DA30, DA40, DA45), wheel loaders (LW series), and excavators (XE series). It connects hoses, tubes, and valves in steering valve circuits, brake accumulator lines, pilot control networks, and implement valve blocks. In dump trucks, it is commonly found in the steering pump outlet and brake pedal valve connections, where reliability is critical for safety.

In wheel loaders, it is used in lift, tilt, and auxiliary circuits, withstanding high cycle rates and shock loads. In excavators, it is employed in boom, arm, and bucket circuits, as well as swing and travel motor lines. Its robust construction and sealing integrity make it ideal for high-flow, high-pressure applications.

The connector is compatible with a wide range of hydraulic fluids, including mineral oils, synthetic esters, and biodegradable options, making it suitable for environmentally sensitive operations. Stocking this connector simplifies spare parts management and enables quick repairs across multiple machine types.

Its standardized design also allows for use in aftermarket hydraulic systems, providing a dependable replacement for a broad range of heavy equipment.

Durability and Quality Assurance

XCMG applies stringent quality control to the 803110597 connector. Steel is sourced from certified mills and tested for composition and mechanical properties. The forging process is monitored to ensure consistent grain flow and freedom from defects. After machining, each connector is inspected with coordinate measuring machines (CMM), and threads are verified with go/no-go gauges.

The zinc-nickel coating is applied via automated electroplating, with thickness and adhesion tested. Salt spray testing is performed on sample lots to confirm corrosion resistance. Pressure testing is conducted at 1.5 times working pressure to validate sealing integrity. The connector is designed to meet or exceed OEM performance requirements, ensuring it provides the same reliability as the original part.

Every connector is traceable and backed by XCMG’s quality management system, giving you confidence in your purchase. The manufacturing process adheres to ISO 9001:2015 standards, ensuring world-class quality.

With XCMG’s commitment to quality, the 803110597 connector delivers consistent, dependable performance you can trust for your fleet’s critical systems.

Installation and Maintenance Guidance

Installing the 803110597 connector is quick and simple. Relieve hydraulic pressure and clean the port thoroughly. Inspect the O-ring and replace if necessary, then lightly lubricate it with clean hydraulic oil. Hand-thread the connector to ensure proper alignment, then tighten with a wrench to the recommended torque (30–50 N·m, depending on size).

Avoid over-tightening to prevent O-ring deformation or thread damage. After installation, pressurize the system and check for leaks. If leaks occur, re-tighten slightly or replace the O-ring. Regularly inspect the connector for corrosion, thread wear, or seal degradation, especially in high-vibration environments.

Replace the connector immediately if any damage is found, as a compromised fitting can lead to system failure. Always use genuine XCMG parts. Clean port threads before installing a new connector to prevent cross-threading. Following these guidelines ensures a reliable, leak-free connection and extends hydraulic system life.

Proper torque values and sealing procedures are detailed in the XCMG service manual, which should be consulted for specific model applications.

Compatibility and Cross-Reference

The 803110597 connector is a direct OEM replacement for XCMG equipment, compatible with articulated dump trucks, wheel loaders, and excavators. Its standard SAE and ISO 6149 threads ensure a perfect fit with mating ports, eliminating the need for adapters. While optimized for XCMG, its industry-standard design may suit other hydraulic systems with compatible requirements.

For guaranteed fit and performance, XCMG recommends using this part only on its intended models. Fleet operators can simplify inventory by stocking this connector for multiple machine types, as it is used across a range of XCMG equipment. Always verify thread size and sealing method by consulting the parts manual.

Using genuine XCMG parts ensures compliance with safety and performance standards, providing peace of mind and long-term reliability. The connector is also compatible with standard O-rings available in the market, offering flexibility for maintenance teams.

For critical hydraulic circuits, always prioritize genuine OEM components to avoid potential system failures.

Cost-Effectiveness and Long-Term Value

Investing in the genuine XCMG 803110597 connector prevents costly fluid leaks, environmental penalties, and component damage. A single leak can cause pump cavitation, valve failure, and expensive repairs—far exceeding the cost of a new connector. Compared to generic alternatives, the XCMG connector offers superior material quality, precision machining, and longer service life.

Its corrosion-resistant finish extends life in harsh environments, reducing replacement frequency and labor costs. By maintaining leak-free connections, it preserves hydraulic fluid cleanliness, extending the life of pumps, valves, and actuators. This translates into lower maintenance costs, reduced downtime, and higher productivity.

Choosing XCMG genuine parts is a wise long-term investment that maximizes fleet uptime and profitability. With its robust design and proven reliability, the 803110597 connector delivers exceptional value, making it an indispensable part of any preventive maintenance program. Proactively replacing aging connectors avoids unexpected failures and keeps equipment in peak condition.

Additionally, using genuine XCMG parts helps maintain the resale value of your equipment, as buyers recognize the quality and care put into maintenance.

Conclusion – Trust the 803110597 Connector for Reliable Hydraulic Connections

The XCMG 803110597 connector is a precision-engineered hydraulic fitting that ensures leak-free, reliable connections in the most demanding heavy-duty applications. Its robust construction, corrosion-resistant coating, and precision sealing make it essential for maintaining hydraulic system integrity in XCMG equipment. By choosing this genuine OEM part, you secure a perfect fit, consistent performance, and long service life.

The connector’s ability to withstand high pressures, extreme temperatures, and harsh environments reduces downtime and lowers maintenance costs, enhancing overall fleet productivity. Don’t compromise on hydraulic system performance. Equip your XCMG machinery with the 803110597 connector and experience the reliability of genuine quality.

Keep your fleet operating safely and efficiently with XCMG genuine components. The 803110597 connector is your guarantee of secure, leak-free hydraulic connections for years to come.

Upgrade your maintenance inventory with the XCMG 803110597 connector and ensure your heavy equipment remains in peak condition. Trust XCMG for all your hydraulic connection needs – your partner in durability and performance.

For more information or to place an order, rely on your local XCMG dealer or visit our official channels.
