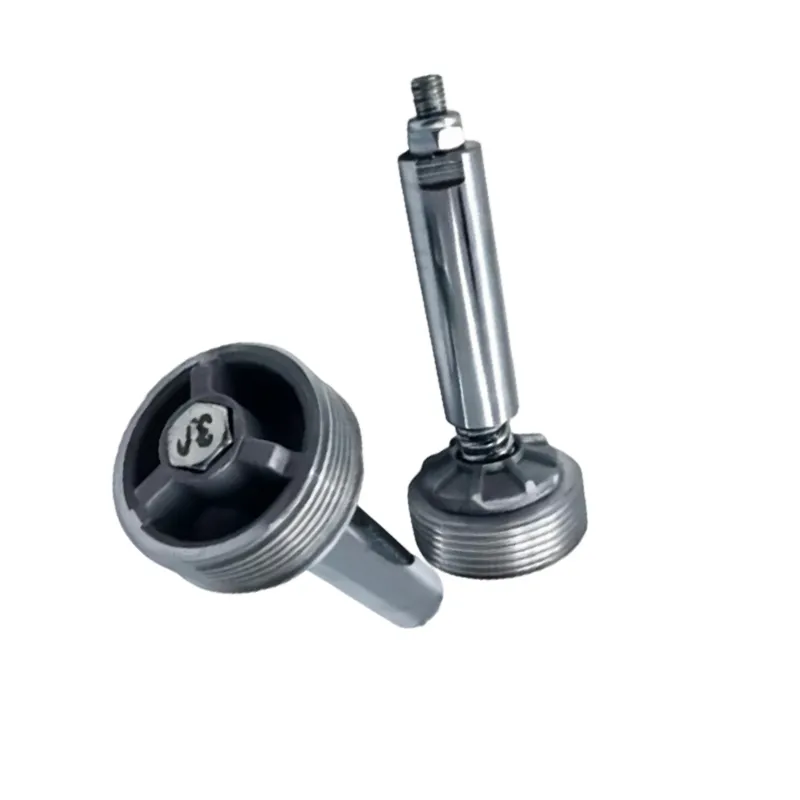

Check Valve
Обратный клапан
Válvula de retención
The 803081385 Check Valve is a precision‑engineered hydraulic control component designed to ensure unidirectional fluid flow and prevent reverse flow in the hydraulic systems of XCMG excavators. This high‑performance check valve provides reliable, leak‑free sealing under high pressure, protecting critical hydraulic components from damage caused by backflow, pressure spikes, and system contamination. Manufactured from high‑strength alloy steel with a fully corrosion‑resistant zinc‑nickel plating, the 803081385 check valve delivers exceptional crack pressure accuracy, flow efficiency, and long‑term durability, making it an indispensable component for maintaining hydraulic system reliability and machine productivity in the most demanding excavation, mining, and heavy construction applications.
The 803081385 Check Valve is a precision‑engineered hydraulic control component designed to ensure unidirectional fluid flow and prevent reverse flow in the hydraulic systems of XCMG excavators.
This high‑performance check valve provides reliable, leak‑free sealing under high pressure, protecting critical hydraulic components from damage caused by backflow, pressure spikes, and system contamination.
In the demanding operating conditions typical of heavy excavation, mining, and construction, hydraulic systems are subjected to extreme pressures, rapid flow reversals, and contamination from dirt and debris.
The 803081385 check valve is engineered to provide instantaneous, positive sealing in the reverse direction while offering minimal pressure drop in the forward flow direction, ensuring efficient hydraulic system operation.
Manufactured from high‑strength alloy steel with a fully corrosion‑resistant zinc‑nickel plating, this check valve delivers exceptional crack pressure accuracy, flow efficiency, and long‑term durability.
This component is a direct OEM replacement, restoring the original flow control characteristics and ensuring that the hydraulic system operates within its designed parameters throughout the machine’s service life.
The 803081385 Check Valve is a fundamental element in maintaining the operational reliability and component longevity of XCMG excavator hydraulic systems.
Properly functioning check valves prevent reverse flow that can cause hydraulic cylinders to drift, motors to rotate in the wrong direction, and pumps to suffer cavitation damage.
A failed or leaking check valve can lead to loss of holding force in boom, arm, and bucket cylinders, compromising machine safety and productivity.
By ensuring that the 803081385 check valve is in optimal condition, operators can prevent costly hydraulic system failures, reduce unplanned downtime, and maintain the excavator’s lifting and digging performance.
The 803081385 Check Valve features a carefully engineered design that combines precise flow control, fast response time, and long service life.
The valve utilizes a poppet‑type design with a hardened steel ball and precision‑ground seat, ensuring a positive seal with zero leakage in the reverse direction.
A calibrated compression spring provides consistent crack pressure (0.5 bar), allowing the valve to open at the correct pressure threshold and close rapidly when forward flow ceases.
The valve body is precision‑machined from high‑strength alloy steel, with a threaded G 1/2″ BSPP port connection that ensures a secure, leak‑free interface with standard hydraulic fittings.
The internal flow path is optimized to minimize pressure drop and turbulence, ensuring efficient fluid transfer with minimal energy loss.
The valve’s compact, inline design allows for easy integration into existing hydraulic circuits without the need for additional mounting brackets or adapters.
The 803081385 Check Valve is produced using advanced CNC machining and precision assembly processes, ensuring consistent dimensional accuracy and performance characteristics.
The valve body and poppet components are machined to tight tolerances, with critical sealing surfaces ground to a mirror finish for optimal sealing performance.
The spring is manufactured from high‑grade stainless steel and calibrated on precision testing equipment to ensure accurate crack pressure and consistent closing force.
Each valve is assembled in a clean‑room environment and subjected to 100% functional testing, including crack pressure verification, leakage testing, and flow performance validation.
The 803081385 Check Valve is protected by a dual‑layer coating system that ensures exceptional corrosion resistance and a professional appearance.
The base layer is a zinc‑nickel electroplating that provides sacrificial cathodic protection and offers over 480 hours of salt spray resistance (ASTM B117), significantly outperforming standard zinc plating.
The top coat is a black passivation layer that provides additional chemical resistance and a uniform, professional finish that blends seamlessly with the excavator’s hydraulic components.
The combination of these coatings ensures that the check valve retains its protective properties and appearance even after years of service in aggressive mining and construction environments.
The corrosion‑resistant finish also prevents the formation of rust and scale that could contaminate the hydraulic fluid and damage sensitive system components.
The 803081385 Check Valve is manufactured from premium 40Cr alloy steel (equivalent to AISI 5140), a material renowned for its excellent hardenability, toughness, and fatigue resistance.
40Cr offers a tensile strength of ≥ 1050 MPa and a yield strength of ≥ 850 MPa, providing the structural integrity required to withstand the extreme pressures and cyclic loading encountered during excavator operation.
The alloying elements – chromium and manganese – enhance hardenability and provide improved wear resistance, making this material ideal for high‑pressure hydraulic valve applications.
Each valve is produced in ISO 9001 and ISO 14001 certified facilities, with strict process controls at every stage – from raw material verification to final assembly and testing.
The chemical composition is verified using spectrometer analysis, ensuring it meets the specified requirements for carbon, chromium, manganese, and other alloying elements.
Dimensional accuracy is verified using precision measurement tools, with critical port dimensions, thread quality, and sealing surface finish checked against the engineering drawings to ensure a perfect fit.
The result is a check valve that delivers consistent, reliable performance, with a service life that matches or exceeds that of the original equipment.
The 803081385 Check Valve plays a vital role in preventing hydraulic system damage and ensuring the operational safety of XCMG excavators.
A leaking check valve allows oil to flow backward, causing hydraulic cylinders to drift under load. This can lead to uncontrolled movement of the boom, arm, or bucket, posing a serious safety risk to operators and ground personnel.
Reverse flow can also cause hydraulic pumps to cavitate, leading to premature wear, reduced efficiency, and eventual pump failure – a costly and time‑consuming repair.
The 803081385 check valve prevents these issues by providing a positive, leak‑free seal in the reverse direction, ensuring that flow only occurs in the intended direction.
Regular inspection of check valves is recommended during routine hydraulic system maintenance. Any valve showing signs of leakage, sticking, or damage should be replaced immediately.
Using a genuine XCMG 803081385 check valve ensures that the component meets the original design specifications, providing the intended level of sealing performance and durability.
The 803081385 Check Valve is specifically designed for use in XCMG excavators, including the XE215, XE225, XE245, XE305, XE370, and XE470 series models.
These machines are deployed in a wide range of demanding applications, including heavy excavation, mining, quarrying, construction, demolition, and material handling.
The check valve is used in various hydraulic circuits, including boom holding circuits, arm circuits, bucket circuits, swing motor circuits, and travel motor circuits.
Beyond excavators, this valve can also be used in other XCMG equipment that employs similar hydraulic system configurations, such as wheel loaders, crawler dozers, and motor graders.
The valve’s standard G 1/2″ BSPP port connection makes it a versatile replacement part for a wide range of heavy machinery, providing flexibility for maintenance and repair operations.
When replacing a worn or damaged check valve, using the genuine 803081385 part ensures correct fitment, material strength, and sealing performance, safeguarding the hydraulic system it protects.
It is always recommended to inspect the hydraulic fluid for contamination and to change the fluid and filter if necessary when installing a new valve.
Installing the 803081385 Check Valve is a straightforward process that can be completed with standard hydraulic tools, minimizing downtime and maintenance effort.
Before installation, depressurize the hydraulic system and clean the valve and the mating port to remove any dirt, debris, or old sealant that could affect the seal.
Apply a thin layer of hydraulic thread sealant (such as Loctite 567 or equivalent) to the male threads of the valve, taking care not to apply sealant to the first two threads to prevent contamination.
Thread the valve into the port by hand until it is snug, then use a wrench to tighten it to the recommended torque of 25–30 N·m. Do not over‑tighten, as this may damage the threads or distort the valve body.
After installation, pressurize the hydraulic system and check for any signs of leakage around the valve threads. If leakage is detected, re‑tighten the valve to the specified torque.
During routine maintenance, inspect the check valve for signs of leakage, sticking, or corrosion. Check the system pressure to ensure the valve is opening and closing correctly.
If any performance issues or damage are detected, replace the valve immediately. Keeping a spare 803081385 check valve on hand can help minimize downtime during unexpected repairs.
Always use genuine XCMG seals and O‑rings when servicing the valve to ensure proper sealing and compatibility with the hydraulic fluid.
The 803081385 Check Valve is manufactured in ISO 9001 and ISO 14001 certified facilities, adhering to the highest quality and environmental management standards.
The raw material, 40Cr alloy steel, is sourced from approved mills and undergoes rigorous incoming inspection, including chemical analysis, tensile testing, and hardness testing.
The CNC machining, grinding, and assembly processes are precisely controlled, with regular tooling maintenance and dimensional checks to ensure consistent part geometry and performance.
The zinc‑nickel plating and passivation processes are carefully monitored, with coating thickness and adhesion verified using non‑destructive testing methods.
Each check valve is 100% functionally tested, including crack pressure verification, leakage testing at rated pressure, and flow performance validation. A sample from each production batch is subjected to salt spray testing and endurance cycling tests.
These rigorous quality assurance measures guarantee that every 803081385 check valve delivers the reliability, sealing performance, and durability expected from a genuine XCMG component.
Using genuine XCMG 803081385 check valves guarantees proper fit, optimal flow control, and compatibility with the vehicle’s hydraulic system.
The 803081385 Check Valve is an essential component for ensuring the operational reliability and safety of XCMG excavator hydraulic systems.
As a critical hydraulic control component, this valve provides robust, leak‑free unidirectional flow control that prevents reverse flow, protects pumps and cylinders, and ensures safe, predictable machine operation.
Its high‑strength alloy steel construction, advanced corrosion‑resistant coating, and precision‑ground sealing surfaces ensure exceptional durability and long‑term performance in the most demanding excavation and construction environments.
With its precise OEM fitment and uncompromising quality, this check valve offers outstanding value and peace of mind for fleet operators, maintenance professionals, and equipment owners alike.
Choosing the genuine XCMG 803081385 check valve protects your hydraulic system from damage, reduces maintenance costs, and ensures that your excavator remains productive, reliable, and safe.
Always source genuine XCMG parts from authorised distributors to guarantee authenticity, compliance with OEM specifications, and long‑term performance.
Whether for planned maintenance or emergency repairs, the 803081385 check valve is the trusted choice of professionals who demand the highest standards of quality and reliability in their heavy equipment.
