XCMG Tensioner Bracket OEM 800172375 – Heavy‑Duty Belt Tensioning Support for Articulated Dump Trucks
Tensioner Bracket

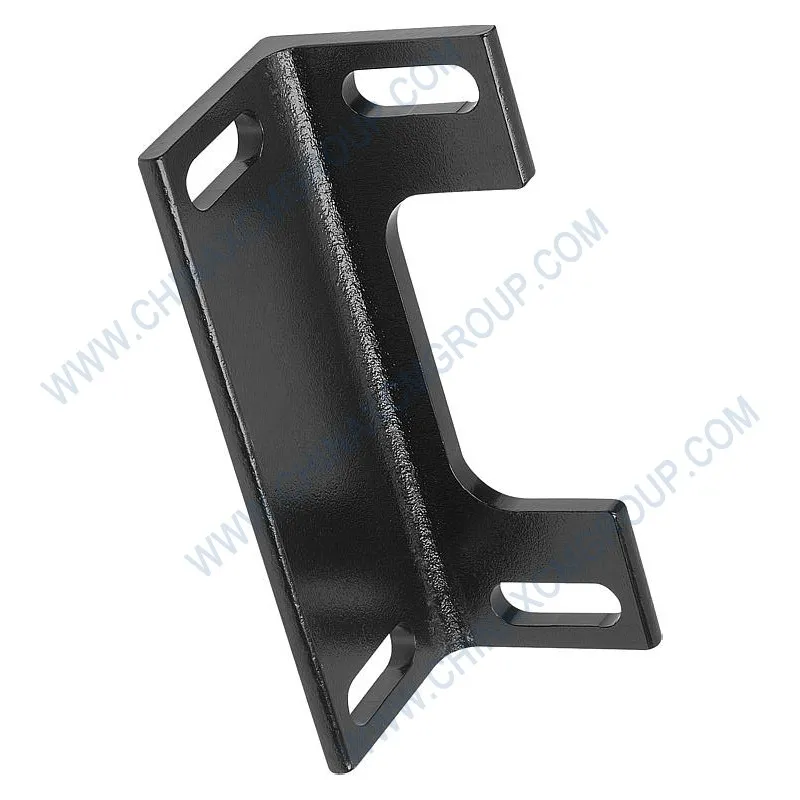

Кронштейн натяжителя

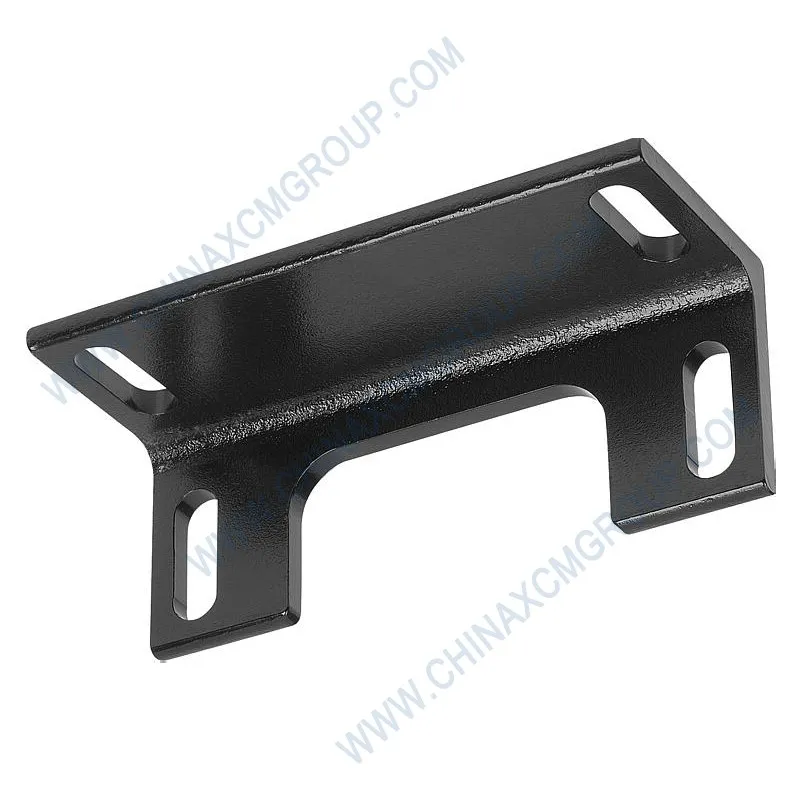

Soporte del tensor
The XCMG Tensioner Bracket 800172375 is a precision‑machined mounting component that supports the automatic belt tensioner in the accessory drive system of XCMG articulated dump trucks (ADTs). This genuine XCMG 800172375 tensioner bracket provides a rigid attachment point for the tensioner pulley, ensuring proper belt alignment and consistent tension across the alternator, water pump, fan, air compressor, and power steering pump. XCMG XDA30, XDA40, XDA45, XDA45U, and TA30 ADTs depend on 800172375 for reliable accessory drive performance and extended belt life. Manufactured from high‑strength cast iron or fabricated steel, 800172375 is precision‑drilled for an exact fit on Mercedes‑Benz OM460LA and OM502 diesel engines, as well as Yuchai YC6K and Weichai WP13 powerplants, eliminating belt misalignment and premature wear.
The XCMG XDA45U articulated dump truck is powered by a Mercedes‑Benz OM460LA engine producing 360 kW (483 hp) and 2,300 N·m of torque, driving a serpentine belt that powers the alternator, water pump, fan, air compressor, and power steering pump. The belt tensioner bracket 800172375 provides the rigid mounting foundation for the automatic spring‑loaded tensioner. Without a properly aligned and secured bracket, the tensioner cannot maintain correct belt tension, leading to belt slip, reduced accessory drive efficiency, overheating, and complete belt failure.
In the XDA40 model, which is powered by the Mercedes‑Benz OM502 V8 engine producing 350 kW (475 hp) at 1,800 rpm, the tensioner bracket 800172375 is located on the front engine cover. It aligns the belt with the water pump, alternator, and fan drive. Any deviation in bracket geometry or mounting surface flatness causes the belt to ride off‑center, accelerating edge wear and generating vibration that can damage the tensioner bearing and other accessories.
Manufacturing Excellence of OEM 800172375
The tensioner bracket 800172375 is manufactured using precision sand casting (for iron versions) or CNC laser‑cut and welded fabrication (for steel versions). After casting, the bracket is stress‑relieved to eliminate residual stresses that could cause warpage over time. The critical mounting surfaces are machined on a CNC milling center, achieving flatness within 0.05 mm and hole positional accuracy of ±0.1 mm. This precision ensures that the tensioner sits perfectly square to the belt drive plane, eliminating side loading that can prematurely wear the tensioner pivot bushing.
The bracket is then zinc‑phosphated and coated with an e‑coat or powder coating to provide outstanding corrosion resistance. XCMG tests each batch for salt spray resistance exceeding 480 hours (ASTM B117), ensuring that the tensioner bracket 800172375 remains rust‑free even after years of exposure to road salts, mine dust, and high humidity. Every production lot is 100% dimensionally inspected using coordinate measuring machines, with random samples destructively tested for tensile strength and fatigue life.
Field Performance of 800172375 vs. Aftermarket
XCMG field data from XDA40 and XDA45U ADT fleets operating in Australian iron ore mines demonstrates that the genuine tensioner bracket 800172375 consistently exceeds 12,000‑15,000 service hours without cracking or deformation. Aftermarket brackets often fail prematurely due to porosity in castings, incorrect hole location causing belt misalignment, or inadequate corrosion protection leading to rust scaling and structural weakening. Operators who use genuine brackets report fewer belt changes, longer tensioner life, and reduced downtime.
Common failure indicators for the tensioner bracket 800172375 include visible cracks around the pivot bore or mounting ears, rust that has penetrated the coating, belt squeal that cannot be corrected by tensioner replacement (indicating bracket flexing), and misalignment of the belt as viewed from the side. If the bracket shows any of these signs, immediate replacement is recommended to avoid belt breakage, loss of coolant circulation, alternator failure, or engine shutdown.
Correct Installation of the 800172375 Tensioner Bracket
When replacing the tensioner bracket 800172375, first clean the engine block mounting surface thoroughly, removing any old gasket material, rust, or dirt. Position the bracket and hand‑thread the two mounting bolts. Using a calibrated torque wrench, tighten the bolts in a cross pattern to the specified torque: 45 N·m ±5 N·m for M10 × 1.5 bolts. After torquing, verify that the bracket sits flush against the engine block with no gaps. Install the belt tensioner onto the bracket, applying threadlocker to the tensioner pivot bolt, and torque the tensioner bolt to 40 N·m. Finally, install the serpentine belt and confirm that the belt runs centered on all pulleys.
XCMG recommends inspecting the tensioner bracket 800172375 during every belt change (typically every 2,000‑4,000 hours). Look for any signs of cracking, especially around the pivot area, and check for corrosion. Also inspect the mounting bolts to ensure they have not loosened; if any bolt is loose, remove it, clean the threads, apply threadlocker, and retorque. When replacing the bracket, always use new mounting bolts, as old bolts may have stretched or corroded, reducing clamping force.
Compatibility Across XCMG ADT Range
The tensioner bracket 800172375 is compatible with the full range of XCMG articulated dump trucks, including the XDA30 (30‑ton payload, Yuchai YC6K engine), XDA40 (39‑ton payload, OM502 V8), XDA45 (45‑ton payload), XDA45U (41‑ton payload, OM460LA inline‑6), TA30 (30‑ton payload), and XDA60 (60‑ton payload, updated OM473 engine). The bracket fits both Mercedes‑Benz OM460LA and OM502 engine families, as well as Yuchai YC6K and Weichai WP13 variants used in certain markets. It is also used in XCMG wheel loaders (LW series) and motor graders (GR215, GR300, GR350) that share the same accessory drive layout.
For the high‑output OM460LA engine, the bracket 800172375 accommodates the heavy‑duty automatic tensioner designed for high belt loads. For the OM502 V8, the same bracket pattern is used but with slightly different tensioner geometry. Always consult the XCMG parts catalog to confirm compatibility with your specific engine serial number. XCMG offers the tensioner bracket as a standalone part or as part of a complete accessory drive service kit that includes the tensioner, belt, and idler pulley. Use the inquiry button above to request a quote or place an order for genuine XCMG tensioner bracket 800172375.
XCMG and the XCMG logo are registered trademarks of Xuzhou Construction Machinery Group Co., Ltd.
OEM part number 800172375 is an original manufacturer reference for a genuine XCMG tensioner bracket. All specifications are derived from XCMG engineering standards and field validation data.
