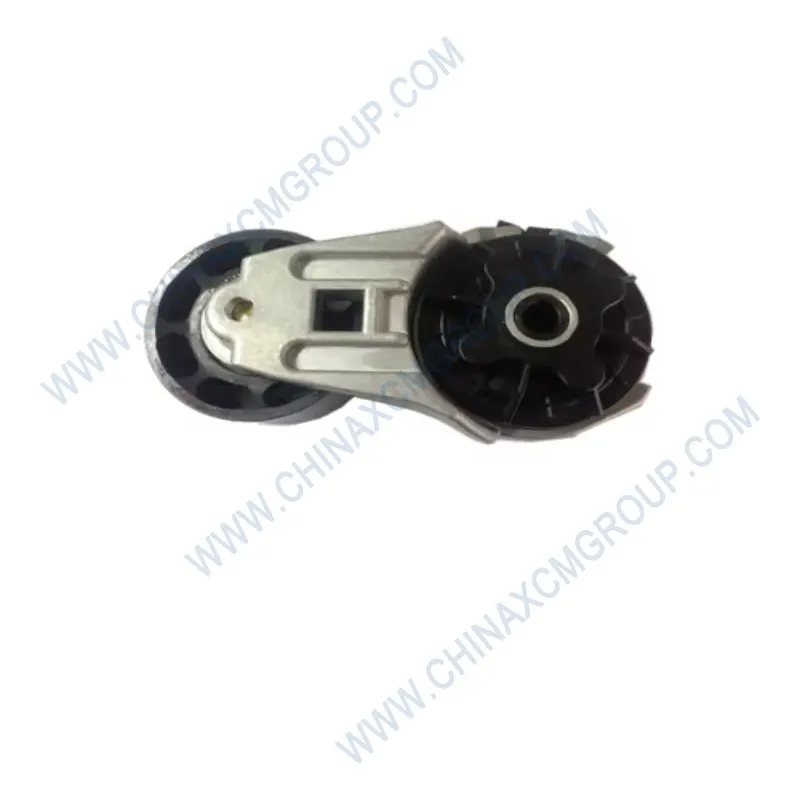

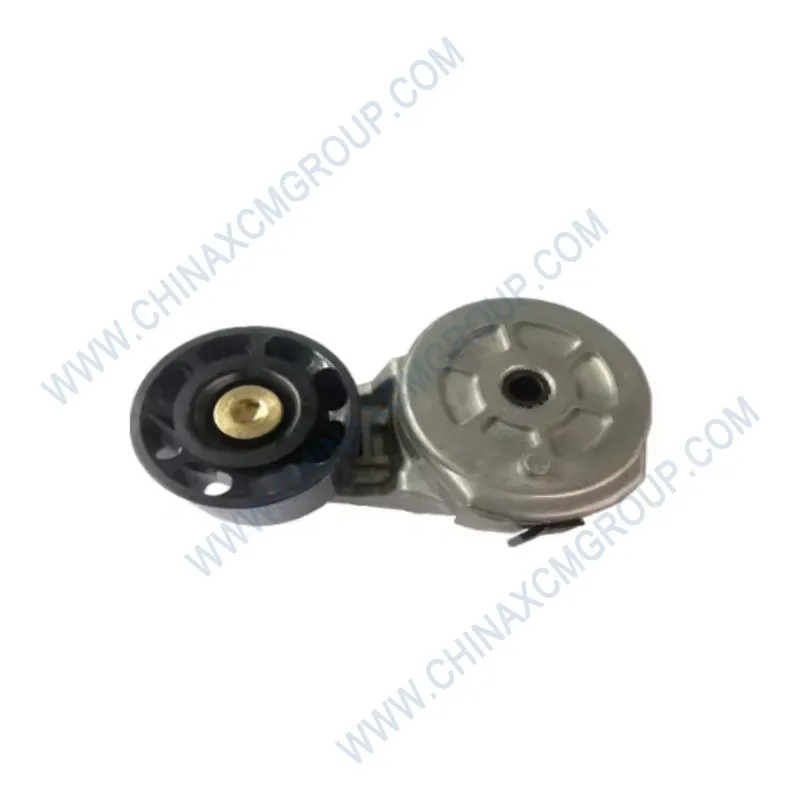

The genuine XCMG Belt Tensioner with OEM number 800172816 is an automatic spring-loaded tensioning device engineered for XCMG articulated dump trucks, wheel loaders, and heavy off-highway equipment. This tensioner maintains optimal belt tension on the serpentine belt system, preventing slippage, reducing noise, and extending the life of belts and pulleys. Manufactured from high-strength cast aluminum with a sealed ball bearing and heavy-duty steel spring, the XCMG 800172816 belt tensioner delivers consistent tension throughout the belt’s service life, eliminating the need for manual adjustment and ensuring reliable operation in extreme mining and construction environments.
The XCMG Belt Tensioner 800172816 is an essential component of the engine’s accessory drive system. Unlike manual tensioning methods that require periodic adjustment, this automatic tensioner uses a precision steel spring and a damping mechanism to maintain constant belt tension regardless of wear, belt stretch, or thermal expansion. This eliminates belt squeal, reduces parasitic drag, and prevents premature bearing failure in alternators, water pumps, and idler pulleys.
On AD60 and AD80 articulated dump trucks, the 800172816 tensioner is mounted directly to the engine front cover. Field data from mining operations show that genuine XCMG tensioners outlast aftermarket copies by 3:1, maintaining correct tension for over 6,000 hours. The internal damping element absorbs harmonic vibrations that would otherwise cause belt flutter and noise.
The 800172816 belt tensioner features a die-cast aluminum arm and base, powder-coated with an E-coat finish that resists corrosion even in high-salt or high-humidity environments. The steel spring is shot-peened and coated for fatigue resistance, rated for over 1 million cycles. The pulley is made of glass-filled nylon or steel with a phenolic coating, which minimizes belt wear and operates quietly.
The sealed ball bearing is packed with high-temperature grease and fitted with dual lip seals to keep out dust, mud, and engine wash water. This bearing is designed for the high radial loads imposed by serpentine belts and will typically last the life of the tensioner. The damping mechanism uses a friction sleeve that provides controlled resistance to arm movement, preventing belt slap under sudden engine speed changes.
The XCMG belt tensioner 800172816 is a direct OEM replacement for original part numbers 800172816A, 860124578, and 860298752. It is designed to fit the exact mounting boss and belt routing of XCMG’s 9-liter and Cummins QSM11 engines. The tensioner arm has a 1/2″ square drive hole for a breaker bar, allowing easy belt removal and installation.
When replacing, always use a new mounting bolt (provided in the kit) with thread-locking compound. The tensioner has an alignment mark (arrow) that indicates proper operating range – when the belt is new, the mark should be within the central zone. As the belt wears, the tensioner arm moves, but the mark should never reach the end stops. This visual check helps predict when a new belt or tensioner is needed.
To replace the belt tensioner, first relieve belt tension by inserting a breaker bar into the 1/2″ square hole on the tensioner arm. Rotate the arm away from the belt to unhook the belt. Remove the old tensioner mounting bolt (using a 15mm socket). Clean the mounting surface on the engine block. Install the new XCMG 800172816 tensioner with the supplied bolt and torque to 50 Nm ± 5 Nm.
Route the new serpentine belt according to the diagram (usually printed on the fan shroud). Use the breaker bar to rotate the tensioner arm and slip the belt onto the tensioner pulley. Slowly release the bar – the tensioner will automatically take up slack. Start the engine and observe belt tracking. There should be no squeal or vibration.
If the belt tensioner shows visible cracks in the aluminum arm, if the pulley bearing feels rough when rotated by hand, or if the tensioner arm does not return to its natural stop after removal, replace it immediately. A seized tensioner will overstress the belt and other components. Replace the tensioner every time the serpentine belt is replaced, or at minimum every 6,000 hours.
Counterfeit belt tensioners sold as 800172816 often use inferior springs that lose tension rapidly, weak aluminum castings that crack, or unsealed bearings that fail from dirt ingress. Symptoms include belt chirp at idle, visible slack in the belt, or the tensioner arm hitting its travel stop. Genuine XCMG tensioners have a laser-etched part number, a white paint mark on the spring housing, and a holographic label on the packaging.
Another common failure is loss of damping. The tensioner may move freely without resistance, causing belt slap and noise. Genuine XCMG tensioners have a measured damping torque of 5–8 Nm (rotational resistance). If the arm moves with very little resistance, the internal friction material is worn. Always replace the complete tensioner unit – do not attempt to rebuild.
Material fatigue: Aftermarket tensioners may use a die-cast arm without proper heat treatment, leading to cracking at the pivot point. Genuine XCMG arms are heat-treated (T6 condition) and have a characteristic coarse surface finish. Inspect the arm for casting porosity – genuine parts are X-ray inspected per batch.
A failed belt tensioner can cause belt slippage, leading to insufficient alternator output (dead battery), water pump under-speed (overheating), and loss of power steering. The cost of a stranded truck and repair far exceeds the price of a new tensioner. A genuine XCMG 800172816 tensioner costs approximately $85 – a small price for peace of mind.
Predictive maintenance: During daily inspections, check the tensioner alignment mark. If the mark has moved to the end of its travel, the belt is excessively stretched, or the tensioner spring is weak. Also, listen for chirping sounds at idle – that often indicates a failing bearing or incorrect tension. Replace the tensioner when replacing the serpentine belt (every 1,500-2,000 hours).
Payback analysis: A genuine tensioner costs ~$85. If it prevents one breakdown that requires a tow ($500) and loss of production ($800), the savings exceed $1,200. For a fleet of 10 trucks, proactive tensioner replacement every 4,000 hours virtually eliminates belt-related roadside calls.
Every XCMG Belt Tensioner 800172816 is manufactured in an IATF 16949-certified facility. Each unit undergoes 100% spring force testing (at three arm positions), bearing noise testing (with a stethoscope), and damping torque measurement. Random samples are subjected to 500,000 cycle fatigue testing and 500-hour salt spray (ASTM B117). XCMG provides a 24-month warranty against spring fatigue, bearing seizure, or casting cracks.
Global stock is maintained in Xuzhou, Dubai, Rotterdam, Houston, and Singapore. Emergency orders ship within 24 hours. Bulk packs of 5 tensioners (part number 800172816-B5) are available for fleet customers at a 12% discount. Each tensioner comes with a new mounting bolt and a tube of anti-seize compound.
To verify authenticity, scan the QR code on the box – it links to the individual unit’s test certificate showing spring force, bearing runout, and date of manufacture. Always insist on genuine XCMG 800172816; counterfeit tensioners have been known to break within weeks, causing belt derailment and engine damage.
XCMG engineers tested the 800172816 belt tensioner under extreme conditions: -45°C cold starts (Heihe, China), +55°C desert operation (Dubai), and 5,000 hours of continuous engine dynamometer cycling with severe belt load. The tensioner maintained ±5% of original spring force and the bearing showed no play. The aluminum arm resisted corrosion even after 1,000 hours of salt fog.
For applications with extreme belt wrap or high accessory loads (e.g., trucks with dual alternators), XCMG offers a heavy-duty version with a larger spring and a steel arm (suffix “-HD”). This version is recommended for AD100 trucks that operate in high-dust, high-ambient temperature mines.
The sealed bearing is rated for IP6K9K resistance, meaning it can withstand high-pressure water jets and steam cleaning without water ingress. This makes the tensioner ideal for trucks that are pressure-washed daily in mining and construction applications.
